Automatic Electronic Counting Machine is mainly used for bottle packing of tablets (including abnormal tablets), capsules, gels (including transparent gels and opaque gels) pills and similar solid granules. Highly accurate counting.
Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.
Feeding evenly with quiver, special patent filling part protects materials from harm.
No bottle under the filling hopper, no materiel in the supply hopper, or the photoelectric sensor box is abnormal, the machine makes alarm.
The special filling hopper avoids the materials jam, small mouth bottle can quickly bottling. (Available as an option)
You can choose the advanced device of getting rid of powder and the device of getting rid of static electricity. (Available as an option)
Sound and light alarm. (Available as an option)
Detection options include: lack of products in the supply hopper, damaged tablet, weighing systems online. (Available as an option)
Fully compliant to GMP regulations.
Main Technical Data
- Applicable: 00-5#capsules,soft gels φ5.5-22normal tablets, special shape tablets, coating tablets φ5.5-20pills and other solid granules
- Capacity: 20～80BPM
- Working range: Adjustable from 2-9999 per bottle
- Power supply: 220V/50Hz 1.2kw can be customized
- Air supply: 0.6Mpa, 36-45l/min
- Size: 1600*1400*1560mm
- Weight: 350kg
- Remarks: Capacity is subject to the type and size of the bottle and tablet, as well as the quantity filled per bottle

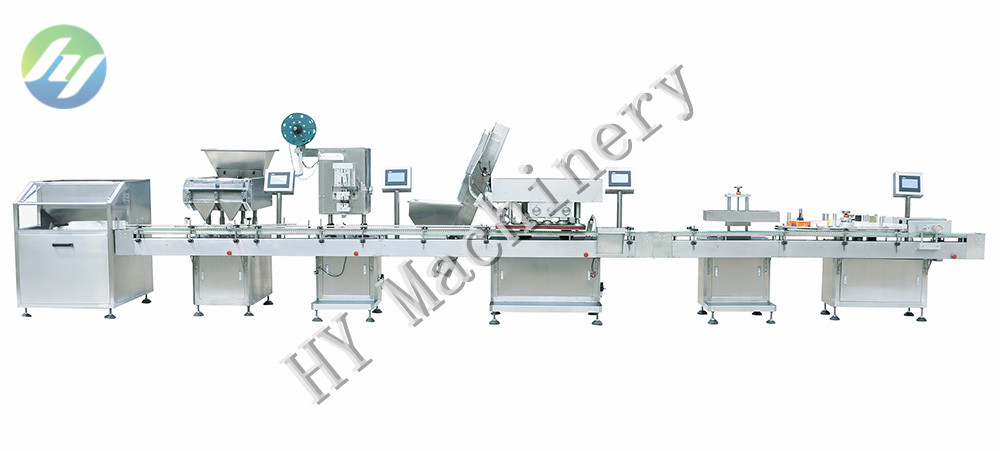

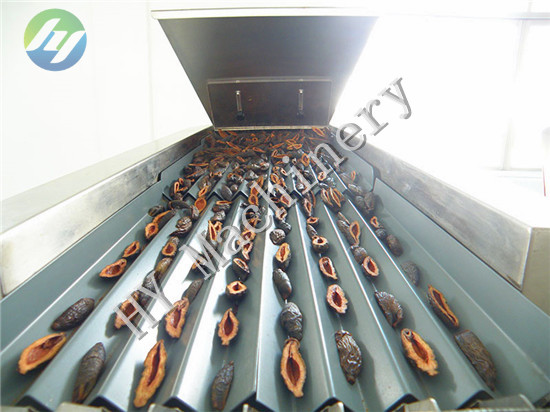

Automatic Electronic Capsules Counting Machine Pictures
Automatic Electronic Counting Machine is suitable for below samples
Click here to view Automatic Electronic Counting Filling Machine running video on YouTube
