8-4 Automatic rotary glass bottle filling and capping machine

  • Model: HY-RCGF-8-4
  • Filling Nozzles No.: 8pcs
  • Capping heads No.: 4pcs
  • Rinsing heads No.: 8pcs (optional)
BASIC INFO
Technical Description

This rotary glass bottles filling and lug lid twist-off capping machine adopts PLC programmable control and touch screen parameter setting. It is an advanced filling capping system integrating machine, combine sensor detector, electricity and compressed air. It has automatic gravity flow, same lqiuid level control measurement and man-machine interface operation system. It can be used for liquid filling without gas, automatic control of feeding; no bottle no filling. It is convenient to change the bottles with same bottle mouth size, change the filling specification only need to change the bottle body clamping plates. It is suitable for both cold and hot filling of liquid without gas. With vaccum suction function, the scums can be removed without polution. It has automatic calculation cleaning function. It has a liquid container on the above side. Then the liquid is buffered, the liquid level in the container is controlled at the same, when liquid level is less, the inlet valve will open and pump will work to inlet liquid from user’s liquid tank. For cleaning process, the machine is made of SUS304 stainless steel, and can be washed easily. There need one cycle bottles to assist the circulation cleaning. It is an ideal automatic filling equipment for beverage drinking liquid bottling. It has the characteristics of high filling precision, simple operation, convenient maintenance and labor saving.


Main Technical Data
Model
8-4
12-4
18-6
24-8
32-8
40-10
50-12
60-15
Filling Heads
8
12
18
24
32
40
50
60
Capping Heads
4
4
6
8
8
10
12
15
500ml Bottle Capacity(BPH)
2000
3000
5000
8000
12000
15000
20000
25000
Volume
100-1000ml
Accuracy
≤1000ml: ±2ml; 100-500ml: ±1ml; ≤100m: ≤1ml
Suitable Bottles
Height: 100-280mm, Diameter: Φ30-110mm
Control method
Touch screen and PLC
Air supply
0.5-0.7Mpa
Voltage
415V/380V/220V, Three Phases , 50/60Hz, customized globally




Automatic Glass Bottle Juice Filling Lug Lid Capping Machine Pictures

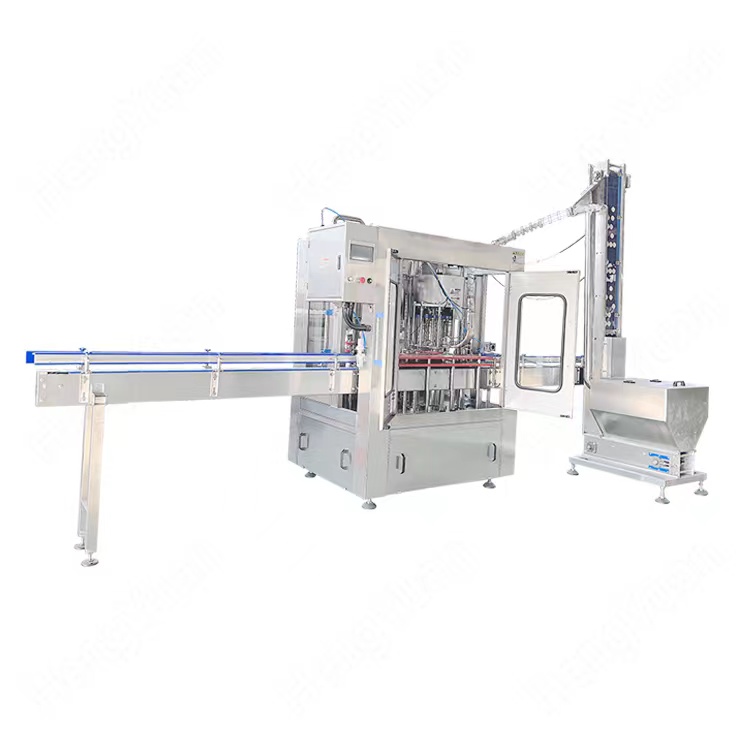

HY-RCGF-8-4 Juice Glass Bottle Filling Lug Lid Capping Machine

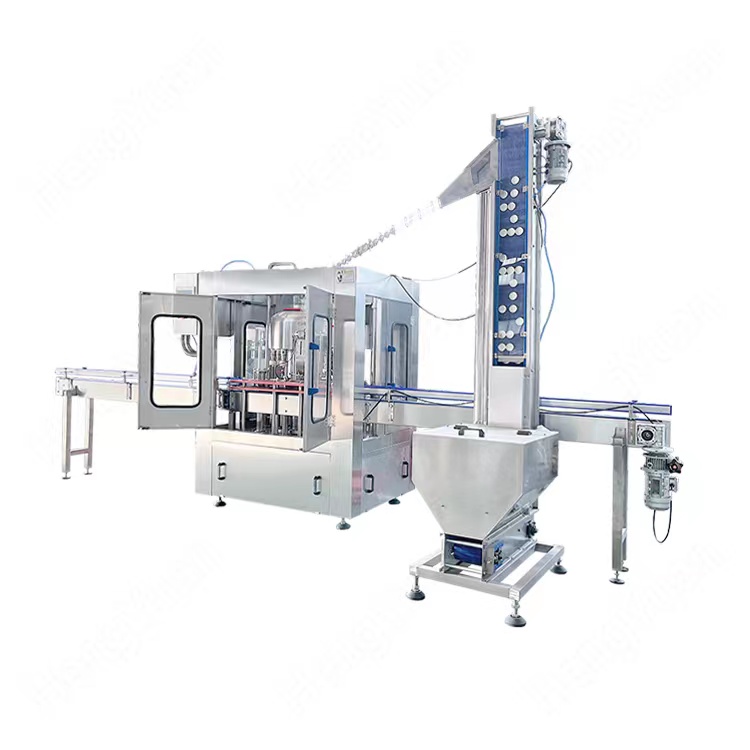

HY-RCGF-8-4 Automatic Juice Glass Bottle Filling Lug Lid Sealing Machine

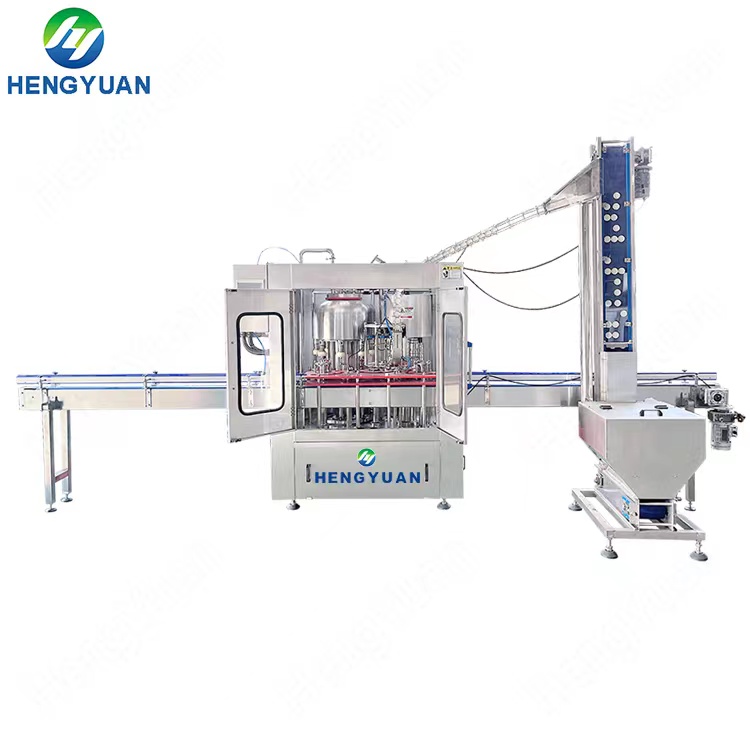

HY-RCGF-8-4 Automatic Glass Bottle Filling Lug Lid Twist-off Capping Machine

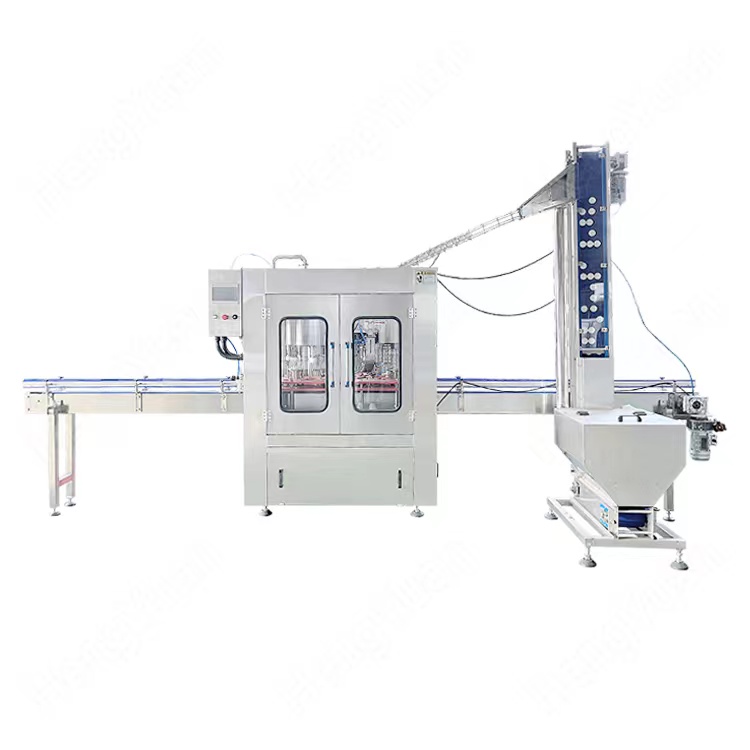

HY-RCGF-8-4 Apple Juice Glass Bottle Filling Lug Lid Twist-off Capping Machine

HY-RCGF-8-4 Apple Juice Glass Bottle Filling Tin Plate Lid Twist-off Capping Machine

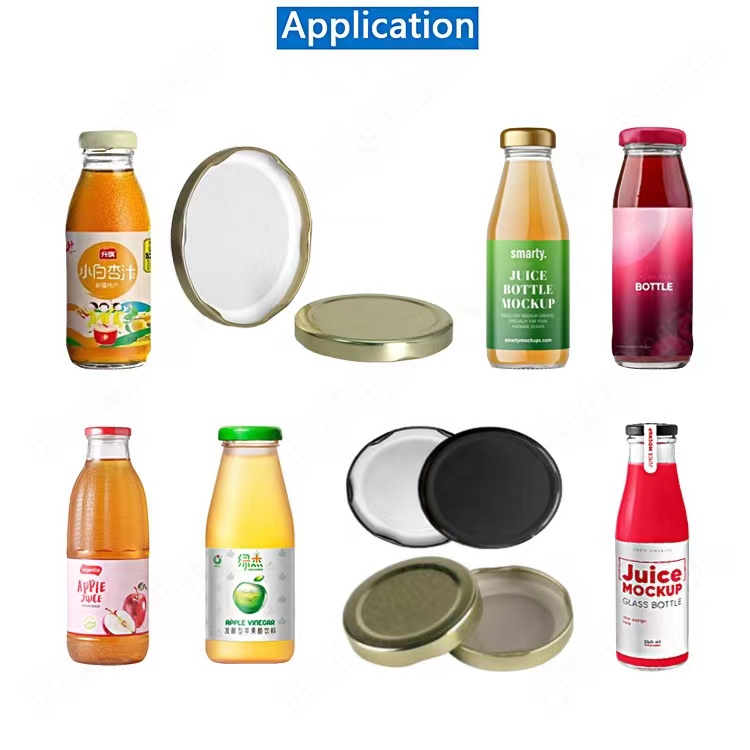

Automatic Rotary Filling Capping Machine is suitable for below bottle samples

Automatic bottle filling and capping machine, Hot juice glass bottles filling and capping machine, Hot orange juice glass bottle filling and lug lid twist-off capping machine, Apple juice glass bottle dispensing machine, Grape juice glass bottle filler with capper machine, mango juice bottle filling and capping machine, milk glass bottle filling and capping machine, tea drinking glass bottle filling and capping machine, etc. Rotary filling and capping machine.

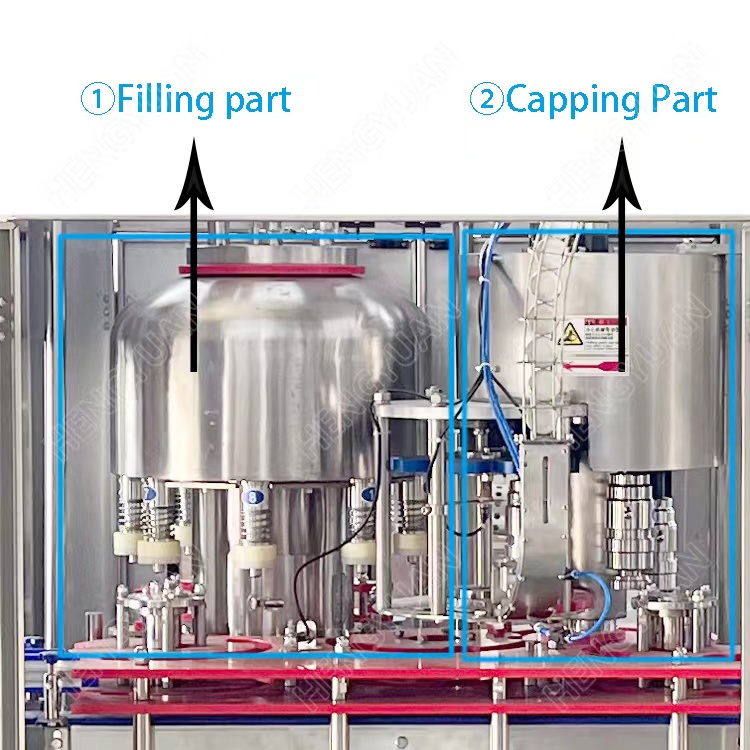

HY-RCGF-8-4 Juice Glass Bottles Filling Twist-off Capping Machine


Click here to view Automatic Glass Bottle Filling Capping Machine running video on YouTube

https://youtu.be/-sDA4ZgqvoA
