Automatic 1 to 5 Liters Gravity Flowing Anti-Corrosive Bottle Liquid Filling Machine

  • MODEL: HYGF-5000A
  • Nozzles No.: 1-20pcs customized
Technical Description
Automatic anti-corrosive filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable,equip with photo electricity tran sduction and pneumatic action.Contact liquid parts is use anticorrosive non-metallic material and with diving function ,can effectively eliminate the bubbles. This machine mainly use for packing of chemical products,such as detergent,bleaching, sulphuric acid84 disinfectant, gelwater, strong acid liquid fertilizer,can suits for packing of all kinds of bottle shape and irregular bottle.
Main Technical Data
  • Number of filling heads: 4,6,8,12,16,20 filling heads optional
  • Operation interface: Touchscreen
  • Measuring method: By time
  • Filling capacity: 1000-5000ml (50ml-1000ml, 5L-10L or 10L-30L can be customized)
  • Filling speed: 0-5000B/H
  • Filling error: ±1 %
  • Application bottle diameter: Acorrding to clients sample bottle
  • Liquid inlet method: Liquid transducer automatic control
  • Automatic: No bottle no filling
  • Suitable liquid: Liquid with good mobility
  • Air pressure: 0.60.8MPA
  • Gas consumption volume: 500 liters/minute
  • Power supply: AC380V/220V, 50HZ, 1.5KW
  • Dimension: 2000×900×2300 mm
  • Weight: 600kg

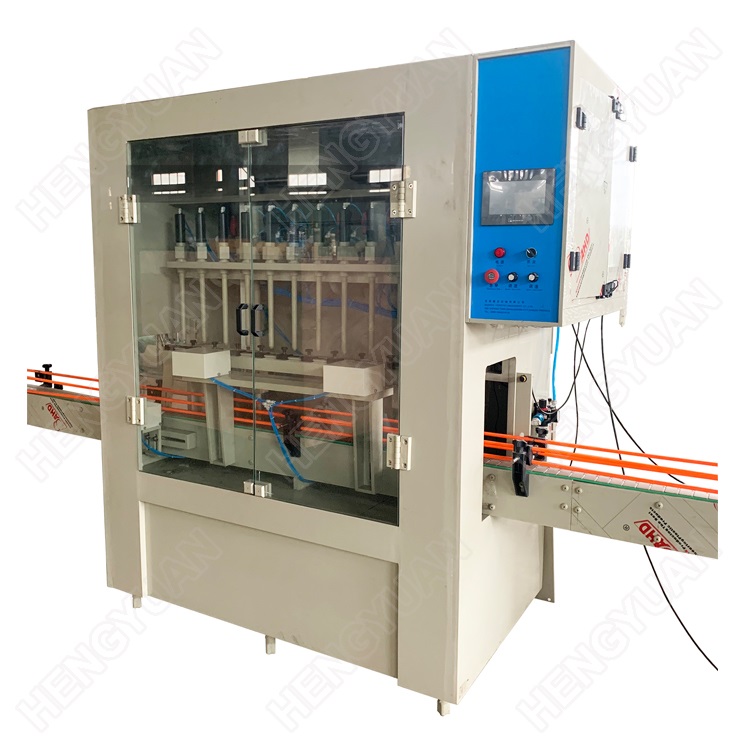

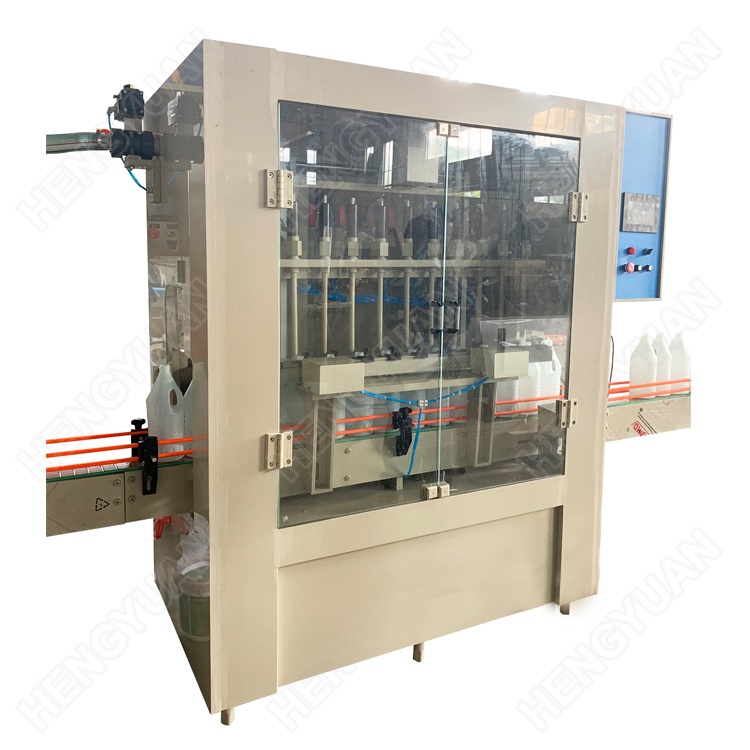

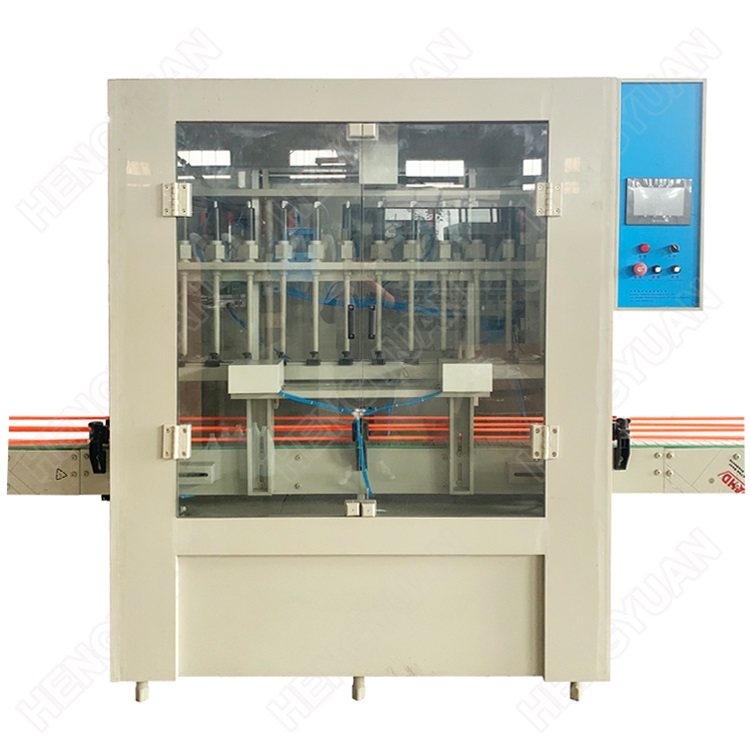

Automatic Inline Gravity Type Anti Corrosive Bottle Filling Machine Pictures
Automatic disinfectant liquid filling machine

Automatic bleach filling machine

Automatic toilet bowl cleaner liquid filler
Automatic Inline Gravity Type Anti Corrosive Bottle Filling Machine is suitable for below bottle samples

Bleach, toilet bowl cleaner, sodium hypochlorite solution disinfectant, javel, HCL solution liquid bottle filling machine.

Anti-corrosive liquid filler suitable sample bottles

Click here to view Automatic Inline Piston Filling Machine running video on YouTube
