Automatic 1Liter Volume Air Cylinder Driven Piston Filling Machine

  • MODEL: HYPF-1000P
  • Nozzles No.: 1-24pcs customized
BASIC INFO
Technical Description

Automatic Linear Pneumatic Piston Filling Machine is for different viscous liquid and cream with different bottle or jars. The performance of the product reaches the international leading level. PLC control, air cylinder driving, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.

The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of high quality stainless steel, beautiful appearance, will not pollute the material, is the best choice of oil high viscosity liquid filling.

Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear stepless speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily. It can be equipped with a pneumatic gland or a capping device to form a multi-station one-machine multi-functional production line. The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance. Applied to GMP standard. Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place. Piston liquid filling machine is widely used for bottling of beverage, daily chemical, agricultural chemical, food and pharmaceutics industry.



Main Technical Data
  • Filling heads: 1-24 pcs customized
  • Filling range: 50-1000ml
  • Diameter of bottle: Φ40mm~Φ90mm
  • Height of bottle: 80mm-230mm
  • Filling accuracy: +1%(≤200ml)  +0.5%(200-1000ml)
  • Output: ≤6000BPH
  • Air resource: 0.6-0.8MPa
  • Air consumption: 200L/h
  • Power: 2.5KW/AC220V/380V/50Hz/60Hz Customized
  • Weight: 400kg
  • Size(LxWxH): 2000x1050x2300mm

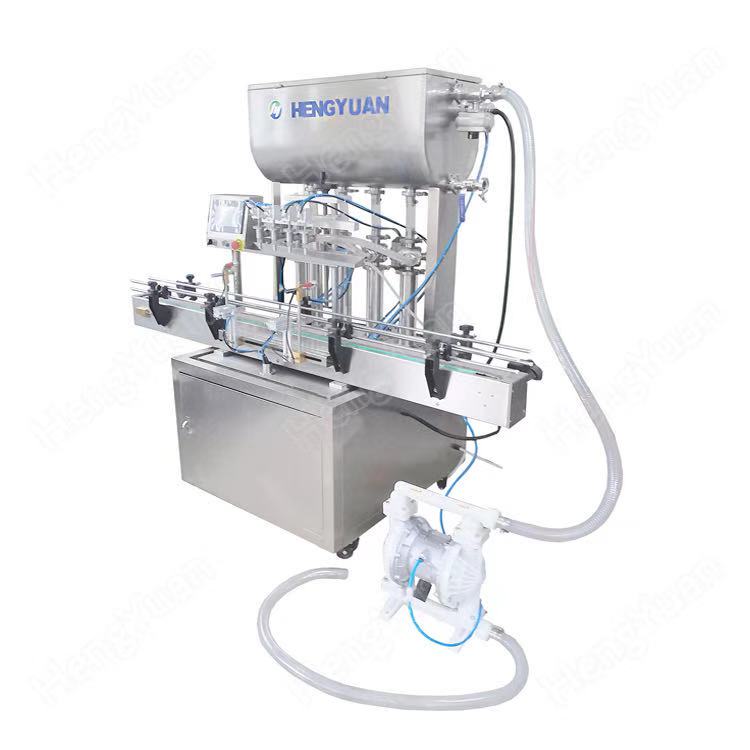

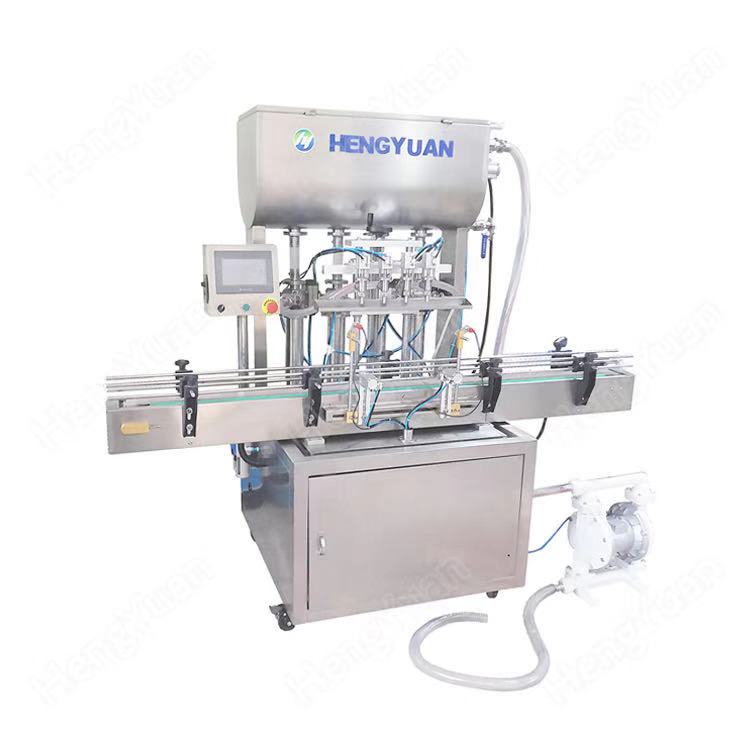

Inline Pneumatic Piston Filling Machine Pictures



Automatic pneumatic piston filler

Automatic pneumatic piston shampoo filling machineAutomatic pneumatic piston liquid filling machine


Automatic granuled sauce filling machine details


automatic hair conditioner filling machine

automatic body wash filling machine
automatic linear piston hand sanitizer gel filler


Linear Pneumatic Piston Filling Machine is suitable for below bottle samples


50-1000ml (other volume is available) customized both viscous and free-flowing liquid filling machine.
For examples: pesticide filler, motor oil filler, shampoo filling machine, hair conditioner filling machine, body wash filling machine, sauce filling machine, juice filling machine, milk filling machine, water filling machine, cream filling machine, gel filling machinedispenser, liquid filler, refill equipment. Automatic Piston Filling Machine.

inline air cylinder diven piston filling equipment


Click here to view Automatic Inline Piston Filling Machine running video on YouTube
https://youtu.be/xlfwPeznFVQ
