Automatic Mixing Type 1Liter Volume Piston Filling Machine

  • MODEL: HYPF-1000S-G
  • Nozzles No.: 1-24pcs customized
BASIC INFO
Technical Description

Automatic Linear piston granuled sauce filling machine is for different viscous liquid and cream with different bottle or jars. The performance of the product reaches the international leading level. PLC control, servo motor driving, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.

The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of high quality stainless steel, beautiful appearance, will not pollute the material, is the best choice of oil high viscosity liquid filling.

Bottling Filling Machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear stepless speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily. It can be equipped with a pneumatic gland or a capping device to form a multi-station one-machine multi-functional production line. The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance. Applied to GMP standard. It has big filling valve, the tank is with stirring function to mix the granules and liquid. Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place. Piston liquid filling machine is widely used for bottling of beverage, daily chemical, agricultural chemical, food and pharmaceutics industry.



Main Technical Data
  • Filling range: 50-1000ml
  • Diameter of bottle: Φ40mm~Φ90mm
  • Height of bottle: 80mm-230mm
  • Filling accuracy: +1%(≤200ml)  +0.5%(200-1000ml)
  • Output: ≤7000BPH
  • Air resource: 0.6-0.8MPa
  • Air consumption: 200L/h
  • Power: 2.5KW/AC220V/380V/50Hz/60Hz Customized
  • Weight: 600kg
  • Size(LxWxH): 2000x1050x2300mm

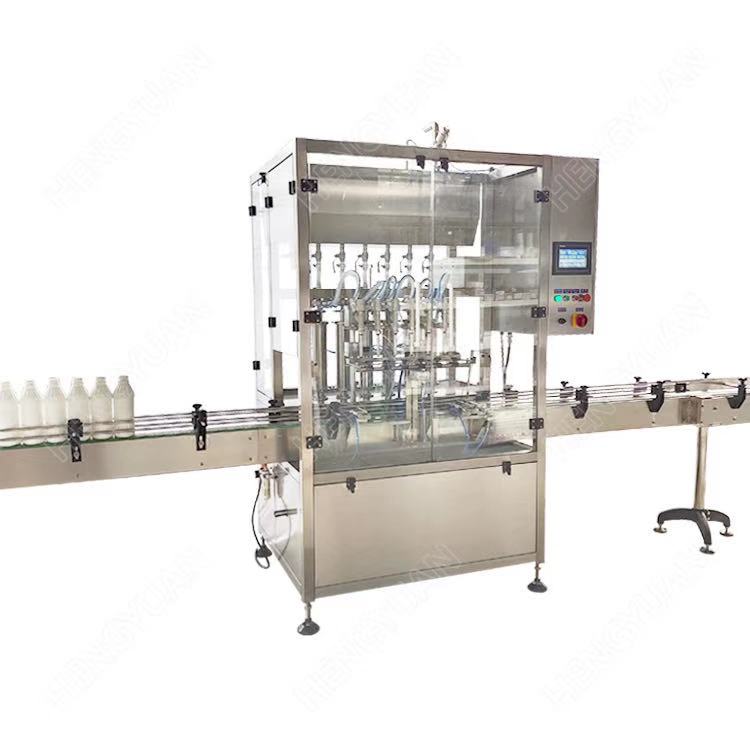

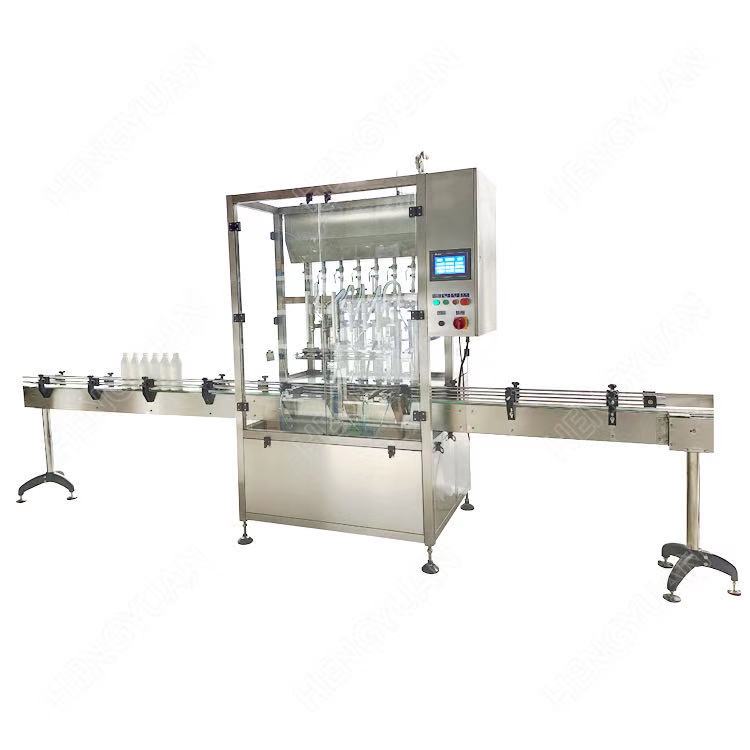

Inline Piston Filling Machine Pictures


automatic granuled sauce filling machine

automatic beef sauce filling machineautomatic chilli sauce filling machine

Automatic granuled sauce filling machine details

Automatic soybean sauce filling machine

automatic chilli sauce filler





automatic soybean sauce filler
automatic beef paste filler
Inline Granuled Sauce Piston Filling Machine is suitable for below bottle samples


50-1000ml (other volume is available) customized granules mixed viscous liquid filling machine.
For examples: Beef paste filling machine, chilli sauce filling machine, soybean paste filling machine, pepper paste filler, sesame seasoning oil dispensing equipment, hotpot base dispensing equipment, vegetable paste filling machine, meat soap dispenser, etc. any liquid, half-flowing liquid, viscous cream, with or without granules, semi-automatic desktop sauce dispenser, liquid filler, refill equipment. Automatic Piston Filling Machine.


automatic pepper paste filling machine


Click here to view Automatic Inline Piston Filling Machine running video on YouTube

https://youtu.be/O3gLHqIH5TQ
