Automatic Shrink Sleeve Labeling Machine

  • MODEL: HYTS-150
BASIC INFO
I. Machine Main Body

Technical description

Heat shrink sleeve label machine adopts PLC programmable controller, imported servo motor, servo driver, frequency converter ; besides, it adopts the positioning module to ensure the casting label precise,rapid and stable. It not only has a highly precise position for casting label, but also can withstand the perfect shape of the bottle after shrinkage.
Heat shrink sleeve label machine applies to food & beverage industries as fruit juice, tea,drink, dairy products, pure water, condiments, beer and sports drink etc. Of all kinds of bottles; It suitable for various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc. It not only has a highly precise position for casting label, but also can withstand the perfect shape of the bottle after shrinkage.


Main technical data
  • Voltage (v): AC 220V/110V 50/60Hz customized
  • Power of sleeve labeling machine (kw): 3KW
  • Production capacity (p/min): ≥100p/min ( label height ≤ 100mm). The higher label height, the lower production capacity.
  • Qualified rate of sleeve labeling:  ≥98%
  • Whole-line productive efficiency: ≥95% (calculated by 24 hours )
  • Bottle diameter (mm): 28mm ~125mm, special diameter can be customized.
  • Bottle height (mm): 30 mm -280 mm,special height can be customized.
  • Applicable labels: PVC, PET, OPS
  • Label length (mm): 30mm ~250mm
  • Label thickness (mm): 0.035mm ~0.13mm
  • Transparent space between labels : ≥5mm
  • Inner diameter of core label roll: ≥5’’(127mm)
  • Outer diameter of label roll: ≤500mm
  • Overall dimensions of the machine (L×W×H): 1550mm×1055mm×2000mm

II. Steam shrinkage furnace

New-type steam shrinkage furnace, applicable to different and irregular round bottles, square bottles and flat bottles etc. Easy to adjust and maintain.

Features

New-type steam shrinkage furnace, applicable to different and irregular round bottles, square bottles and flat bottles etc. Easy to adjust and maintain. It has an even shrinking function. The distribution of low-pressure steam drum and spouting way of steam are uniform and designed with seamless steel tube. The nozzle is divided into three adjustable segments, and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of operation and maintenance.

Special Manufacturing

Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.

Technical Parameters

Voltage (v): AC380V, 50/60HZ, 3 phases customized
Blower Power (kw): 0.75KW
Steam source pressure (kg/cm2): 1-8Kg/cm2
Steam consumption (kg/h): <25Kg/H
Overall dimensions of the machine (mm) (L×W×H): L2300mm×W500mm×H1300mm

III. Electric shrink wrap

Features

Specially designed hot air shrink wrap, with better energy-saving efficiency. Shrinked products without water droplets outside, and direct package is available.

Technical Parameters

Voltage (v): AC380V, 50/60HZ, 3 Phases customized
Input Power (kw): 9KW
Overall dimensions of the machine (mm) (L×W×H): L2000mm×W600mm×H1300mm


IV. Steam Generator

The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supple for 5 minutes or so, it can output the steam continuously with high working efficiency.

Technical Parameters

  • Input Power Supply: 3phase, 380V, 50/60Hz customized
  • Input Power: 18KW/36KW
  • Steam Pressure: 0.25-0.4Mpa
  • Vapor Generation Value:24Kg/h; 48Kg/h
  • External Dimension: 560L×550W×900H
  • Weight: 96Kg

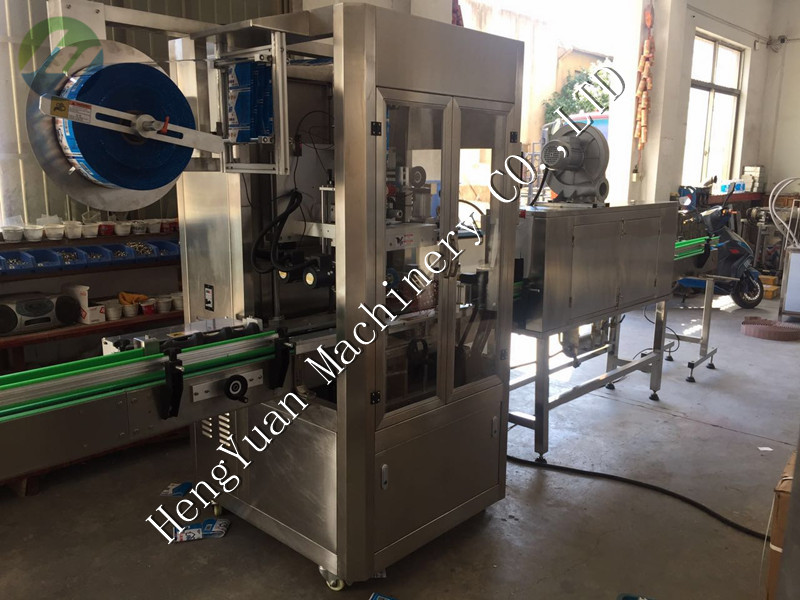

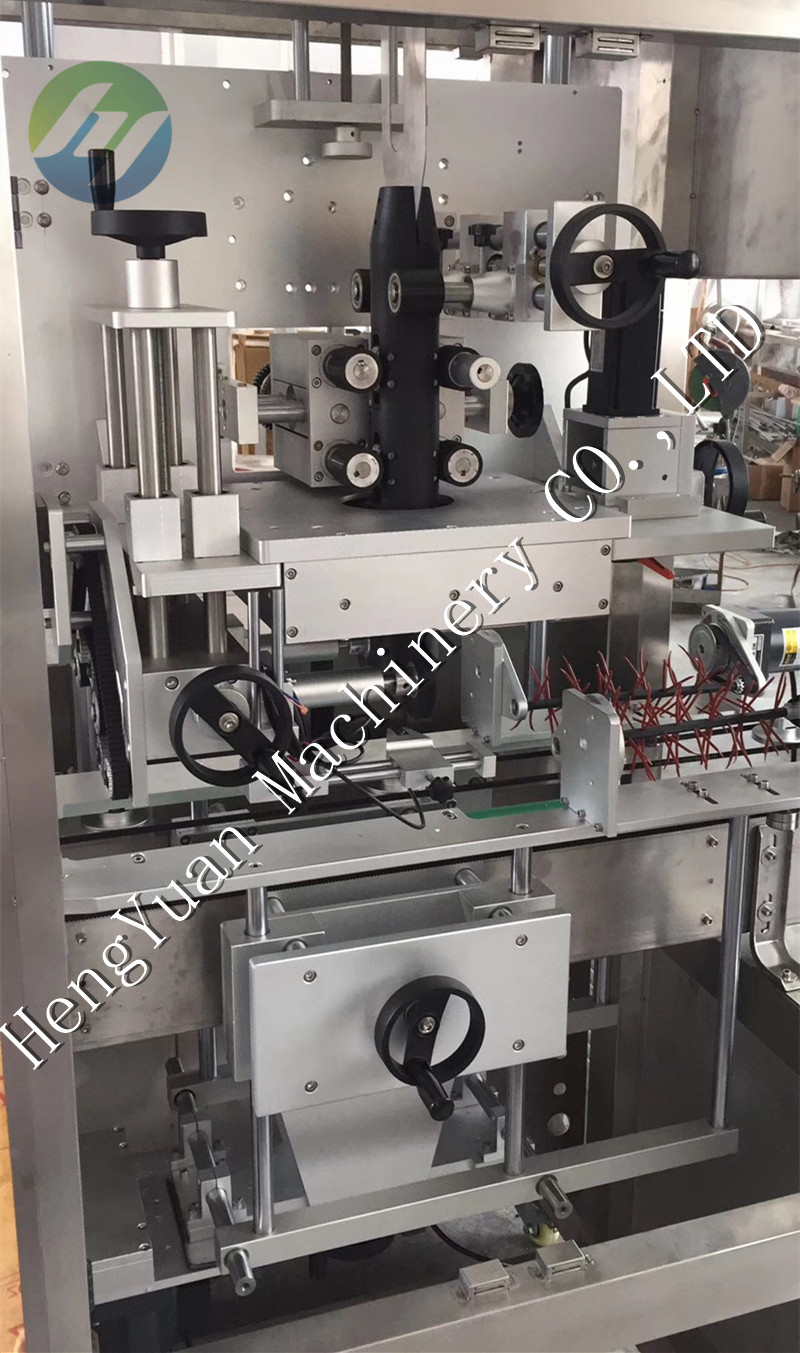

Automatic Shrink Sleeve Labeling Machine picture





automatic shrink sleeve wrapping labeling machine

shrink sleeve label applicator





Automatic Shrink Sleeve Labeling Machine Application
Automatic shrink sleeve labeling machine, automatic shrink sleeve labeler, automatic shrink sleeve label applicator, full automatic shrink sleeve labeling machine, automatic pure water bottle shrink sleeve labeling machine, automatic pure water shrink sleeve labeler applicator, automatic juice bottle shrink sleeve labeling machine, automatic juice shrink sleeve labeler applicator, automatic beverage bottle shrink sleeve labeling machine, automatic beverage bottle shrink sleeve label applicator, automatic PET bottle shrink sleeve labeling machine, automatic PET bottle shrink sleeve label applicator, automatic milk bottle shrink sleeve labeler, automatic milk bottle shrink sleeve label application machine, automatic function beverage bottle shrink sleeve labeler, automatic tea drink bottle shrink sleeve labeling machine, automatic alcohol bottle shrink sleeve labeling machine, automatic pesticide shrink sleeve labeling machine, automatic yogurt cup shrink sleeve labeling machine, etc
