Automatic Single Head Capping Machine

  • MODEL: HYXG-1A
  • Capping Head No.: 1pc
  • Working Method: Cap Unscrambling Fetching and Capping
BASIC INFO
Technical Description

Automatic unscrambling fetching capping machine is protective automatic capping machine and control by PLC program .Bottles will be fixed by two cylinders and it can automatically arrange lid , taking lid and sending lid,it will first grasp lid then capping under control of double-acting cylinder lifting stroke. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage. It suits for capping of 5-25kg drum plastic large diameter caps.

Main Technical Data
  • capacity: ≤1000(b/h)
  • applicable bottle diameter: ≤210(L)×130(W)mm
  • applicable bottle height: ≤320mm
  • cap diameter: ≤70mm
  • air pressure: 0.6-0.8Mpa
  • voltage: AC220V,50/60Hz(customized)
  • total power: 2Kw
  • net weight: 550kg
  • dimension: 2000(L)×1030(W)×2100(H)mm

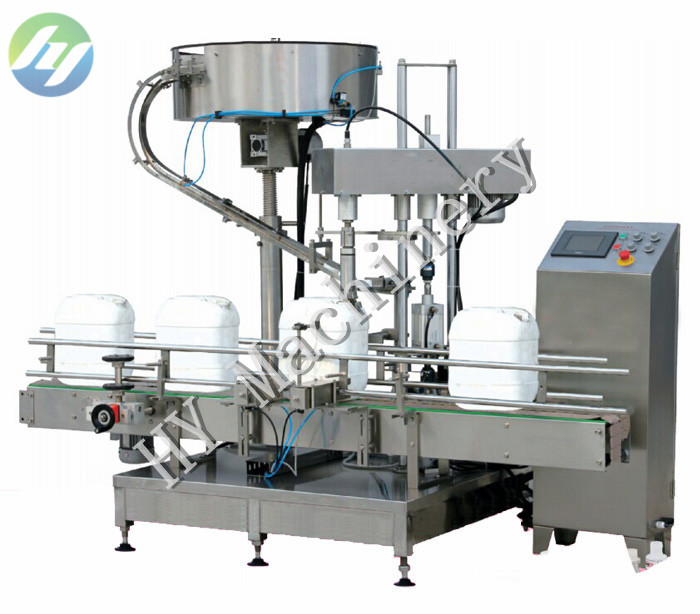

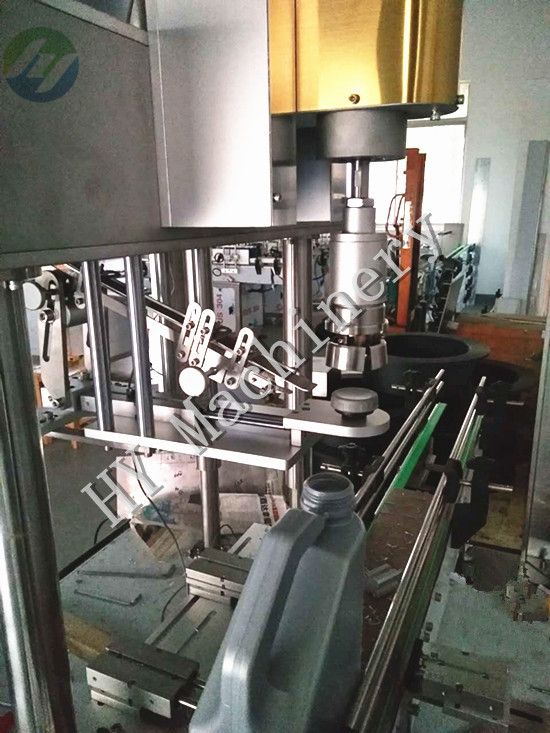

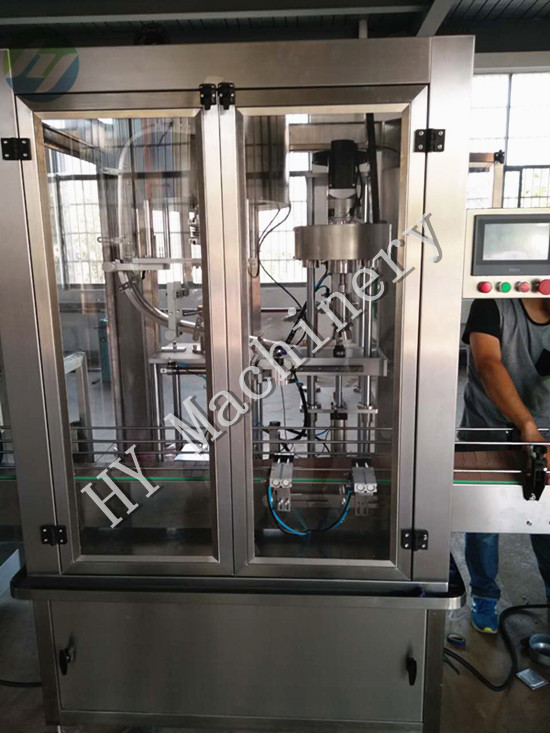

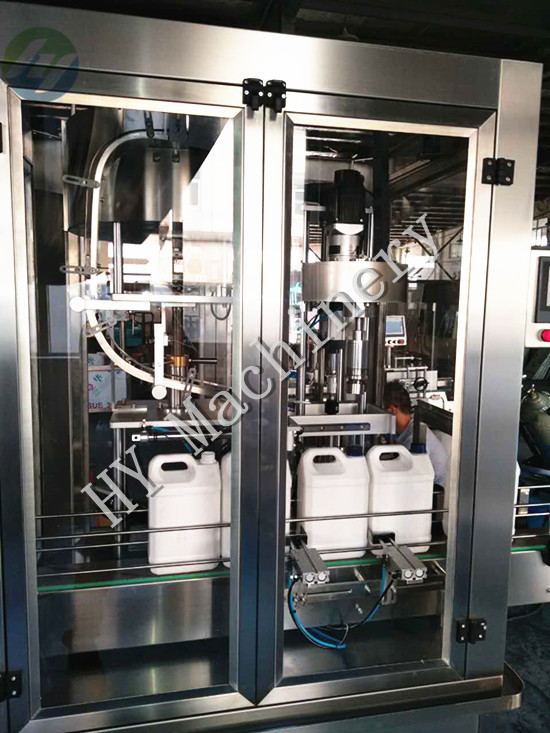

Automatic Cap Unscrambling Fetching Capping Machine Pictures

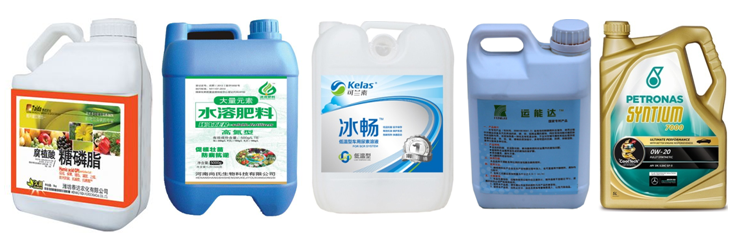

Inline Automatic Single Head Capping Machine is suitable for below bottle samples

Pesticide bucket capping machine, Liquid chemical fertilizer bucket capping filling machine, Automobile urea bucket capping machine, Antifreeze bucket capping machine, Motor oil bucket capping machine




Click here to view Automatic Inline Bucket Capping Machine running video on YouTube

https://www.youtube.com/edit?video_id=rt8epZCqEwU
