1. Basic use
It is suitable for labeling on the round object, with the labeling accuracy of ± 0.5mm.
2. Scope of application
Applicable label: self adhesive label, electronic supervision code, bar code, etc. Applicable products: products requiring labeling on round objects.
3. Working process
operation process: put the product - > label and labeling (automatically realized by the equipment) - > take out the labeled product.
Main technical data
- Labeling capacity: 0-35pcs/min
- Labeling accuracy: ±0.5mm
- Label material: Adhesive sticker, opaque or transparent label
- The inner diameter of label roll: 76 mm
- The outer diameter of label roll: 350mm (max)
- The suitable size of label: length: 15mm ~ 300mm; width (base paper width): 15mm ~ 1550mm;
- The suitable size of labeling objects: Can be customized
- Operating direction: Left or Right
- Total Power: 1.2kw
- Power supply: AC220V/110V, Single phase. Globally customized
- Net weight: About 250kg
- Machine size: 200(L)×90(W)×130(H)cm

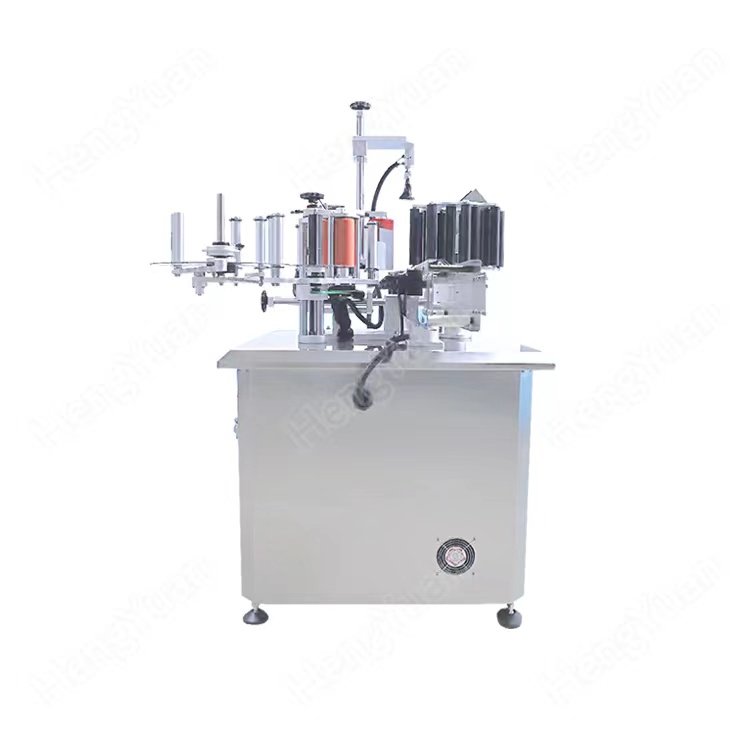

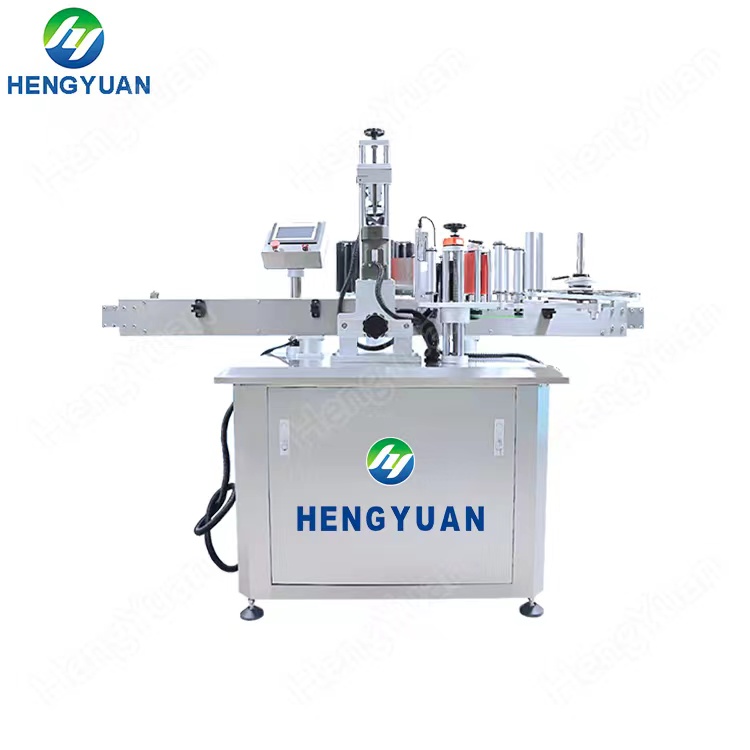

HYCL-150S Automatic Positioning Round Bottle Label Applicator Application
Automatic rotating clamping round bottle sticker labeling machine is suitable for labeling for labeling on round objects, It is widely used in labeling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.
For examples: round bottles, round objects, round jars, round pesticide bottles, round beverage drinking bottles, round vials, round shampoo bottles, hand wash bottles, etc Label application machine.
Click here to view Automatic Positioning Round Bottle Labeling Machine running video on youtube
Contact us to get more information and quotation
