Cup Dosing PVA Pod Water-Soluble Film Powder and Granules Packing Machine

  • Model: HYSR-16G
  • Capacity: 1800-3000pcs/hour
  • Suitable for: Powder and granules
BASIC INFO

Technical Description

Automatic PVA water-soluble film pods packing machine is a mould type unit dose powder and granules pods forming, filling, sealing and cutting equipment. It is an automatic high capacity electrical heating sealing packing machine specially designed for high concentrated powder pods. It has good adaptability of water soluble PVA film. It is dosing by cups.


Main Technical Data

  • Name: Water-soluble Film Packing Machine
  • Brand Name: HENGYUAN
  • Packing speed: Approx 30-50 bags/min
  • Volume: single chamber 5-30 grams by changing moulds
  • Voltage: 380V/50Hz can be customized globally
  • Pneumatic: 0.6mpa
  • Filling mold: 4x4 or 5x5
  • Application: Granules and powder detergent pods
  • Weight: 750kg
  • Dimension: 1800*1300*2200mm
  • Main steel of the machine: Stainless steel 304
  • Advantage: Dissolve fast, no residue, one-time use without any waste. The film is non-toxic, and will be dissolved into water and carbon dioxide.
  • The film is antistatic and with good tensile strength and no dust. The machine adopts heat sealing, and it is with good sealing properties.

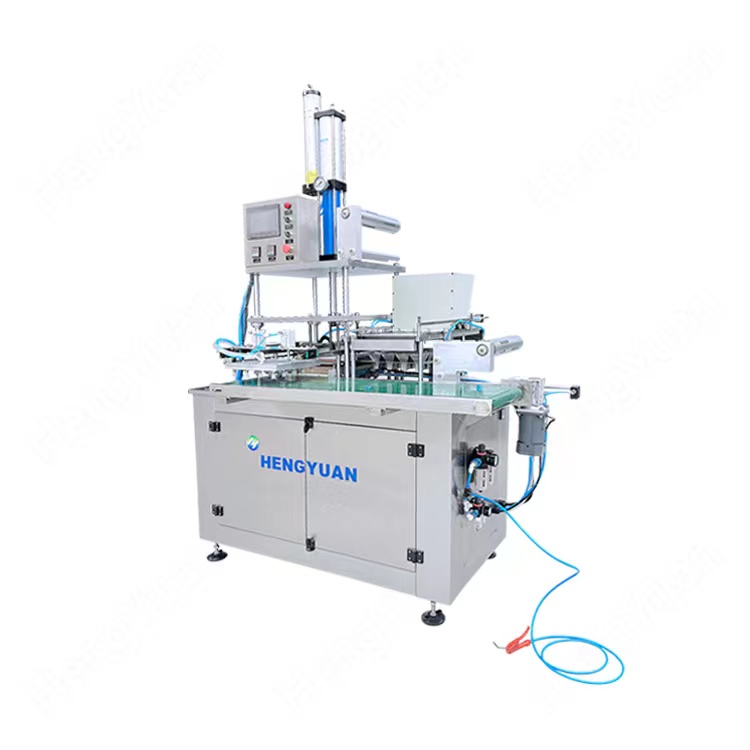

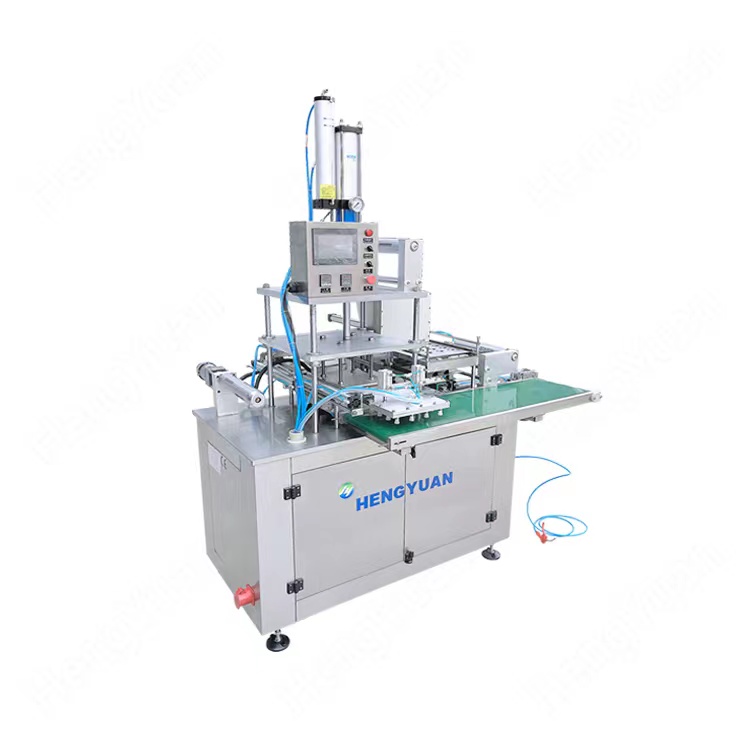

Cup Dosing Powder and Granules Pods PVA Water-Soluble Film Packing Machine pictures

HYSR-16G Automatic Cup Dosing PVA Pod Packing Machine
HYSR-16G Automatic Cup Dosing Granules PVOH Pod Packing Machine
HYSR-16G Automatic Cup Dosing Powder PVOH Pod Packing Machine
HYSR-16G Automatic Cup Dosing Dishwashing Powder PVOH Bead Packing Machine
HYSR-16G Automatic Cup Dosing Granules PVA Pod Packer
HYSR-16G Automatic Cup Dosing PVA Pod Packing Equipment

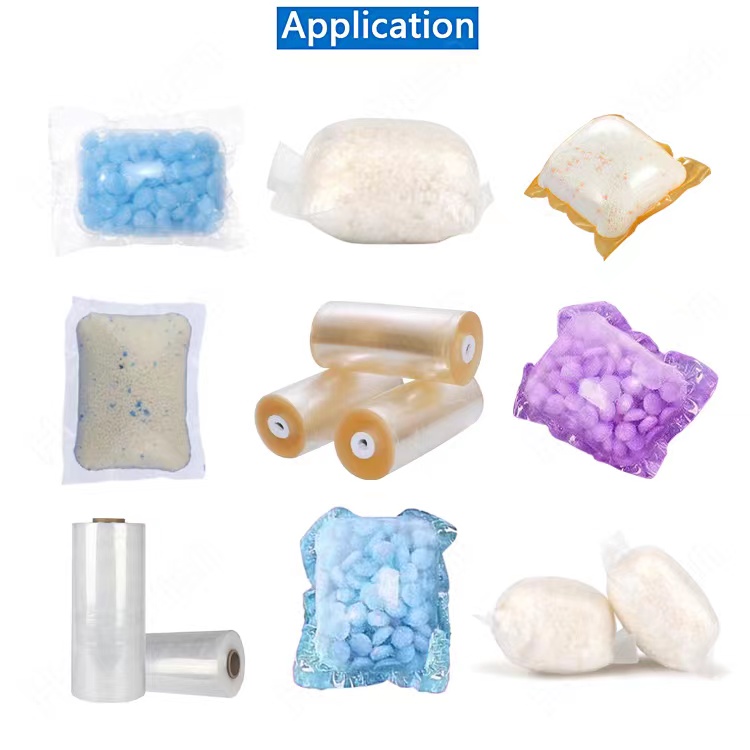

Detergent Powder and Granules Pods PVA Water-Soluble Film Pouch Packing Machine is suitable for below pouch samples


The machine is particulary suitable for packing high concentrated detergent powder pod, Flavoring agent granules capsule, laundry powder pods, dishwashing powder pod, plumbing agent powder bead,  color bleaching powder capsules, toilet bowl cleaner powder pods, and some other powder contents small dose single chamber packs.It is a preferred packing way of product upgrade.

21120801 HYSR-16G Automatic Cup Dosing PVA Pod Packing Machine

Click here to view
Detergent Powder and Granules Pods PVA Water-Soluble Film Pouch Making Packing Machine running video on YouTube
https://youtu.be/kW5RHuZRSQo
