Semi-automatic 5-30kg Weighing Type Liquid Filling Machine

  • Model: HYWF-30S
  • Nozzles No.: 1-4pcs customized
  • Filling range: 5-30 kg
BASIC INFO
Technical Description

The semi-automatic weighing type filling machine has advantage of high accuracy when filling liquid. It is matched with servo motor and PLC to control filling. It is widely used in lubricant, cooking oil, cosmetics, daily chemical industries.
1.The computer quantitative filling machine consists of feeding system, weighing system, frame, pneumatic control system, control system and powerless raceway.
2.Feeding mode: Require continuous and stable feeding (using feeding pump or hopper pressurized feeding)

3.The feeding mechanism is operated by solenoid valves through the cylinder for fast and slow feeding.
4.Filling method: conventional filling and lifting submerged filling (when ordering according to need)

5.The weighing system consists of weighing bracket, sensor and weighing platform with powerless drum and frame support and filling system.

6.Pneumatic control system: control fast and slow feeding valve.

7.The weighing platform is not allowed to be subjected to additional external forces during use.


Main features

1.The system uses weighing filling, with high measurement accuracy and is not affected by materials.
2. The feeding valve composed of fast and slow feeding can not only improve filling speed but also improve filling accuracy.
3. The measurement range is wide and the measurement error is less than 10 g/barrel.
4. The filling head adopts anti-drip and leak device, and the filling material has no bubbles, so the effect is good.


Main Technical Data
  • Filling nozzles number: 2, 1, 4 pcs
  • Filling capacity: around 100-200 barrels/hour (according to filling volume)
  • Applicable bottle height: unlimited
  • Filling capacity: 5-30Kg
  • Filling accuracy: <0.5%
  • Available Bottle Diameter: No Limitation
  • Power supply: 2.2KW
  • Weight: 200Kg
  • Size: 100X100X160cm (length * width * height)

Semi-automatic 5-30kg Weighing Type Bottle Filling Machine Pictures

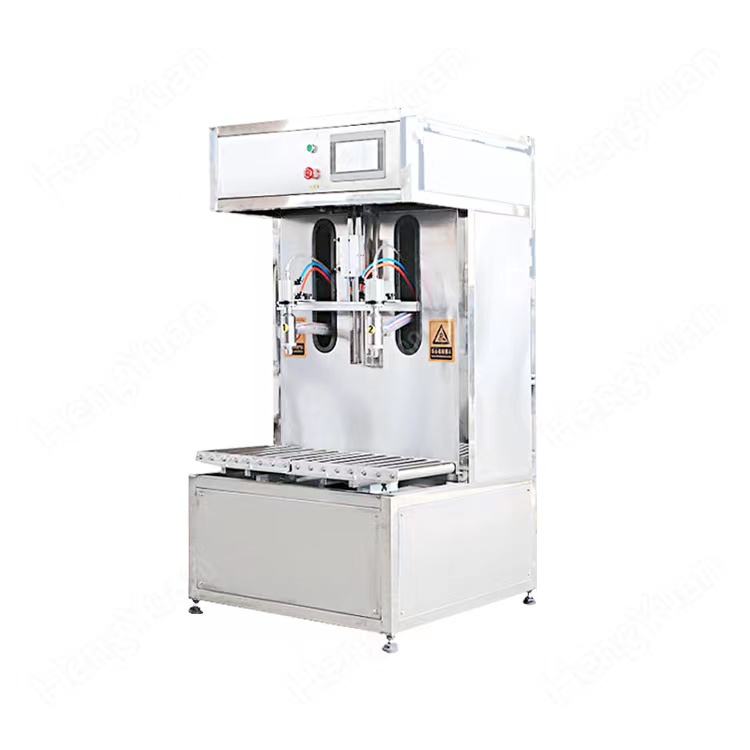

HYWF-30S Semi-automatic Weighing Filling Machine

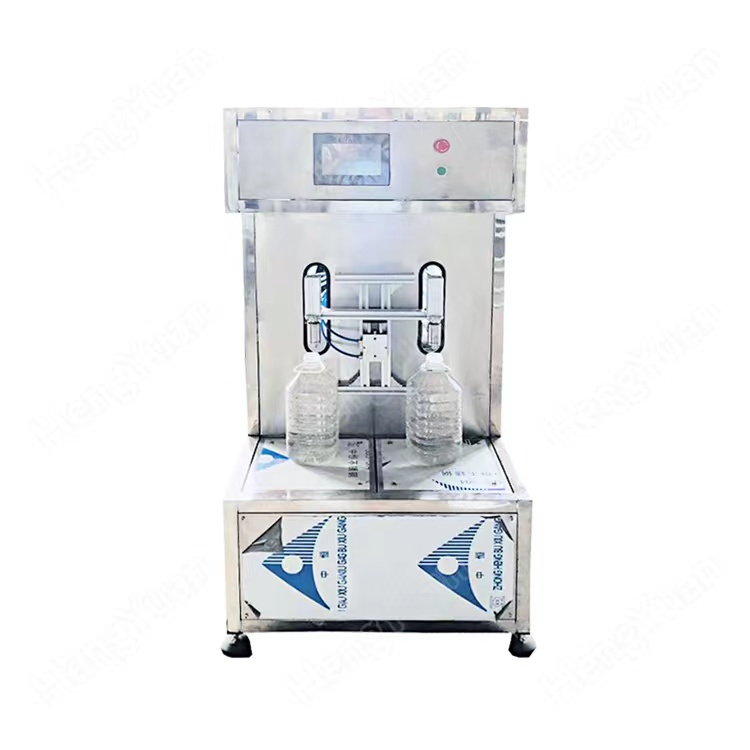

HYWF-30S Semi-automatic Liquid Weighing Filling Machine

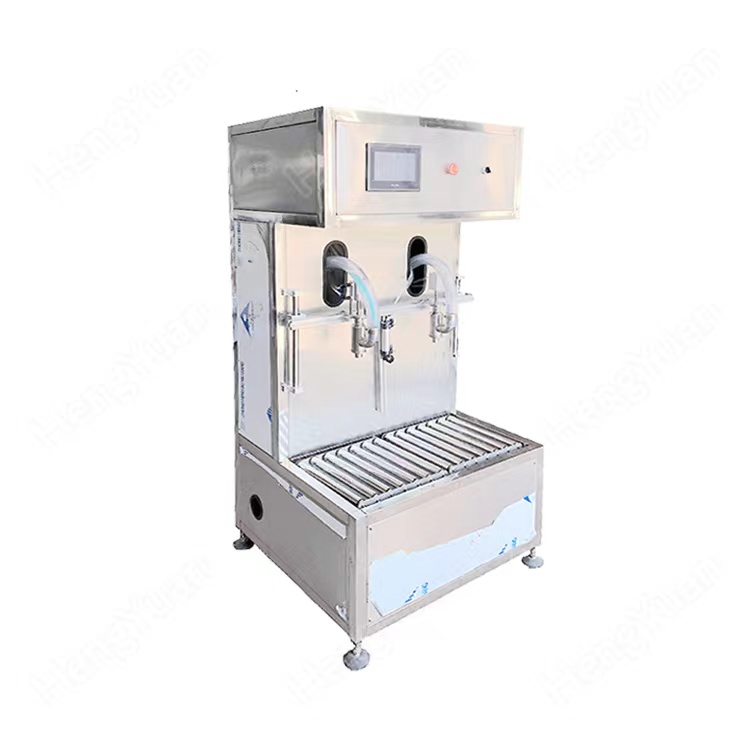

HYWF-30S Semi-automatic Liquid Weighing Bottle Filling Machine
HYWF-30S Semi-automatic Anti-freeze Coolant Weighing Liquid Filling Machine

HYWF-30S Semi-automatic Cooking Oil Weighing Bottle Filler






Semi Automatic Weighing Bottle Filling Machine is suitable for below bottle samples

pesticide drum filling machine,  drum filling machine, automobile urea filling machine, antifreeze filling machine, motor oil filling machine, cooking edible oil jerry cans dispensing machine, etc.
HYWF-30S Semi-automatic Lubricant Weighing Filling Machineighing filling machine, edible oil filling machine, cooking oil filling machine, paint filling machine, additive filling machine
