Automatic Bottle Blowing Filling Plugging Capping Machine

  • Model: HYB1G2P1S1-100
  • Air rinsing head: 1pc
  • Filling nozzles: 2pcs
  • Plugging nozzles: 1pc
  • Capping nozzles: 1pc
  • illing amount: 10ml-100ml customized
BASIC INFO
HYB1G2P1S1-100 Automatic Bottle Blowing Filling Plugging capping machine Technical Description

Rotating Disk Bottle Air Cleaning Filling Plugging and capping machine is a mono-block machine combines bottle air blowing filling plugging and capping, applicable for various bottles and liquids, PLC computer system and touch screen controlling, filling part is driven by the servo motor, adopting the volumetric principle, which is helped to realize the high filling precision. Capping part consists of cap-feeder, cap-scratch, cap-clamping, bottle conveying and capping parts. The whole machine runs stably and reliably with high efficient and high adaptation. The above mentioned parts are made of stainless steel 304, totally matching GMP requirements. Rotating Disk Filling and capping machine is mainly used for bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.



Main Technical Data
Production capacity
20-35 pcs/min(Adjustable)
Bottle size
Width: Φ20mm~Φ60mm, height: 50mm-150mm
Filling volume
10-100 ml customized
Filling accuracy
± 1%
Rejection rate
< 1%
Electricity power
2.6KW
Compressed air
0.6-0.8 MPa
Air comsumption
100L/M
General power supply
AC 380/220V(Optional), Single or three phases, Globally customized
Dimension
170(L) x 140(W) x 190(H) cm
Net weight
Approx 580 KGS

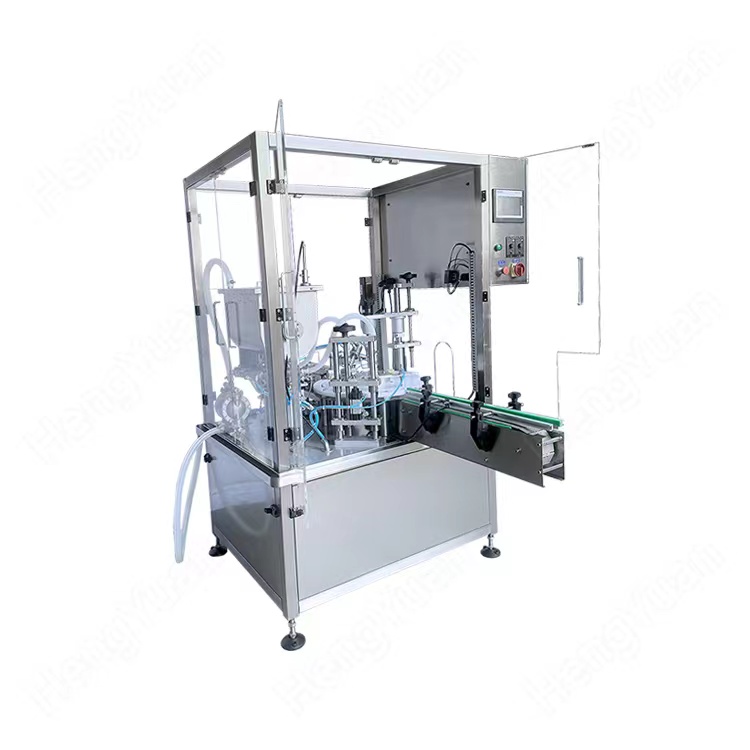

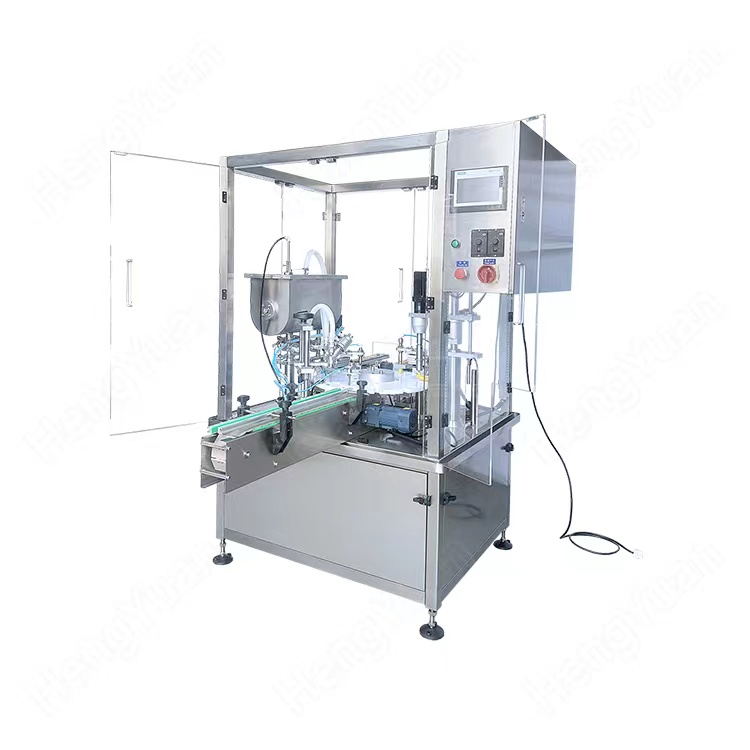

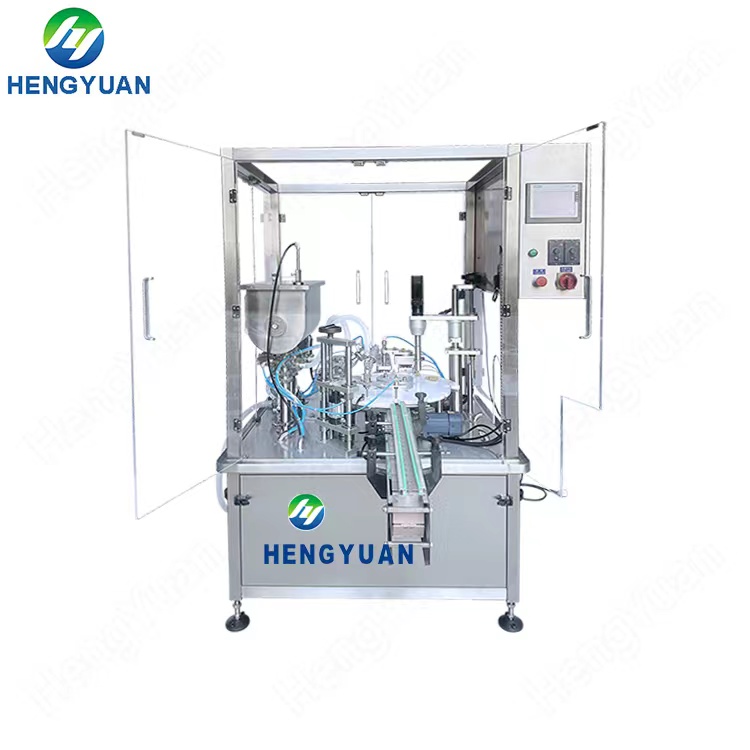

HYB1G2P1S1-100 Automatic Bottle Blowing Filling Plugging capping machine Pictures
HYB1G2P1S1-100 Automatic Bottle Blowing Filling Capping Machine.jpg
HYB1G2P1S1-100 Automatic Essential Oil Bottle Blowing Filling Capping Machine.jpg
HYB1G2P1S1-100 Automatic Eyedrop Bottle Blowing Filling Capping Machine.jpg
HYB1G2P1S1-100 Automatic Bottle Blowing Filling Capping Machinery.jpg
HYB1G2P1S1-100 Automatic Small Bottle Blowing Filling Capping Machine.jpg
HYB1G2P1S1-100 Automatic Bottle Blowing Filling Capping Machine Advantages.jpg

HYB1G2P1S1-100

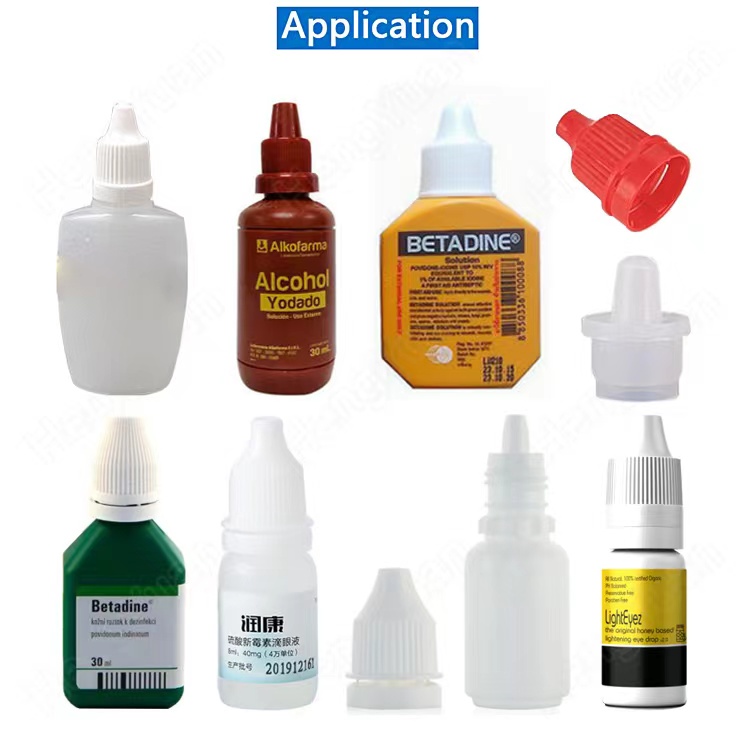

Automatic Bottle Air Rinsing Filling Plugging capping machine is suitable for below bottle samples
Betadine bottle filling plugging capping machine, eyedrop bottle filling capping machine, emulsion jar filling pad inserting capping machine, essential oil filling plugging capping machine, facial cream filler plugger capper, nail polish bottle filling capping machine, Liquid spray bottle filling plugging capping machine, etc.
HYB1G2P1S1-100 Automatic Bottle Blowing Filling Capping Machine.jpg
Click here to view Automatic Small Bottle Filling Plugging capping machine running video on YouTube
https://youtu.be/-98nhClgF6c
