Automatic Tracking Type Single-head Capping Machine

  • Model: HYXG-1D
  • Capping Head No.: 1pc
  • Working Method: Cap Unscrambling Fetching and Capping
  • Bottle working method: Non-stop
BASIC INFO
Technical Description

Automatic tracking single head capping machine is protective automatic capping machine and control by PLC program. Bottles keep running(do not stop) when capping, and it can automatically elevate lid, sort lid and arrange lid, taking lid and tracking screwing lid. It does not damage lid or bottle, bottles keeping running and will not have liquid pour out of bottle, ensure high speed, high capping efficiency. The machine grasp lids capping lids through servo motor, lid-revolving head has a clutch to ensure the tightened lid not to damage. It suits for capping of 0.5-30 Liter barrels, plastic screwing caps.


Main Technical Data
  • capacity: 1500(b/h)
  • applicable bottle diameter: customized
  • applicable bottle height: customized
  • cap diameter: customized
  • air pressure: 0.6-0.8Mpa
  • voltage: AC220V/380V,50/60Hz(customized)
  • total power: 7Kw
  • net weight: 700kg
  • dimension: 2000(L)×1000(W)×2100(H)mm

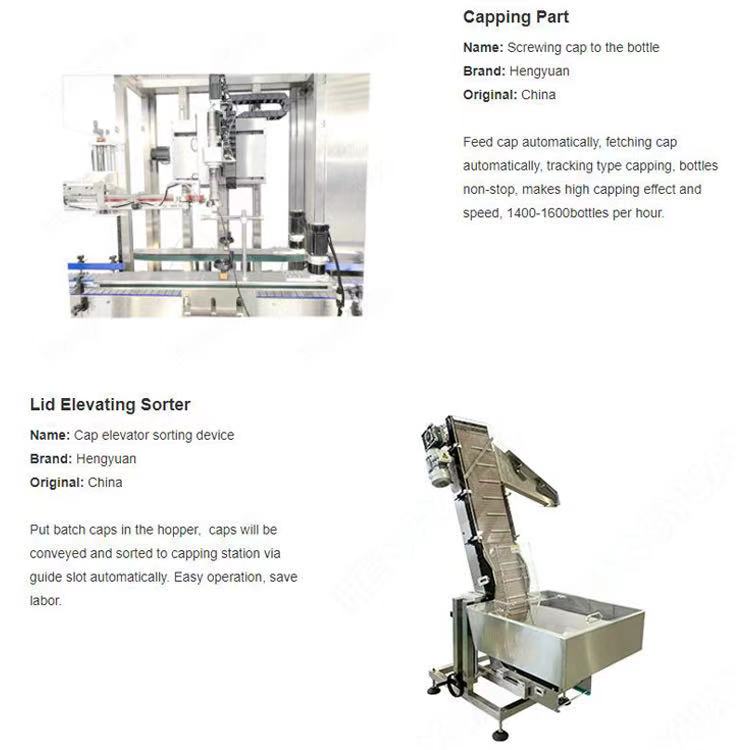

Automatic Tracking Type Capping Machine Pictures

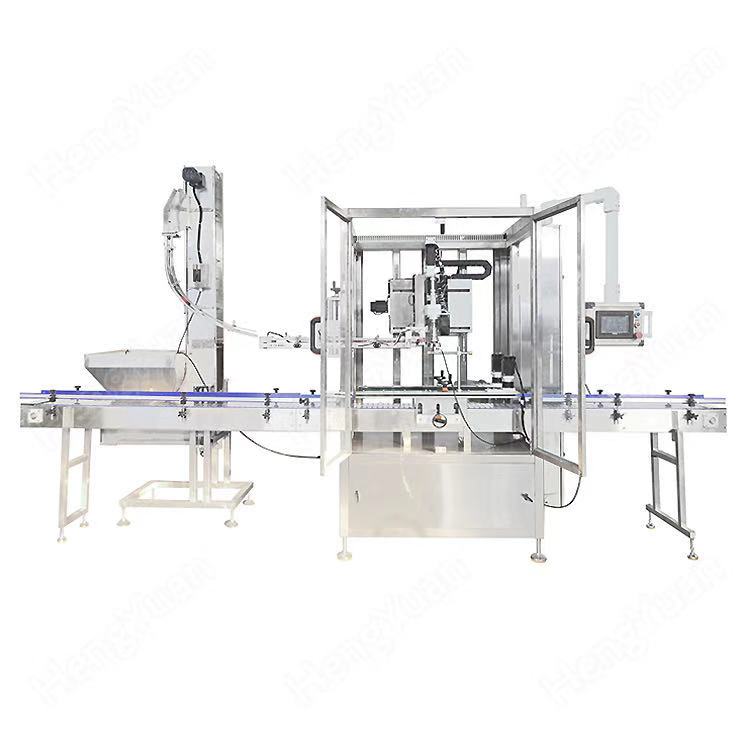

Automatic tracking type screwing capping machine

Automatic tracking type edible oil jerry can capping machineAutomatic tracking type motor oil barrel capping machine

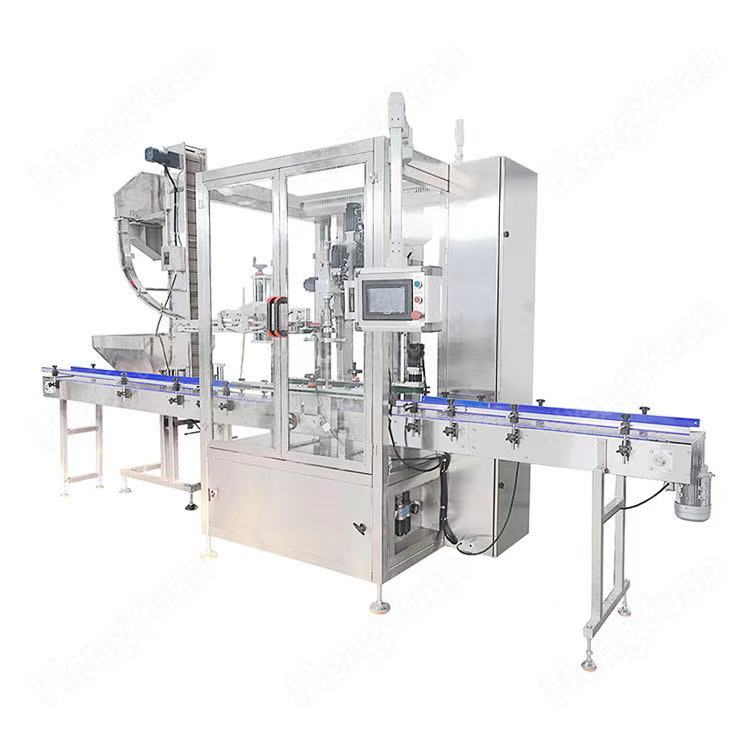

Automatic high speed tracking screwing capping machine

automatic tracking type bottle screwing capping machine




Inline Automatic Single Head Capping Machine is suitable for below bottle samples

Pesticide bucket capping machine, Liquid chemical fertilizer bucket capping filling machine, Automobile urea bucket capping machine, Antifreeze bucket capping machine, Motor oil bucket capping machine

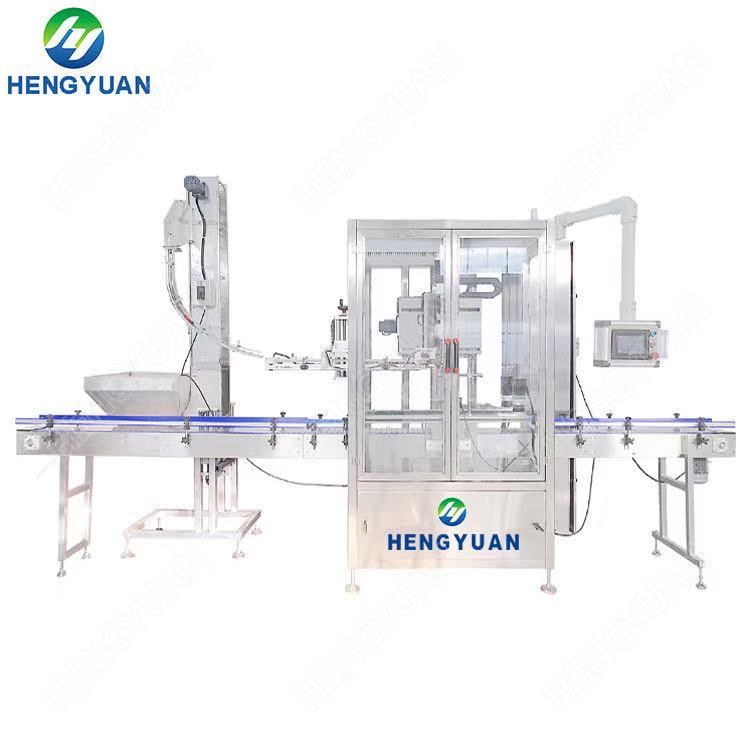

Automatic high speed barrel capping machine


Click here to view Automatic Tracking Type Capping Machine running video on YouTube

https://youtu.be/l5oLSsifWGc
