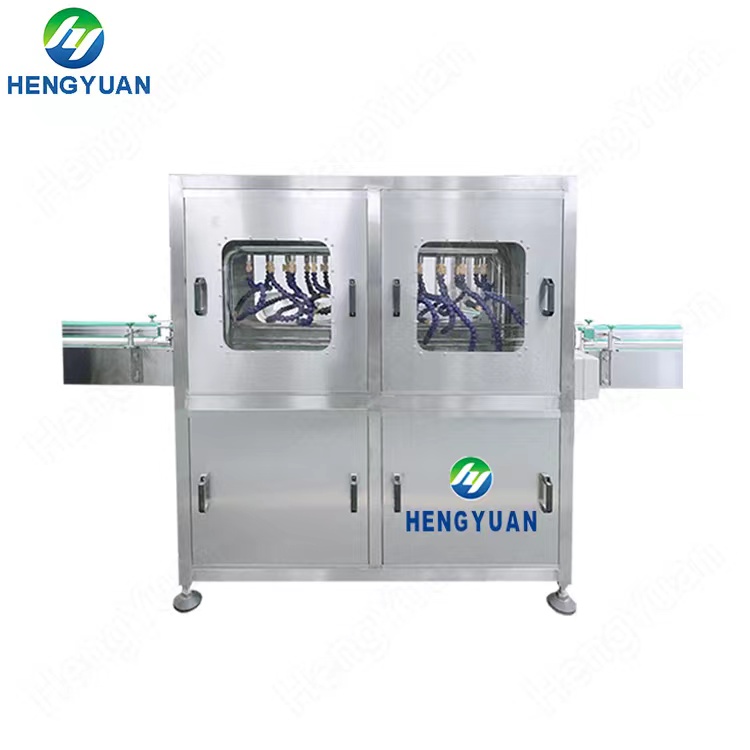

Automatic Hot Air Bottle Surface Blowing Oven

Model: HYBW-100A
Bottle material: Plastic bottles, glass bottles, ceramic bottles and others
Capacity: 12000BPH (standard), can be customized

BASIC INFO

HYBW-100A Automatic Hot Air Bottle Surface Blowing Oven Technical Description

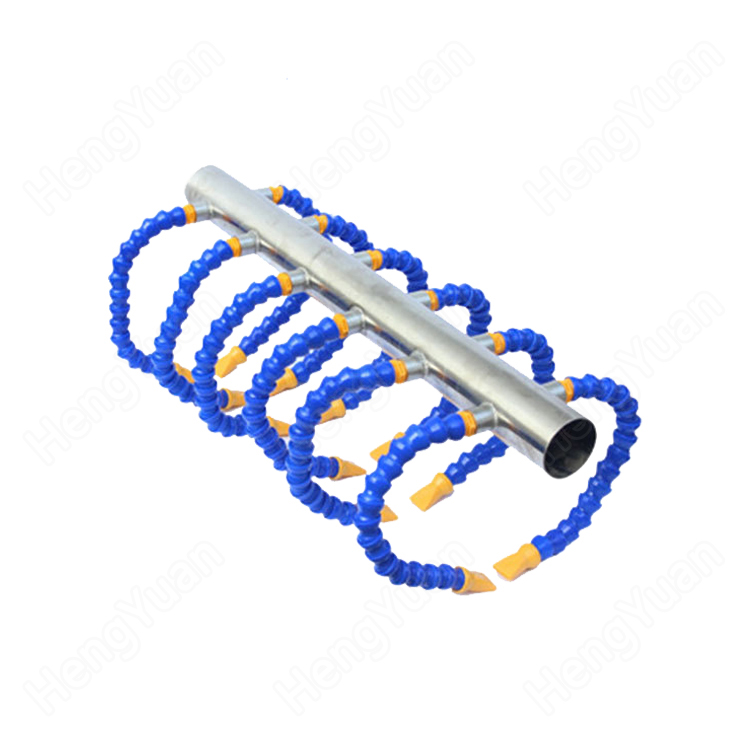

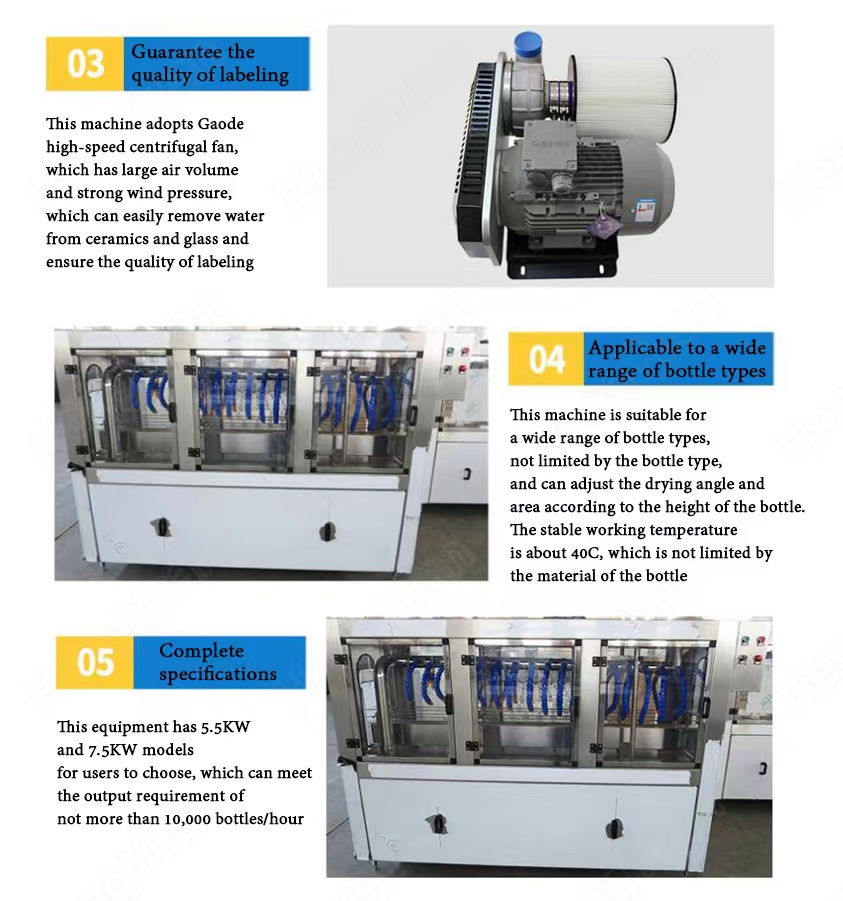

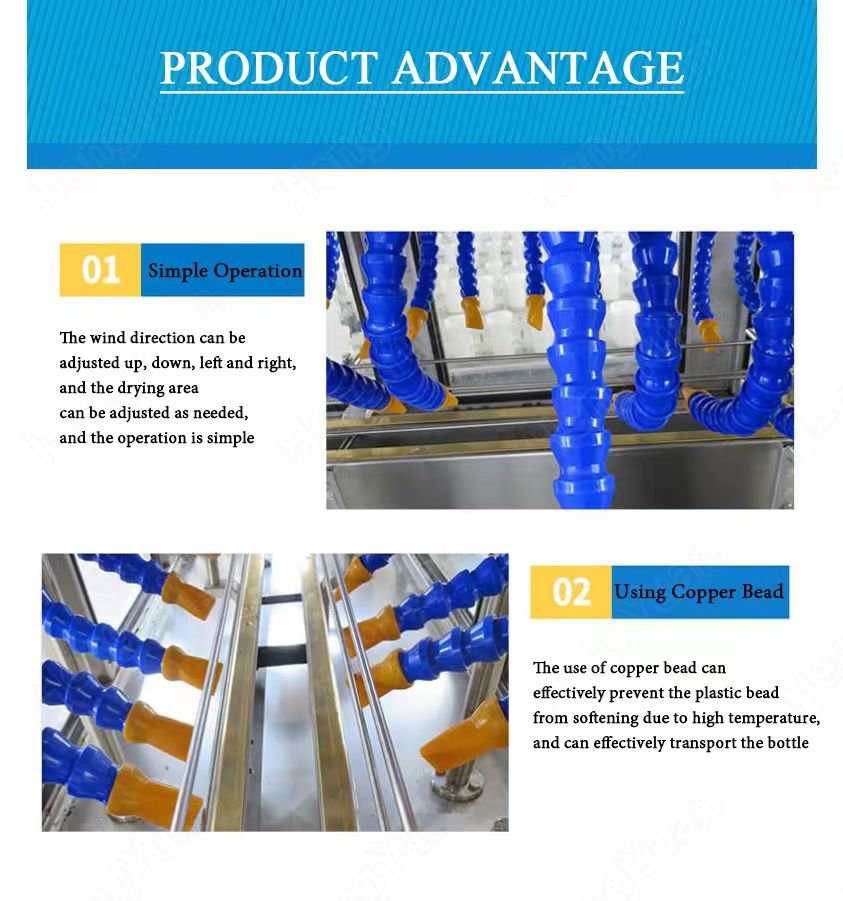

The air-blow dryer uses the large air volume generated by the blower to blow off/blow dry the water drops outside the bottle, so as to achieve the effect of blow-drying, thus preparing for the next step of code spraying, labeling, labeling and other packaging. The overall structure of the air blow dryer is reasonable and simple, and it is easy to operate. At the same time, the drying principle is through the wind instead of high temperature, which is more suitable for some plastic bottles that are not resistant to high temperature. It is an ideal choice for small drying equipment. The air knife dryer is mainly composed of 11kw (two 5.5Kw) vortex fans, stainless steel and glass frames and air knives. Double rows of small air knives are adopted, and the air knives can be freely adjusted up, down, left and right, which fully guarantees the drying effect, and has strong applicability to bottles with different diameters and heights.

Main Technical Data

Type	HYBW-100A
Bottle size	Diameter: Φ40mm-Φ110mm Height: 80mm-350mm(Customized)
Bottle type	50ml-5000ml PET bottle, plastic bottle, glass bottle, aluminium bottle, etc
Capacity	12000BPH (standard), can be customized
Bottle shapes	All kinds of round bottles, square bottles, special bottles, etc.
Bottle material	Plastic bottles, glass bottles, ceramic bottles and other bottles made of various materials.
Air pressure	0.55MPa-0.65MPa Clean and stable air supply
Power supply	220V/380V/415V ; 50/60HZ, three phases, globally customized
Power	5.5KW
Weight	390Kg
Size	150×75×147cm

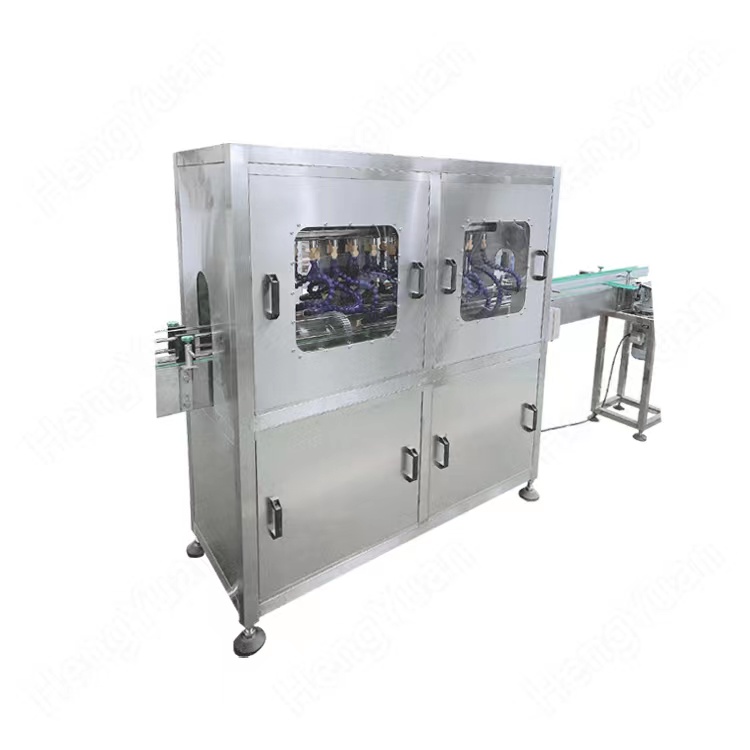

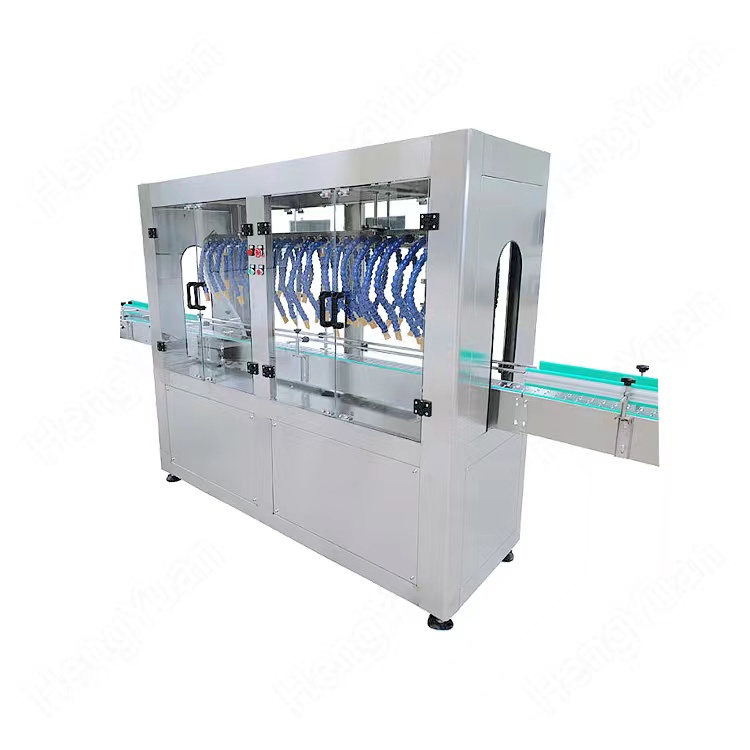

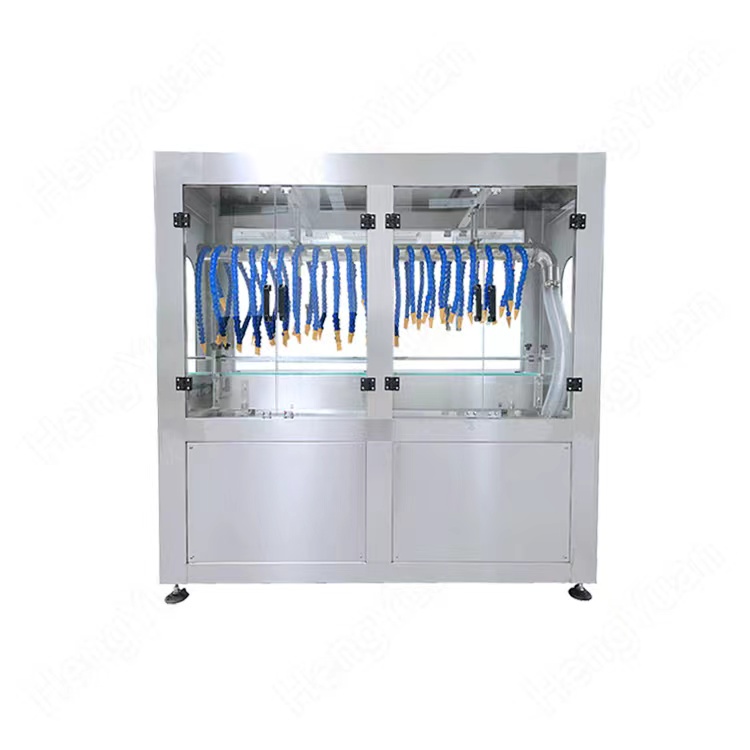

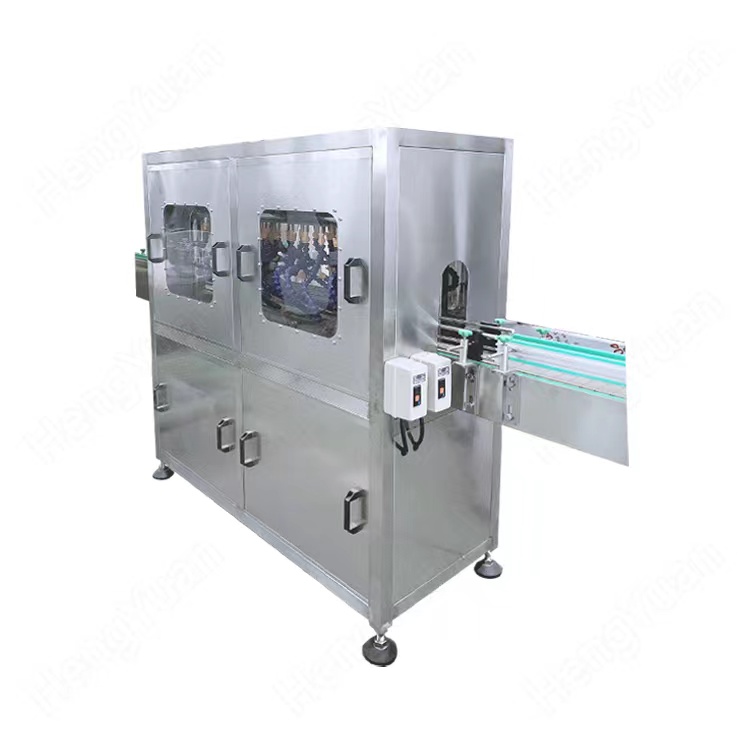

HYBW-100A Automatic Hot Air Bottle Surface Blowing Oven Pictures

HYBW-100A Automatic Hot Air Bottle Surface Blowing Machine is suitable for below product samples
Bottle outside drying machine, bottle surface drying machine, automatic eliminating moisture bottle drying equipment, bottle surface hot air drying equipment, water pet bottle drying machine, juice glass bottle drying machine, glass jar drying machine, drinking beverage bottle dry machine, wine glass bottle drying equipment, etc.
HYBW-100A Automatic Hot Air Blowing Drying Machine.jpg

HYBW-100A Automatic Hot Air Blowing Drying Machine.jpg

Click here to view HYBW-100A Automatic Hot Air Bottle Surface Blowing Drying Machine running video on YouTube
https://youtu.be/nOnqPadUUe8
