BASIC INFO
Technical Description
Automatic fetching single head capping machine is protective automatic capping machine and control by PLC program. Bottles will be fixed by two cylinders and it can automatically arrange lid, taking lid and sending lid, it will first grasp lid then capping under control of double-acting cylinder lifting stroke, the bottle mouth is clamped to keep capping accuracy. Capping power is from servo motor, thus the capping torque is adjustable. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.
Applicable to: automatic capping and capping of plastic caps in agrochemical, daily chemical, pharmaceutical, food and other industries.
Inline Automatic Single Head capping machine is suitable for below bottle samples
Pesticide bucket capping machine, Liquid chemical fertilizer bucket capping filling machine, Automobile urea bucket capping machine, Antifreeze bucket capping machine, Motor oil bucket capping machine
Click here to view Automatic Tracking Type capping machine running video on YouTube
https://youtu.be/SeWwzD6T3m8
Contact us to get more information and quotation
Automatic fetching single head capping machine is protective automatic capping machine and control by PLC program. Bottles will be fixed by two cylinders and it can automatically arrange lid, taking lid and sending lid, it will first grasp lid then capping under control of double-acting cylinder lifting stroke, the bottle mouth is clamped to keep capping accuracy. Capping power is from servo motor, thus the capping torque is adjustable. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.
Applicable to: automatic capping and capping of plastic caps in agrochemical, daily chemical, pharmaceutical, food and other industries.
Main Technical Data
- capacity: 1200-1800(b/h)
- applicable bottle diameter: customized
- applicable bottle height: customized
- cap diameter: customized
- air pressure: 0.6-0.8Mpa
- voltage: AC220V/380V,50/60Hz(customized)
- total power: 2Kw
- net weight: 600kg
- dimension: 2000(L)×1000(W)×2100(H)mm

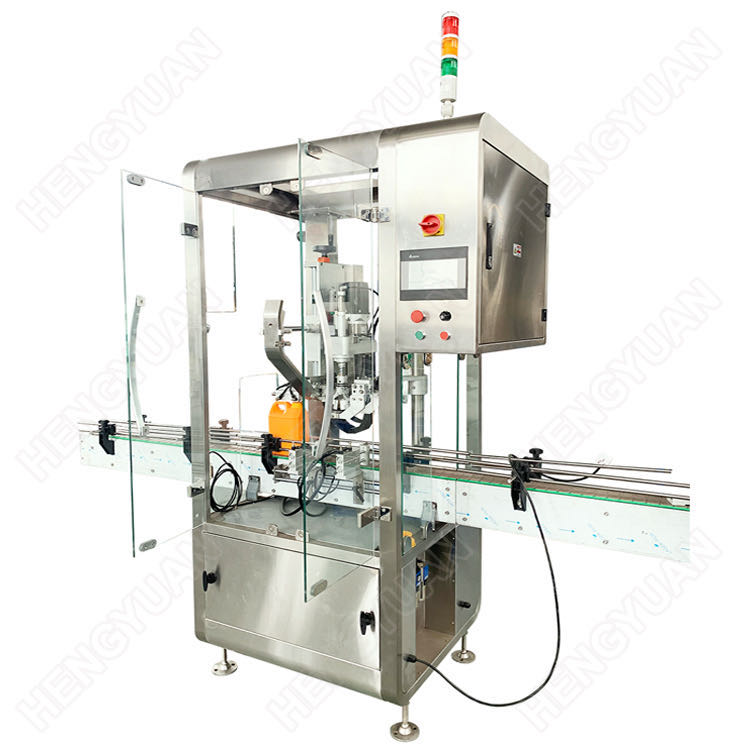

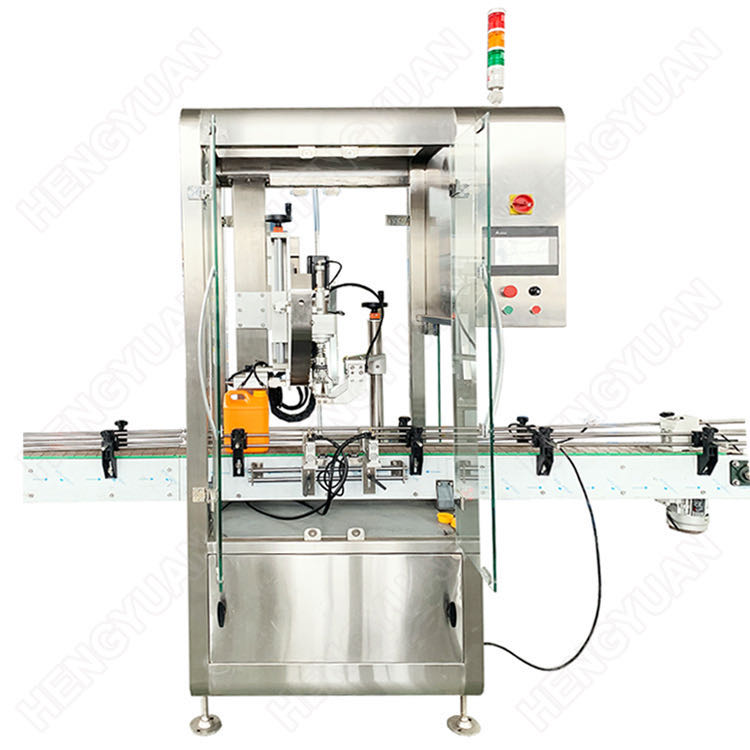

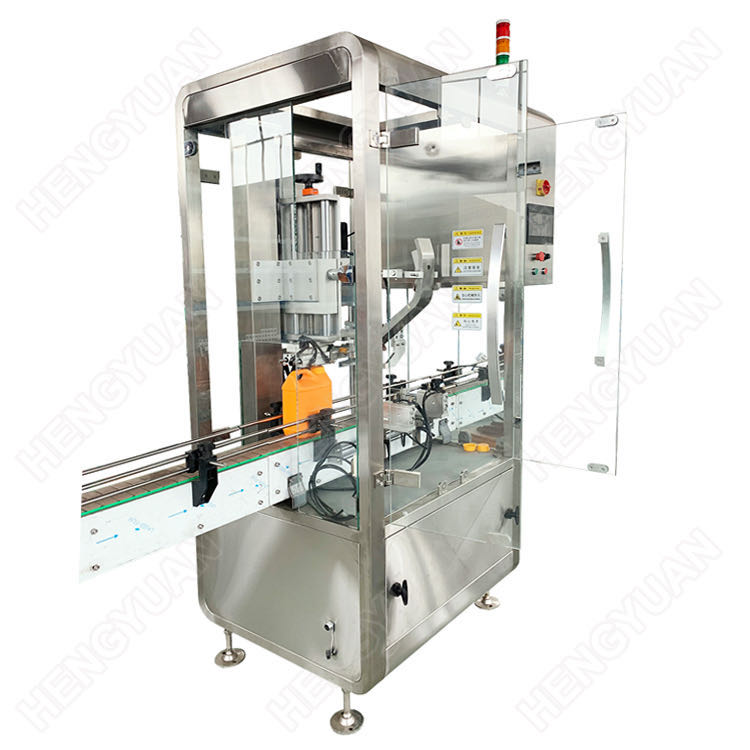

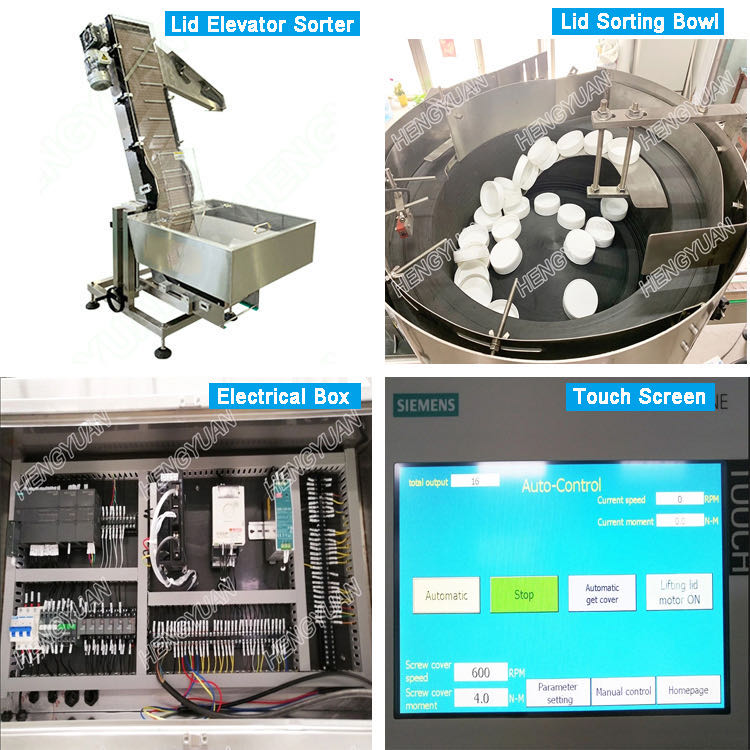

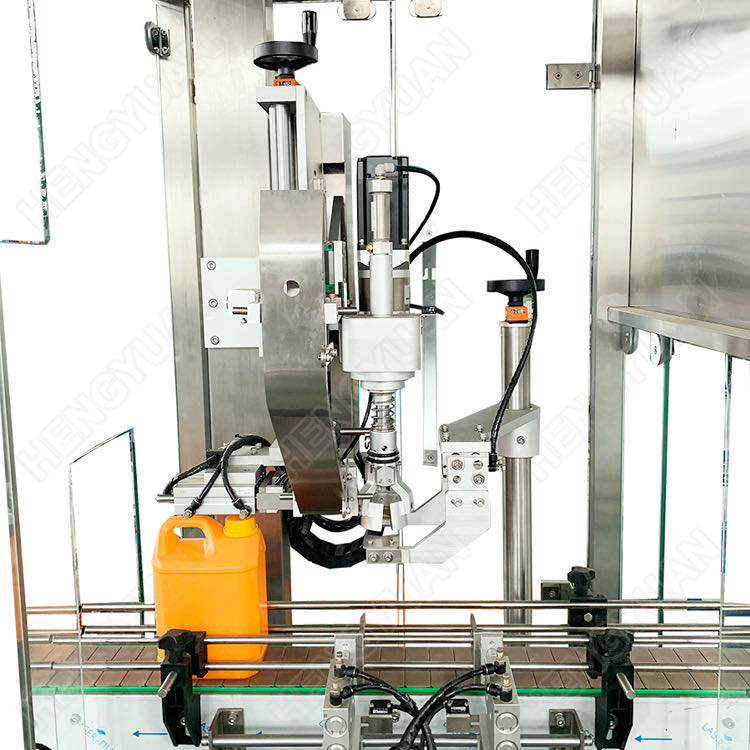

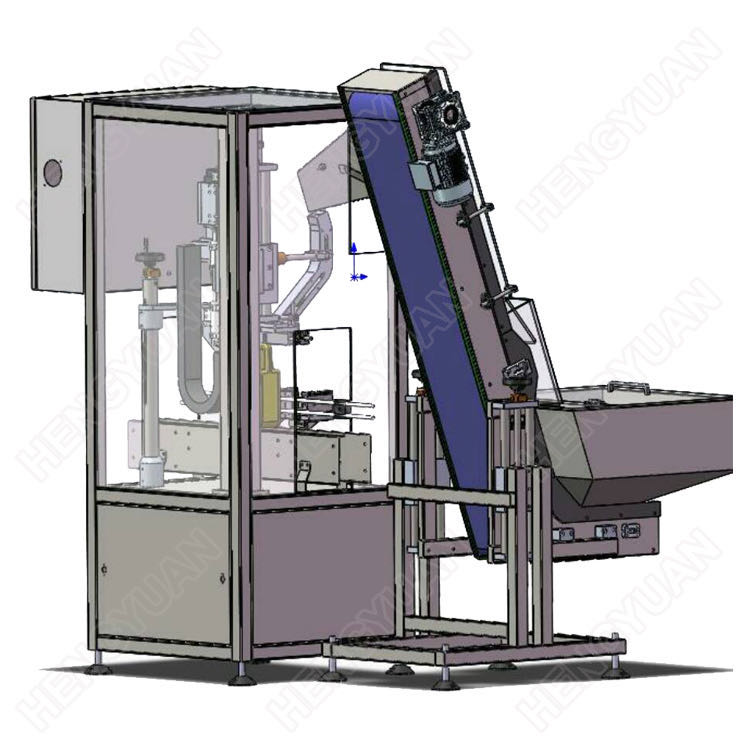

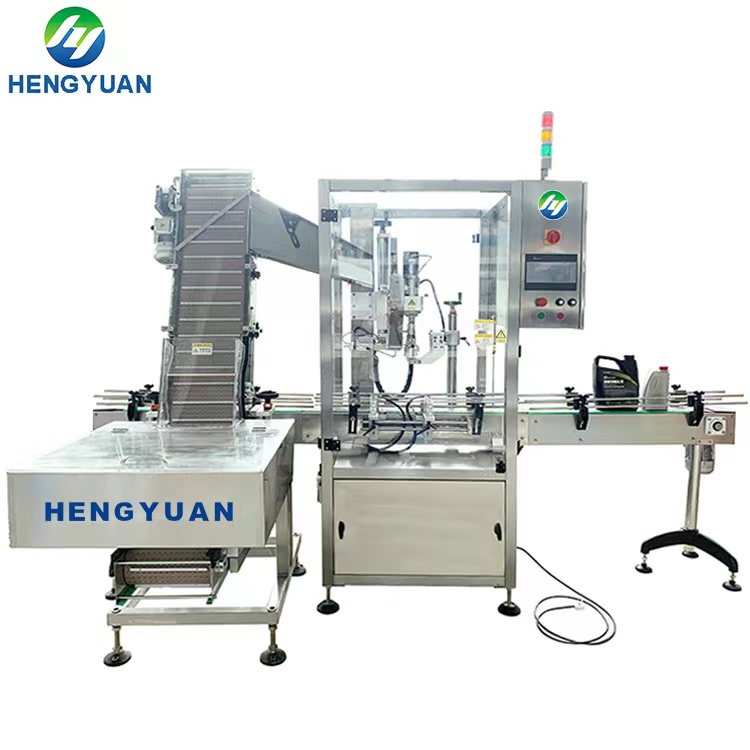

Automatic Servo Motor Lifting Single Head capping machine Pictures
Inline Automatic Single Head capping machine is suitable for below bottle samples
Pesticide bucket capping machine, Liquid chemical fertilizer bucket capping filling machine, Automobile urea bucket capping machine, Antifreeze bucket capping machine, Motor oil bucket capping machine
Click here to view Automatic Tracking Type capping machine running video on YouTube
https://youtu.be/SeWwzD6T3m8
Contact us to get more information and quotation
