Automatic Water Cooled Electromagnetic Induction Aluminum Foil Sealing machine

  • MODEL: HYSR-4000A
BASIC INFO
Automatic Cap Electromagnetic Induction Aluminum Foil Sealer Technical Description

Automatic cap electromagnetic induction aluminum foil sealing machine takes the electromagnetic induction principle as a basis. The aluminum foil makes bow wave and become heat, then the membrane will melt and adhere to the opening of the PE, PET bottles, and then make bottles sealed. The high stress resistance components are quite reliable and the specification is wide. It can be widely used for the sealing of abnormal bottles and big size mouth bottles. The circulating water makes cooling, the machine do not touch the bottles cap just cowling outside while sealing, GMP audit requirement be conformed.

Main Features
  • With the unique tunnel design, this kind induction sensor can increase the sealing speed.
    Even the flip cap can be sealing perfectly.
  • According to client demand, The induction sensor can be design to turn, in order to for difference bottle size. very small cap bottle and large cap bottle can be sealing by one machine, saving the cost.
  • Height of  induction sensor is adjustable and flexible for a range of bottle height.
  • The sensor head with bold cupper pipe, ordinary tap water can be used in this machine. moreover, the Built-in water circulation systems can reduce costs
  • Sealing Fast and efficient. The induction heating foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
  • Full modular component design, can be against moisture, erosion, dust and magnetism, minimizes maintenance requirements and increase the rease.
  • With the special alarm system, the machine will alarm when the tank water less, water temperature high
  • With stainless steel body, meet the GMP demand
  • The induction generator has adopt the latest imported transistor and CPU module control
  • All functions are marked on the panel clearly . operation is very convenience
  • With 4 wheels under the machine body, it is very easy to move and use to flow packing liner.
    Host with integration design, it can be easy install easily.
  • The induction sensor and generator of same machine model can be change. Our machine has get the CE authentication
Advantages
  • Can be against moisture,erosion,dust and mangetism,minimizes maintenance.
  • Within 15 minutes to replace new CPU(2kg),any problems of machine can be solved
Optional parts
  • PLC touch screen with seal counting fuction, Optical-electro sensor detect, pause during bottle missing or jam, auto operating after re-set .
  • the conveyor and missed foil cap rejector

Main Technical Data

  • Bottle diameter: 15mm-75mm (custmized to 220mm )
  • Sealing speed: 200 bottles per minute(diameter 30mm for example)
  • Applicable bottle height: 0-490mm
  • Power: 4000W
  • Voltage: 50/60Hz, 220VInduction head size: 450mm*200mm*90mm
  • Body material: SUS304 stainless steel
  • Machine weight: 85Kg
  • Packaging size: 600mm*560mm*720mm
  •                           & 930mm*830*280mm


Automatic
Cap Electromagnetic Induction Aluminum Foil Sealer Pictures
aluminum foil sealing machine


automatic water cooled aluminum soil sealing machine
automatic water cooled Aluminum foil sealer
motor oil aluminum foil sealing machine

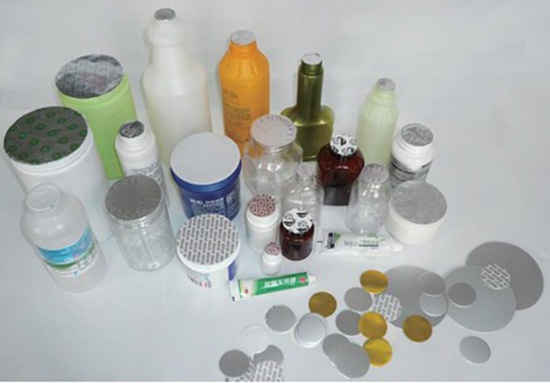

Automatic Cap Electromagnetic Induction Aluminum Foil Sealer effect





Click here to view Automatic Cap Electromagnetic Induction Aluminum Foil Sealing Machine running video on YouTube

https://youtu.be/TpDj8o8X2no
