Automatic linear gravity self flow liquid filling machine for wine to Rwanda

Date：2018-12-25      Categories： Product News      Views：453

Client: Rwanda Banana Wine Manufacturer


Filing Machine Technical Description

Inline Gravity Type Bottle Filling Machine is normal pressure filling machine. Under control through PLC and servo motor, it is easy for operation and change bottles without changing any elements. Through controlling filling time, we can change the filling volume according to different bottles and request. The whole machine is made of advanced stainless steel and anti-corrosion materials. It is suitable for the filling requirements of bottles (containers) with different shapes and other containing except liquid and gas containing.
Automatic Gravity Type Liquid Filling Machine is mainly used for bottling of daily chemical, agricultural chemical and pharmaceutics industry.

Bottle Filler Main Technical Data

• Number of filling heads: 4,6,8,10,12,16,20 filling heads optional
• Filling range: 40-1000ml(customized to 5L)
• Diameter of bottle: Ф35mm~Ф100mm
• Filling accuracy: ≤+1%
• Output: 3000-6000BPH (customized)
• Air resource: 0.6-0.8MPa
• Air consumption: 200L/h
• Power: 0.5KW/AC220/50Hz customized
• Weight: 500kg
• Size(LxWxH): 2000x1050x2300mm

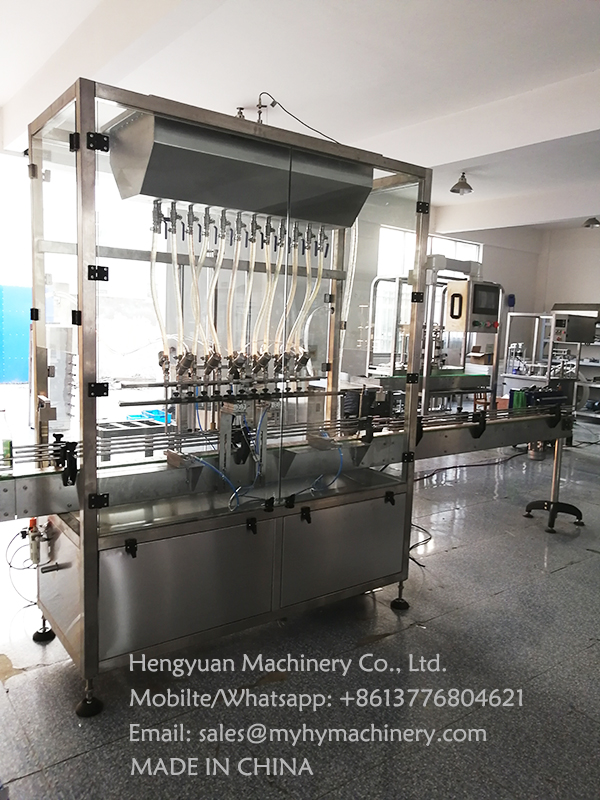

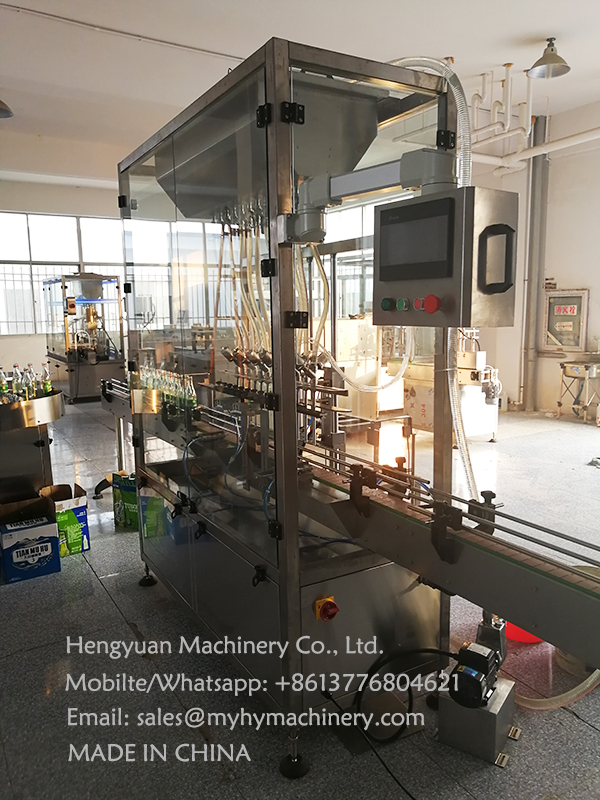

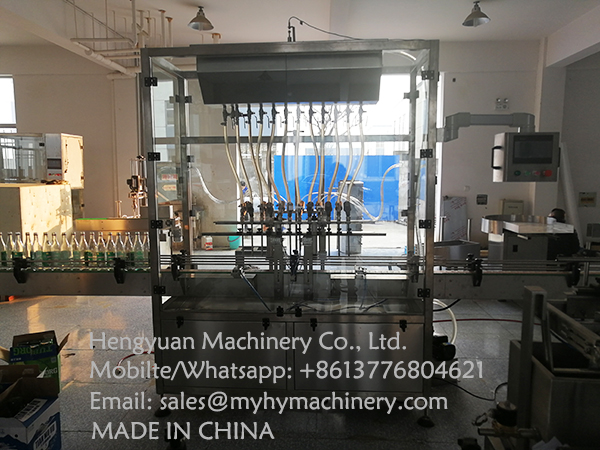

Automatic linear gravity flowing filling machine pictures








Click here to view Automatic Gravity Self Flowing Liquid Filling Machine running video on YouTube
https://youtu.be/tSr7Qt0T3sE
