Desktop Automatic Round BottleLabeling Machine

  • MODEL: HYTB-150S-D
  • Application: Round Objects, Round Bottles, Round Jars
  • Stick label quantity: 1,2,3
BASIC INFO
Technical description

Desktop automatic round bottle sticker labeling machine can stick non-dry sticker label for round bottle, jar, tin can, etc. With inspection of sensor, tracking label synchronously, ensure to labeling speed and smoothly.
Host design labeling machines using imported and domestic advanced technology to improve and make a solution for instability of general domestic labeling. By optical fiber computer control, we can get the synchronization track. The output of labels is controlled by a stepper motor or servo motor. It can detect the objects and size of labels automatically. It is modern and advanced electronic mechanical integration equipment automatically controlled by microcomputer mode, with large LCD touch panel, display and memory devices containing dozens of memory devices. The operation is simple, the labeling is accurate, the performance is reliable, and there is low noise. Sticker labeling machine is easy to clean, not moldy, beautiful after labeling and of high production efficiency. It is strong sticky and won't fall off on its own.


1. Basic use
It is suitable for labeling on the round object, with the labeling accuracy of ± 0.5mm.

2. Scope of application
Applicable label: self adhesive label, electronic supervision code, bar code, etc. Applicable products: products requiring labeling on round objects.

3. Working process
operation process: put the product - > label and labeling (automatically realized by the equipment) - > take out the labeled product.


Main technical data

  • Labeling capacity: 0-150pcs/min
  • Labeling accuracy: ±0.5mm
  • Label material: Adhesive sticker, opaque or transparent label
  • The inner diameter of label roll: 76 mm
  • The outer diameter of label roll: 300mm(max)
  • The suitable size of label: length: 15mm ~ 300mm; width (base paper width): 15mm ~ 120mm;
  • The suitable size of labeling objects: Can be customized
  • Operating direction: Left or Right
  • Total Power: 1.0kw
  • Power supply: AC220V/110V, Single phase. Globally customized
  • Net weight: About 100kg
  • Machine size: 120(L)×85(W)×80(H)cm

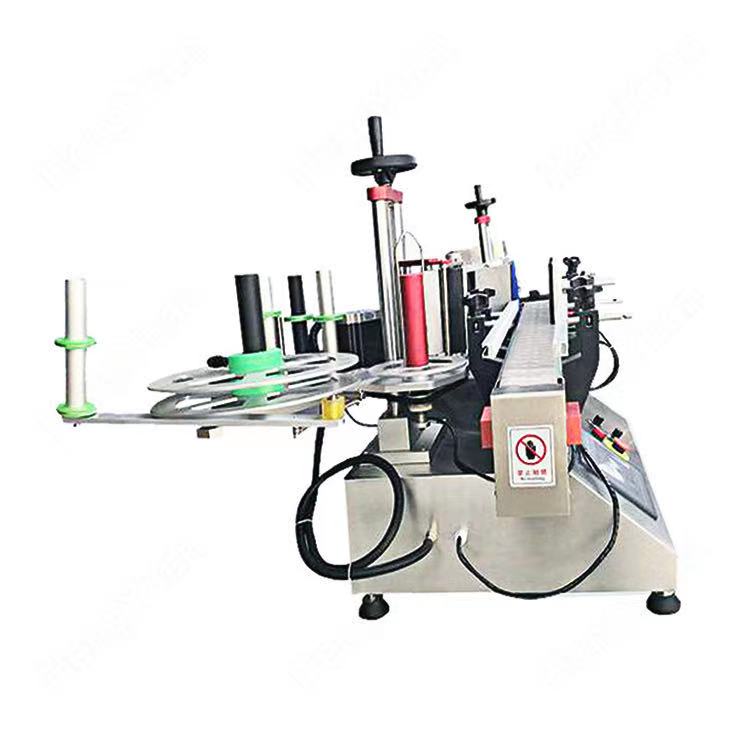

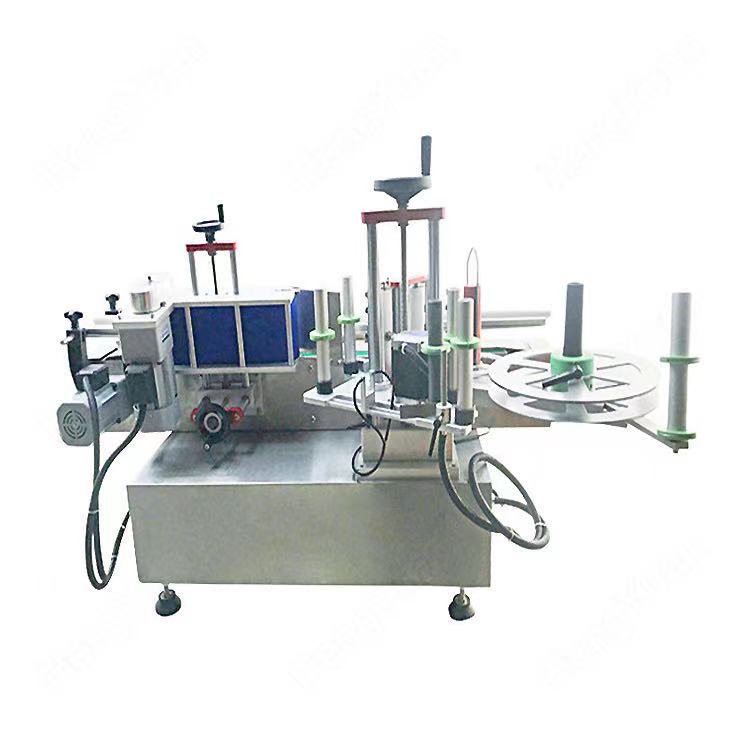

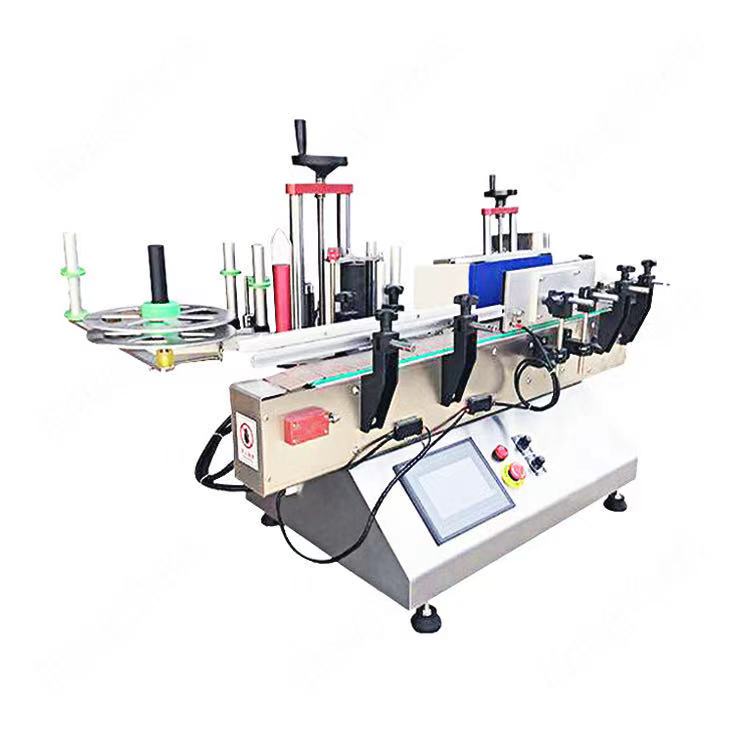

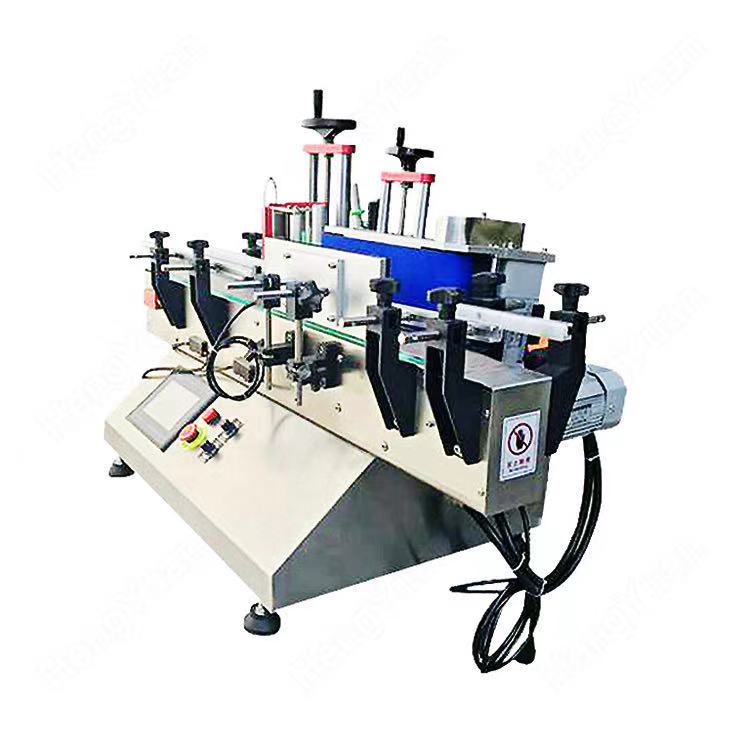

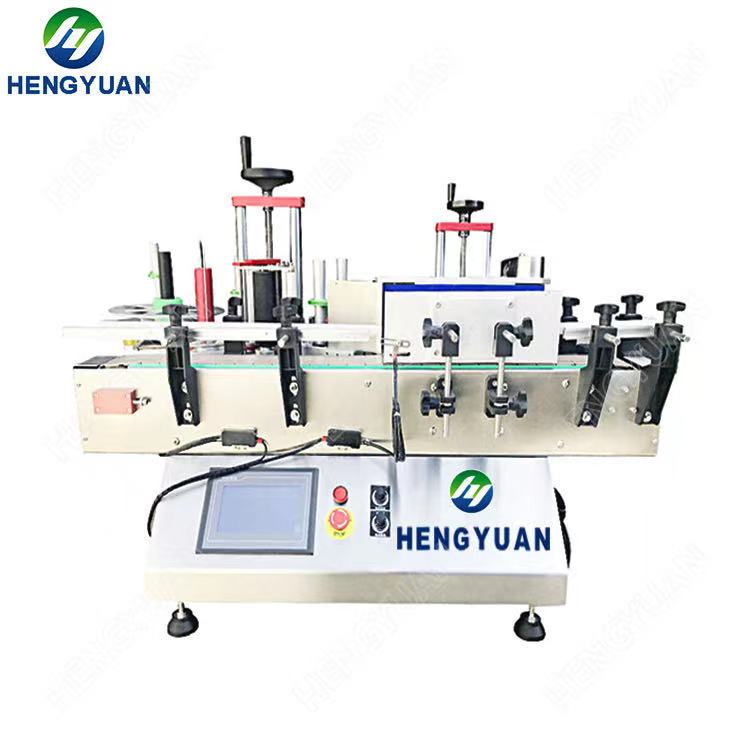

Chinese Best Automatic Desktop Round Bottle labeling machine Picture

Desktop automatic round bottle labeling machine
desktop round bottle label applicator
desktop automatic round bottle label application machine
desktop automatic round jar label applicator
automatic desktop pesticide bottle sticker label applicator

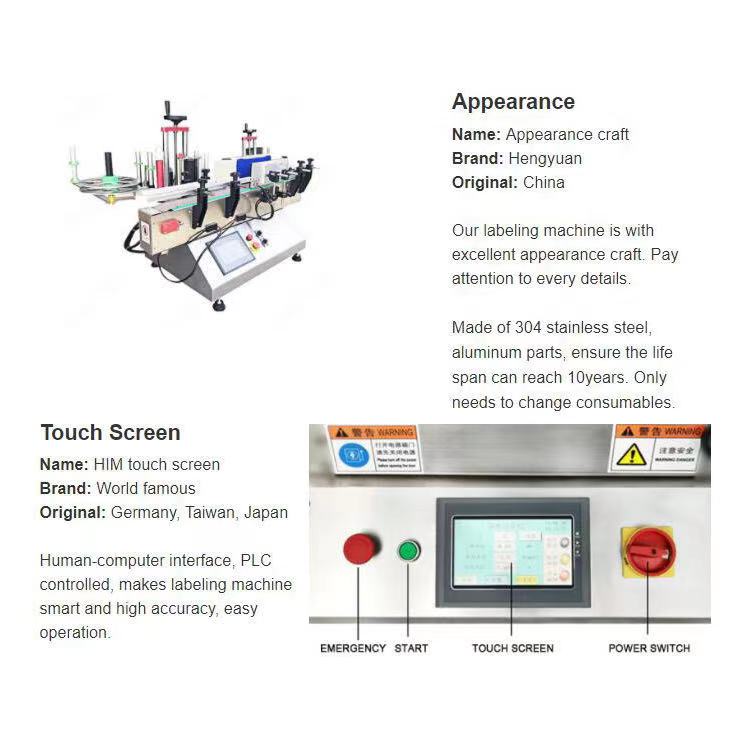

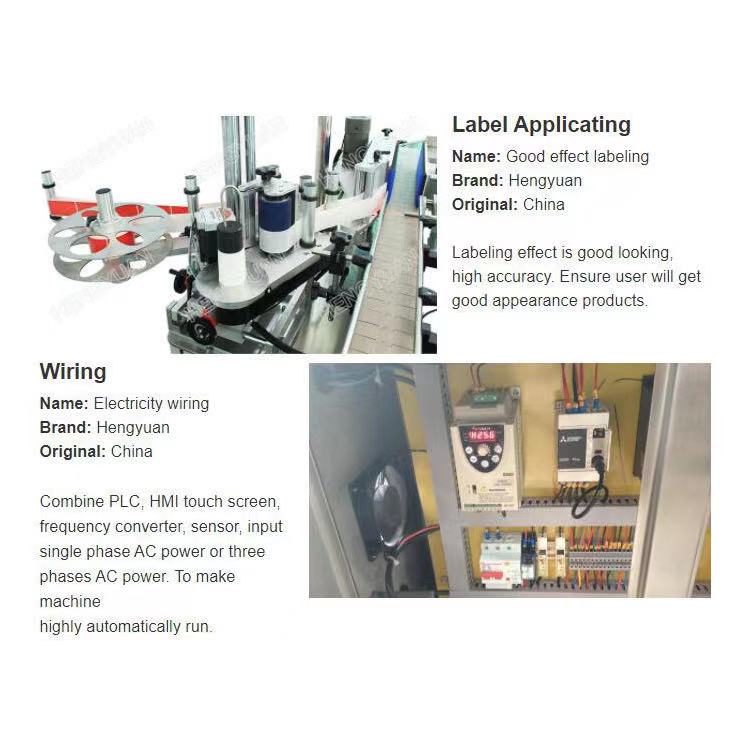

HYTB-150S-D Economical Desktop Label Applicator details
automatic desktop hand sanitizer gel bottle labeling machine
automatic desktop facial cream round jar labeler


Application

Automatic desktop round bottle sticker labeling machine is suitable for labeling for labeling on round objects, It is widely used in labeling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.



For examples: round bottles, round objects, round jars, round pesticide bottles, round beverage drinking bottles, round vials, round shampoo bottles, hand wash bottles, etc Label application machine.


desktop round bottle sticker label applicator


Click here to view Automatic Desktop Plane labeling machine running video on youtube
https://youtu.be/KeW93HrikgQ
