Rotating Disk Filling and Capping Machine

MODEL: HYG2S1-100X
Nozzles No.: 1-2pcs customized

BASIC INFO

Technical Description

Rotating Disk Filling and Capping Machine is a monoblock machine combines filling and capping, applicable for various bottles and liquids, PLC computer system and touch screen controlling, filling part is driven by the servo motor, adopting the volumetric principle, which is helped to realize the high filling precision. Capping part consists of cap-feeder, cap-scratch, cap-clamping, bottle conveying and capping parts. The whole machine runs stably and reliably with high efficient and high adaptation. The above mentioned parts are made of stainless steel 304, totally matching GMP requirements.

Rotating Disk Filling and Capping Machine is mainly used for bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.

Main Technical Data

Filling range: 20-100ml
Diameter of bottle: Φ20mm~Φ60mm
Height of bottle: 50mm-150mm
Filling accuracy: ±0.5%
Output: ≤2000BPH
Air resource: 0.6-0.8MPa
Air consumption: 200L/h
Power: 3KW/AC220V/380V/50Hz/60Hz Customized
Weight: 600kg
Size(LxWxH): 2000x1200x1900mm

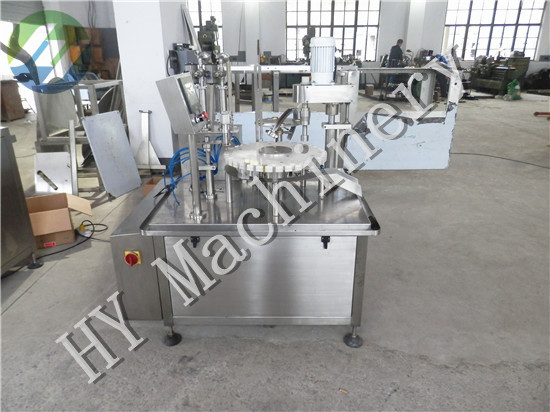

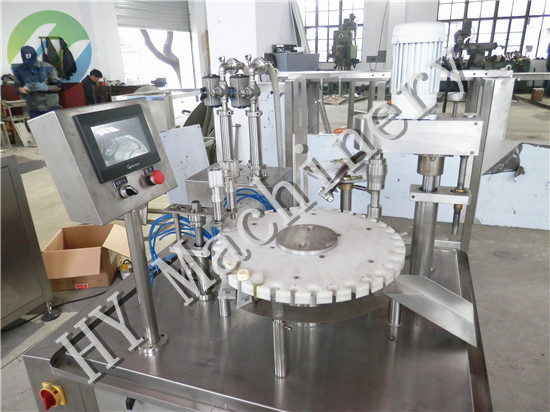

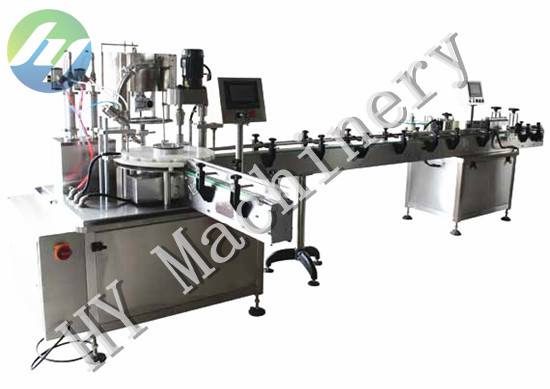

Rotating Disk Filling and Capping Machine Pictures

Rotating Disk Filling and Capping Machine is suitable for below bottle samples

pesticides filling machine, daily intimate wash filling machine, emulsion filling machine, cough mixture filling machine, syrup filling machine

Click here to view Rotating Disk Filling and Capping Machine running video on YouTube

https://youtu.be/sPmthtYveKw
