Semi-automatic Four Wheels Screwing Capping Machine

  • Model: YKCGJ-6120
  • Suitable bottle: Flat, Square, Hexagon, Round and Abnormal shapes, all kinds of materials
  • Type of lids: plastic screw cover, pump cover, spray cover, tinplate cover, screw-on seal.
  • Speed capacity: 600-1800 bottles/hour
 Product Instruction

Semi-automatic Desktop Four Wheels Clamping Screwing capping machine is suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing. It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by adjusting.

Operation Step

1. Plug in electricity and compressed air.
2. Adjust the height according to the height of bottle.
3. Put the bottle under capping head.
4. Press the button to run the capping automatically.
5. Take the sealed bottle out.

Main technical data

Capping capacity
Applicable cap diameter

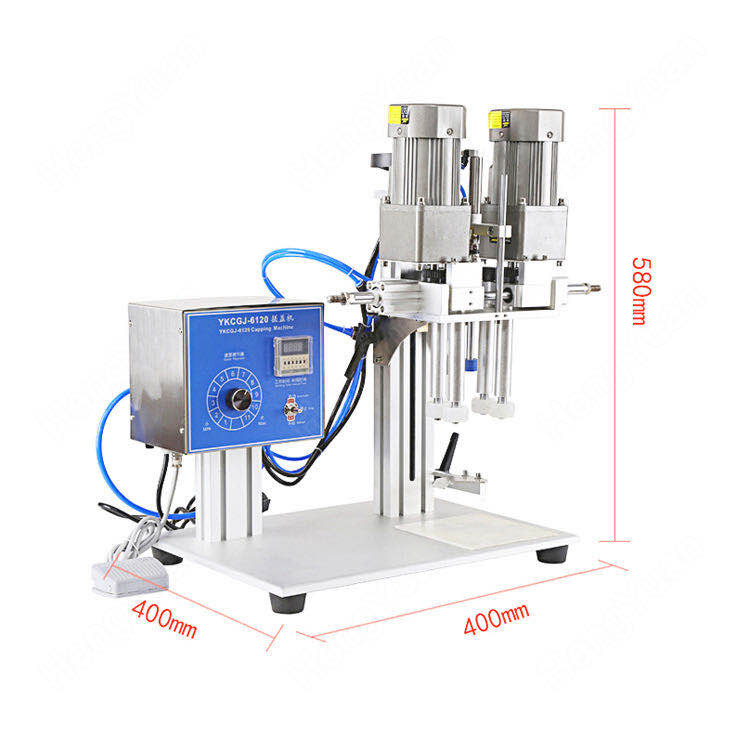

Suitable for bottle size
Height:50-400mm, Width:20-100mm
Total Power
Air Compressure
Twisting force
Power supply
AC220V/110V, Single phase

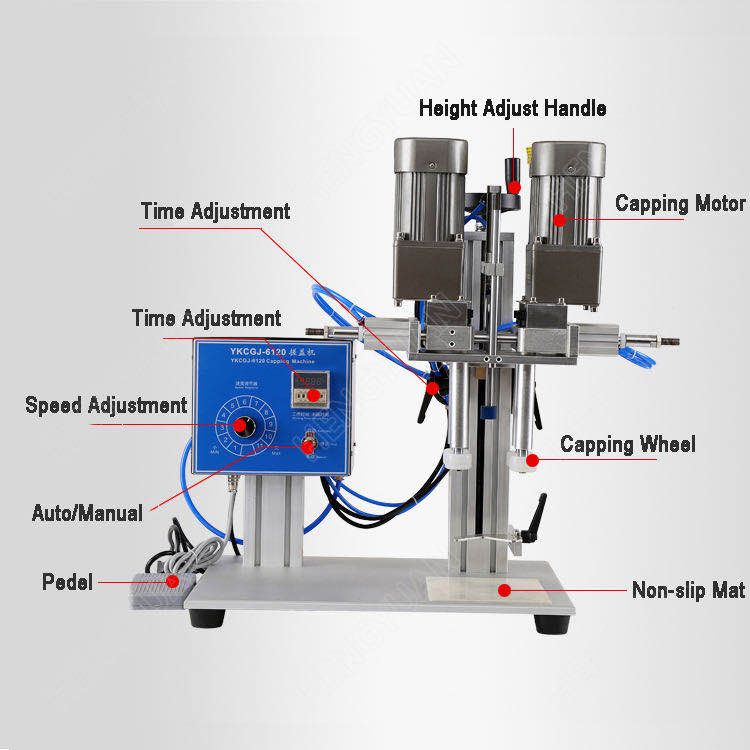

Semi-automatic 4 Wheels Clamping Lid capping machine Picture

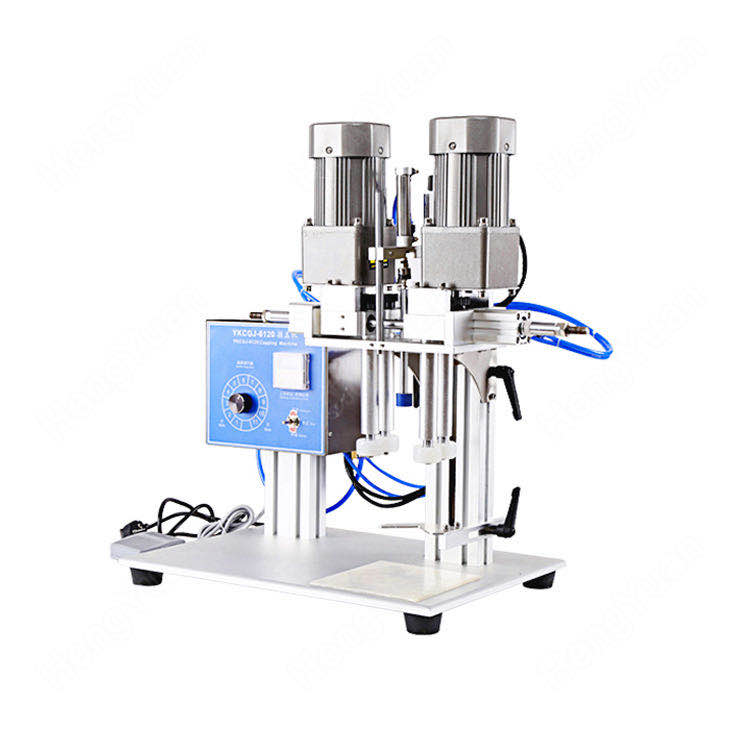

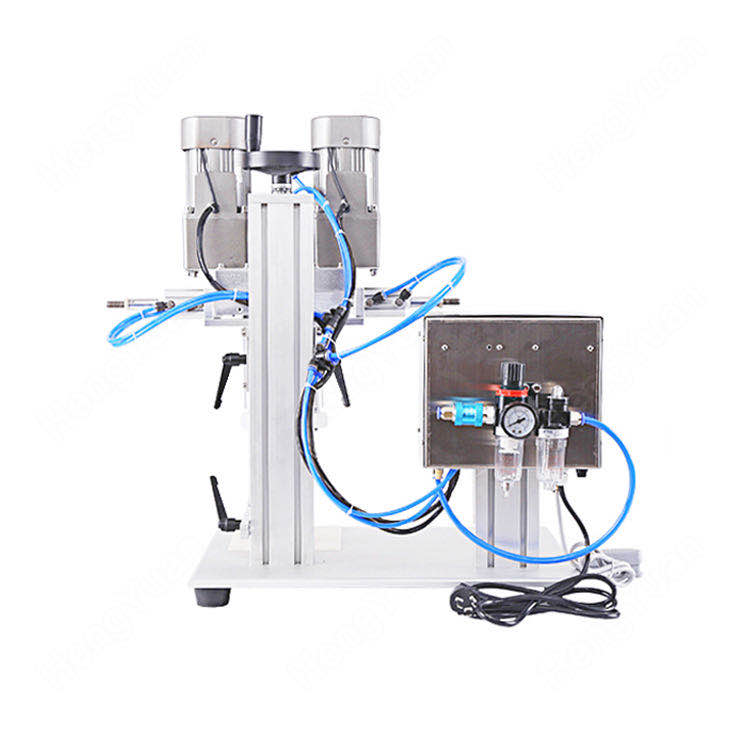

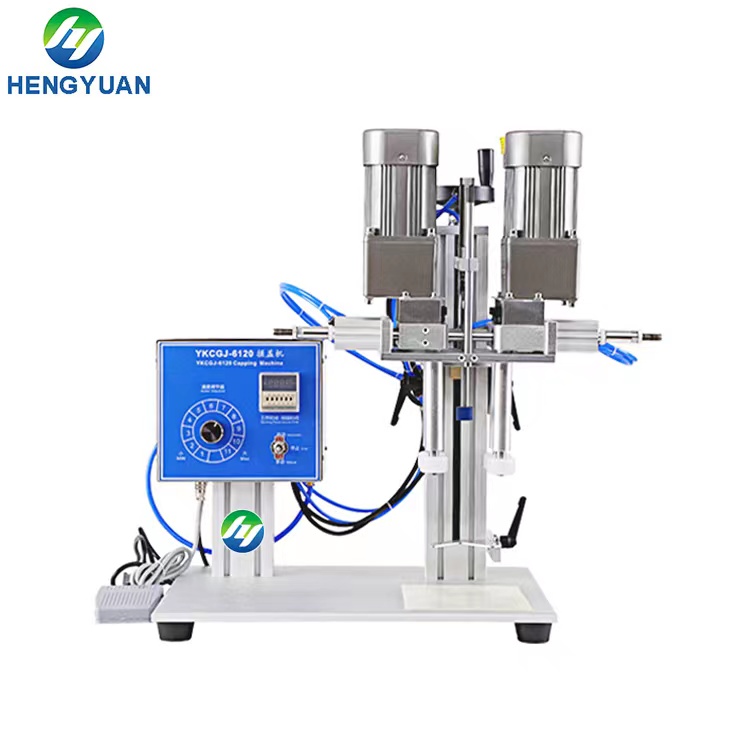

YKCGJ-6120 Semi-automatic Clamping Capping Machine
YKCGJ-6120 Semi-automatic Lubricant Barrel Capping Machine
YKCGJ-6120 Semi-automatic Pump Lid Capping Machine
YKCGJ-6120 Desktop Clamping Capping Machine
YKCGJ-6120 Bottle Sealer

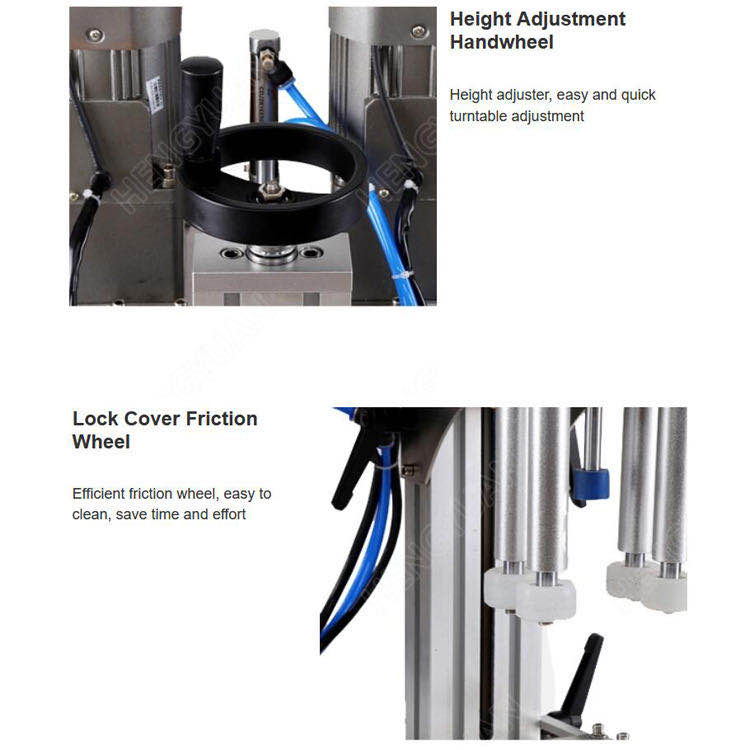

Semi-auomatic screwing capping machine details

YKCGJ-6120 Semi-automatic Kitchen Cleaner Sprayer Lid Capping Machine
YKCGJ-6120 Desktop Sprayer Lid Capping Machine
YKCGJ-6120 Perfume Sprayer Bottle Capping Machine


1.Used for plane-top plastic and metal screwing cap, lug cap, extrusion cap, pull lid, flip-top lid by automatic sorting and loading caps.

2.Used for the cap with the tube, pump cap, spray cap, trigger cap by manually put caps in the bottles.

YKCGJ-6120 Semi-automatic Hand Sanitizer Bottle Capping Machine

Click here to view Semi-automatic Desktop Four Wheels Screwing capping machine running video on youtube
