Semi-automatic Vacuumizing Adding Nitrogen Gas Tin Cans Capping Machine

  • Model: HYSS-10A
  • Suitable bottle: tin cans
  • Speed capacity: 500-900 bottles/hour
BASIC INFO
 Product Instruction

HYSS-10A Semi-automatic Vacuumizing Adding Nitrogen Gas Tin Plate Lid POP Cans Single-head Capping Machine is mainly suitable for sealing packaging of various round PET plastic, iron, carton, aluminum and paper cans. It is an ideal packaging equipment for food, medicine, tea and chemical industries with advanced design, reasonable structure and simple and light operation. Manually put lid on the cans, machine sealing it. the equipment adopts independent vacuum cylinder to seal and vacuumize, and the vacuum negative pressure can reach (adjustable from -0.02 MPa to -0.07Mpa), and can be sealed after being filled with nitrogen. All actions are completed by PLC system, saving labor cost and improving quality and benefit. The main body of this product is made of stainless steel, which has beautiful appearance and meets the design requirements of most standard production workshops. Using a single motor to work, all parts are processed with precision, and the production technology and process have been precipitated and improved by our company for a long time, which has the advantages of low noise and low failure rate. This product conforms to national standards, ministerial standards and enterprise standards, and is allowed to leave the factory after passing strict inspection and testing.

Main technical data
1. Capping capacity: 700-800pcs/hour
2. Applicable cap diameter: 30mm-110mm
3. Molds: Needed for glass jars with different size
4. Suitable for bottle height: 40-180mm
5. Vacuum degree: -0.08Mpa
6. Total Power: 1.0kw
7. Air consumption: 0.3m³ / 0.8Mpa
8. Rotary cover torsion: 5-25N.M
9. Power supply: AC220V/110V, Single phase
10. Dimension: 67x57x95cm
11. Weight: 80kg

Semi-automatic Vacuum Capping Machine Picture

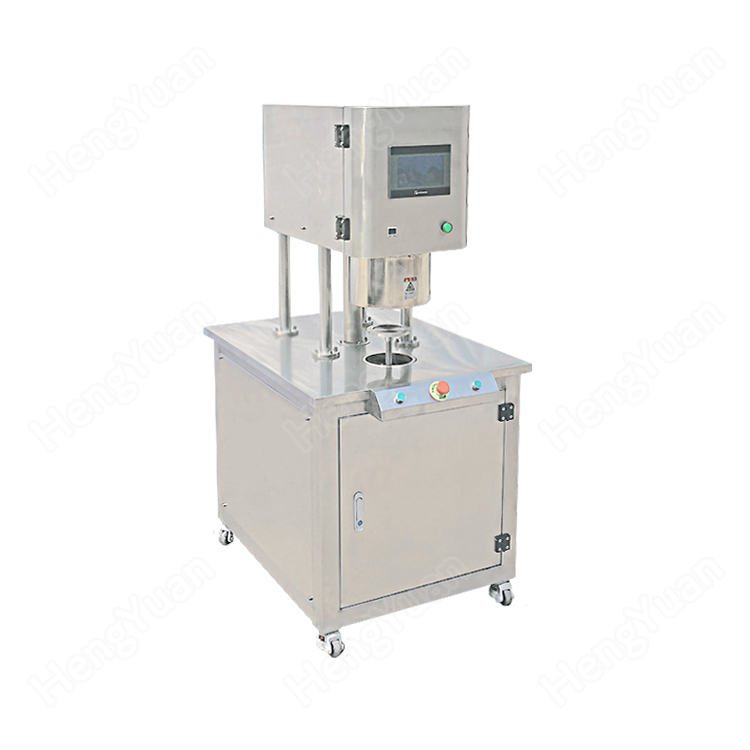

HYSS-10A Semi-automatic Vacuumizing Adding Nitrogen Cans Sealing Machine

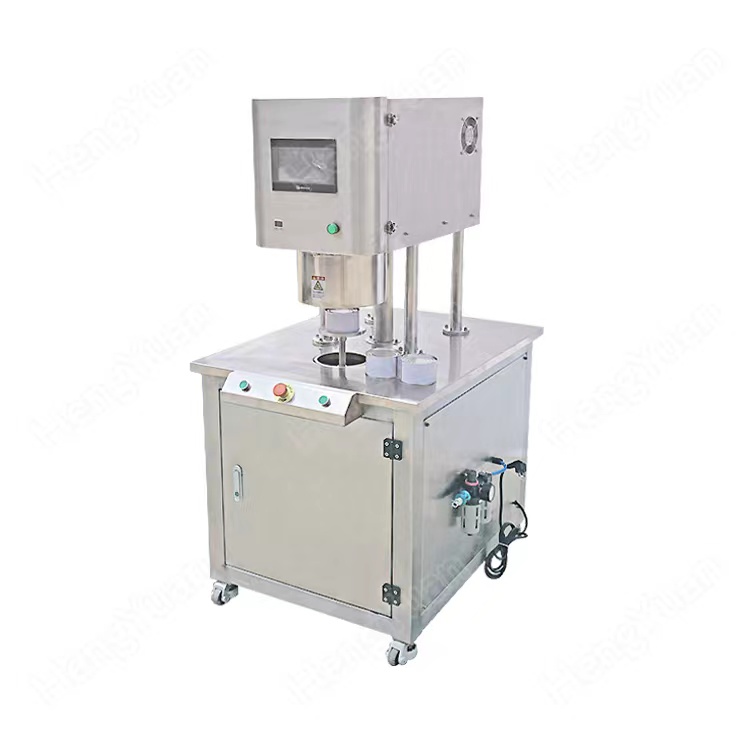

HYSS-10A Semi-automatic Add Nitrogen Cans Sealing Equipment

HYSS-10A Semi-automatic Vacuumizing Adding Nitrogen Tomato Sauce Cans Sealer

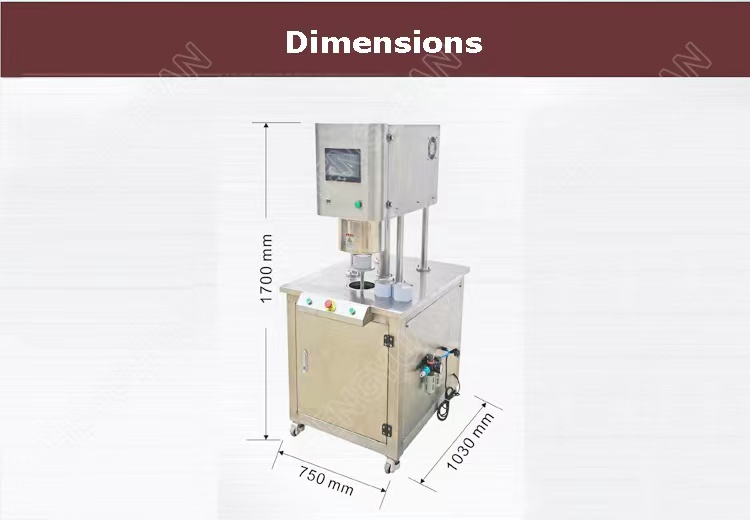

HYSS-10A Milk Powder Tin Cans Vacuumizing Adding Nitrogen Cans Sealer Dimension

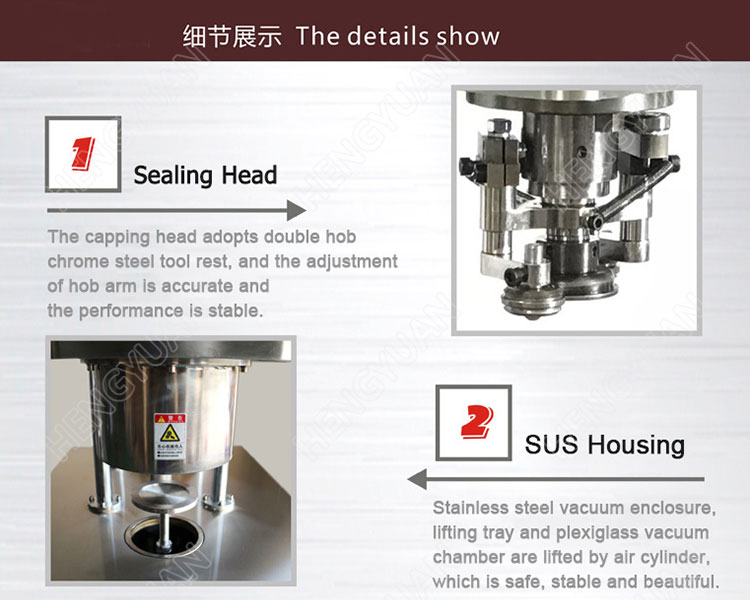

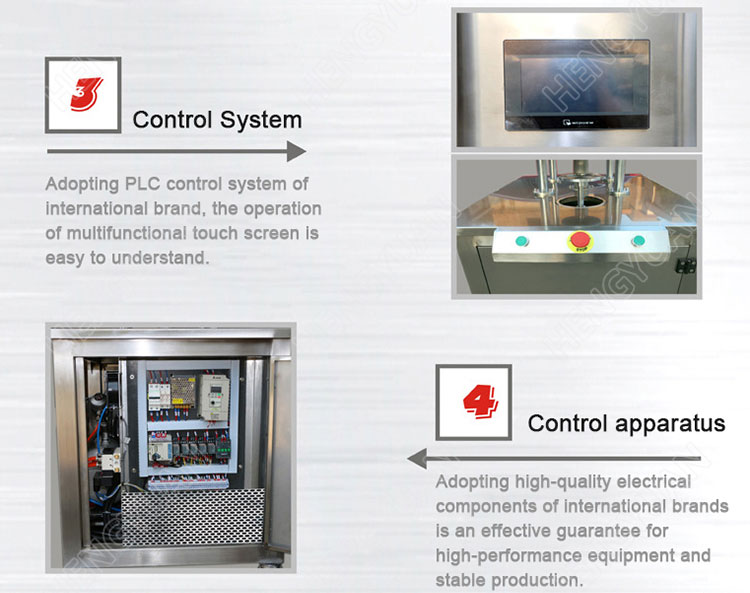

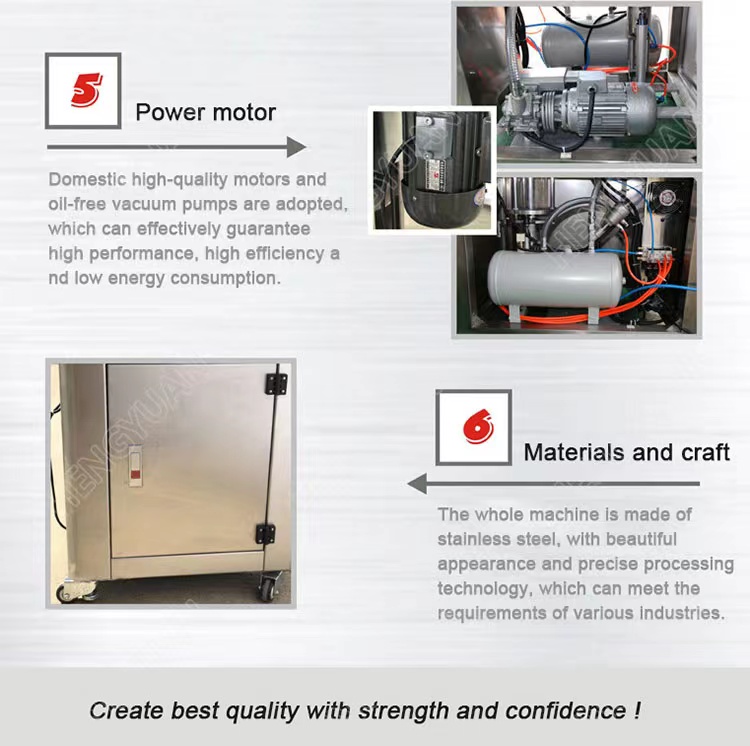

Semi-automatic Vacuumizing Adding Nitrogen Gas Tin Plate Lid POP Cans Single-head Capping Machine details

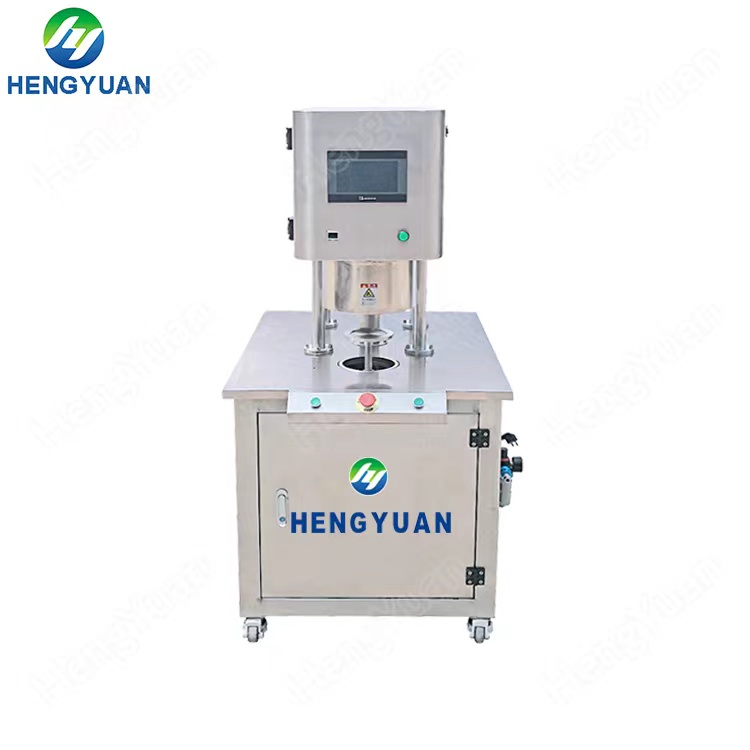

HYSS-10A Semi-automatic Add Nitrogen Cans Sealing Machinery
HYSS-10A Semi-automatic Add Nitrogen Cans Sealer
HYSS-10A Semi-automatic Add Nitrogen Tin Cans Sealing Machines



Application

Such as canned food, milk powder, protein powder, whole grain flour, canned fruit and canned meat products, which effectively ensures the stability of product preservation quality.The equipment is an ideal equipment for canned food enterprises, milk powder enterprises, pharmaceuticals, cosmetics and other enterprises.
HYSS-10A Semi-automatic Vacuumizing Adding Nitrogen Gas Tin Plate Lid POP Cans Single-head Capping Machine

HYSS-10A Semi-automatic Vacuumizing Adding Nitrogen Tin Cans Sealing Machine


Click here to view Semi-automatic Vacuumizing Adding Nitrogen Gas Tin Cans Capping Machine running video on youtube
https://youtu.be/Y2V0H7V-_cM
