Vertical Continuous Pouch Heating Sealing Machine

  • Model: HY-FR450
  • Suitable pack: Pouch/ bag/ sachet
  • Sealing speed: 0-21m/minute
  • Sealing width: 6-12mm adjustable
BASIC INFO
HY-FR450 Vertical Continuous Pouch Heating Sealing Machine Technical description

Automatic plastic film continuous sealing machine adopts electronic constant temperature control and automatic conveying device, which can control various plastic film strips with different shapes, and can be used in various packaging lines with unlimited sealing length. The sealing machine can be equipped with embossing wheel and printing wheel, and the font can be changed as needed. It can print the marks such as the date of manufacture, the shelf life, the shelf life, etc. at the same time of sealing, and the sealing patterns and marks are clear and beautiful. Seal printing can be completed at one time, and the date and batch number can be changed as needed. It is easy to use and conforms to the provisions of the Food Hygiene Law of articles. The automatic film sealing machine is suitable for sealing aluminum foil bags, plastic bags and composite bags in the industries of medicine, pesticide, food, daily chemicals, lubricating oil, etc. This equipment has the advantages of firm sealing and high efficiency; Simple and compact structure and small volume; Beautiful appearance, advanced technology and low power consumption; Convenient operation and maintenance, and that like, and is an ideal seal machine. This machine can also be used horizontally, vertically and horizontally, and it can be used horizontally to seal dry goods. Vertical packaging and sealing for liquid articles.
There are all kinds of continuous sealing machines, including vertical, floor-standing, left-feeding, stainless steel case, etc., but also vertical heightening of 45CM, double heating and widening of conveying table. The sealing is widened by 25MM. Deepen sealing60MM, the distance between the sealing and the conveying platform is increased, the intelligent meter controls, the sealing width is 3MM and 5MM, and other models can be customized.


Main technical data
Sealing speed
0-21 M/min
Sealing width
6-12mm adjustable
Sealing length
0- infinity
Heat sealing power
600W
Temperature range
0-300°℃

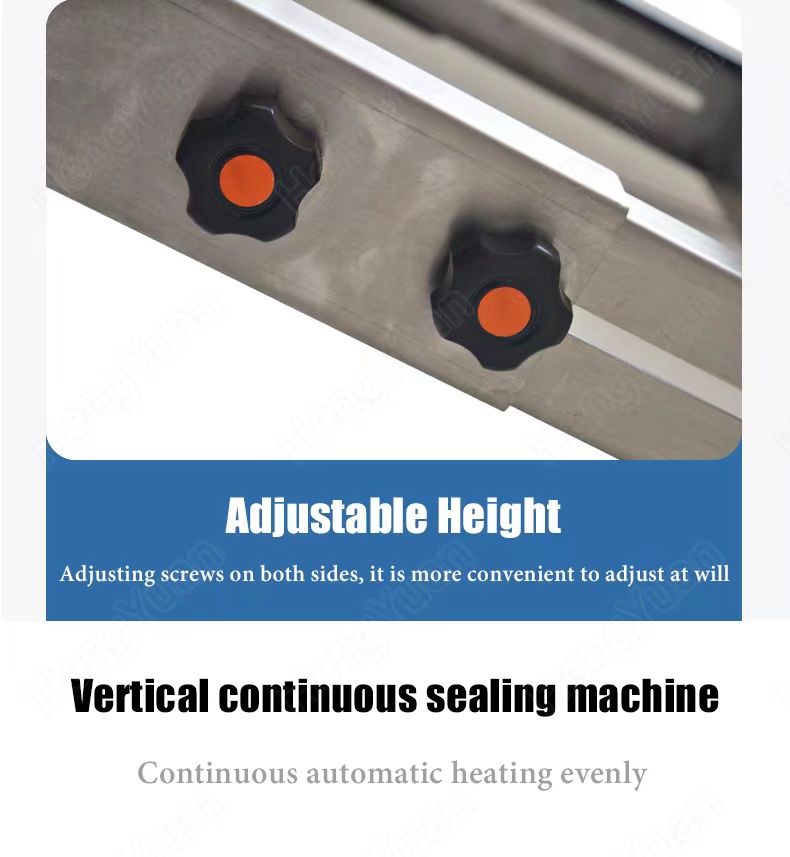

Vertical height
210-450mm
Conveying load
≤5kg

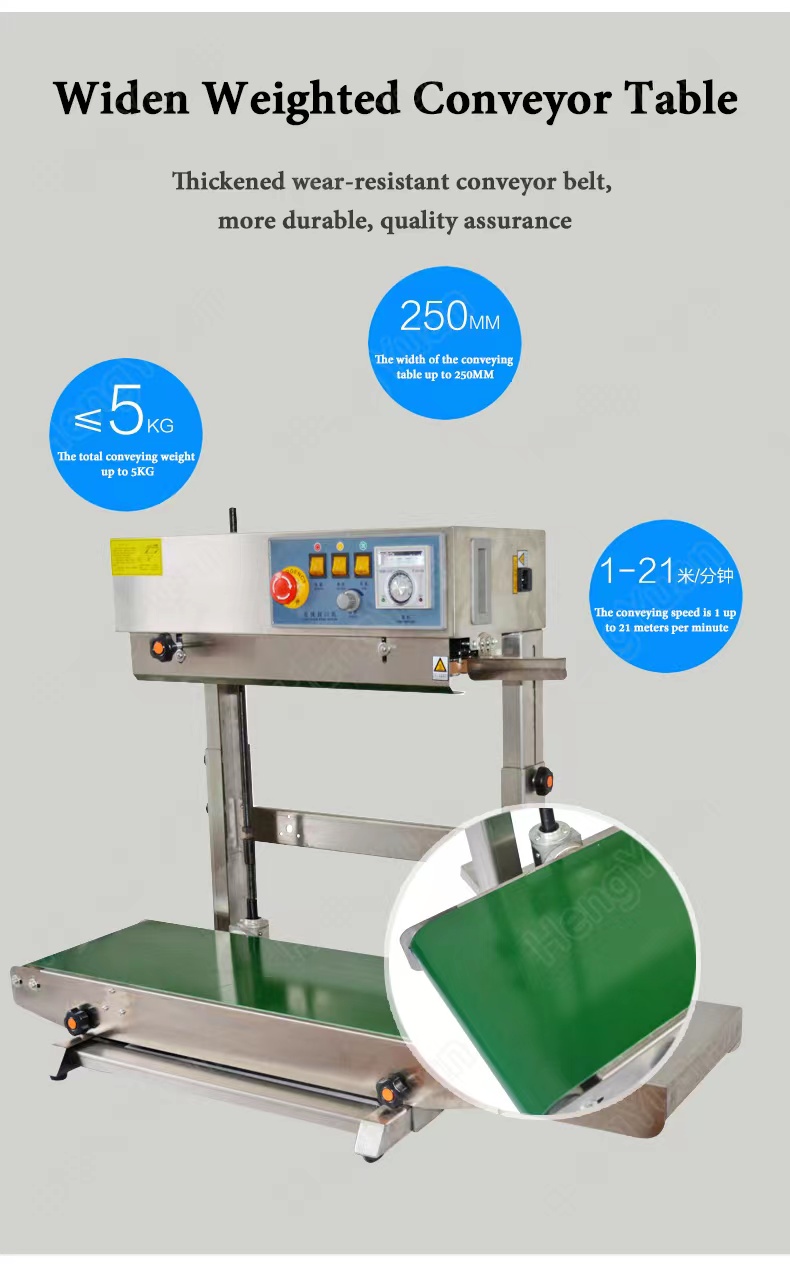

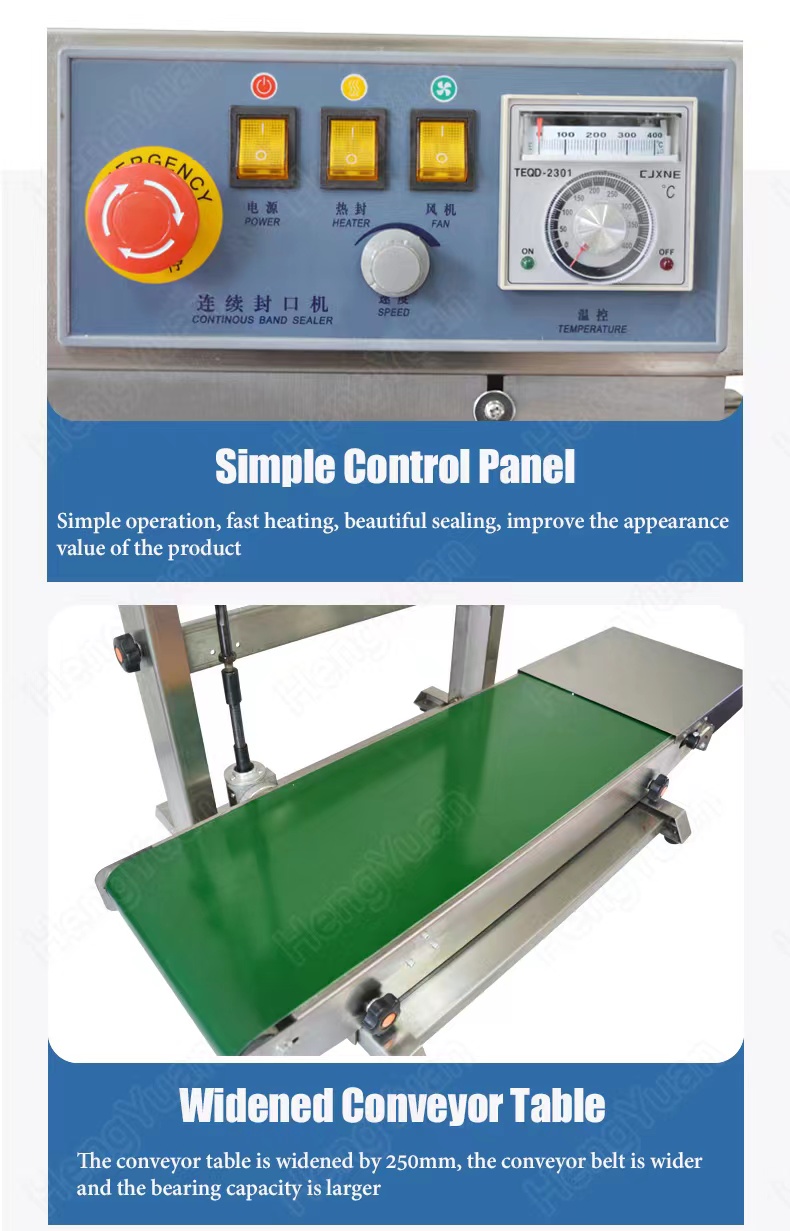

Conveying table width
250mm
Conveyor power
80W
Mode of operation
Electronic stepless speed regulation
Printing mode
embossed seal
Maximum thickness of single-layer sealing film
≤0.4mm
Power supply
AC220V/110V, Single phase
Dimension
100x45x85cm
Weight
35kg

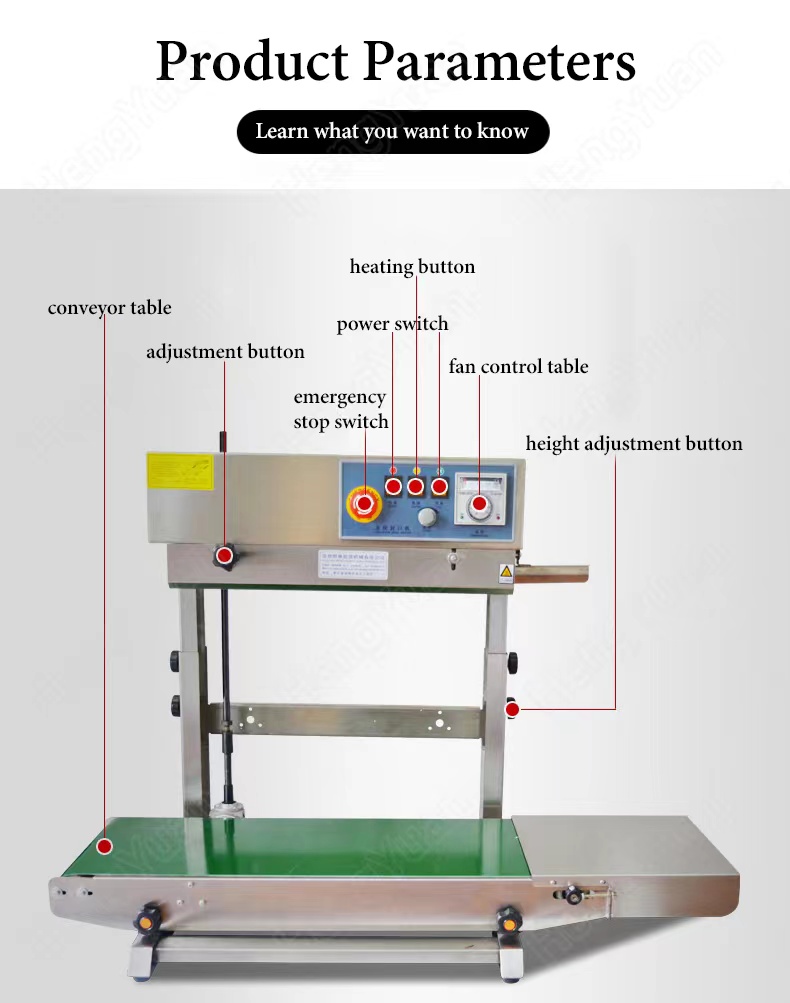

HY-FR450 Vertical Continuous Pouch Heating Sealing Machine Pictures

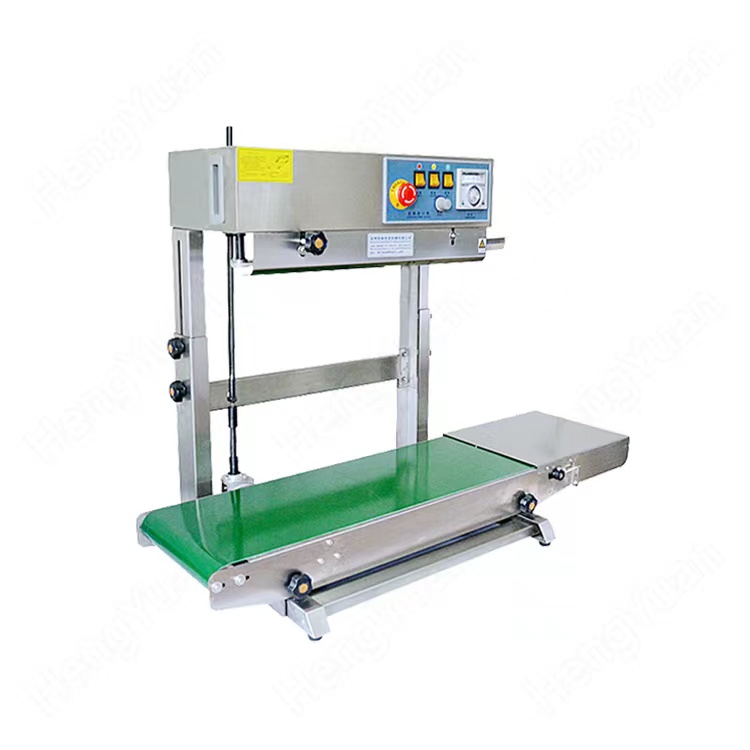

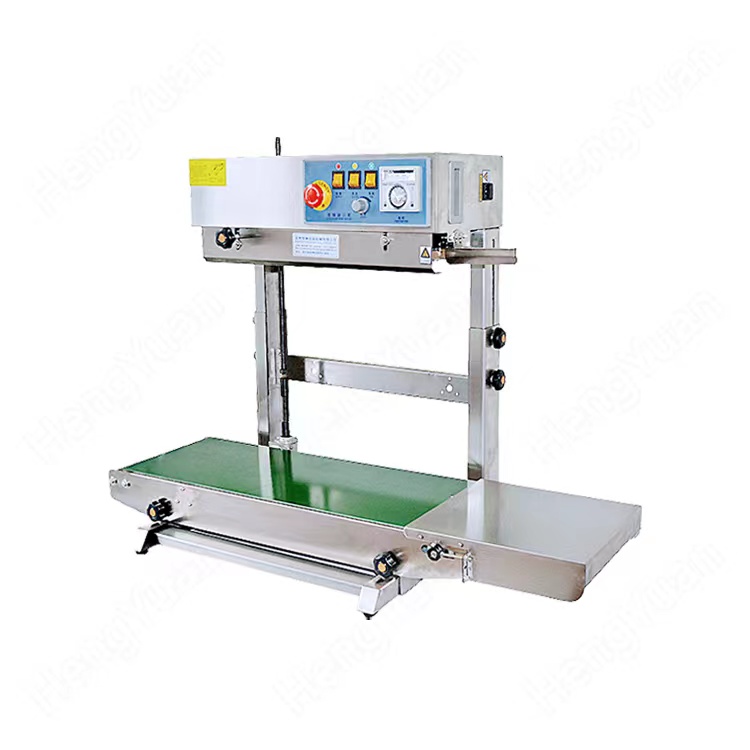

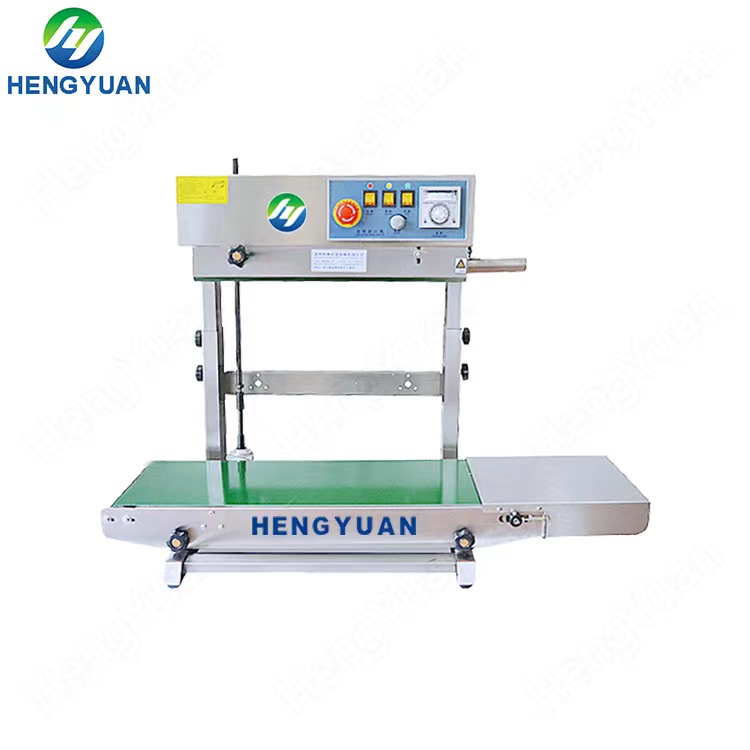

HY-FR450 Vertical automatic continuous sealing machine.jpg
HY-FR450 Vertical automatic continuous bag sealing machine.jpg
HY-FR450 Vertical automatic continuous bag sealing equipment.jpg
HY-FR450 automatic continuous doypack pouch sealing machine.jpg
HY-FR450 Vertical automatic continuous detergent pouch sealing machine.jpg
HY-FR450 Vertical automatic continuous detergent pouch sealing machine.jpg





HY-FR450 Vertical automatic continuous pouch sealer.jpg
HY-FR450 Vertical automatic continuous rice pouch sealing machine.jpg
HY-FR450 Vertical continuous sealing machinery.jpg
HY-FR450 puffed food pouch sealing machinery.jpg
HY-FR450 Vertical Continuous Pouch Heating Sealing Machine
 Application

Glass Bottle PVC Heating Shrink Cap Sealing Machine, Wine bottle PVC Heat Shrink Cap Sealer, soy sauce vinegar bottle PVC Heat Shrink Cap Sealer, olive oil bottle PVC Heat Shrink Cap Sealing Equipment, etc.
HY-FR450 Vertical automatic continuous food pouch sealing machine.jpg

Click here to view HY-FR450 Vertical Continuous Bag Heating Sealing Machine running video on youtube
https://youtu.be/F_-ZSm5VLtY
