Semi-automatic Flowmeter Dosing BIB Bag in Box Two Heads Filling Capping Machine

  • Model: HYBIB-20F
  • Filling No.: 2pcs
  • Capping head: 2pc
BASIC INFO
Semi-automatic Flowmeter Dosing BIB Bag in Box Two Heads Filling Capping Machine Technical Description

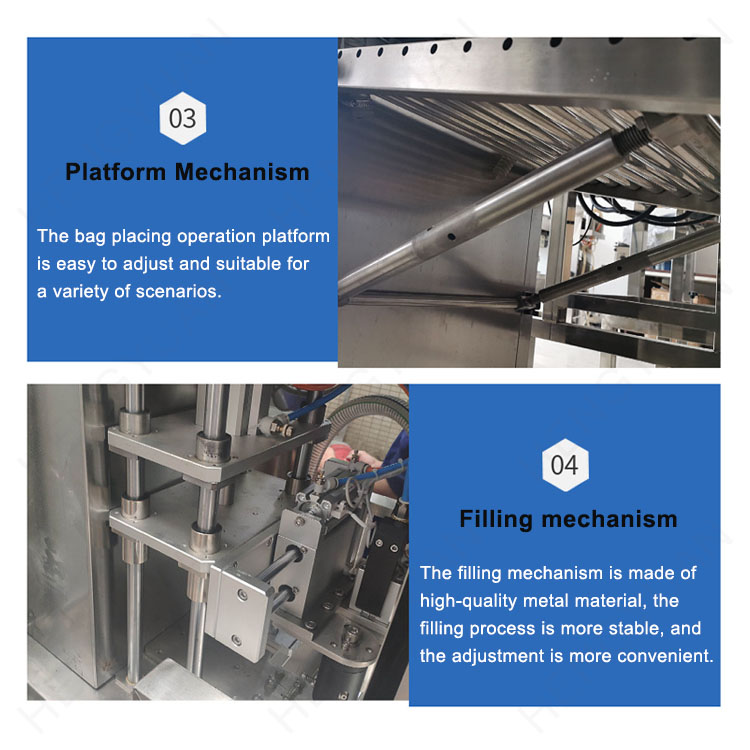

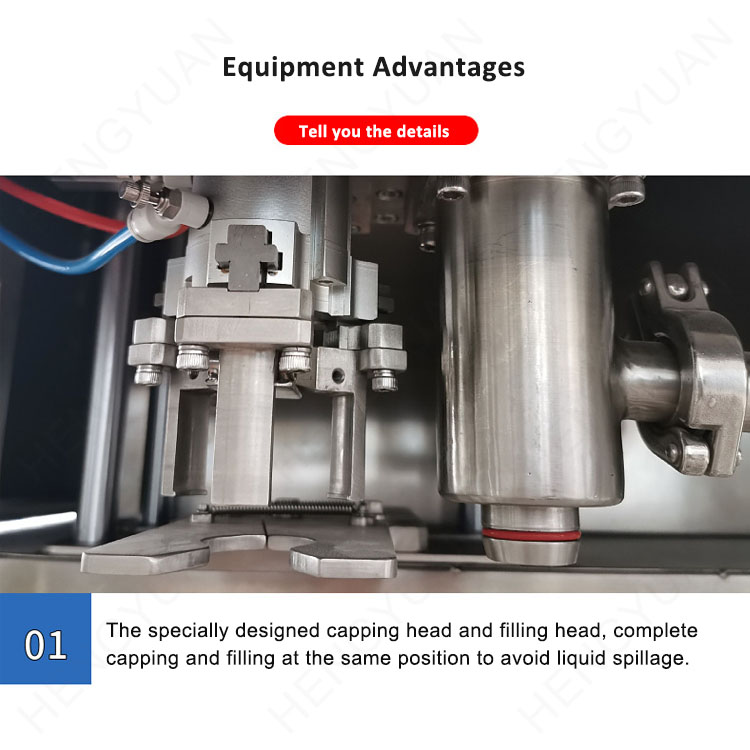

This machine adopts flow meter measurement, with high filling accuracy and convenient setting and adjustment of filling quantity. In the filling position, the clamping position and capping mechanism for fixing the mouth of the bag and the mechanism for switching between capping and filling mechanism are installed, which is especially suitable for filling capping in plastic bags in boxes such as drinks, oil products, red wine and condiments, etc.

Main Characters

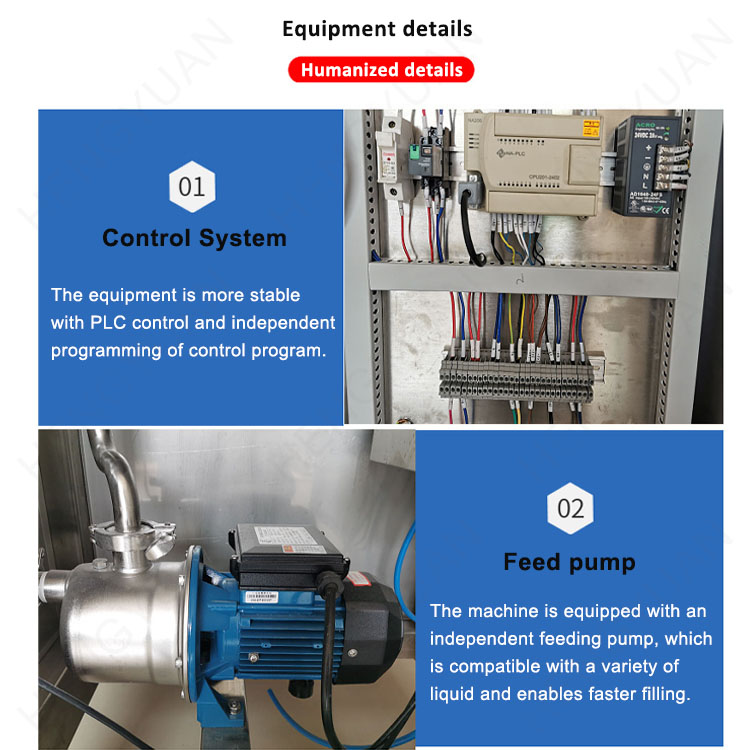

1) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. Easy to operate, convenient and stable.
2) Suitable for free-flowing liquid, especially cooking oil, wine, water, etc.
3) Floor type, It is convenient, accurate.
4) Use flowmeter to be suitable for a wide filling range
5) 304 stainless steel is used in material contacting parts, The parts need to clean are made of quick-change device.
6) Meet GMP standard. Easy to be disassemble and clean.

Main Technical Data

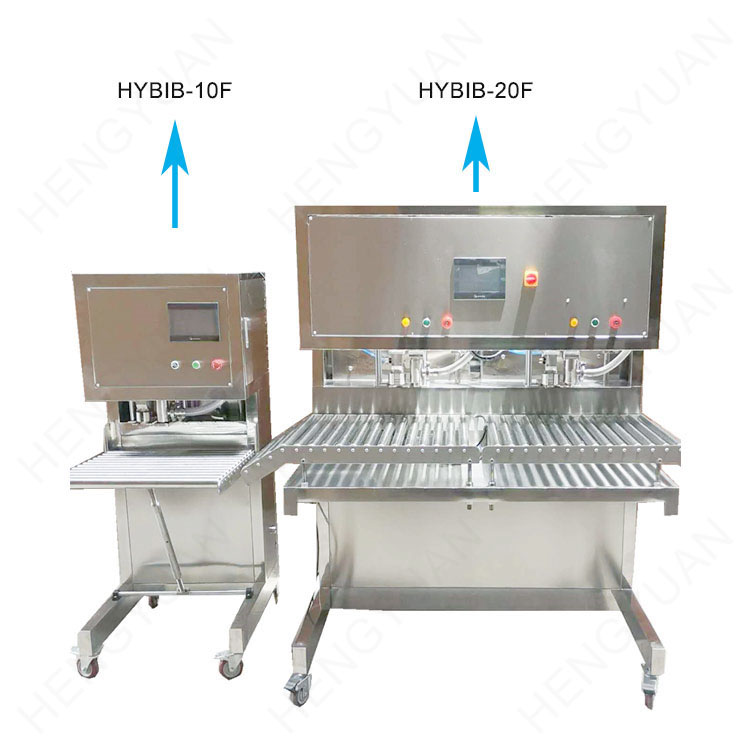

Model
HYBIB-10F
HYBIB-20F
Filling range
1-200L
Dosing method
Flowmeter (weighing type can be chosen)
Capping method
Opening and capping
Filling package
Bag in box
Filling accuracy
≤±0.3%
Liquid in pressure
0.3-0.35Mpa
Filling speed
150~250 bottles/hour (5L)
300~500 bottles/hour (5L)
Control method
Pedal
Working air pressure
0.4-0.6Mpa
Operation voltage
220V or 110V, Single phase, customized
Electricity consumption
1.38kw
2.6kw
Dimension
800*1200*1500mm
1700*1200*1500mm

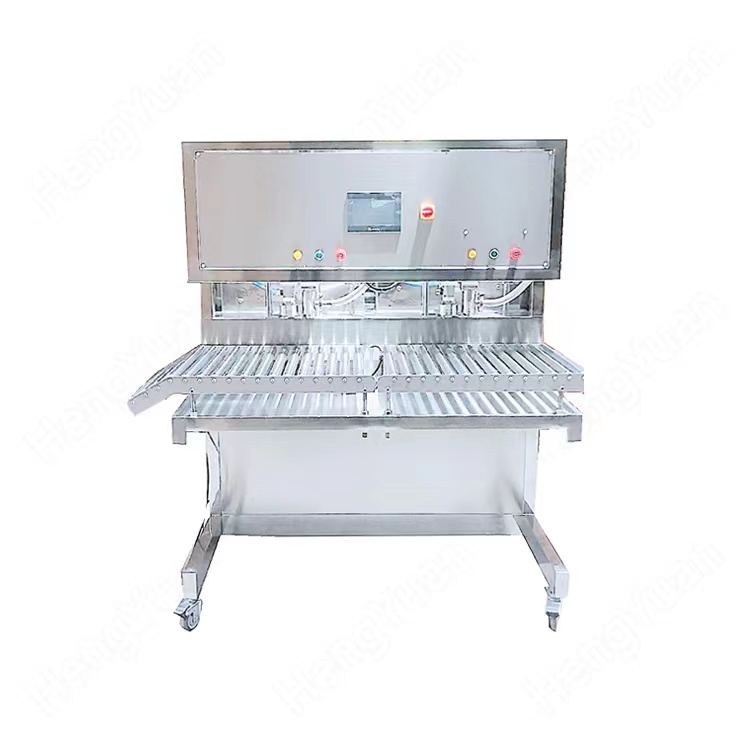

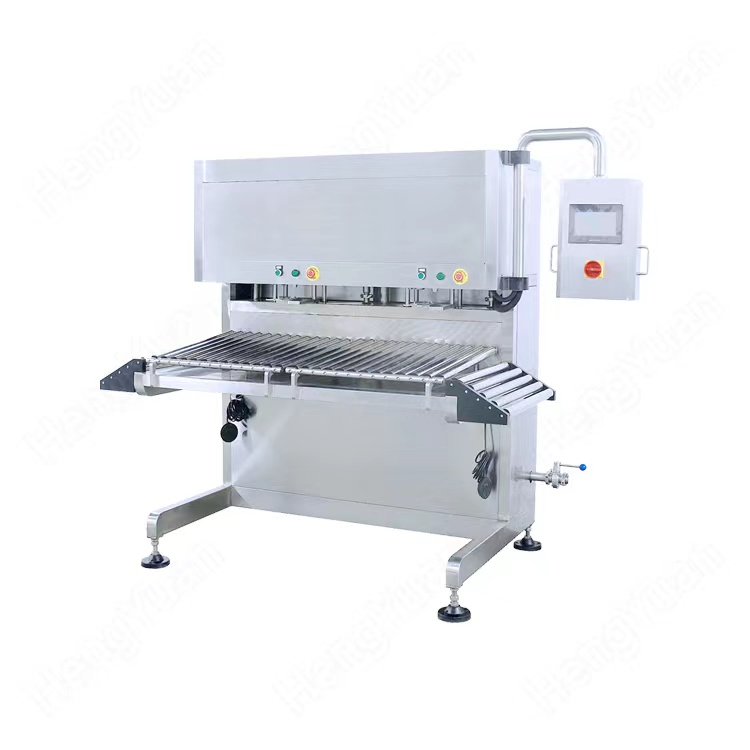

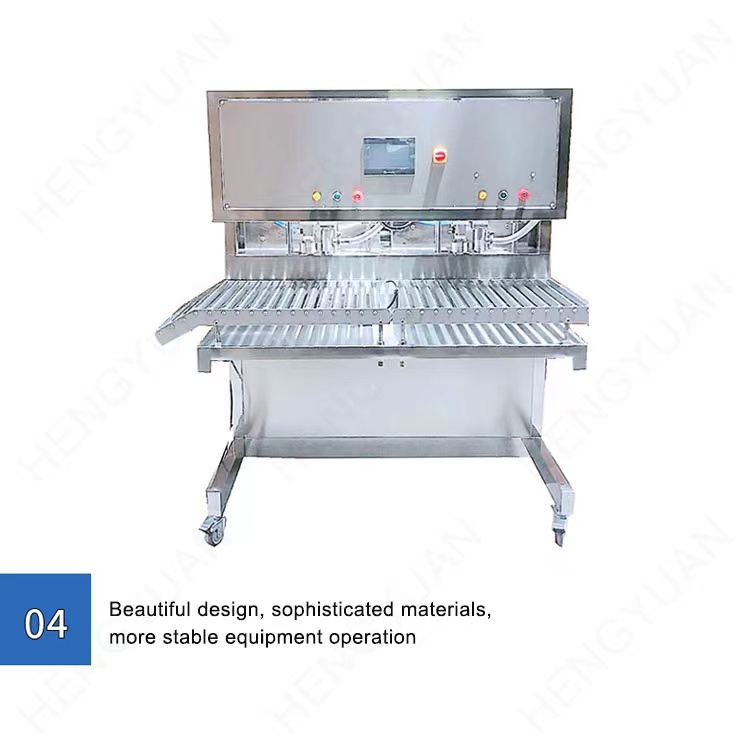

HYBIB-20F Semi-automatic Flowmeter Dosing BIB Bag in Box Two Heads Filling Capping Machine Pictures

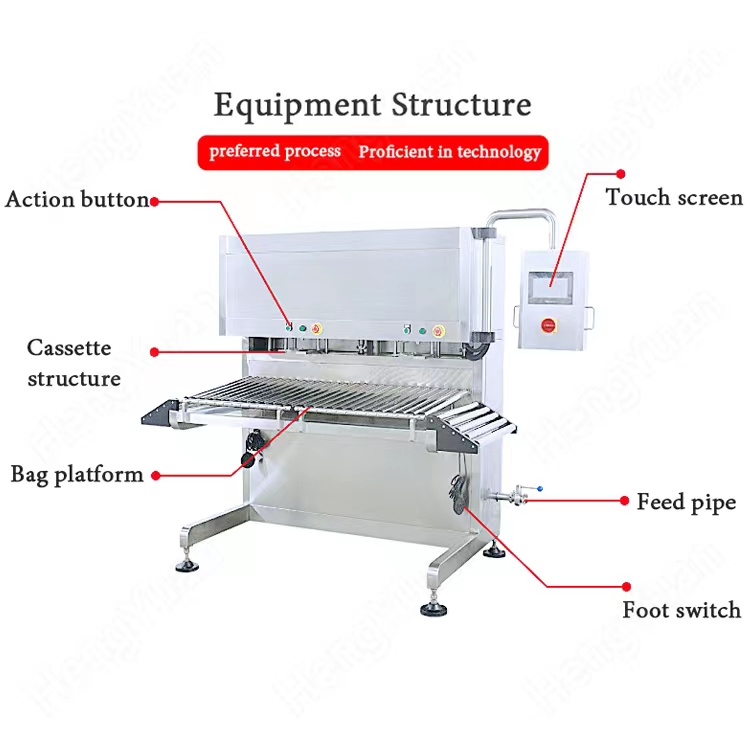

HYBIB-20F BIB Flowmeter Dosing Two Heads Filling Capping Machine

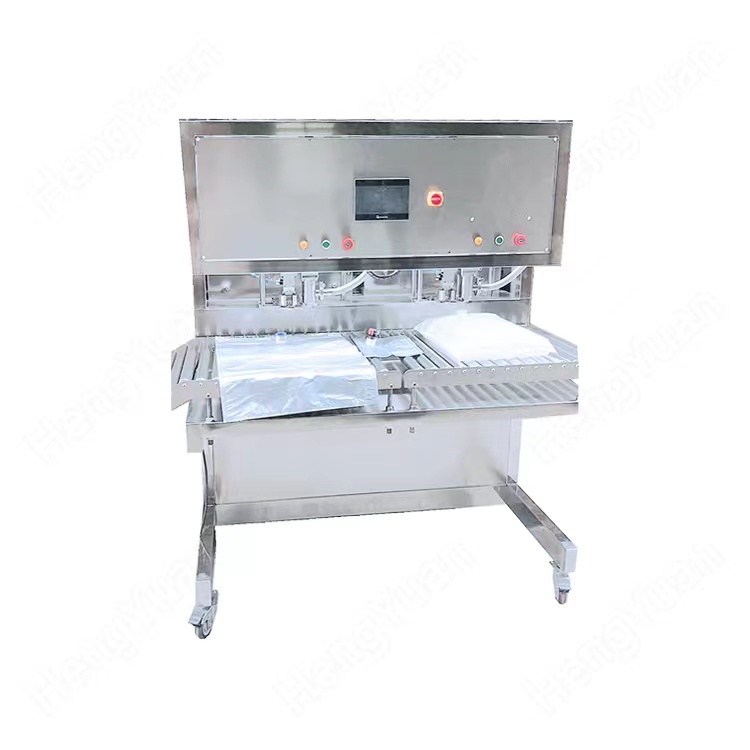

HYBIB-20F Semi-automatic BIB Flowmeter Dosing Two Heads Filling Capping Machine

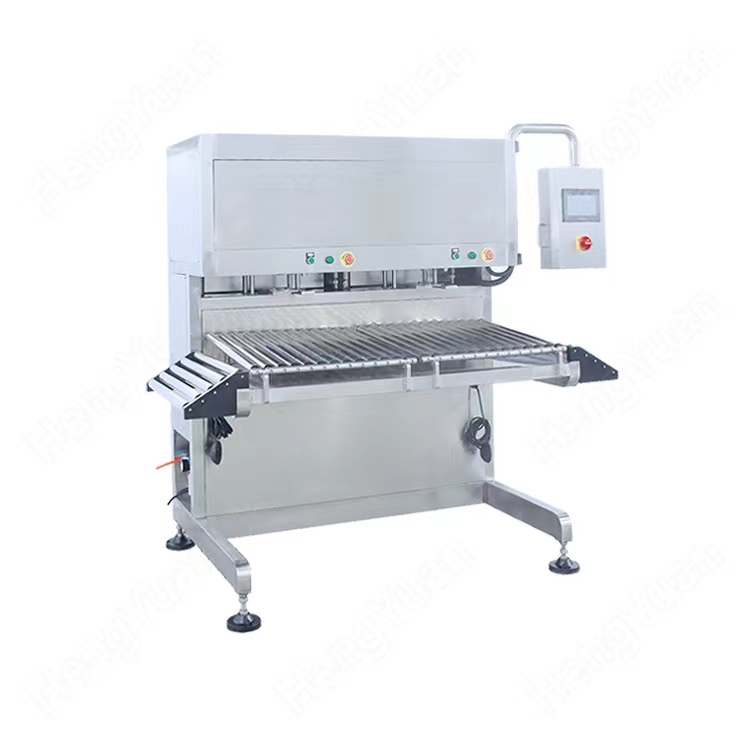

HYBIB-20F BIB Flowmeter Dosing Two Heads Filling Capping Equipment

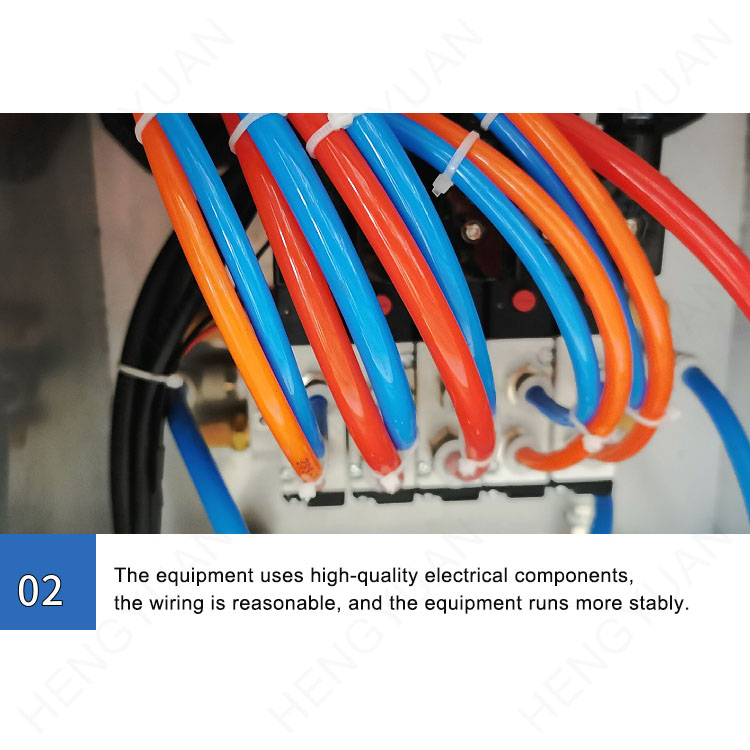

HYBIB-20F Semi-automatic Bag in Box Two Heads Filler Capper

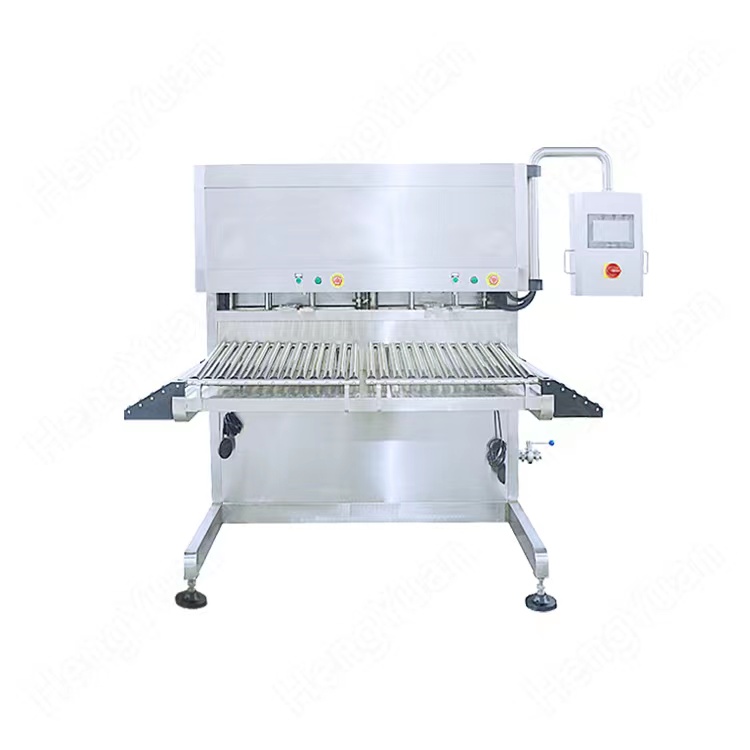

HYBIB-20F Semi-automatic Bag in Box Two Heads Filling Capping Machine
HYBIB-20F Semi-automatic BIB Two Heads Filling Capping Equipment
HYBIB-20F Semi-automatic Bag in Box Flowmeter Dosing Wine Filling Machine
HYBIB-20F Semi-automatic BIB Bag in Box Flowmeter Dosing Wine Filling and Capping Machine
HYBIB-20F BIB Bag in Box Flowmeter Dosing Liquor Filling and Capping Machine
HYBIB-20F Semi-automatic Juice BIB Bag in Box Flowmeter Dosing Filling Machine
HYBIB-20F BIB Bag in Box Flowmeter Dosing Drinking Water Filler Capper

HYBIB-20F Semi-automatic Bag in Box Flowmeter Dosing Cooking Oil Filling Machine
HYBIB-20F BIB Semi-auto Flowmeter Dosing Two Heads Filling Capping Equipment

HYBIB-20F

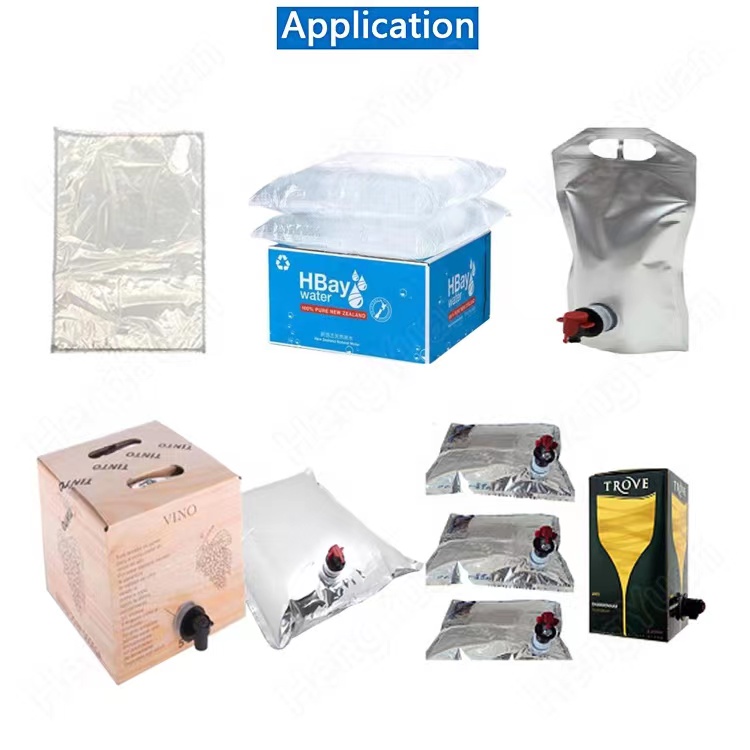

Semi-automatic Flowmeter Dosing BIB Bag in Box Two Heads Filling Capping Machine is suitable for below bottle samples
Bag in box filling capping machine, Juice bag in box filling capping machine, Drinking water bag in box filling capping machine, Wine bag in box filling capping machine, Cooking oil bag in box filling capping machine, liquid condiments bag in box filling capping machine, etc.
HYBIB-20F Semi-automatic Bag in Box Flowmeter Dosing Dispensing Equipment
Click here to view Semi-automatic Flowmeter Dosing BIB Bag in Box Two Heads Filling Capping Machine running video on YouTube
https://youtu.be/dFJMchmGDO0
