Professionally produce filling machines and packing machines

HengYuan Machinery Equipment Co., Ltd.

Automatic Double Heads Servo Piston Sauce Filling Machine

  • Model: HYAP-S1000-2
  • Nozzles No.: 2pc
  • Standard filling volume: 50-1000ml
BASIC INFO
HYAP-S1000-2 Automatic Double Heads Servo Piston Sauce filling machine Technical Description

The automatic sauce filling machine adopts servo driving piston type metering and integrates electromechanical and pneumatic components. Material hopper has stirring and optional heating function. The electrical and pneumatic components are selected from world-renowned brands, controlled by PLC, with novel design, compact structure and beautiful appearance. It has the characteristics of accurate measurement, stable and reliable performance, high degree of automation, simple operation and convenient maintenance. It is widely used in filling of various (including granule) sauces. It is connected with Automatic bottle rinsing machine automatic capping machineautomatic labeling machineautomatic coding machineCarton filling packing machine, etc.



Main Technical Data

Model
HYAP-S1000-2
Heads
2pc ( Other qty available )
Capacity
(BPH)
200ml: Approx 1200
Volume
500-1000ml customized ( other volume is availabel )
Accuracy
≤±0.5%
Suitable Bottles
Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)
Control method
Touch screen and PLC
Air supply
0.5-0.7Mpa
Volume of hopper
2x40L (with stirring function, and optional heating function)
Power supply
2.6kw (without heating)
Voltage
415V/380V/220V, Three Phases , 50/60Hz, customized globally


HYAP-S1000-2 Automatic Double Heads Servo Piston Sauce filling machine Pictures

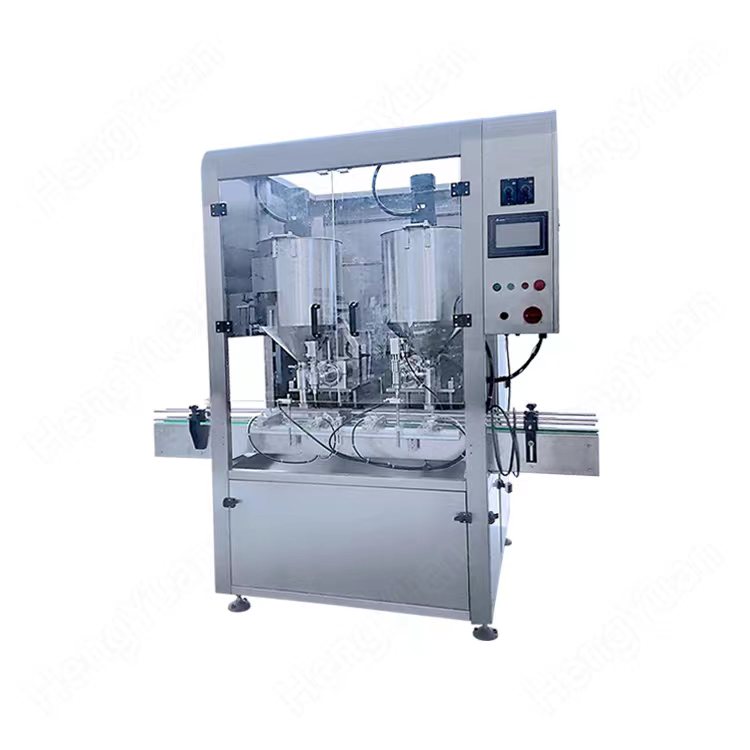

HYAP-S1000-2 Automatic Servo Piston Two Heads Bottle Filling Machine.jpg

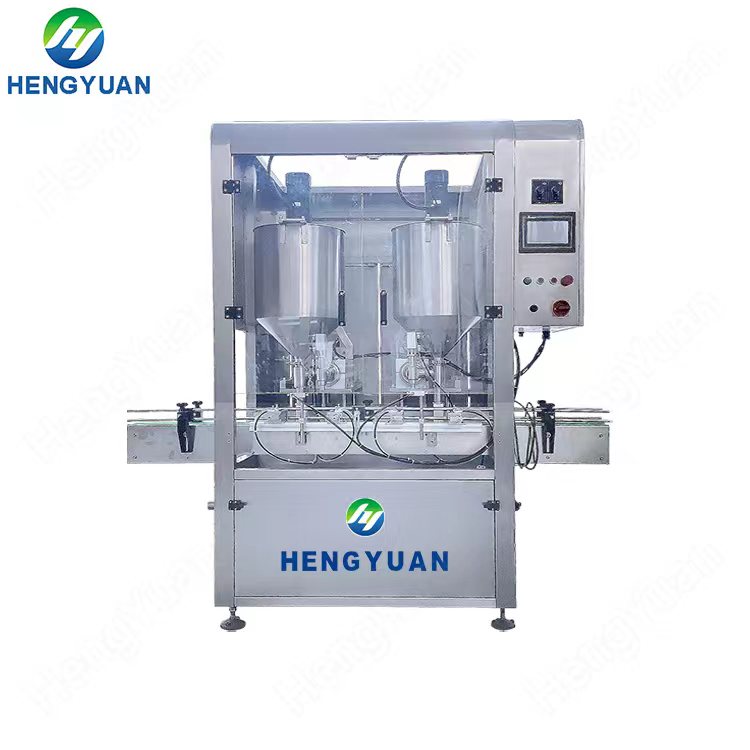

HYAP-S1000-2 Automatic Servo Piston Two Heads Glass Jar Filling Machine.jpg

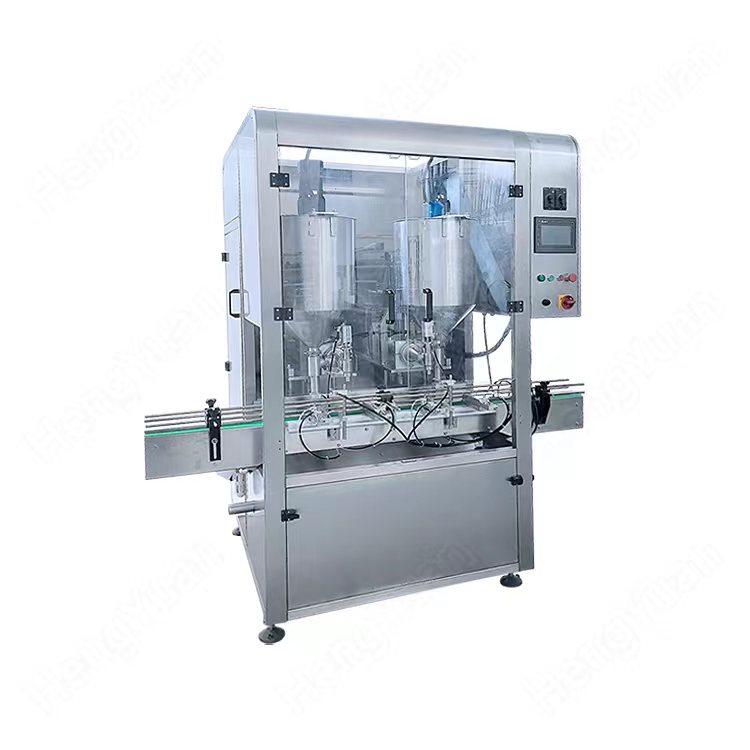

HYAP-S1000-2 Automatic Servo Piston Two Heads Sauce Filling Machine.jpg

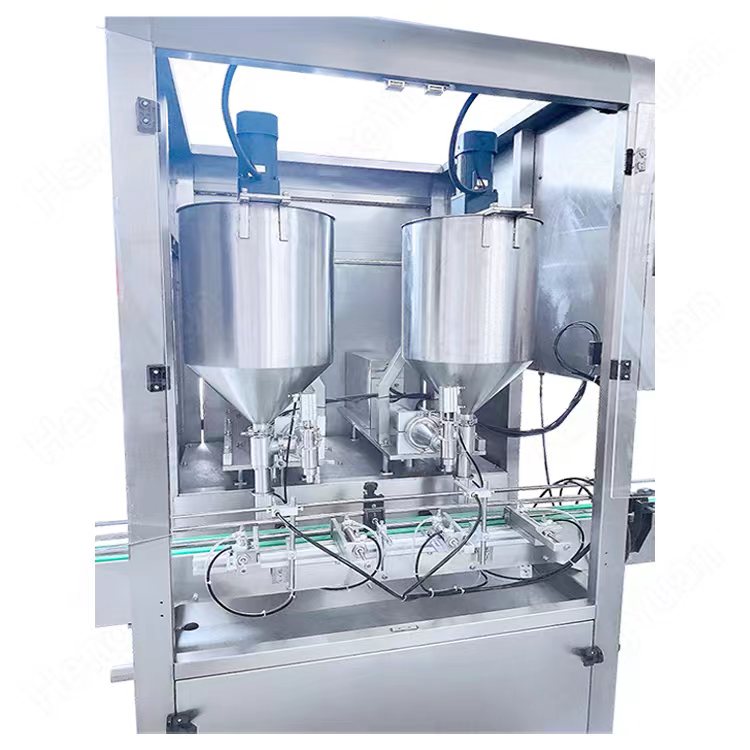

HYAP-S1000-2 Automatic Servo Piston Bottle Filling Machine.jpg

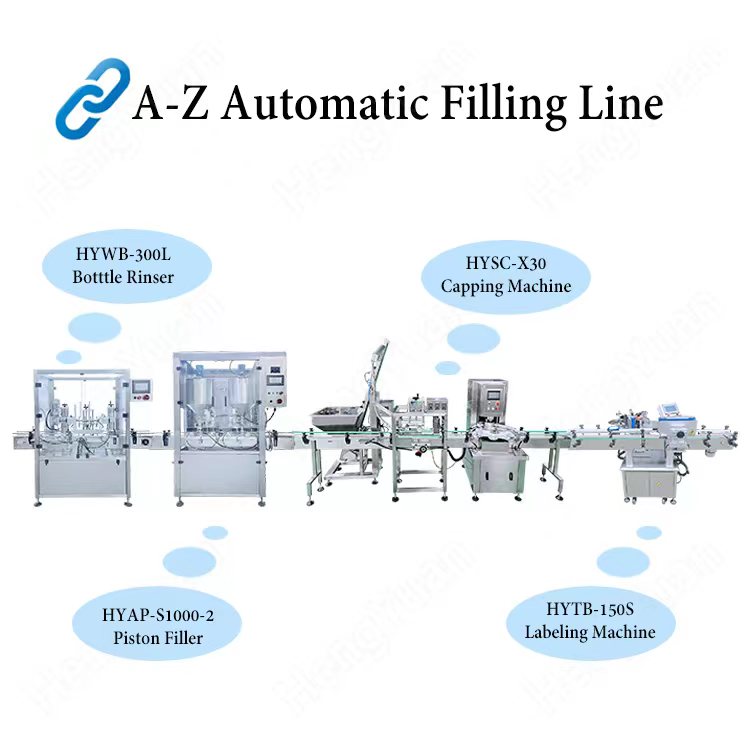

230601 HYAP-S1000-2 Automatic Filling Line.jpg


HYAP-S1000-2 Automatic Double Heads Servo Piston Sauce filling machine is suitable for below bottle samples
Servo piston filling machine, Chili sauce filling machine, Beef paste filling machine, Mushroom sauce filling machine, Granuled sauce dispensing equipment, Soybean sauce filling machine, Pepper chili filler, sesame seasoning oil dispenser, hotpot base filling equipment, vegetable paste filling machine, meat soup dispenser, etc.
HYAP-S1000-2 Automatic Servo Piston Double-headed Filling Machine.jpg


Click here to view HYAP-S1000-2 Automatic Double Heads Servo Piston Sauce Filling Machine running video on YouTube
https://youtu.be/PCJJxanhdmw
