Automatic Gear Pump Dosing Filling Machine

Application：Food, Beverage, Chemical, Machinery & Hardware, Cosmetic
Packaging Type：CANS, Bottles, Barrel
Key Selling Points：Flexible Manufacturing

BASIC INFO

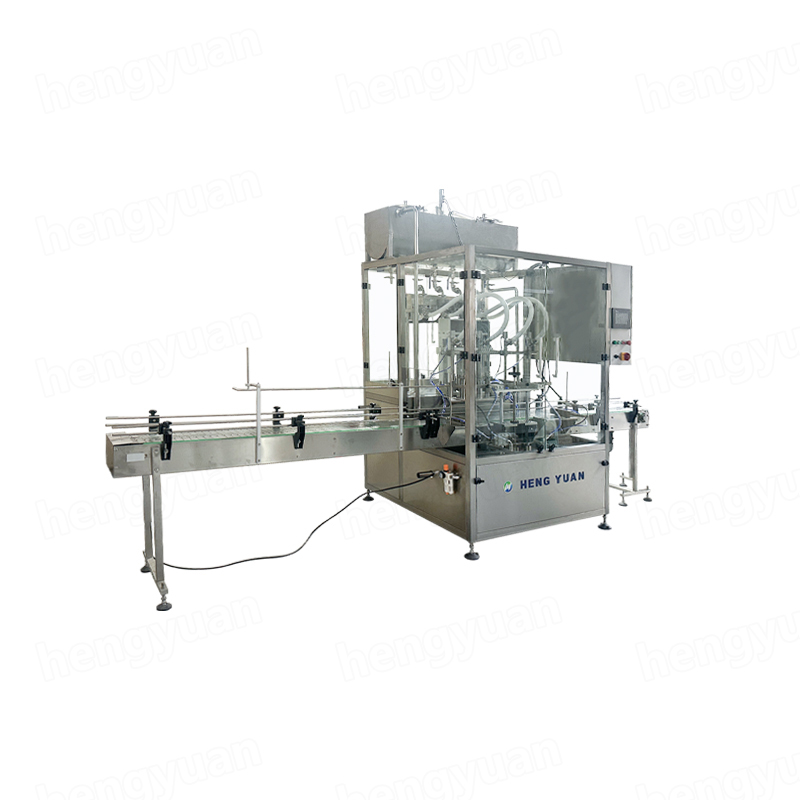

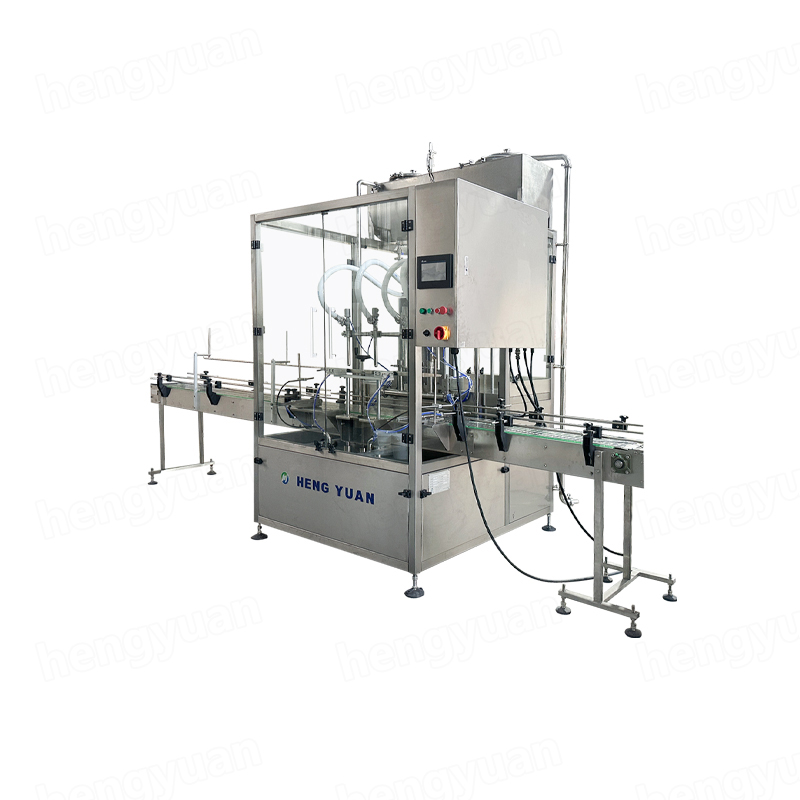

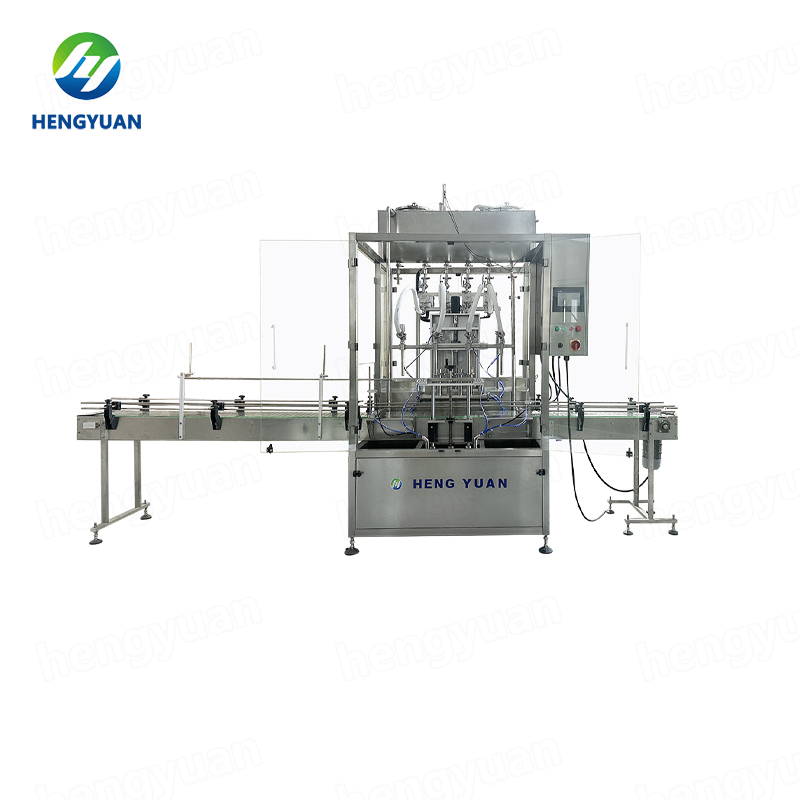

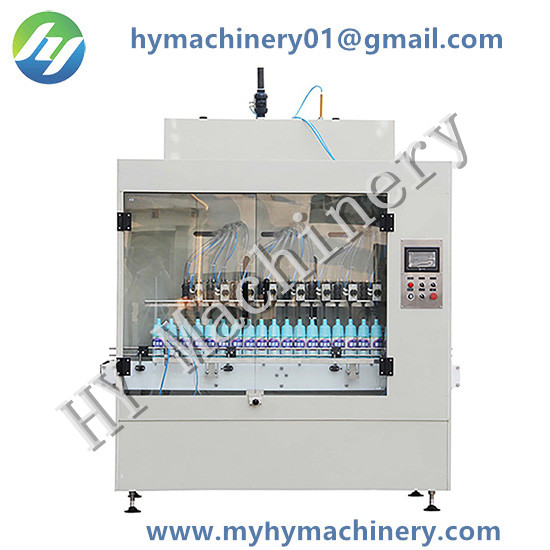

HYGP-100L Automatic Servo Gear Pump Bottle Liquid filling machine
Automatic Servo Gear Pump Dosing Bottle Filler HYGP-100L

Product Introduction

Linear Servo Gear Pump filling machine is for different viscous liquid and cream with different bottle or jars. The performance of the product reaches the international leading level. PLC control, servo gear pump dosing, equipped with brand touch screen, smooth operation, no leakage phenomenon, No bottle no filling, automatically control feeding the liquid into machine tank, liquid level is controlled at the same height.  The parameters are adjustable, simple and convenient, and the filling dose can be accurately calibrated, controlled within 0.5% of the filling dose. The machine is made of high quality 304 stainless steel, beautiful appearance, will not pollute the material, is the best choice of both high viscosity and normal liquid filling. Bottling filling machine is realized by the man-machine dialogue interface under the operation and control of high-speed PLC. It realizes the linear step-less speed regulation transmission through the human-machine dialogue interface, and can adjust the filling capacity arbitrarily.  The filling machine assembly line integrates machine, electricity and gas into one, with unique design, complete functions, stable performance, high quality and beautiful appearance. Applied to GMP standard. Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place. Gear pump liquid filling machine is widely used for bottling of edible oil, beverage, daily chemical, agricultural chemical, food and pharmaceutics industry.

Product application

10ml-30L customized servo gear pump dosing filling machine. For examples: Edible oil filling machine, Dialysis, Pesticide filling machine, Chili sauce filling machine, Milk filling machine, Soybean sauce filling machine, vegetable paste filling machine, liquid filling machine etc. Any liquid, half-flowing liquid, viscous cream, liquid filler, refill equipment, Vaseline filling machine, paraffin wax filler, hand sanitizer filler, facial cream filler, etc.

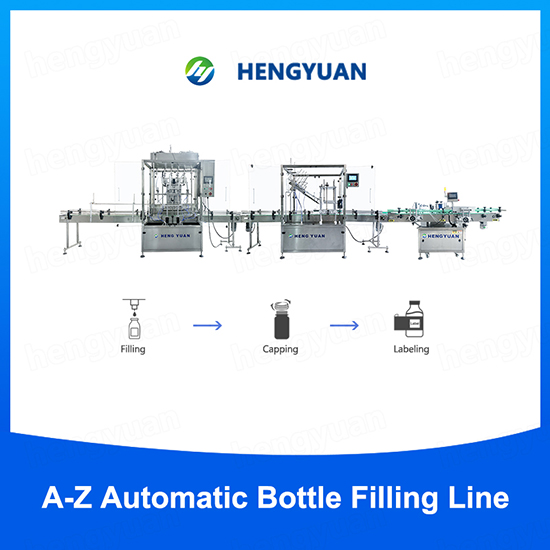

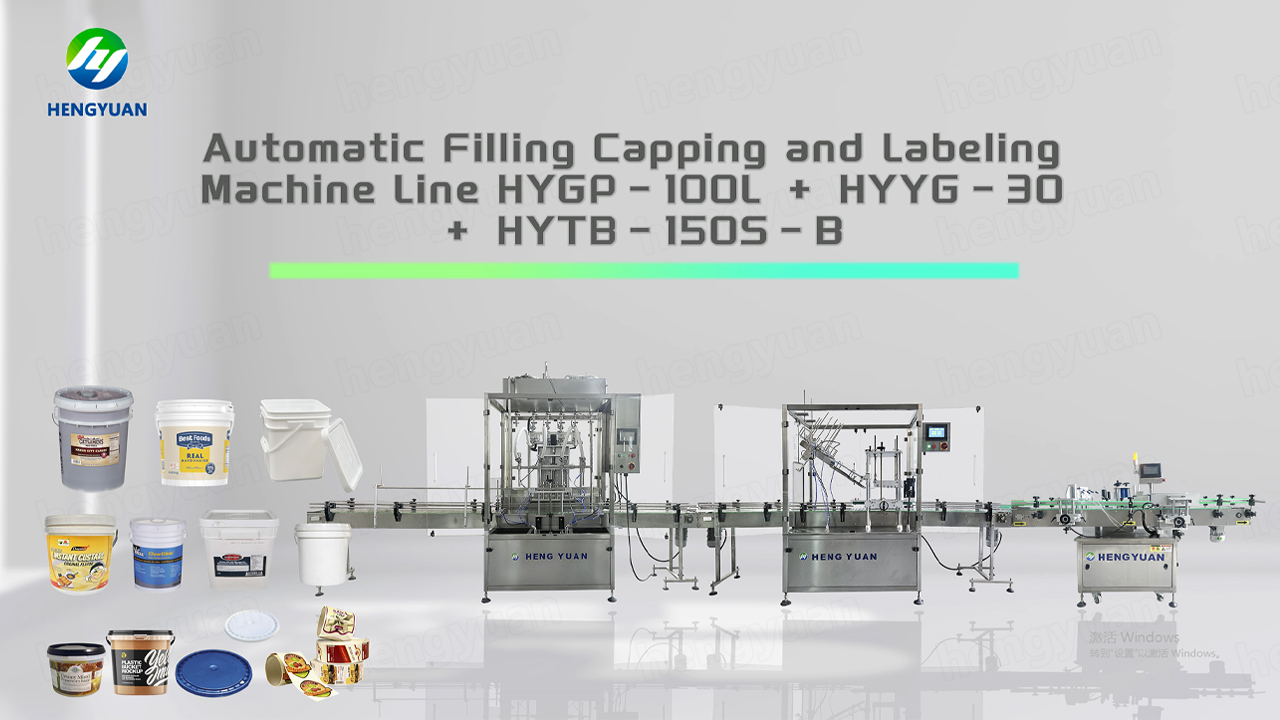

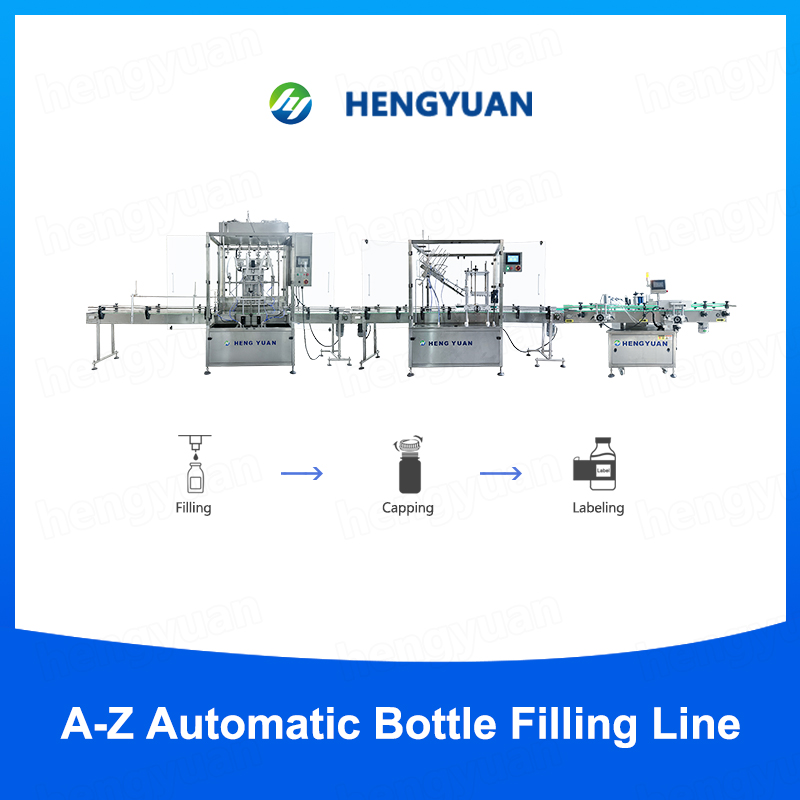

HYGP-100L Automatic Servo Gear Pump Bottle Liquid filling machine Servo Gear Pump Filling Capping Labeling Machines Line application HYGP-100L

Technical Parameters
Model	HYGP-100L
Heads	4 heads standard (1pc~20pcs customized)
Capacity(BPH)	8Nozzles, 500ml: Approx 2500
Volume	10ml-30L customized
Accuracy	≤±0.5%
Suitable Bottles	Height: 100-280mm, Diameter: Φ30-110mm, (can be customized)

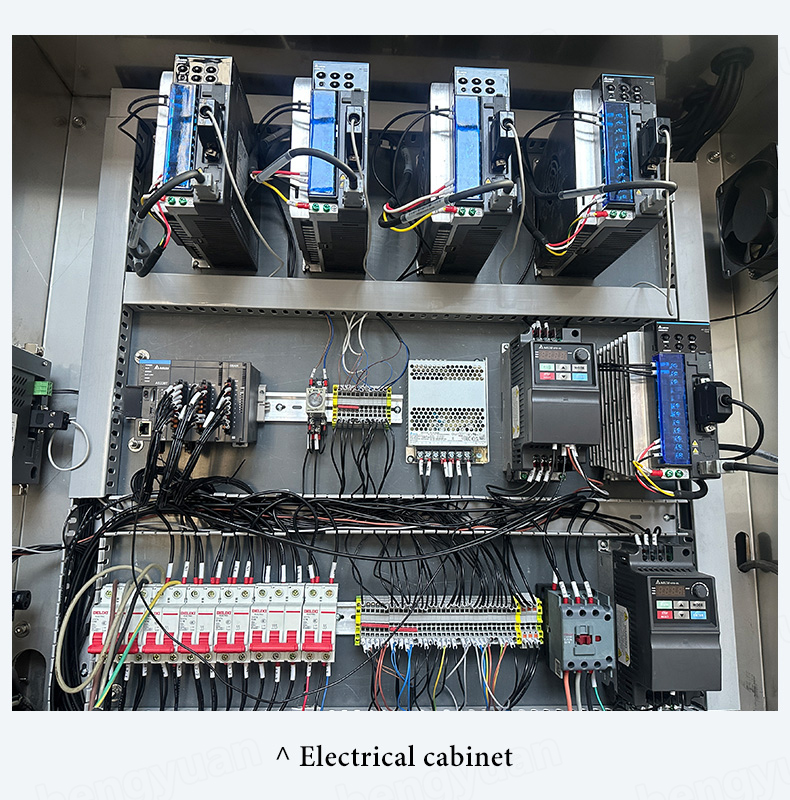

Control method	Touch screen and PLC
Air supply	0.5-0.7Mpa

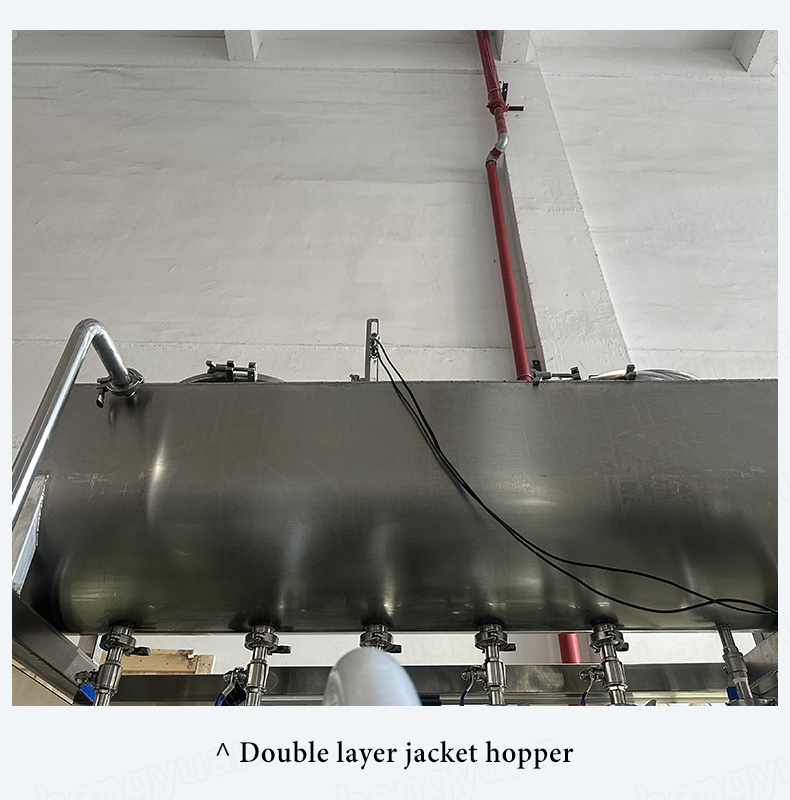

Volume of hopper	100L (optional)

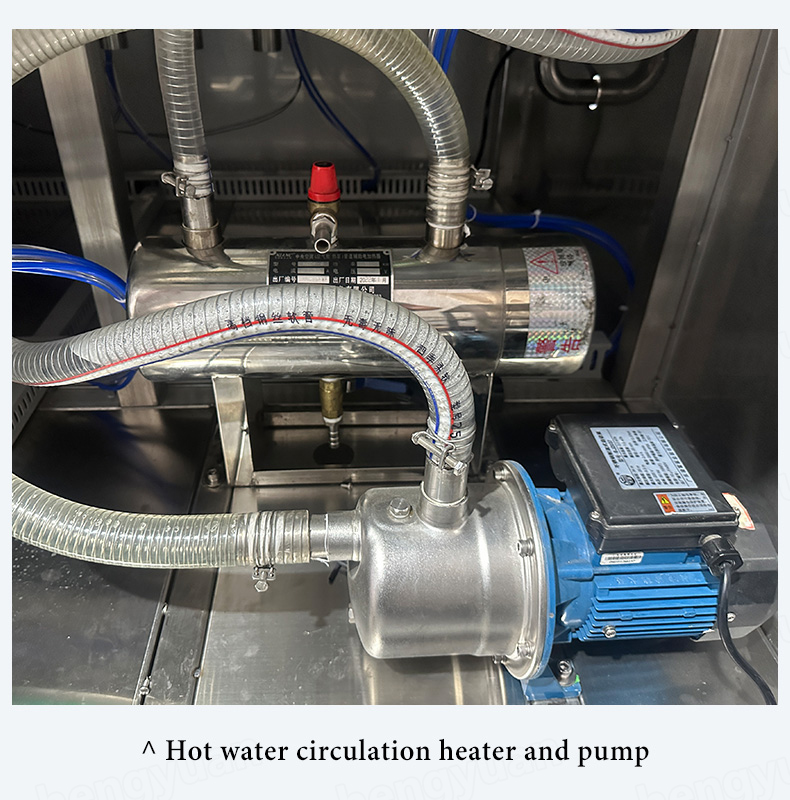

Hopper function	Stirring and Insulation (Optional)
Power supply	4.5Kw
Voltage	110V/220V, 380V/415V/440V , 50/60Hz, customized globally

Main Features

1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.

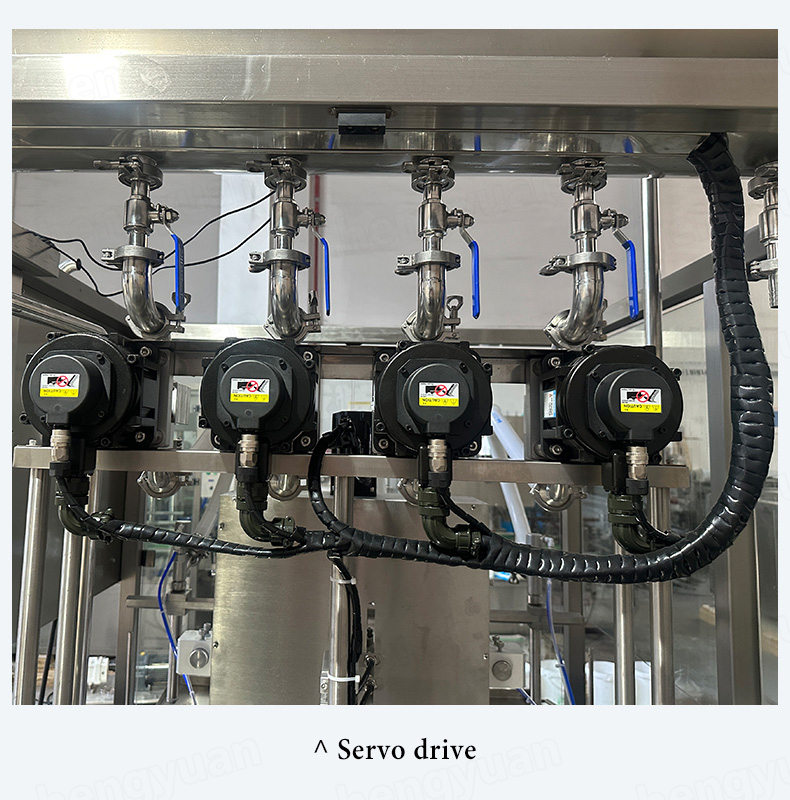

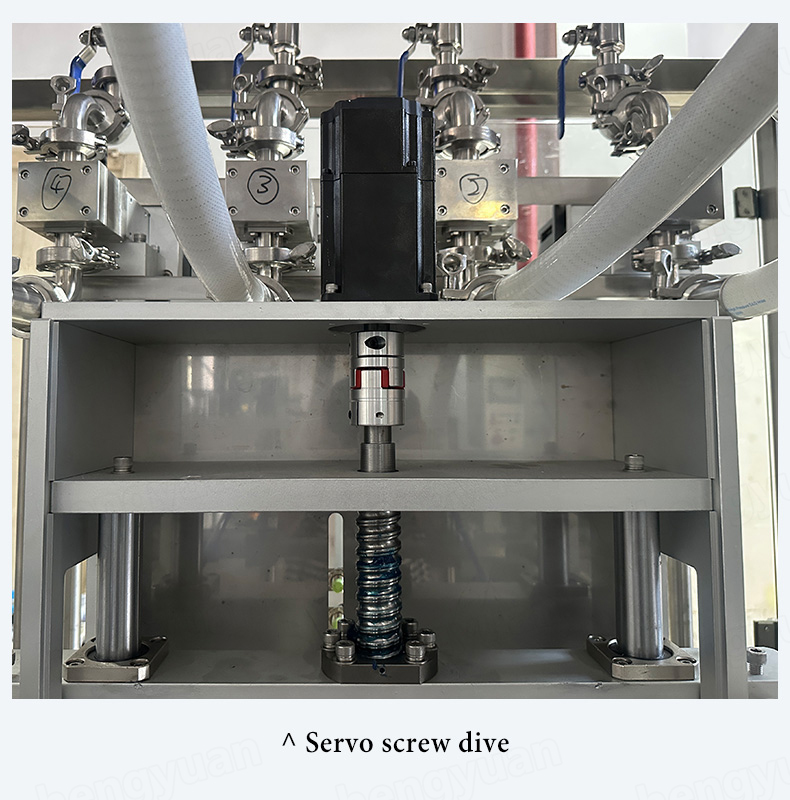

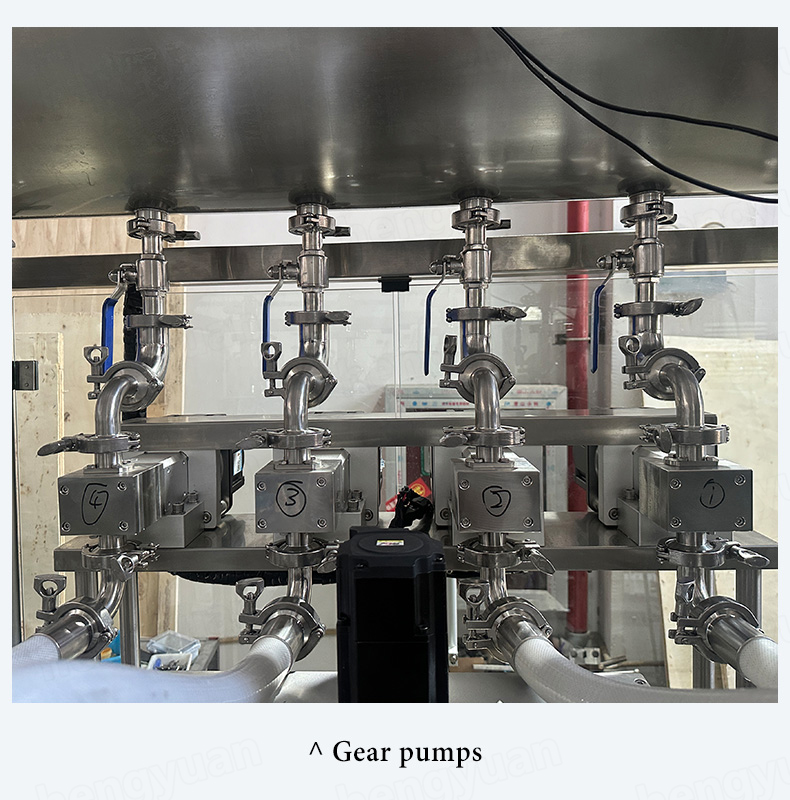

4) Accurate measurement: adopt servo control system with gear pump.

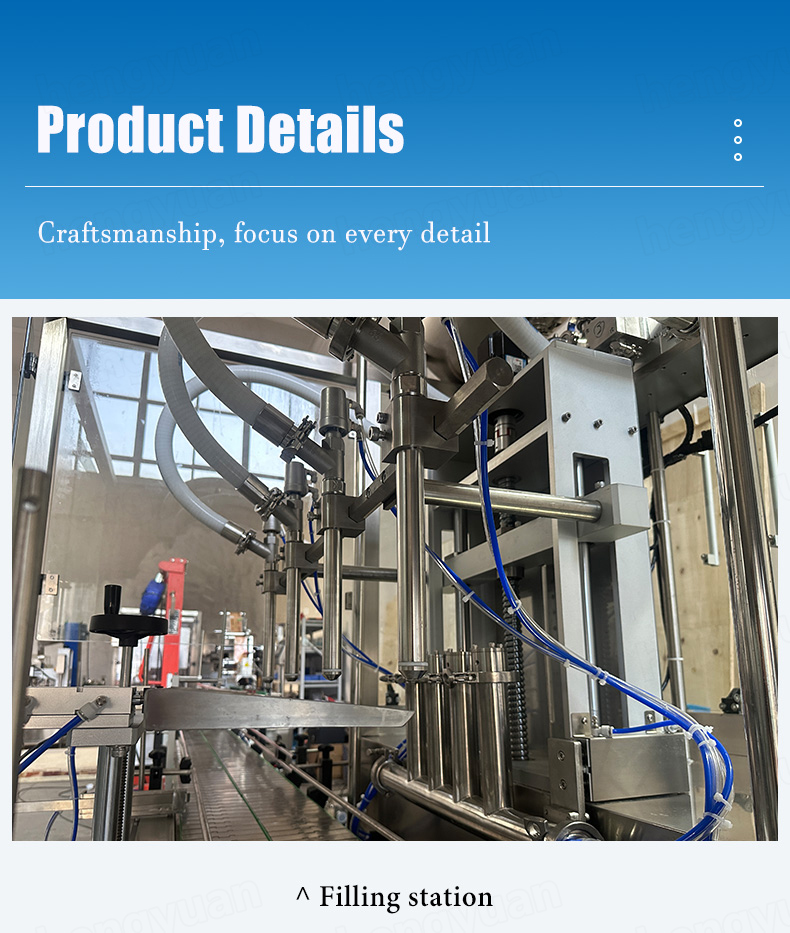

5) There is anti-leakage nozzle, prevent the liquid drop on conveyor cause pollution.

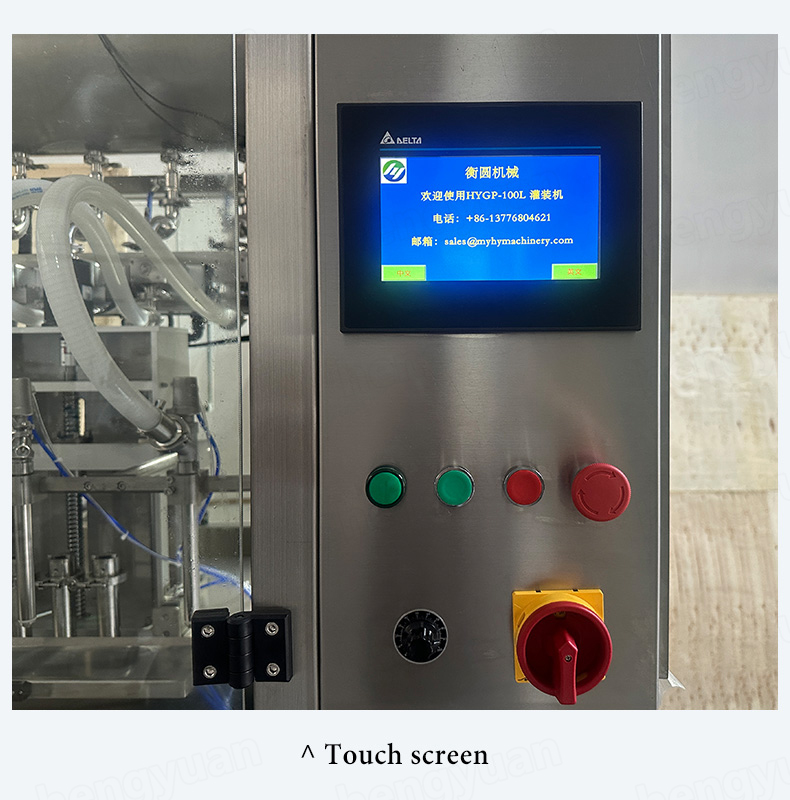

6) Convenient adjustment: replacement filling specifications only by setting on touch screen.
7) Suitable material: liquid, cream, gel, Oil, sauce, daily chemicals, and something that free-flowing and very viscous without granules.
