Automatic eight-wheel linear capping machine

Model: HYXG-8XT
Capping Wheels No.: 8 pcs
Working Method: Cap Unscrambling and Capping
Bottle working method: non-stop
Capping Speed: 3000-8000 bottles/hour

BASIC INFO

HYXG-8XT Automatic eight-wheel linear capping machine Technical Description

Full-automatic Inline capping machine For Plastic Thread Cap is a new generation of products we introduced and developed, which is widely used in pharmaceutical, chemical, food, beverage, oil and pesticides for automatic rotary sealing, in the production line. It can also configure transport aircraft alone. Its most prominent feature is that it can adapt to all shapes and types of the bottle just by adjusting without any additional parts. Eight-wheel straight-line capping machine is suitable for large and small caliber bottle caps, and solves the problem of screwing large caliber wide-mouth caps, with high speed and high qualification rate. This machine can be equipped with a lifting type capping machine, which can lift the capping and screw the capping to realize automation and intelligence perfectly. Configuration can be selected as required. Easy to adjust, large size range (bottle diameter Φ 20-180-height 50-400, cap Φ 10-150, no need to change accessories) This machine is equipped with PLC touch screen, which is intelligent, faster and has higher qualification rate.  The machine meets the GMP requirements, easy to disassemble, clean and maintain.

Automatic capping machine is suitable for screwing and sealing plastic caps of plastic bottles such as pure water bottles, mineral water bottles, carbonated soda cola bottles, juice beverage bottles, etc. It has perfect performance, reliable work, convenient operation and easy maintenance. It is widely used in all kinds of automatic packaging lines of wine, food, beverage medicine, chemical industry, reagents, pesticides, etc. It is one of the ideal automatic screw sealing devices in China at present.

1.Used for flat top plastic and metal screwing cap.
2.Used for the cap with the tube, pump cap, spray cap, trigger cap by manually put caps on the bottles.

Main Technical Data

Capping capacity	0-8000bottles/hour according to bottle and lid sizes
Applicable cap diameter	10-150mm customized according to bottles
Suitable bottle diameter	20-180mm customized according to bottle sample
Suitable for bottle height	50-400mm customized according to bottle sample
Total Power	2.1kw
Power supply	AC220V/110V, Single phase, Globally customized
Air supply	0.5-0.7Mpa

HYXG-8XT Automatic eight-wheel linear capping machine Pictures

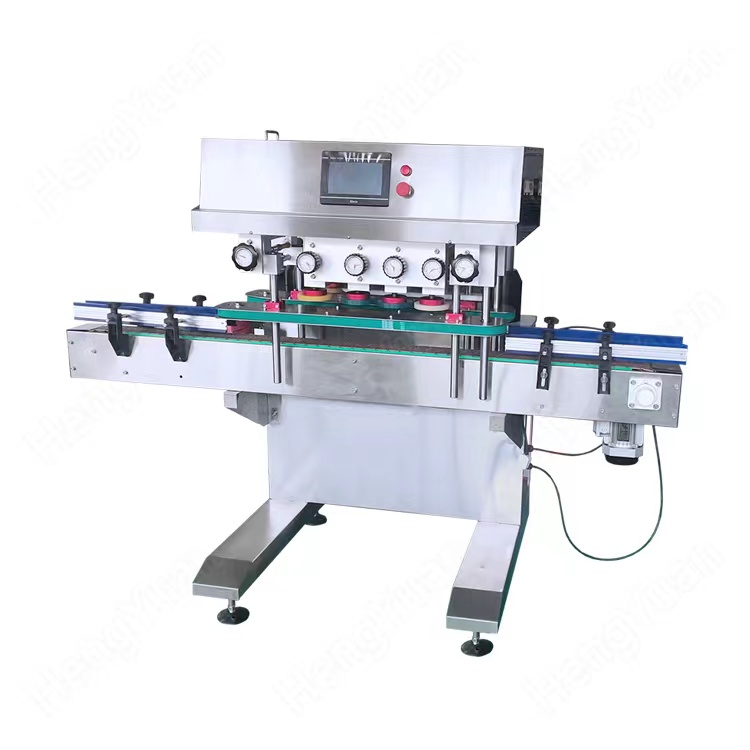

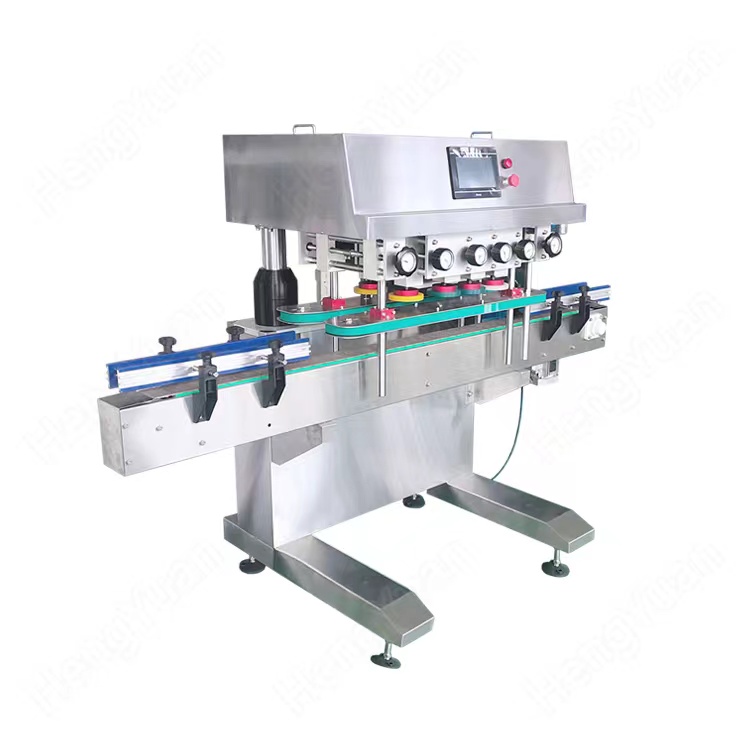

HYXG-8XT Automatic eight wheels capping machine.jpg

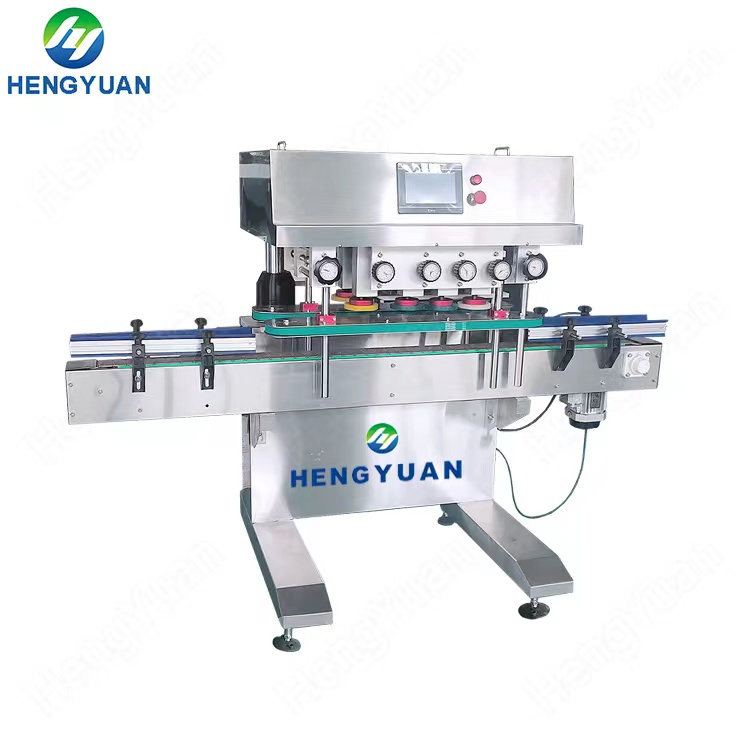

HYXG-8XT Automatic eight wheels bottle capping machine.jpg

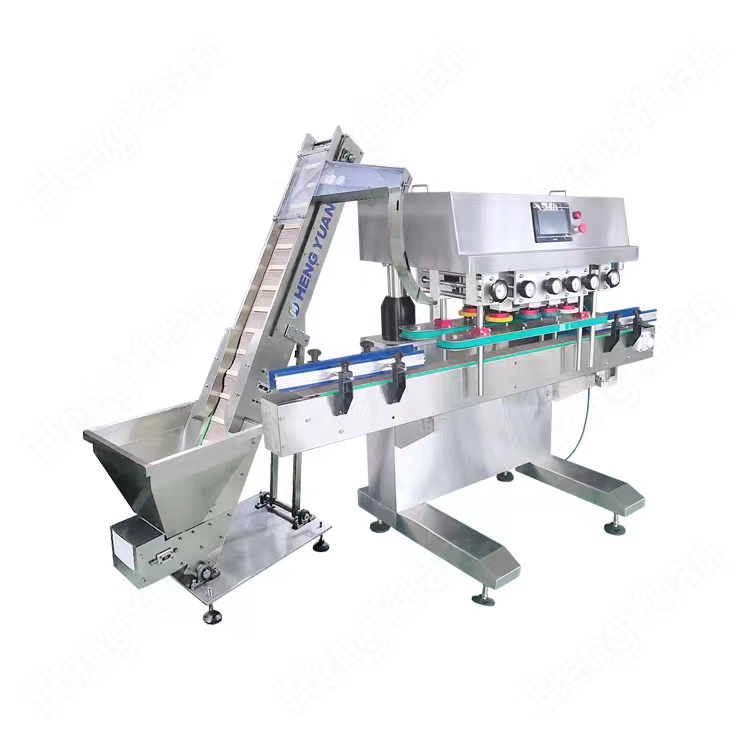

HYXG-8XT Automatic eight wheels bottle and lid capping machine.jpg

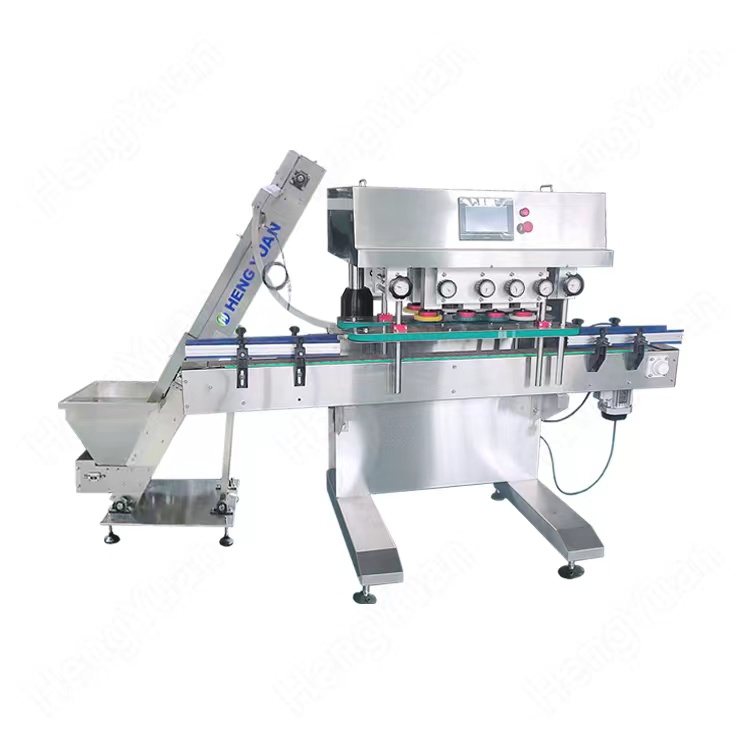

HYXG-8XT Automatic 8 wheels plastic jar capping machinery.jpg

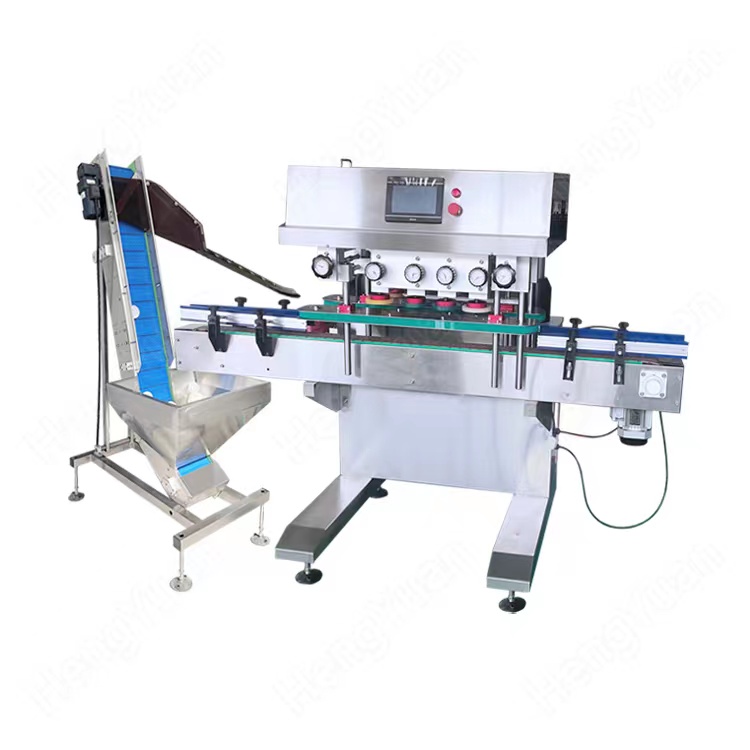

HYXG-8XT Automatic eight wheels glass jar capping machine.jpg

HYXG-8XT Automatic eight-wheel linear capping machine is suitable for below bottle samples
Plastic cap screwing capping machine, big diameter screwing lid capping machine, lug twist-off tinplate metal lid capping machine, pesticide bottles capping machine, lubricant barrel capping machine, medical alcohol bottles capping machine, PET bottle capping machine, pet juice bottle capping machine, drinking water bottle screwing capping machine, medical bottles cap sealing machine, etc.

Click here to view HYXG-8XT Automatic 8 wheels linear capping machine running video on YouTube
https://youtu.be/VGZqc8643EM
