Desktop Magnetic Pump Automatic Filling Machine

Application:Food, Beverage, Chemical, Machinery & Hardware
Key Selling Points:Flexible Manufacturing
Keywords:Table tope automatic liquid filler

BASIC INFO

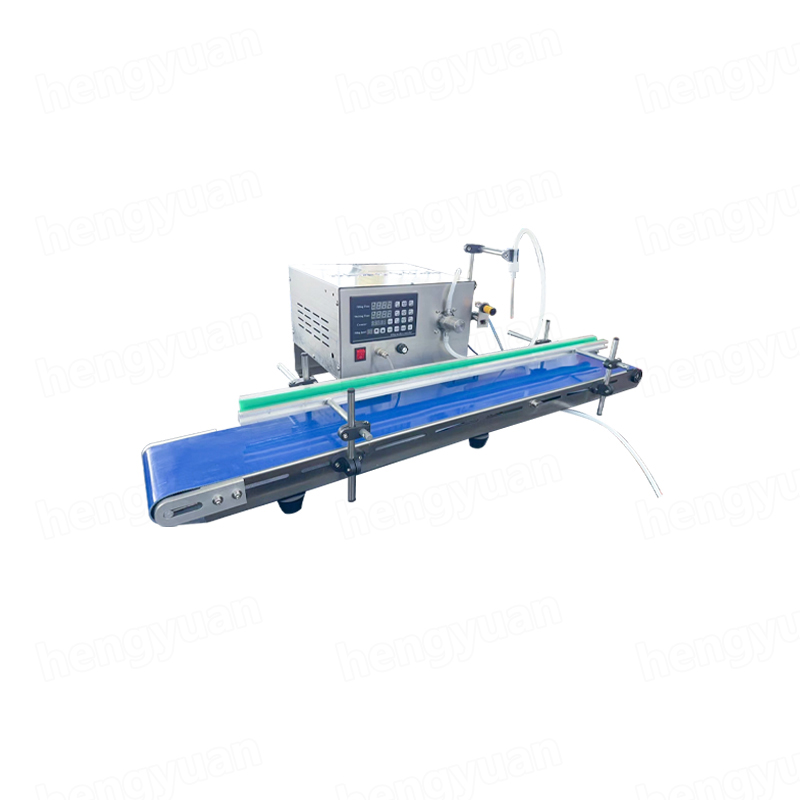

HY-LS6000 Desktop Magnetic Pump Automatic filling machine

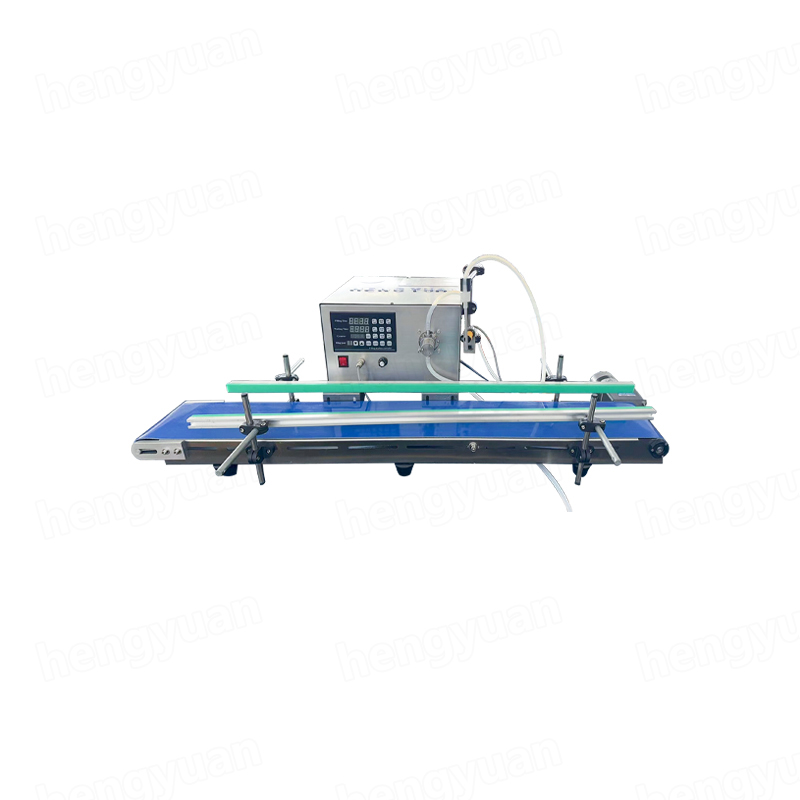

HY-LS6000 Desktop Automatic Magnetic Pump Filling Machine

Product Introduction

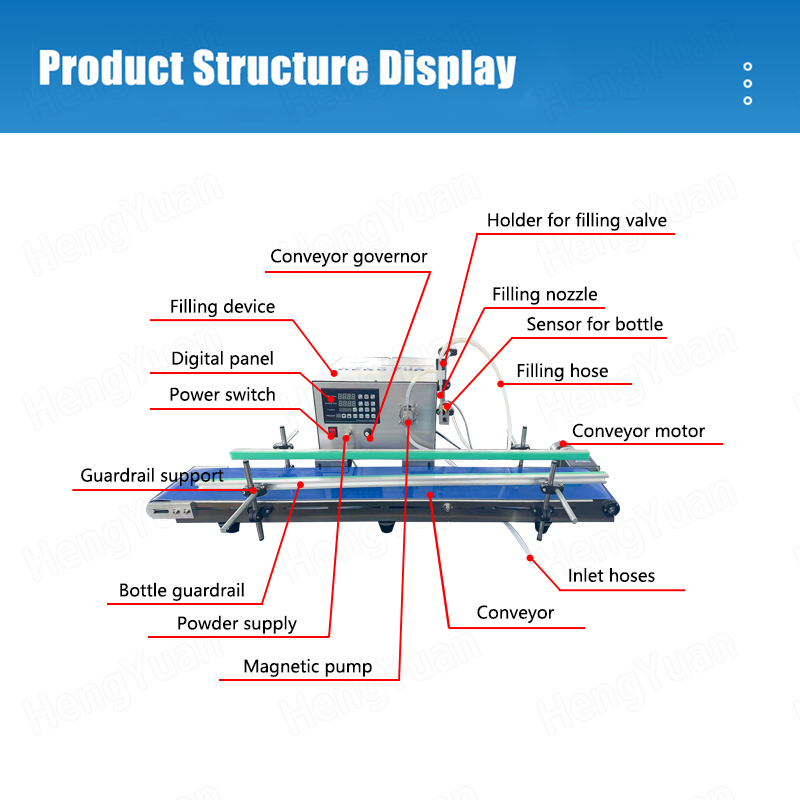

Desktop magnetic pump automatic single-head liquid filling machine, utilizing magnetic pump technology, offers stepless adjustable filling speed and sets filling volume by controlling filling time. Suitable for non-viscous and low-viscous liquids. features a conveyor for bottle feeding, photoelectric bottle detection, automatic filling, and bottle comeout upon completion. The control panel is digitally operated. This compact and flexible desktop automatic filling machine is ideal for various types of liquids.

Product application

Table top liquid filling machine, fruit juice filling machine, beverage filling machine, drinking water filling machine, olive oil bottle filler, edible oil filling machine, engine oil filling machine, pesticide filling machine, essential oil dispensing equipment, aromatherapy liquid filling machine, etc.

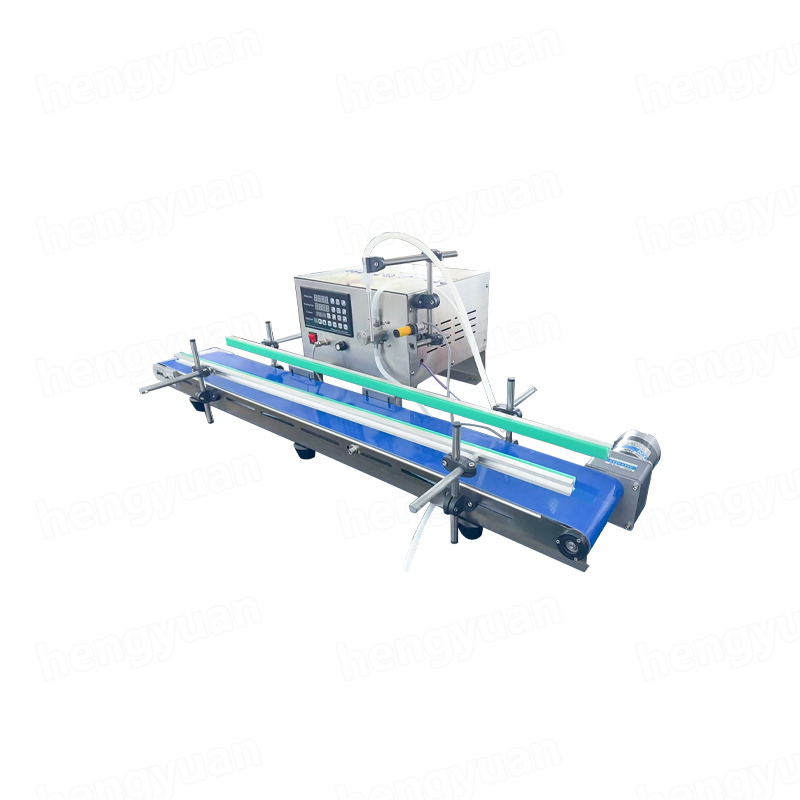

HY-LS6000 Tabletop Magnetic Pump Automatic filling machine

Technical Parameters
Model	HY-LS6000
Heads	1pc

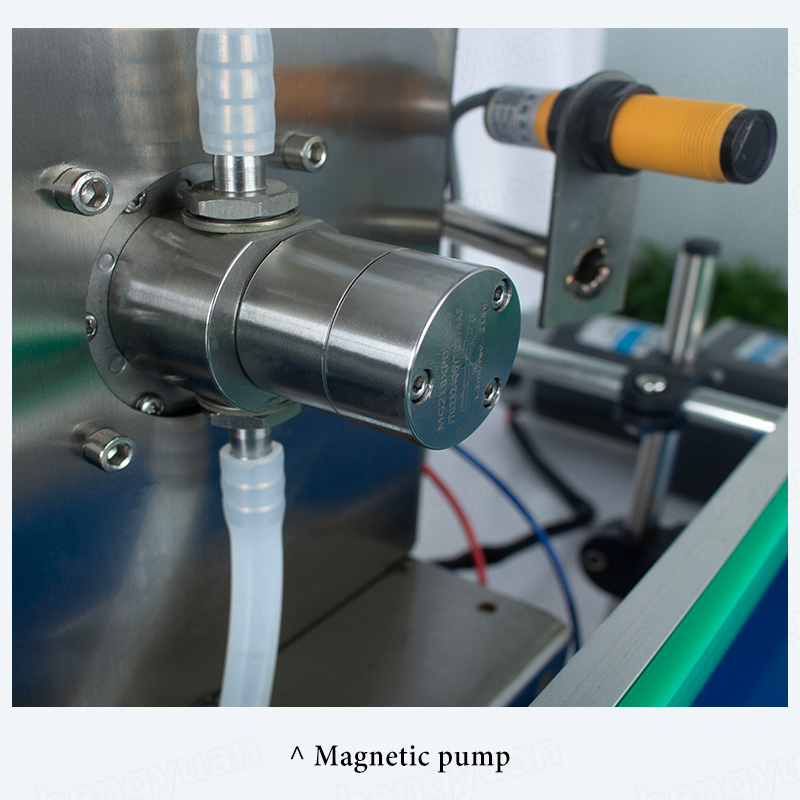

Filling Pump	Stainless Steel Magnetic Pump
Capacity(BPH)	150~1800 according to filling amount and liquid
Volume	1ml-3000ml customized
Accuracy	≤±1%
Suitable Bottles	Height: 50-250mm, Diameter: Φ20-150mm, (can be customized)

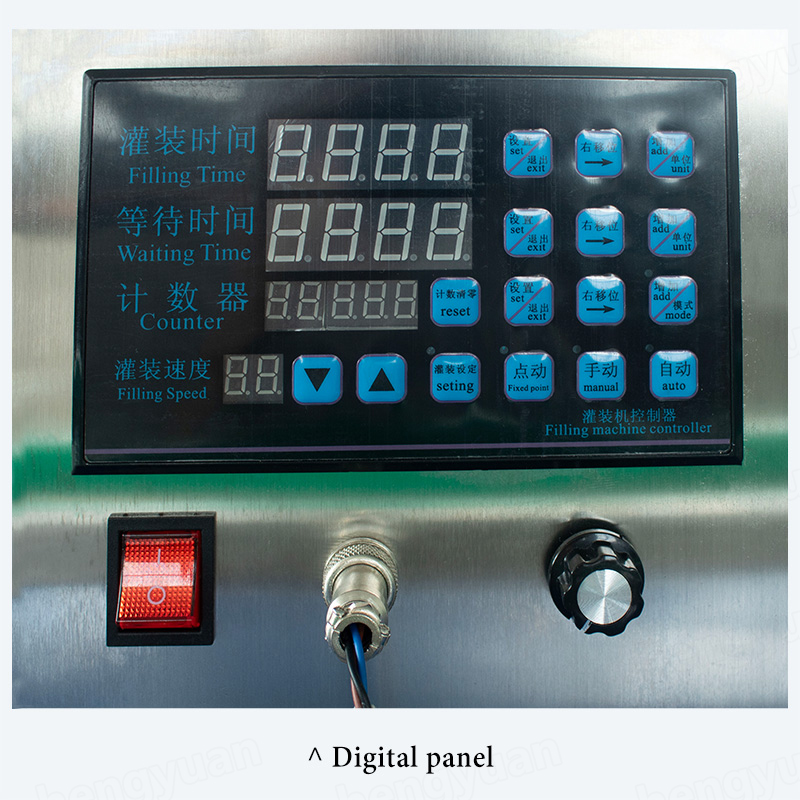

Control method	Digital panel
Maximum suction distance	2 Meters
Max load	5Kg
Maximum flow	3 Liters/minute
Power supply	300w
Voltage	110V/220V/1P 50/60Hz, customized globally
Weight	24Kg

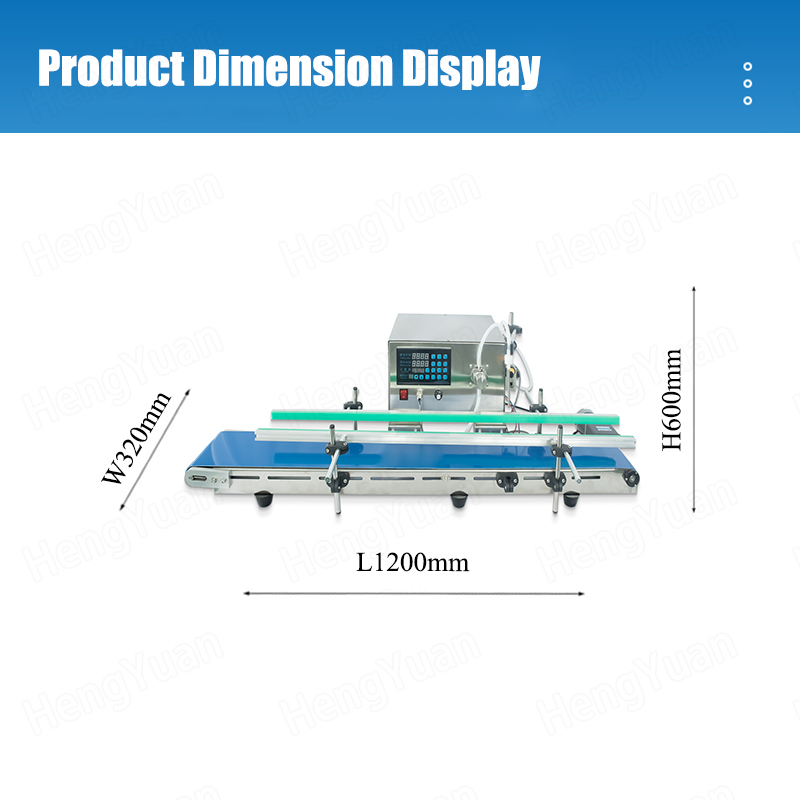

Machine Dimension	120x60x32cm
Machine Dimension	122x65x35cm
