Desktop Semi-automatic Four Wheels Screwing Capping Machine

  • Model: YKCGJ-6120-B
  • Suitable bottle: Flat, Square, Hexagon, Round and Abnormal shapes, all kinds of materials
  • Type of lids: plastic screw cover, pump cover, spray cover, tinplate cover, screw-on seal.
  • Speed capacity: 600-1800 bottles/hour
BASIC INFO
 YKCGJ-6120-B Desktop Semi-automatic Four Wheels Screwing Capping Machine Product Introduction

Semi-automatic Desktop Four Wheels Clamping Screwing Capping Machine is suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing. It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by adjusting.

Operation Steps

1. Plug in electricity and compressed air.

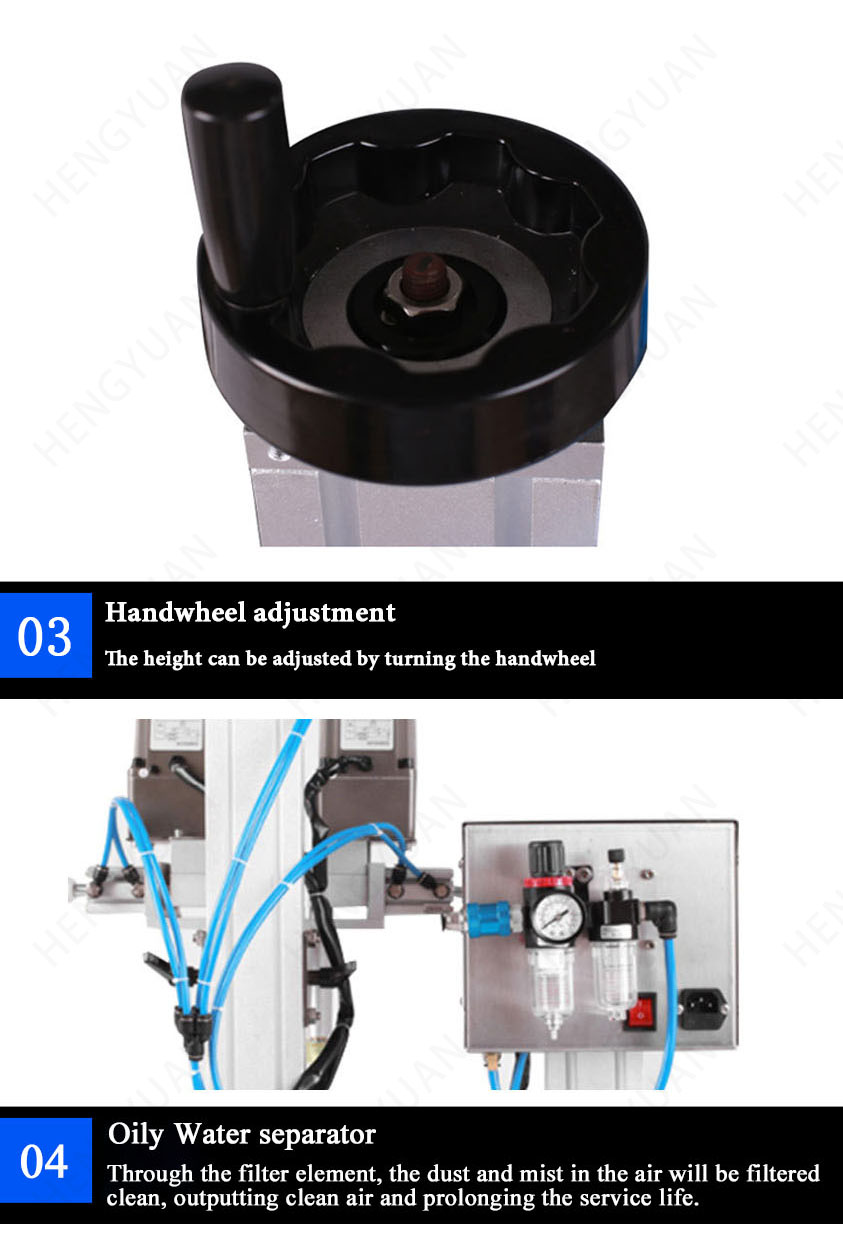

2. Adjust the height according to the height of bottle.
3. Put the bottle under capping head.
4. Press the button to run the capping automatically.
5. Take the sealed bottle out.


YKCGJ-6120-B Desktop Semi-automatic Four Wheels Screwing Capping Machine Main technical data

Capping capacity
10-30pcs/min
Applicable cap diameter
20-50mm
Suitable for bottle size
Height:50-400mm, Width:20-100mm
Total Power
90w
Air Compressure
0.4-0.6Mpa
Twisting force
4-8kg/cm2
Power supply
AC220V/110V, Single phase
Dimension
47x36x60cm
Weight
36kg

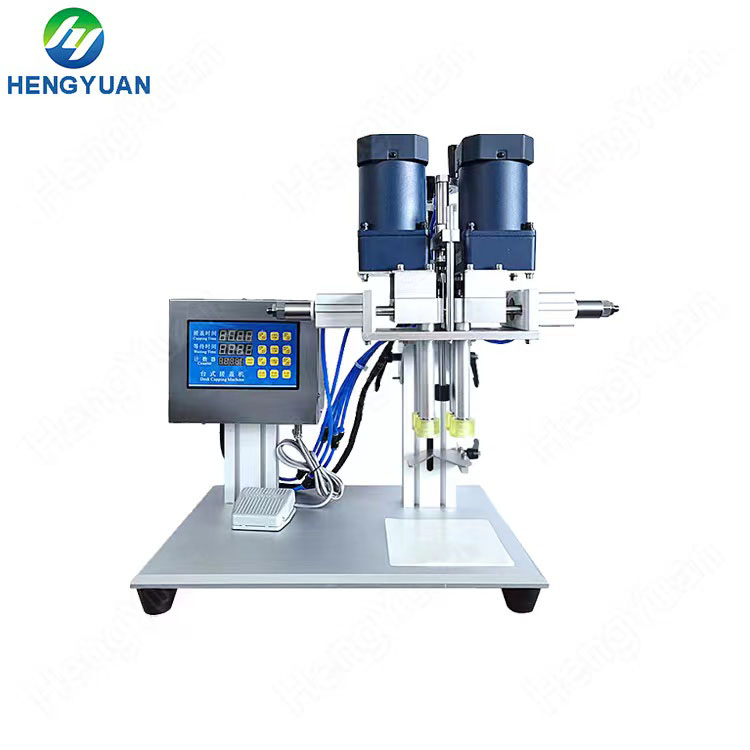

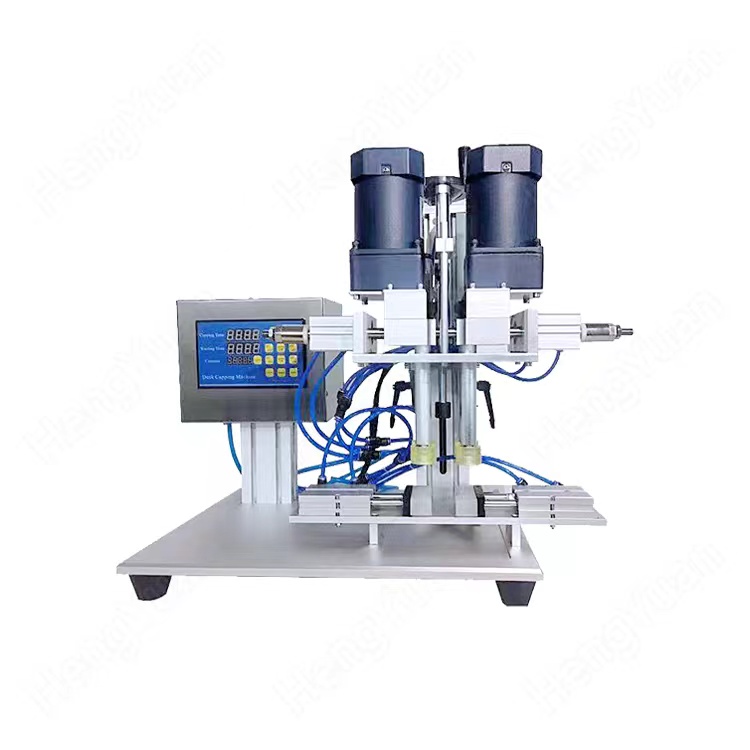

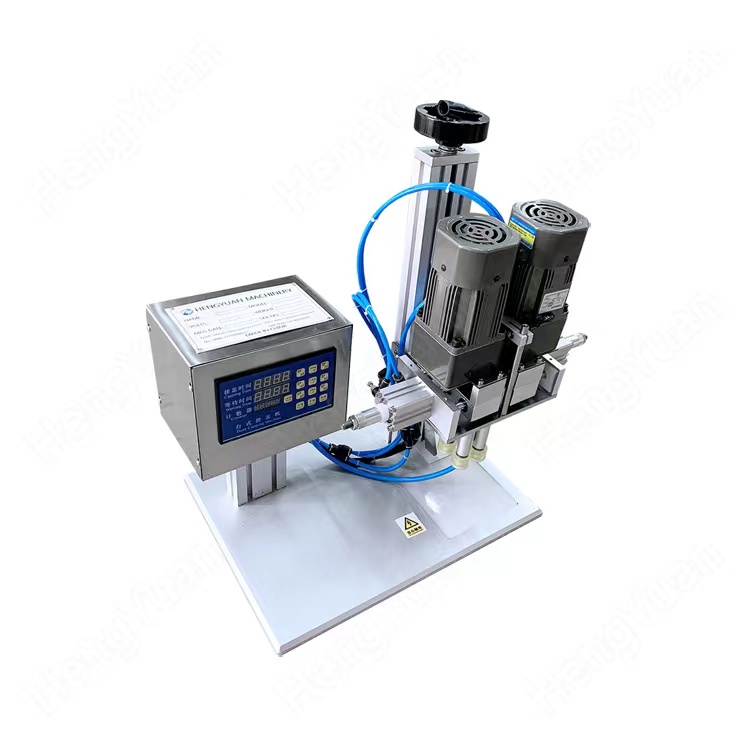

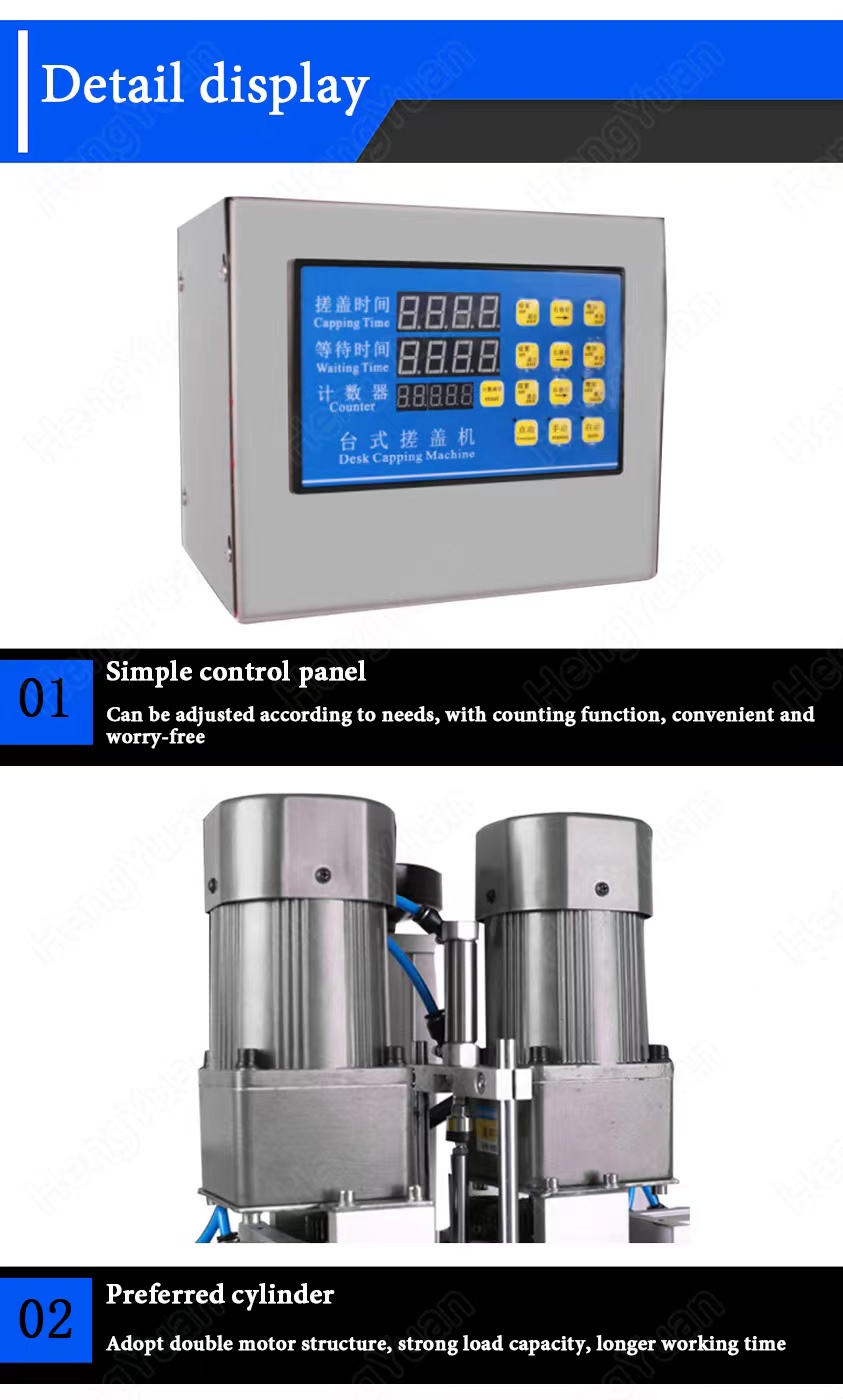

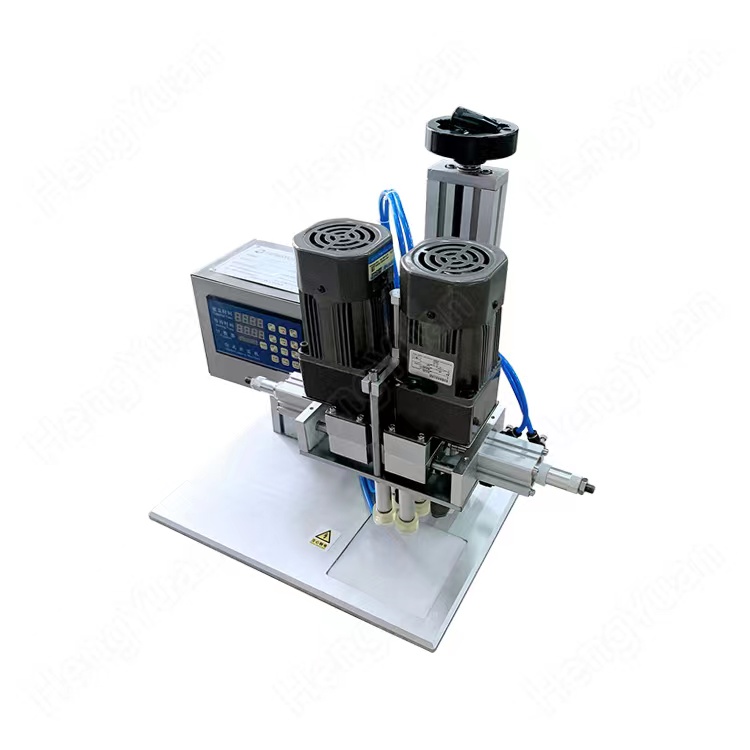

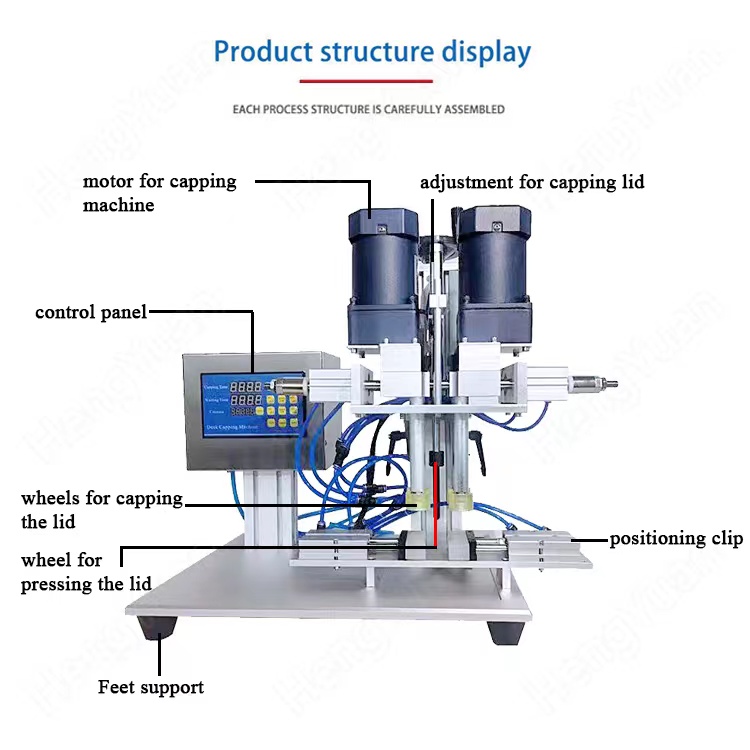

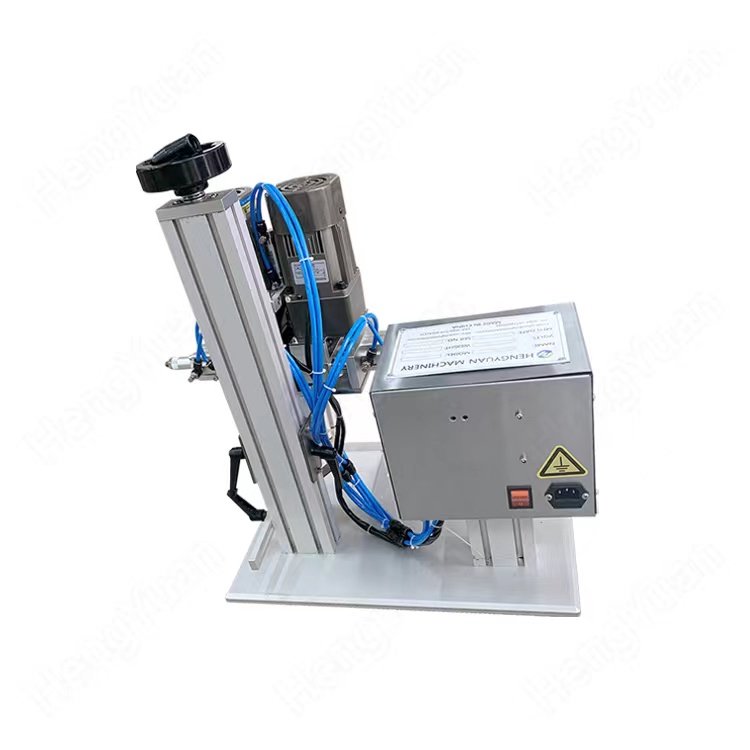

Semi-automatic 4 Wheels Clamping Lid Capping Machine Picture
YKCGJ-6120-B Desktop 4 Wheels Bottle Clamping Screwing Capping Machinery.jpg
YKCGJ-6120-B Desktop Four Wheels Clamping Screwing Capping Machine.jpg
YKCGJ-6120-B Desktop 4 Wheels Clamping Screwing Capping Machine.jpg
YKCGJ-6120-B Desktop 4 Wheels Clamping Screwing Capping Equipment.jpg
YKCGJ-6120-B Table Top 4 Wheels Clamping Screwing Capping Machine.jpg
YKCGJ-6120-B Desktop 4 Wheels Plastic Jar Clamping Screwing Capping Machine.jpg





YKCGJ-6120-B Desktop 4 Wheels Bottle and Lid Clamping Screwing Capping Machine.jpg
YKCGJ-6120-B Table Top Four Wheels Clamping Bottle and Lid Screwing Capping Machine.jpg
YKCGJ-6120-B Semi-automatic 4 Wheels Clamping Screwing Capping Machine.jpg

Application

1.Used for plane-top plastic and metal screwing cap, lug cap, extrusion cap, pull lid, flip-top lid by automatic sorting and loading caps.

2.Used for the cap with the tube, pump cap, spray cap, trigger cap by manually put caps in the bottles.

YKCGJ-6120 Semi-automatic Hand Sanitizer Bottle Capping Machine

YKCGJ-6120-B Table Top 4 Wheels Clamping Screwing Bottle Capping Machine.jpg


Click here to view YKCGJ-6120-B Semi-automatic Desktop Four Wheels Screwing Capping Machine running video on youtube
https://youtu.be/RH4wuGePEno
