BASIC INFO
Technical description

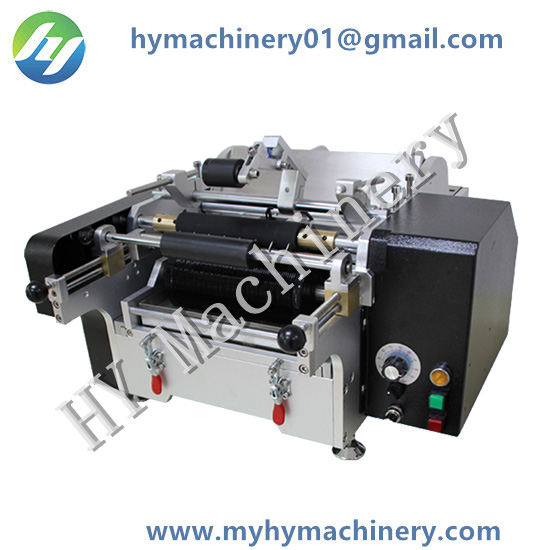

Semi Automatic Wet Cold Glue Labeling Machine is applicable to all kinds of objects on round bottles paste labeling, separation, gluing, labeling, covered labeled automatically, reducing manual labeling process, improve labeling efficiency. Coating evenly with filamentous stripes, do not wrinkle, improve packaging grades. Especially suitable for labeling middle and small batch production, such as food, alcohol and other labeling.
Working Process
- Core works: signaling equipment to obtain the product in place, the device automatically detach a label, this label after coating, the set position affixed to the product, the product labeling and cover both rotating label, the label had finished and covered on the product, a label attached action is completed;
- Procedure: put the product -> points + glue + paper + paper + cover labeling standard (device automatically) -> Remove the labeling products.
Main technical data
- Suitable label length (mm): 80mm ~ 380mm
- Applicable Label width (backing paper width / mm): 40mm ~ 175mm
- Applicable Products diameter (for round bottle) and height: diameter φ30mm ~ φ120mm Height 30mm ~ 230mm
- Labeling accuracy (mm): ± 1mm
- The standard speed (m / min): 6m/min
- Labeling speed (pcs / min): 15 ~ 30pcs/min
- Weight (kg): about 37kg
- Frequency (HZ): 50HZ
- Voltage (V): 220V
- Power (w): 80W
- Device dimensions (mm) (L × W × H): 630mm × 430mm × 330mm
Application
- Applicable Label: paper label (to be on the paste).
- Applicable products: Requires attaching paste the circumferential surface of the label affixed to products.
- Industry: Widely used in food, medicine, wine, and other industries.
- Application examples: canned food labeling, bottle paste labeling, labeling and paste on the glass, PET, PE, PP bottles ETC.
Click here to view Semi Automatic Glue Labeling Machine running video on youtube
https://www.youtube.com/watch?v=TJCSTjJVD98&t=3s
Contact us to get more information and quotation
- Email : sales@myhymachinery.com
- Skype: hymachinery01@hotmail.com
- Mobile: +8613776804621
- WhatsApp: +8613776804621
https://www.youtube.com/channel/UCrXv1ObuGDv_nqhY0DC2bfQ
