Semi-automatic Plane Labeling Machine

Model: HYT-60
Suitable object shape: Flat
Stick label quantity: 1 pc

BASIC INFO

HYT-60 Semi-automatic Plane labeling machine Technical description

Semi-automatic Desktop Plane Sticker labeling machine Suction-attaching method is used for labeling, achieving plane labeling on various product, such as cosmetics flat bottles, packaging boxes, plastic cover and so on.
Suitable for uneven surface labeling by changing the label overlaying mechanism, such as the labeling on concave surface and circle-arc surface.
Suitable for labeling on various irregular-shaped bottle by changing fixtures.
Optional ribbon print coder or ink-jet printer, to print production date and batch number on the label, achieving coding -labeling integration.

Semi-automatic plane label applicator is widely used daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.

Main technical data

Labeling capacity	0~30pcs/min
Labeling accuracy	±1 mm
Label material	Adhesive sticker
The inner diameter of label roll	76 mm
The outer diameter of label roll	240 mm(max)
The suitable size of label	Width 15-150 mm, length 15-100 mm
The suitable size of labeling objects	Width 20-150 mm, Length 20-200 mm, Thickness: 0.2mm ~ 120mm
Total Power	60w
Power supply	AC220V/110V, Single phase. Globally customized
Net weight	About 35kg
Machine size	55(L)x35(W)x60(H)cm

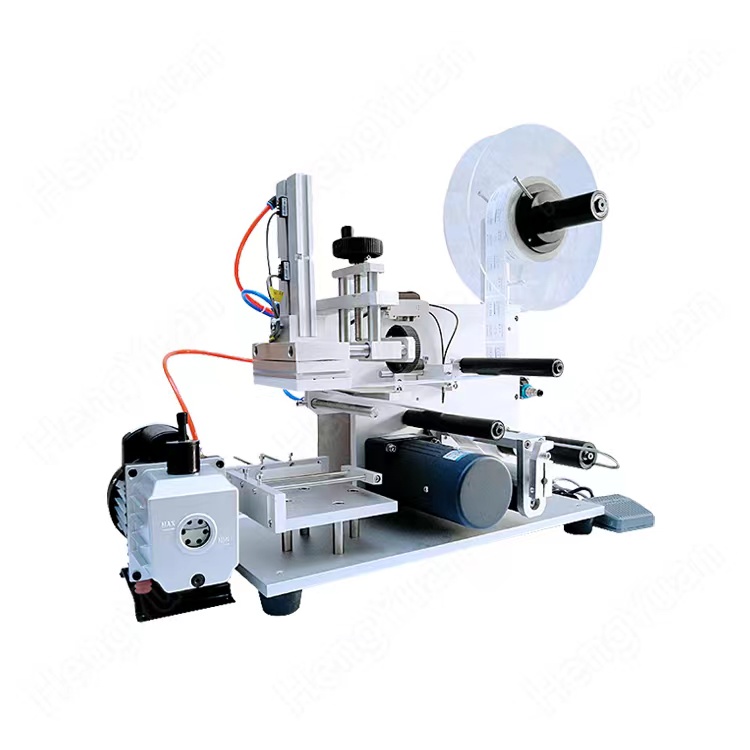

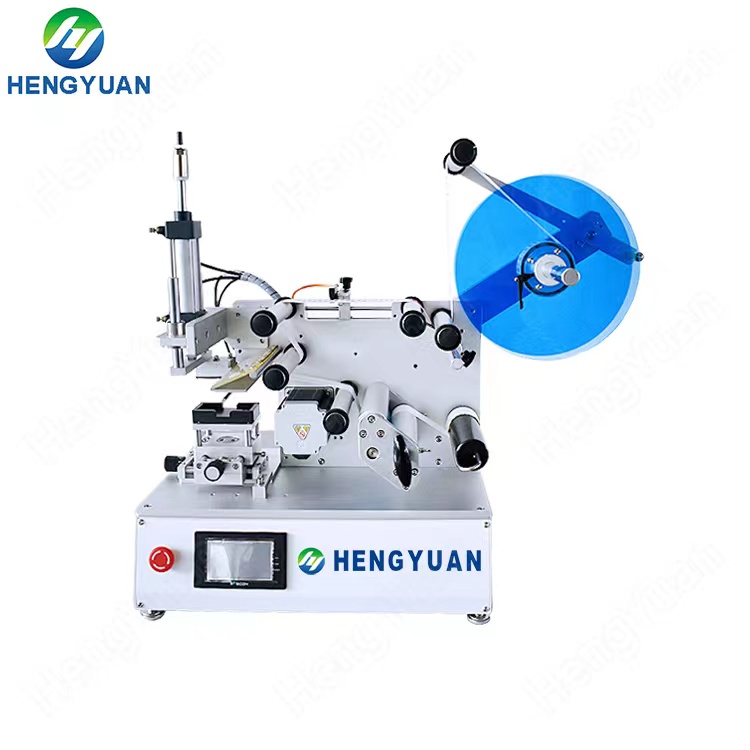

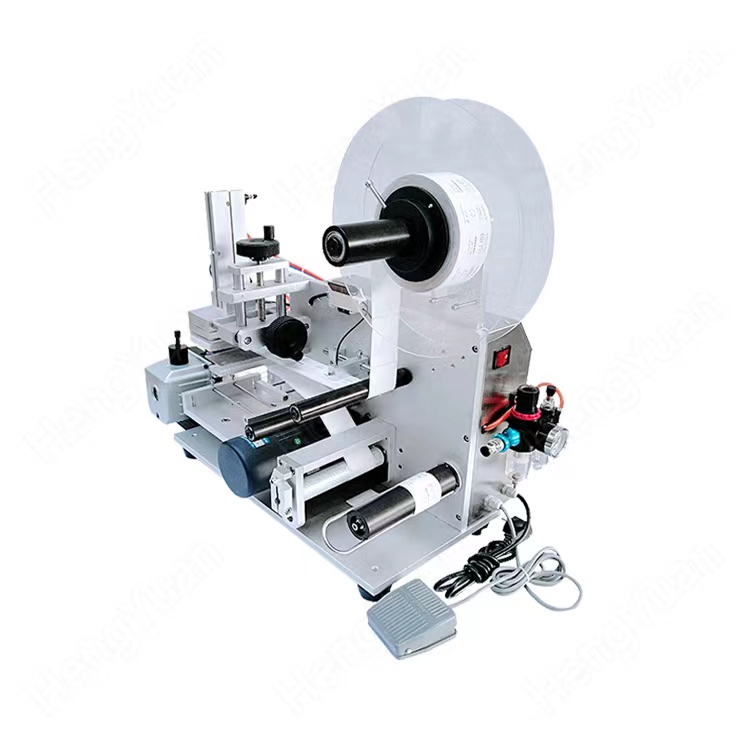

HYT-60 Semi-automatic Plane labeling machine picture
HYT-60 Desktop Flat Surface Semi-automatic Labeling Machine.jpg

HYT-60 Table Top Flat Surface Semi-automatic Labeler.jpg

HYT-60 Table Top Flat Surface Semi-automatic Label Applicator.jpg

HYT-60 Table Top Flat Surface Semi-automatic Labeling Machine.jpg

HYT-60 Table Top Flat Surface Pouch Semi-automatic Labeler.jpg

HYT-60 Table Top Flat Surface Semi-automatic Bottle Label Applicator.jpg

HYT-60 Table Top Box Surface Semi-automatic Labeling Machine.jpg

HYT-60 Table Top Cap Flat Surface Semi-automatic Labeler.jpg

HYT-60 Desktop Bottle Flat Surface Semi-automatic Label Applicator.jpg

HYT-60 Desktop Bottle Flat Surface Semi-automatic Labeling Machinery.jpg

HYT-60 Desktop Bottle Flat Surface Semi-automatic Labeler.jpg

HYT-60 Desktop Flat Surface Semi-automatic Labeling Machinery.jpg

HYT-60 Semi-automatic Plane labeling machine Application

Desktop flat surface labeler, Semi-automatic plane labeling machine, packaging box plane label applicator, bottle caps label applicator, plastic shell sticker labeling machine, flat boxes label applicator, book surface labeling machine, cream lid top label applicator, electronic component top surface label applicator etc.
HYT-60 Desktop Flat Surface Semi-automatic Labeling Machine.jpg

Click here to view HYT-60 Semi-automatic Plane Label Applicator running video on youtube
https://youtu.be/1P4GH4UK3Is
