Automatic 5kg Weighing Liquid Filling Machine

  • MODEL: HYWF-5
  • Nozzles No.: 2-8pcs customized
BASIC INFO
Technical Description

Upper Position Weighing type liquid filling machine is suitable for filling liquid from 0.5kg to 5kg, fully automatic complete bottle inlet, weight filling, bottle outlet and some other process, aims at oil realm such as SL, lubricating oil, edible oil etc and other realms like agrochemicals.
This machine is making up of the scale, conveyor in and out structure, automatic filling, material tank, weight control meter and PLC control unit.
This machine has PLC, touch screen control panel, convenient to adjust. It is suitable for various kinds of products
Easily dismantle, clean and maintain. The whole machine is safe, environmental, sanitary, adapting to various kinds of working place.
Weighing type liquid filling machine is mainly used for bottling of lube, daily chemical, agricultural chemical, food and pharmaceutics industry.

Main Technical Data
  • Applicable bottle dia: Min 140×200×320mm, Max 260×290×500mm
  • Applicable bottle height" 100mm-340mm
  • Filling error: ±0.2%
  • Filling capacity: 0.5Kg-5Kg
  • Output: ≤2000 Drum/hour
  • Air pressure: 0.6-0.8Mpa
  • Gas consumption: 120L/Min
  • Power supply: AC380V/50Hz
  • Total power: 2Kw
  • Weight: About 800Kg
  • Overall size: 2400×1200×2400mm

Automatic Inline 0.5-5kg Weighing Type Bottle Filling Machine Pictures

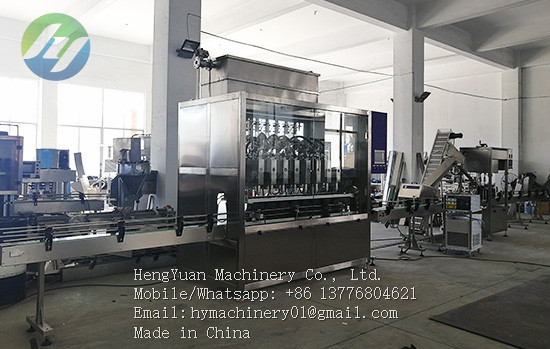

5kg weighing filling machine

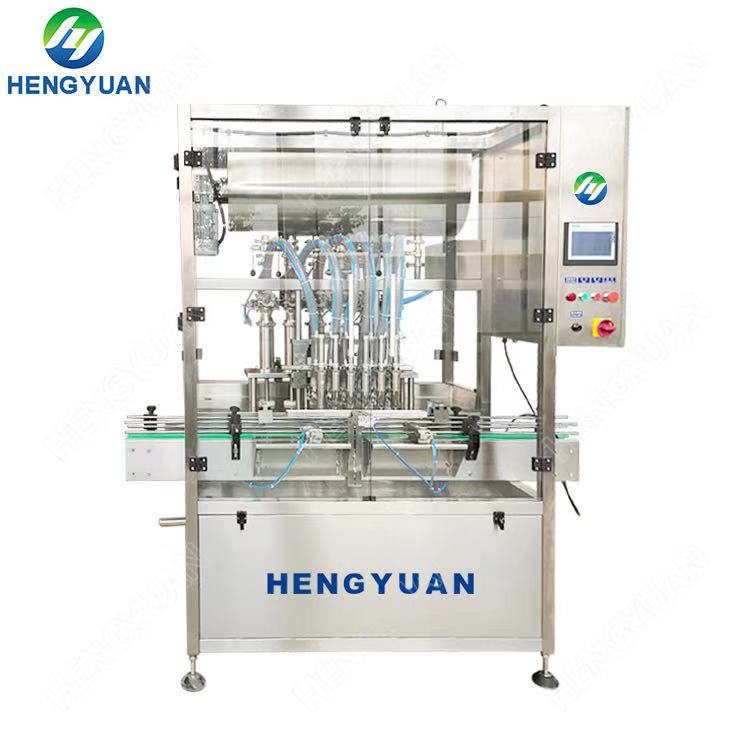

5kg lube weighing filling machine

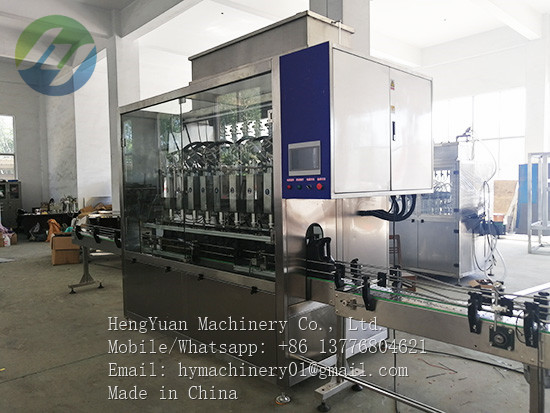

motor oil weighing filling machine

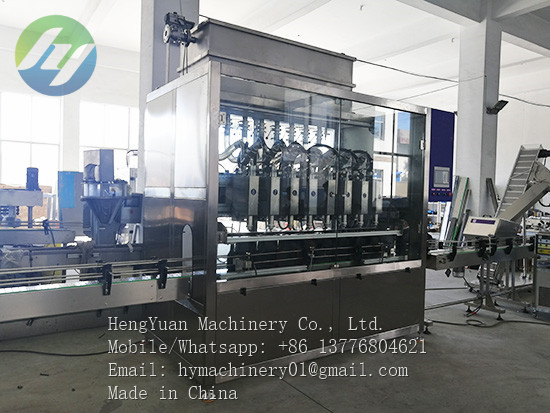

lubricant oil weighing filling machinery

Automatic Inline Weighing Bottle Filling Machine is suitable for below bottle samples

pesticide drum filling machine, liquid fertilizer drum filling machine, automobile urea filling machine, antifreeze filling machine, motor oil filling machine, edible oil filling machine, paint filling machine, additive filling machine
5kg weighing filling machine

Click here to view Automatic Inline Drum Filling Machine running video on YouTube

https://youtu.be/8p48b6ywb0Y
