8-8-3 Automatic rotary bottle rinsing filling and capping machine

Model: HY-CGF 8-8-3
Rinsing Nozzles No.: 8pcs
Filling heads No.: 8pcs
Cappin heads No.: 3pcs

BASIC INFO

Technical Description

Automatic rotary rinsing filling capping 3 in 1 machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the wholeprocess, suitable for polyester (PET) bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable forvarious parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger. The machine adopts advanced programmable logic controller (PLC)to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speedway, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photo electrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choiceequipment of beverage manufacturers. It is an ideal automatic filling equipment for beverage drinking liquid bottling. It has the characteristics of high filling precision, simple operation, convenient maintenance and labor saving.

Main Technical Data

Model	8-8-3	14-12-4	18-18-6	24-24-8
Rinsing Heads	8	14	18	24
Filling Heads	8	12	18	24
Capping Heads	4	4	6	8
500ml Bottle Capacity(BPH)	2000	3000	5000	8000
Volume	100-1000ml
Accuracy	≤1000ml: ±2ml; 100-500ml: ±1ml; ≤100m: ≤1ml
Suitable Bottles	Height: 100-280mm, Diameter: Φ30-110mm
Control method	Touch screen and PLC
Air supply	0.5-0.7Mpa
Voltage	415V/380V/220V, Three Phases , 50/60Hz, customized globally

Model	32-32-8	40-40-10	50-50-12	60-60-12
Rinsing Heads	32	40	50	60
Filling Heads	32	40	50	60
Capping Heads	8	10	12	12
500ml Bottle Capacity(BPH)	12000	15000	20000	25000
Volume	100-1500ml
Accuracy	≤1000ml: ±2ml; 100-500ml: ±1ml; ≤100m: ≤1ml
Suitable Bottles	Height: 100-280mm, Diameter: Φ30-110mm
Control method	Touch screen and PLC
Air supply	0.5-0.7Mpa
Voltage	415V/380V/220V, Three Phases , 50/60Hz, customized globally

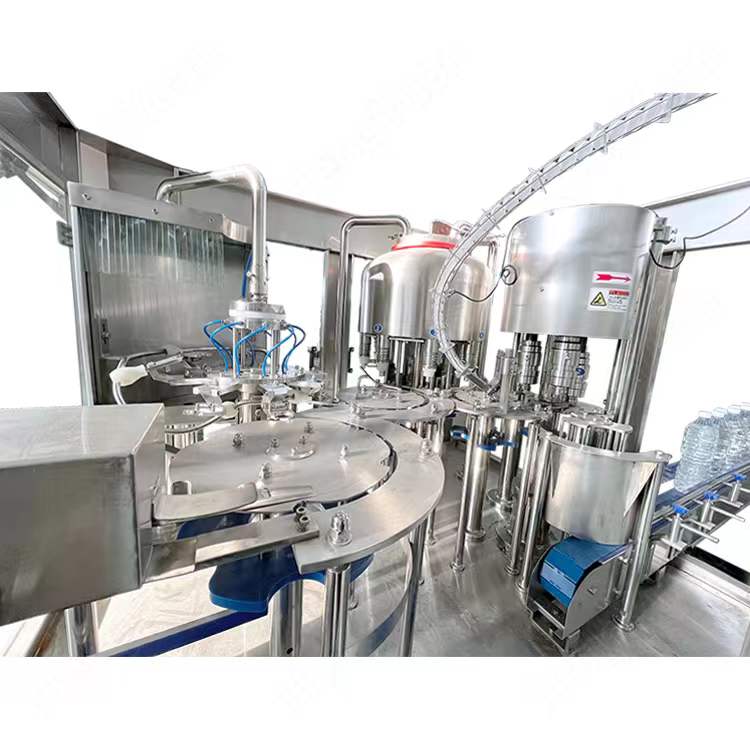

Automatic Drinking Water PET Bottles Rinsing Filling capping machine Pictures

Automatic Rotary Rinsing Filling capping machine is suitable for below bottle samples

Automatic pet bottles rinsing filling and capping machine, drinking water pet bottles rinsing filling and capping machine, 250ml drinking water pet bottles rinsing filling and capping machine, 330ml drinking water pet bottles rinsing filling and capping machine, 500ml ( 16 fl oz ) drinking water pet bottles rinsing filling and capping machine, 750ml ( 24 fl oz ) drinking water pet bottles washing filling and capping machine, 1000ml ( 32 fl oz ) drinking water pet bottles washer filler and capper, etc. 1500ml ( 48 fl oz ) drinking water pet bottles washer filler and capper, Rotary bottle rinsing filling and capping machine. etc.

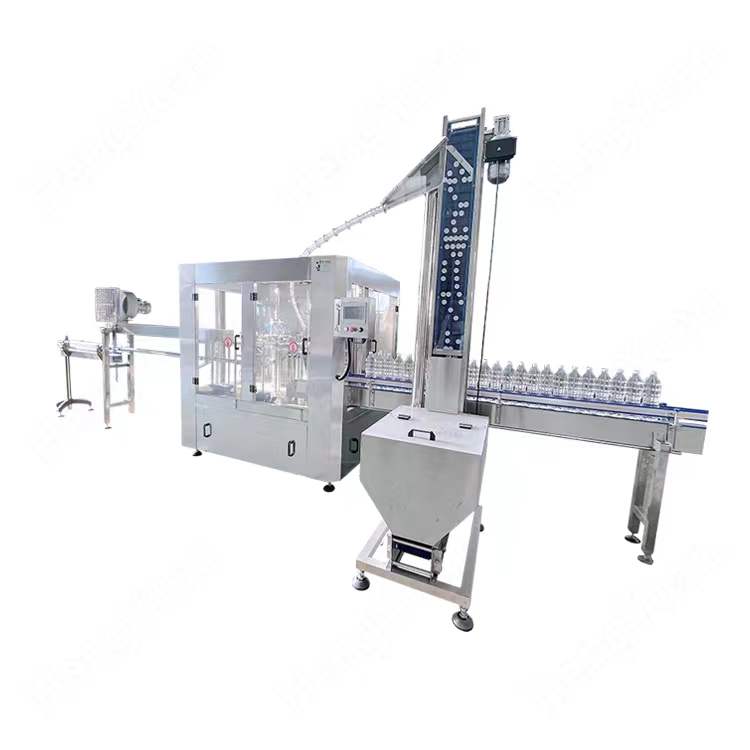

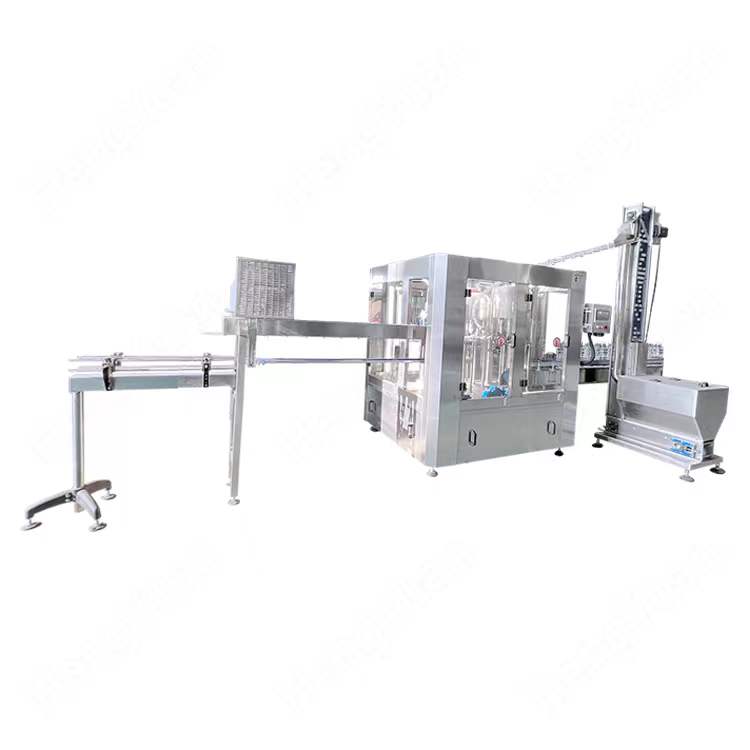

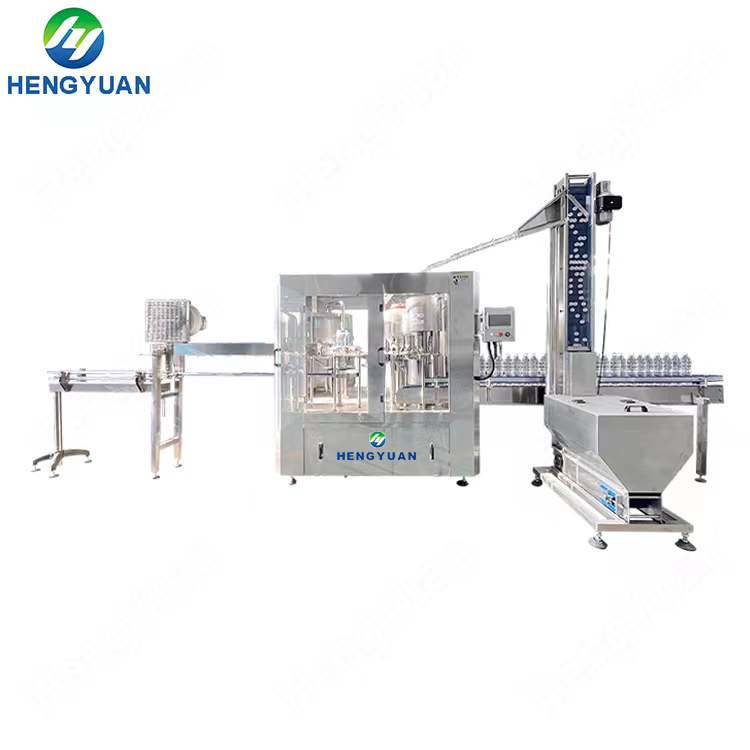

HY-CGF 8-8-3 Drinking water pet bottles rinser filler capper

HY-CGF 8-8-3 Drinking water pet bottles rinser filler capper

Click here to view Automatic PET Bottles Rinsing Filling capping machine running video on YouTube

https://youtu.be/Y3MvlR-QrL0
