Professionally produce filling machines and packing machines

HengYuan Machinery Equipment Co., Ltd.

Automatic Rotary Negative Pressure Bottle Filling Machine

  • Model: HYRF-1000N
  • Nozzles No.: 12, 18, 24, 30, 36pcs optional
  • Standard filling volume: 50-1000ml Customized
BASIC INFO
HYRF-1000N Automatic Rotary Negative Pressure Bottle filling machineTechnical Description

The rotary negative pressure filling machine produced by our factory is the basis of our factory's digestion and absorption of domestic similar products. On the other hand, a new series of products successfully developed can accurately fill all kinds of non-gas drinks and liquids with a certain concentration. The filling system of this machine is made of stainless steel, which will not cause corrosion and affect the hygiene of drinks, meet the hygiene requirements, and at the same time prolong the service life of the equipment. This machine is an ideal filling equipment in China at present.This machine is a kind of equipment that uses the principle of low-pressure vacuum to fill foaming liquid of drinks.High efficiency, variable frequency speed regulation, each valve can be produced.50-200 bottles/minute customized. Liquid level does not change with the bottle type, high and low-caused. No dripping, tight and reliable sealing, no filling of damaged bottles and no spilling of wine.No bottle breakage, automatic adaptation of bottle height error, soft start, soft brake, no rigid impact and no bottle breakage.



Automatic Rotary Negative Pressure Bottle filling machine Technical Data
Filling heads(pcs)
12
18
24
30
36
Capacity(BPH)
3000
4500
6000
8000
10000
Filling Volume
50-1000ml
Accuracy
≤±1%
Suitable Botles
Customized
Control method
Buttons or PLC+Touch screen
Power(kW)
0.75
0.75
1.1
1.5
2.2
Voltage
AC110V/220V/240V/380V/415V, globally customized
Size(LxWxH)cm
110x100x220
130x120x220
160x140x220
200x190x220
230x215x220



Automatic Rotary Negative Pressure Bottle filling machine Pictures

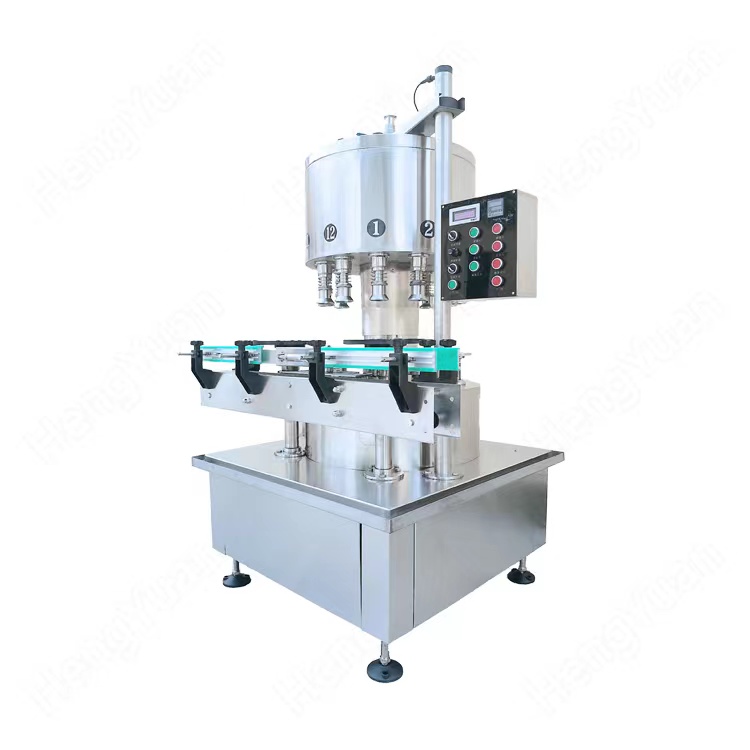

HYRF-1000N Automatic rotary negative pressure filling machine

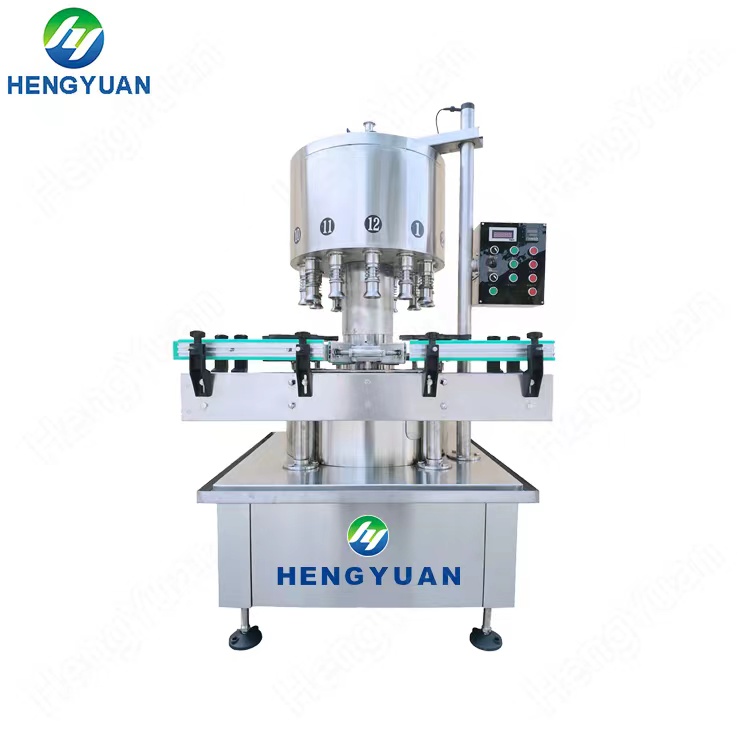

HYRF-1000N Automatic rotary negative pressure liquid filling machine

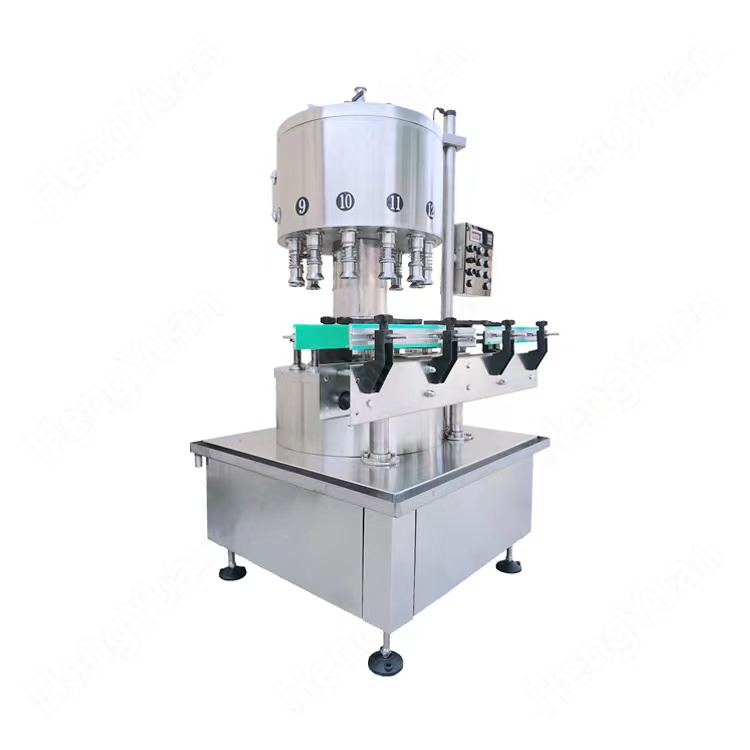

HYRF-1000N Automatic rotary negative pressure bottle filling machine

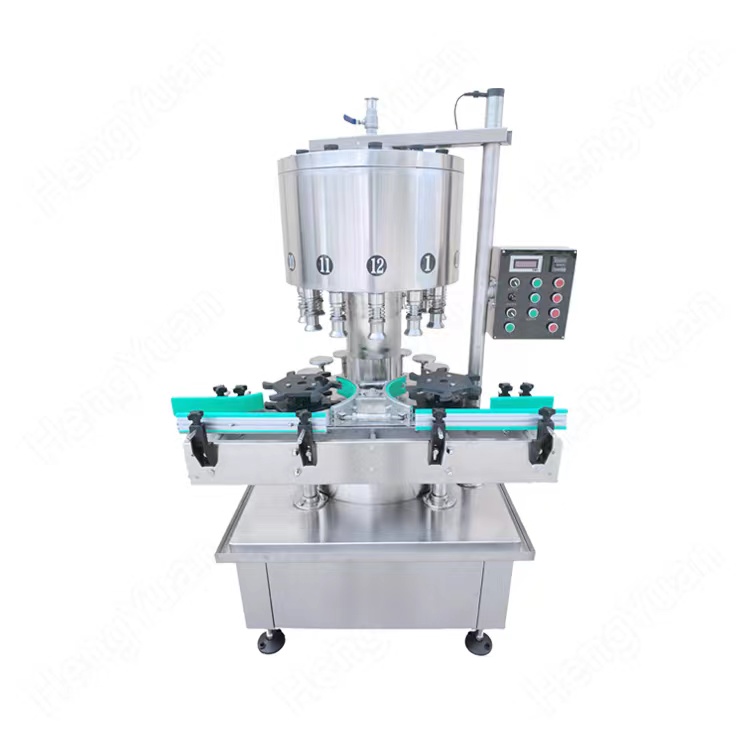

HYRF-1000N Automatic rotary negative pressure wine filling machine
HYRF-1000N Automatic rotary negative pressure juice filling machine
HYRF-1000N Automatic rotary negative pressure soy sauce filling machine
HYRF-1000N Automatic rotary negative pressure edible vinegar filling machine
HYRF-1000N Soy Sauce Bottle Filling Machine


Automatic Rotary Negative Pressure Bottle filling machine is suitable for below bottle samples
Automatic liquid filling machine, rotary liquid bottle filling machine, automatic wine filling machine, soy sauce bottle rotary filler, juice bottle rotary dispensing machine, edible vinegar bottle filling machine, high-speed fruit vinegar filling machine, liquid detergent bottle rotary filler, glass cleaner bottle filling machine, pesticide bottle filling machine, etc.
HYRF-1000N Automatic rotary negative pressure filling machine

Click here to view HYRF-1000N Automatic Rotary Negative Pressure Bottle filling machine running video on YouTube
https://youtu.be/kctlx9cFMaY
