Automatic 1Liter Volume Piston Filling Machine

MODEL: HYPF-1000S
Nozzles No.: 1-20pcs customized

BASIC INFO

Technical Description

Inline piston filling machine is for different viscous liquid and cream with different bottle or jars. Through PLC, and servo motor, it can be changed to fill different volume on touch screen. No bottle no filling. It can be used for shampoo, liquid soap and other liquid of chemical industry.

Main Technical Data

Filling range: 50-1000ml
Diameter of bottle: Φ40mm~Φ90mm
Height of bottle: 80mm-230mm
Filling accuracy: +1%(≤200ml) +0.5%(200-1000ml)
Output: ≤6000BPH
Air resource: 0.6-0.8MPa
Air consumption: 200L/h
Power: 2.5KW/AC220V/380V/50Hz/60Hz Customized
Weight: 600kg
Size(LxWxH): 2000x1050x2300mm

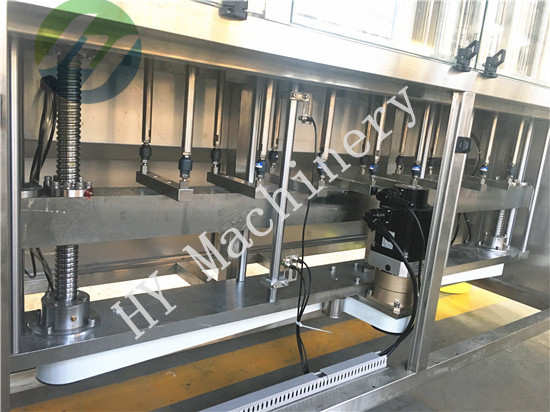

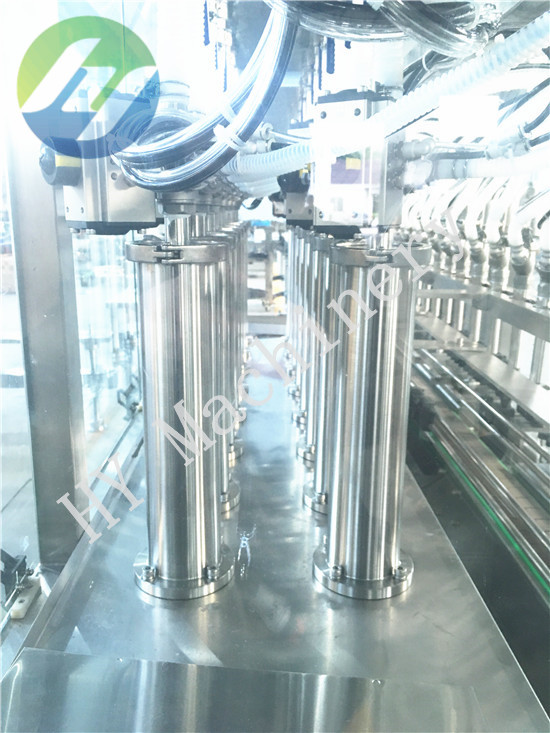

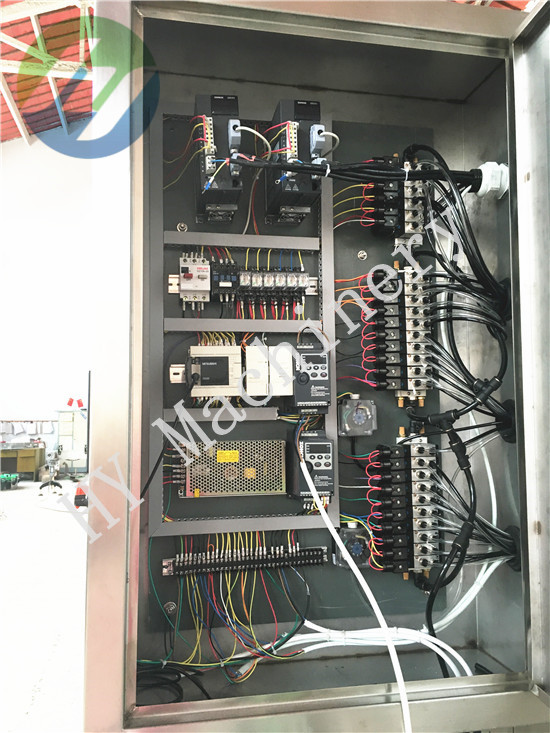

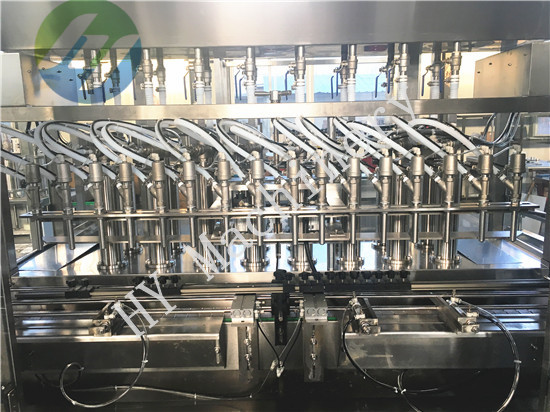

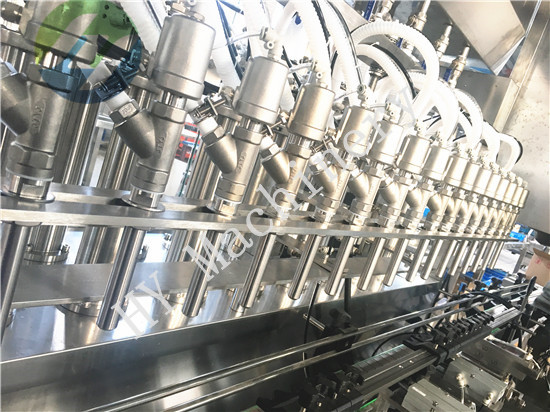

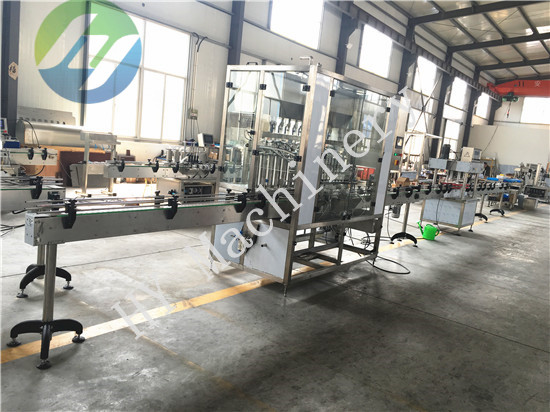

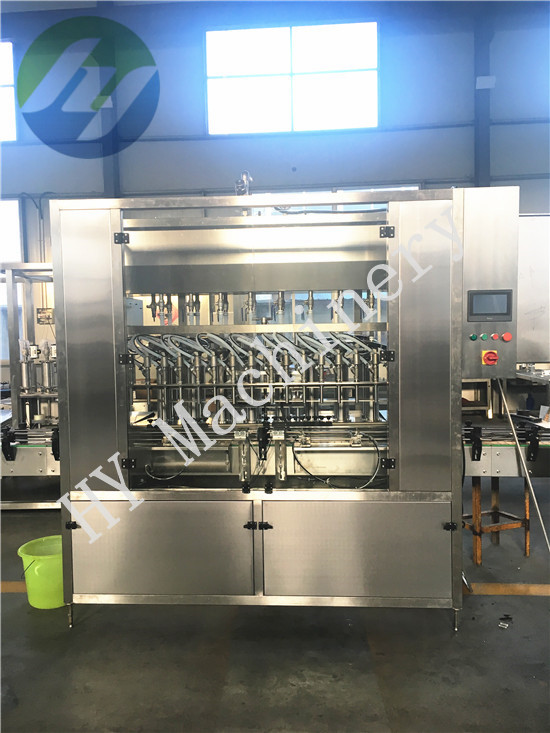

Inline Piston filling machine Pictures

Inline Piston filling machine is suitable for below bottle samples

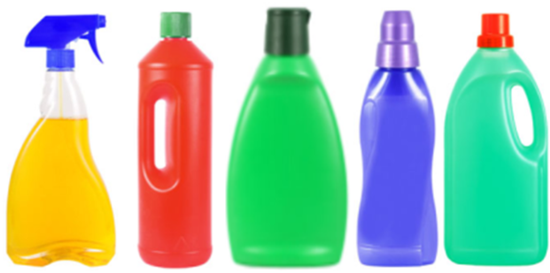

Shampoo filling machine, Conditioner filling machine, Body Lotion filling machine, Laundry Detergent filling machine, Hand Sanitizer filling machine, Cleanser Essence filling machine, Degreaser Liquid filling machine, Facial Cream filling machine, Facial Lotion filling machine

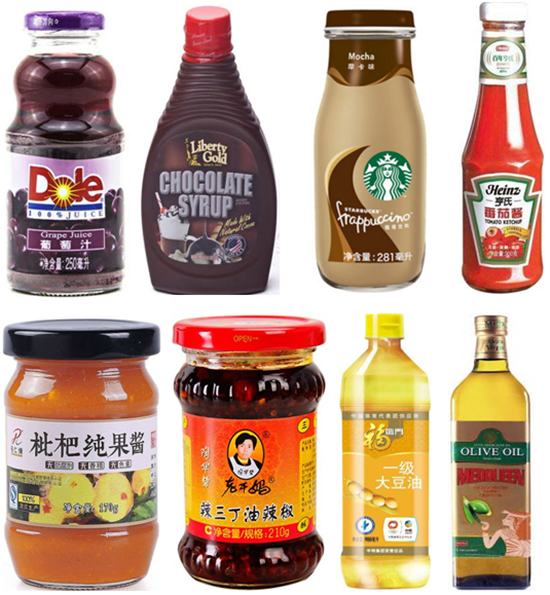

Fruit Juice filling machine, Chocolate Liquid filling machine, Coffee Liquid filling machine, Ketchup Fiiling Machine, Jam Bottle filling machine, Chilli Paste filling machine, Honey filling machine, Edible Oil filling machine, Olive Oil filling machine, Syrup filling machine

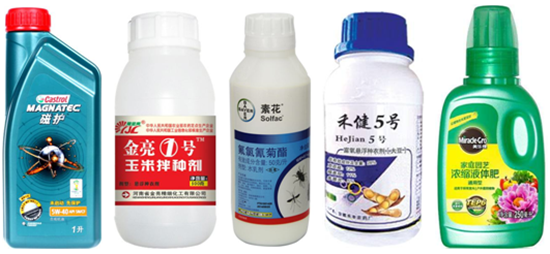

Engine Oil filling machine, Pesticides filling machine, Suspending Agent filling machine, Emulsifiable Concentrate filling machine, Liquid Fertilizer filling machine, Seed Dressing Agent filling machine

Click here to view Automatic Inline Piston filling machine running video on YouTube
https://youtu.be/Hx277qN9Ua4
