Professionally produce filling machines and packing machines

HengYuan Machinery Equipment Co., Ltd.

Automatic Inline Capping Machine

  • Midel:HYYG-200
  • Capping method: belt running pressing-on
  • Production Capacity: 6000pcs/hour
BASIC INFO
Technical Description

The machine use the straight line into the bottle, automatically arrange caps, sleeving caps, caps after sleeve and check will go into the gland system by the clamping belt. Due to the lid_cover flat belt design have a drop of slop, the caps after press will become more and more tightly.The machine has simple structure, convenient adjustment, production speed fast, high pass rate, after cap pressing has good performance, suitable for cap pressing of foodstuff, soy sauce, vinegar, vegetable oil's bottle shape.

Main Technical Data
  • Applicable cap diameter: φ15-φ50 mm customized
  • Suitable bottle diameter: φ45-φ140 mm customized
  • Suitable for bottle height: 40-250 mm customized
  • Maximum capacity: 0~8000 bottles/hour (frequency control)
  • Cover accuracy: ±1 %
  • Total Power: 2kw
  • Dimension: 2000×850×2100 mm
  • Weight: 400 kg


Automatic Inline Pressing-on Snap Lid capping machine Pictures

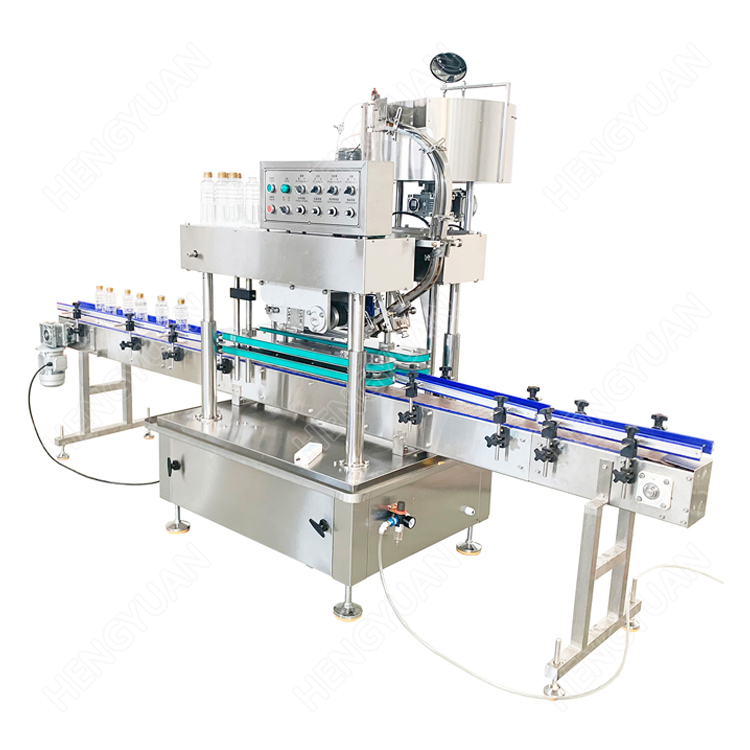

automatic pressing-on capping machine

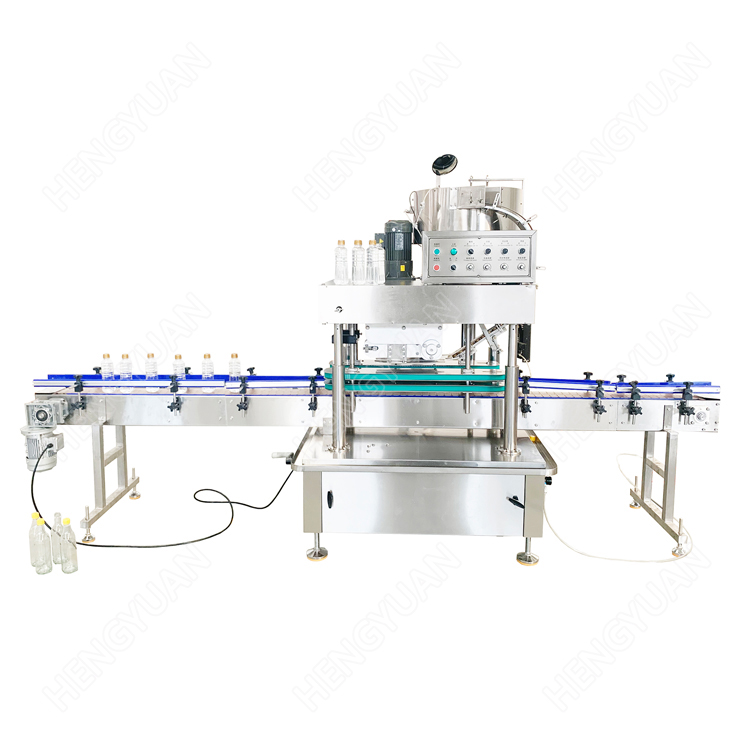

Automatic snap lid pressing-on sealing machinery

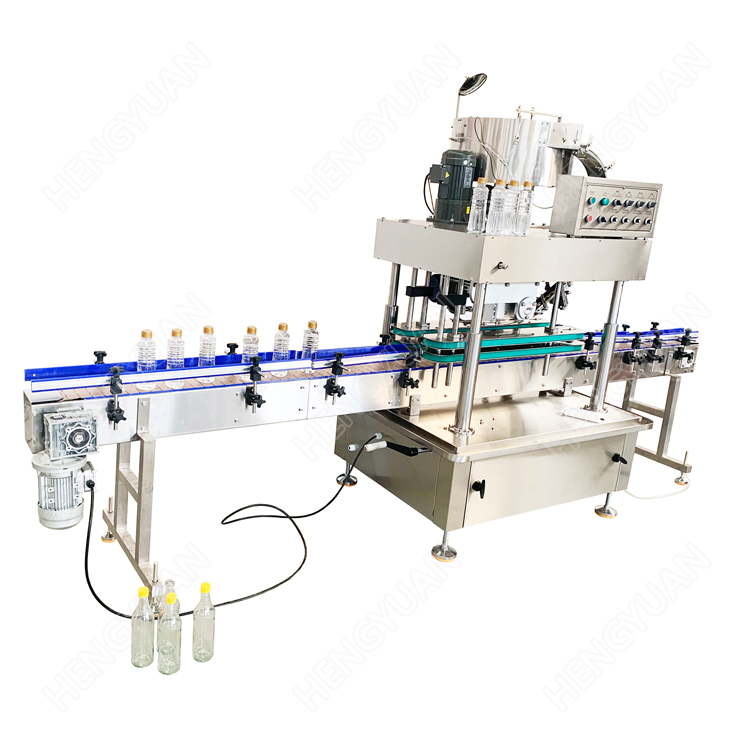

Automatic edible oil pet bottle snap lid capping machine

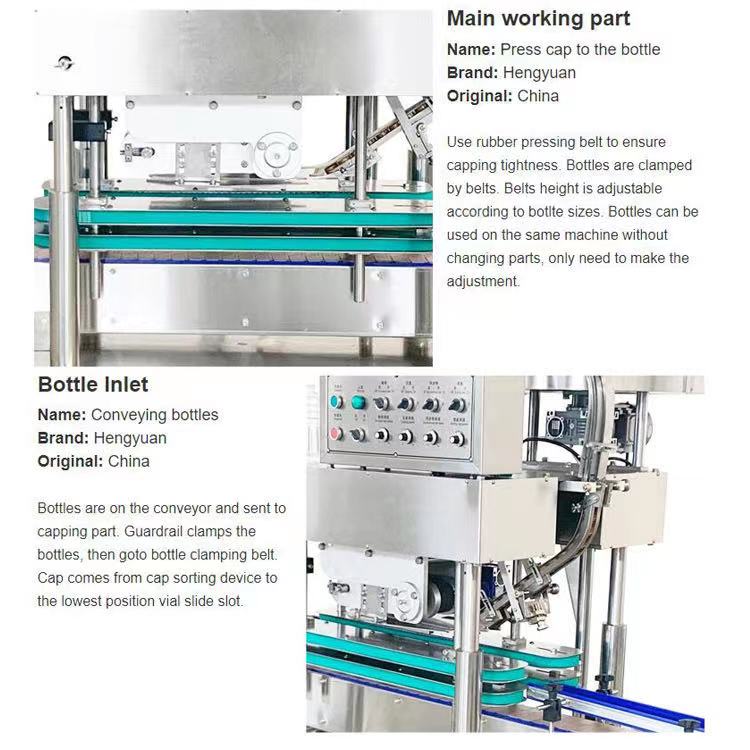

Automatic belt type snap lid capping machine details
autoamtic edbile oil pet bottle snap capping machine
Automatic rice vinegar bottle pressing-on capping machine



Inline snap lid pressing-on capping machine is suitable for below bottle samples:
vegetable edible oil bottle, soybean sauce bottle, vinegar bottle, etc sealing equipment
Automatic pressing-on capping machine

Click here to view Automatic Inline capping machine running video on YouTube

https://youtu.be/xVy2ip9dxPY
