Automatic Rotary Bottles Trigger and Pump Lid Capping Machine

Application:Food, Beverage, Commodity, Chemical, Machinery & Hardware
Function:Enclosing bottles with trigger or pump lids
Keywords:Trigger lid caping machine, pump lid capping machine

BASIC INFO

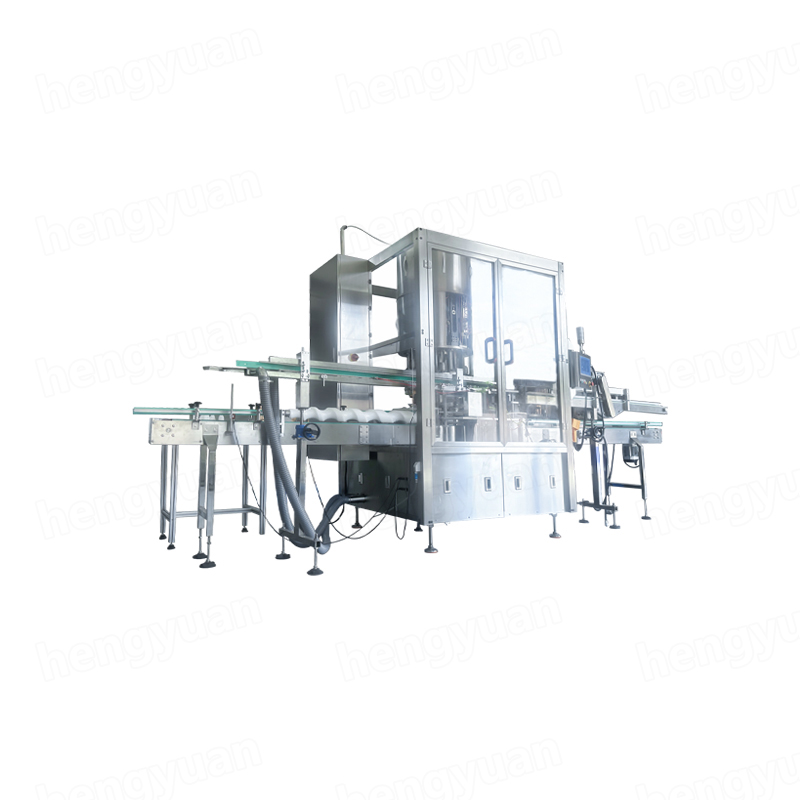

HYFK-200 Automatic Rotary BottlesTrigger and Pump Lid capping machine

Product Description

Product Introduction

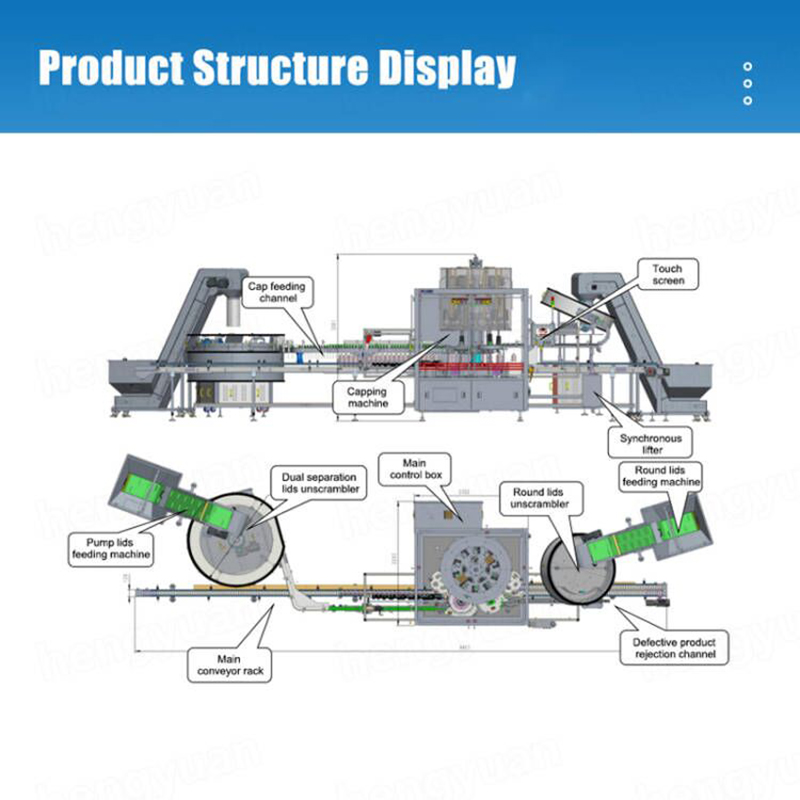

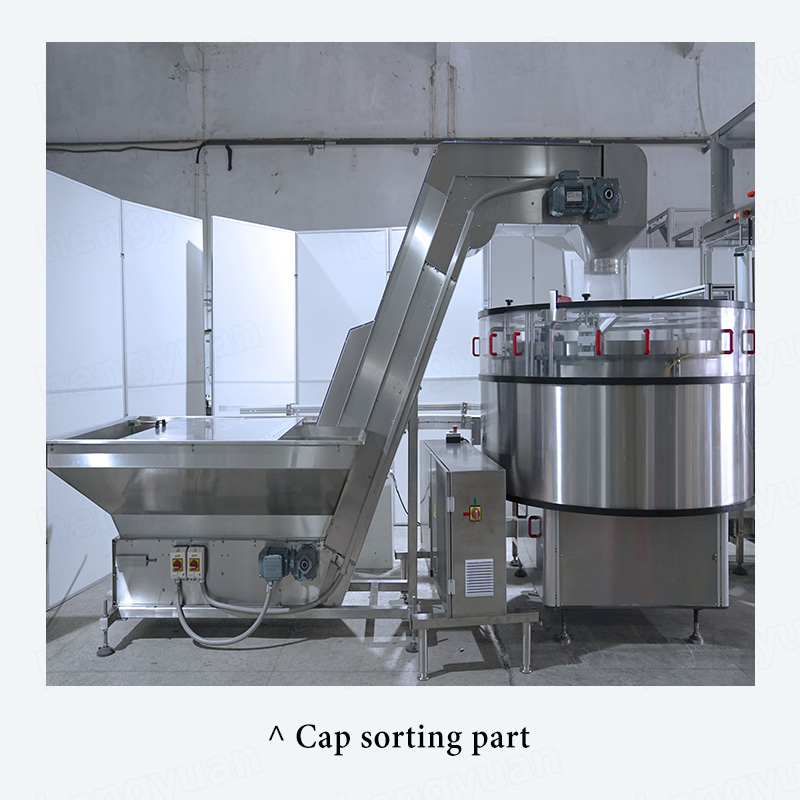

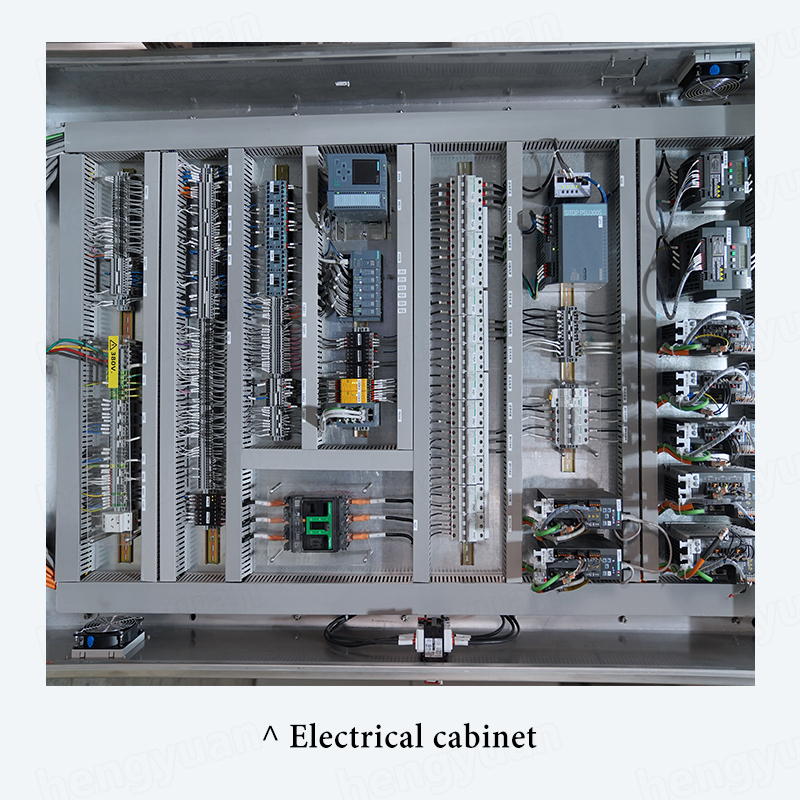

The pump or trigger capper is a capping machine for automatic feeding and capping of trigger lids, pump lids. Application of a servo-drive allows full control of the capping process and facilitates fast machine changeover (fast format change for various package types). It is composed of several main parts, including cap feeder + automatic cap elevator and sorter + inlet and outlet bottle template + capping mechanism + rejection mechanism + electrical control etc.

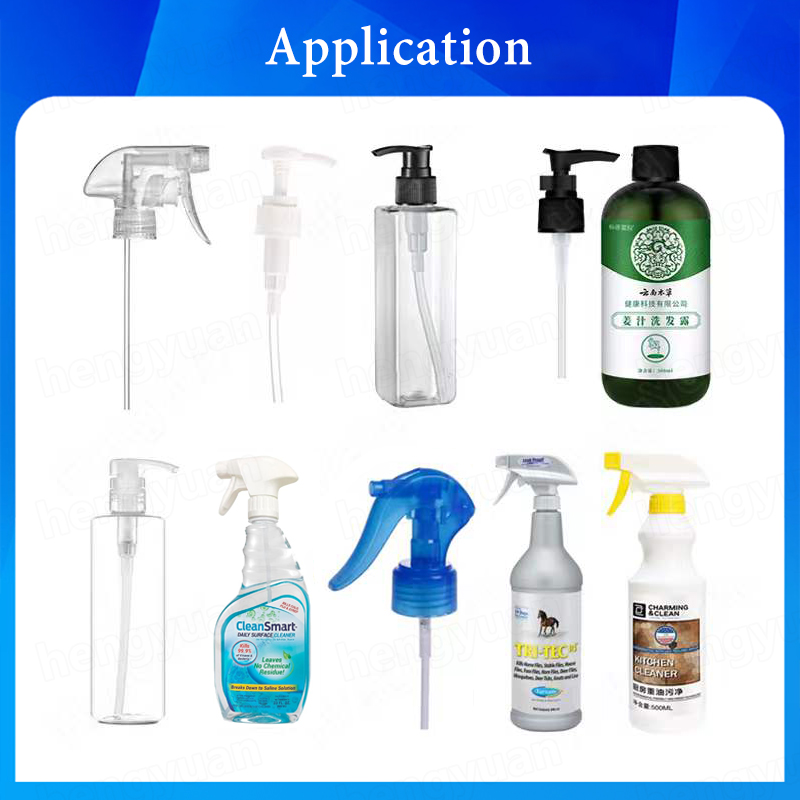

Product Application

HYFK-200 Automatic Rotary Trigger and Pump Lid Bottles capping machine

For examples

Kitchen cleaner bottle,Bug cleaner bottles, Degerming agent, Shampoo bottles, Hand sanitizer, Body wash bottles, etc. Automatic Single-head capping machine.

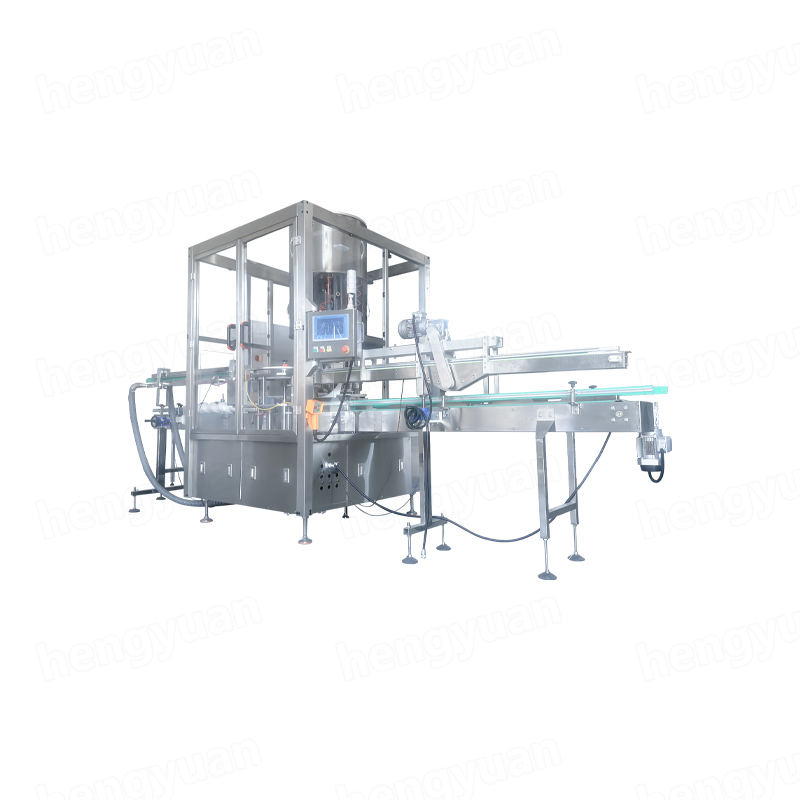

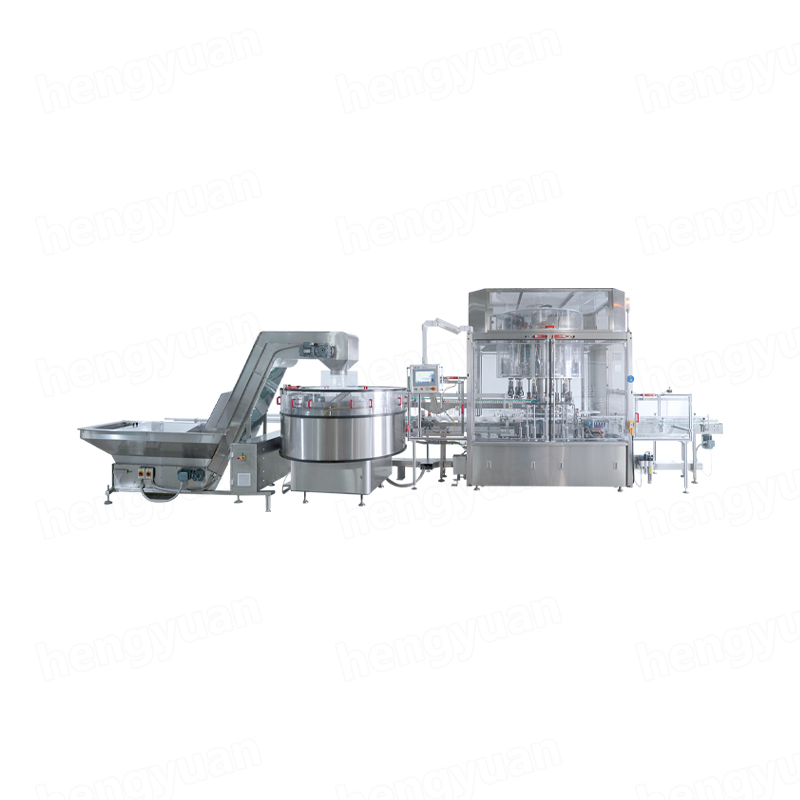

HYFK-200 Automatic Rotary Bottle Capping Machine for Trigger Lid application

HYFK-200 Automatic Rotary Bottle Capping Machine for Trigger Lid application

Technical Parameters
Capping capacity	3000-7000 bottles/hour
Applicable cap diameter	20-50mm customized according to caps
Suitable bottle diameter	customized according to bottle sample
Suitable for bottle height	customized according to bottle sample
Screw cap torque control method	permanent magnet clutch (servo motor optional)
Total Power	3.5kw
Power supply	AC380V/220V/415V, three phased, globally customized
Machine size	720400320cm
Weight	3500Kg

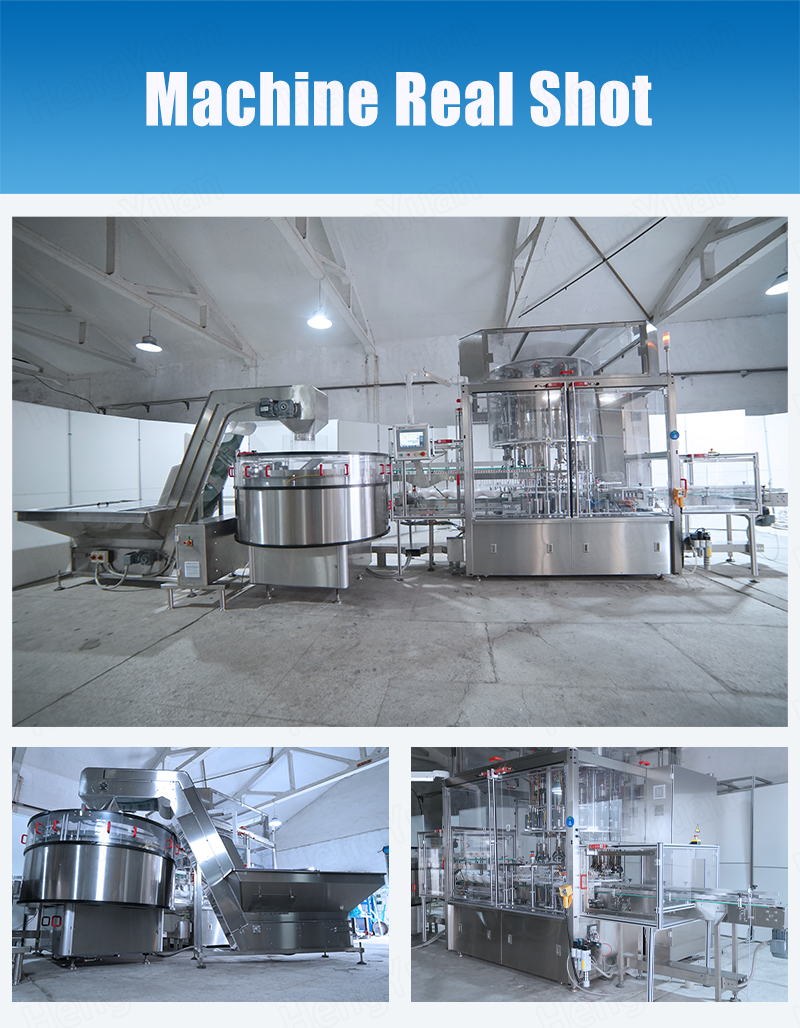

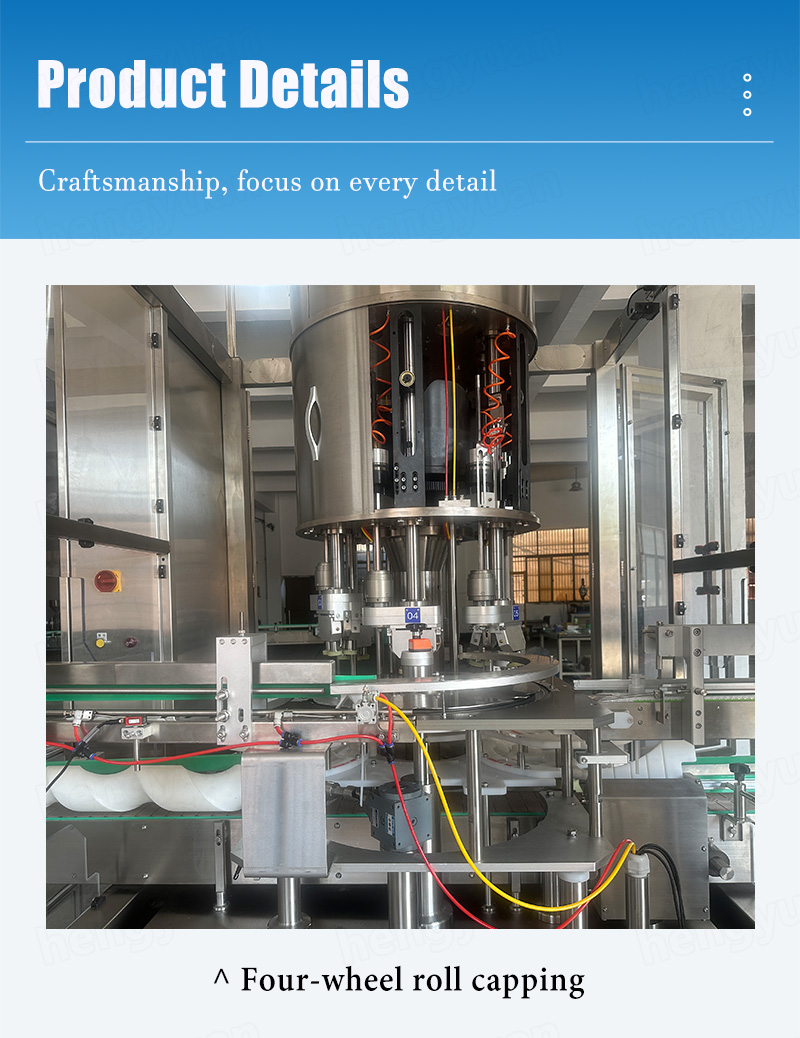

Machine Display

Click here to view HYFK-200 Automatic Rotary BottlesTrigger and Pump Lid capping machine running video on YouTube
https://youtu.be/c25wEwx_CY0?si=Uvuyr2EZWtrAT5DF
