Desktop Bottle Mouth PVC Cap Sealing Machine

  • Model: ZS-830
  • Suitable bottles: Wine, Olive Oil , Liquid Seasoning Bottle, etc.
  • Suitable lid: PVA Heating shrinkage cap
  • Sealing speed: 600 bph
BASIC INFO
Technical description

This machine is specially used for shrinking PVC caps for bottle mouths. It has simple structure, low price and reliable operation. It is an ideal tool for shrinking PVC caps in small wineries. Widely used in wine bottles, soy sauce vinegar bottles, olive oil bottles, etc.

Operation introduction The operator puts the rubber cap on the bottle mouth, puts the bottle mouth in the direction of the heating element, pushes it into the heating chamber along the track of the fuselage, and takes it out after 2-3 seconds, the rubber cap will be heated and shrunk, tightly wrapped in The mouth of the bottle plays the role of protection and decoration. Automatic constant temperature and temperature adjustment type, the temperature is clear at a glance, and the packaging effect is better!


Main technical data

Capping capacity
0-700pcs/hour
Capping heads quantity
1pc
Bottle diameter
≤8cm
Bottle height
≤30cm
Working method
Manually
Sealing temperature
50-200℃
Total Power
600w
Air consumption
0.6m³ / 0.7Mpa
Power supply
AC220V/110V, 50/60hz, Single phase globally customized
Dimension
48x17x26cm
Weight
4.2kg

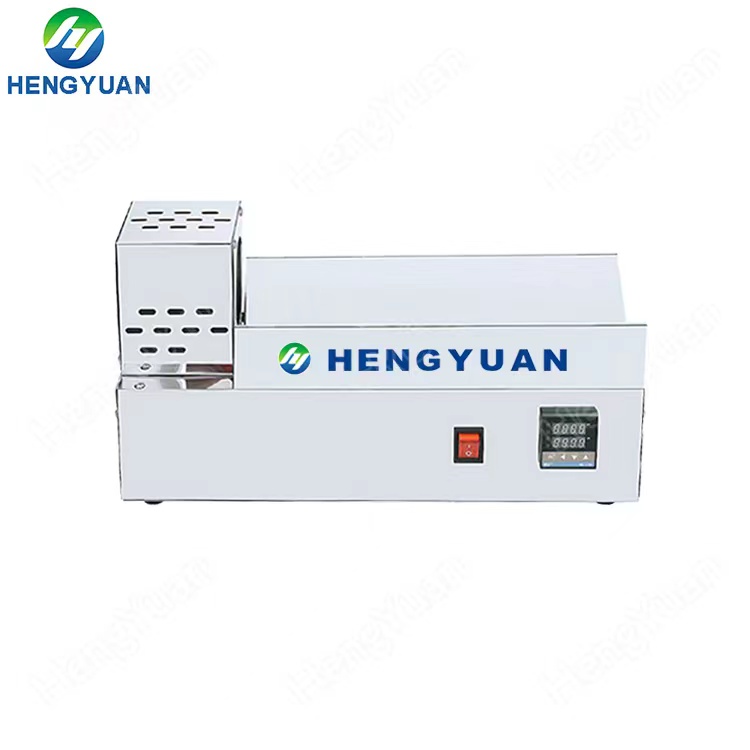

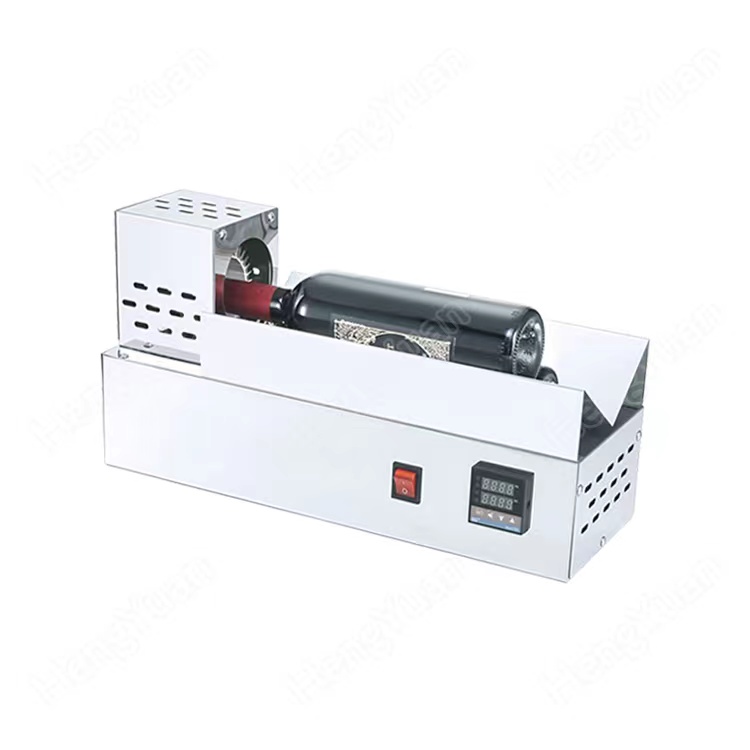

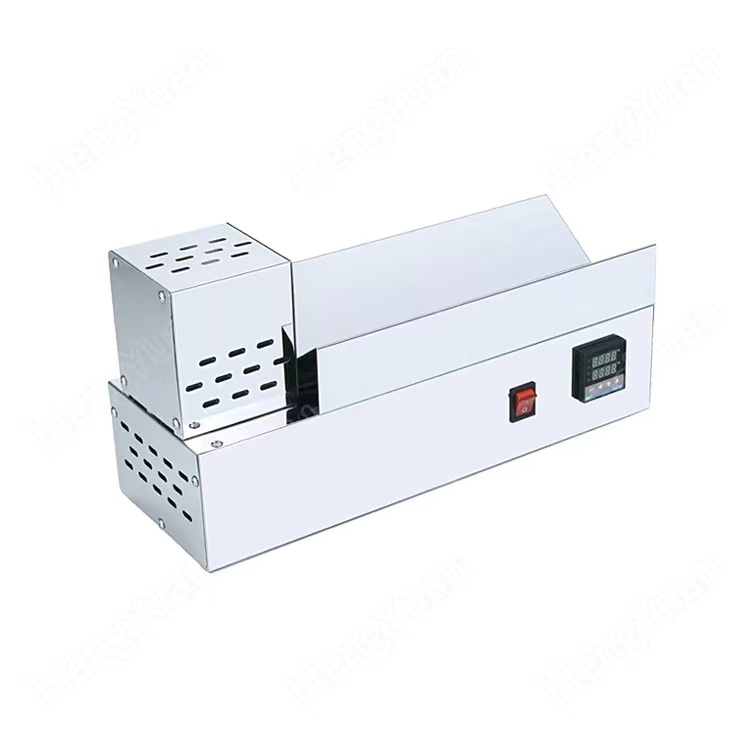

Semi-automatic Glass Bottle Mouth PVC Heating Shrink Lid Sealing Machine Picture

ZS-830 Semi-automatic Wine Bottle PVC Heating Shrink Cap Sealing Machine
ZS-830 Semi-automatic Wine Bottle PVC Heat Shrink Cap Sealer
ZS-830 Semi-automatic Wine Bottle PVC Heat Shrink Cap Sealing Machine

Desktop Glass Bottle Mouth PVC Heating Shrink Lid Sealing Machine Application

Glass Bottle PVC Heating Shrink Cap Sealing Machine, Wine bottle PVC Heat Shrink Cap Sealer, soy sauce vinegar bottle PVC Heat Shrink Cap Sealer, olive oil bottle PVC Heat Shrink Cap Sealing Equipment, etc.
ZS-830 Semi-automatic Glass Bottle PVC Heating Shrink Cap Sealing Machine

ZS-830 Semi-automatic Wine Glass Bottle Cap Heating Sealing Machine

Click here to view Desktop Glass Bottle Mouth PVC Heating Shrink Cap Sealing Machine running video on youtube
https://youtu.be/CZ-SQ2LTEvk
