Tunnel Type Sleeve Film Shrinkage Sealing Machine

Model: HY-RSX-5
Suitable bottles: Health Care Bottle, Liquid seasoning bottles, Wine bottles, Olive Oil, Liquid Seasoning Bottle, etc.
Suitable lid: PVC/PE Heating shrinkage cap
Sealing speed: 2000 bph

BASIC INFO

HY-RSX-5 Tunnel Type Sleeve Film Shrinkage Sealing Machine Technical description

The shrinking chamber is heated by an electric heating tube, and then air is supplied by a blower to make the temperature of the shrinking chamber uniform. When a bottle with a plastic cover passes through the heat shrinking chamber, the plastic cap is pressed and shrinked and wraps the bottle mouth tightly, which has achieved a good shrinkage effect. The machine can change the temperature in the electronic heating chamber by setting the temperature of the electronic temperature indicator regulator according to the material and thickness of the rubber cap, and has achieved the best shrinkage effect. The machine has the characteristics of small size, simple structure, novel and beautiful, convenient operation and maintenance. It is mainly used in the shrinkage of various heat shrinkable cover, and is mostly used in the packaging of edible oil, beverages, sauces, condiments, etc.
Operation introduction The operator puts the rubber cap on the bottle mouth, puts the bottle mouth in the direction of the heating element, pushes it into the heating chamber along the track of the fuselage, and takes it out after 2-3 seconds, the rubber cap will be heated and shrunk, tightly wrapped in The mouth of the bottle plays the role of protection and decoration. Automatic constant temperature and temperature adjustment type, the temperature is clear at a glance, and the packaging effect is better!

Features

1) The working power of this machine is about 6KW after startup, which belongs to high-power equipment. Therefore, it is necessary to pay attention to using more than 4 square copper wire terminal blocks when installing and connecting electricity.
2) Adjust the temperature of the thermostat according to the material thickness of the hat and the conveying speed of the conveyor belt. Green is the working indicator light, and the red indicator light indicates that the required temperature is reached. At this time, heat shrinkage begins.
3) Inside the passage, there are three heating pipes on both sides.
4) The channel height of the heat shrinkable machine can be adjusted up and down according to the height of the sealed container.
5) The machine needs to be used with a conveyor belt. The machine does not have a conveyor belt and needs to be purchased separately.

6) Usage for a wide range of bottle sizes, no need to use replacements.

Main technical data

Sealing capacity	1500-2400pcs/hour
Applicable bottle height	150 ~ 310mm, special size can be customized
Applicable bottle diameter	≤90mm, special size can be customized
Applicable bottle type	Round bottle and various special-shaped bottles
Electric heating tube power	0.8kwx6
Air blowing power	30W
Temperature adjustment method	electronic temperature indicator regulator
Temperature adjustment range	0～400℃
Power supply	AC220V/380V/415V/440V, Three phases globally customized
Dimension	100x24x46cm
Weight	35Kg

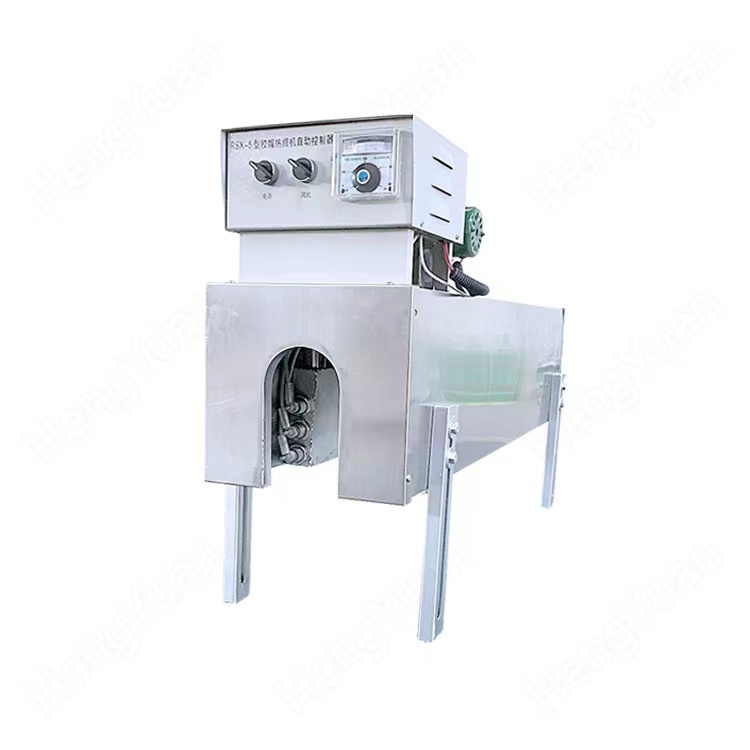

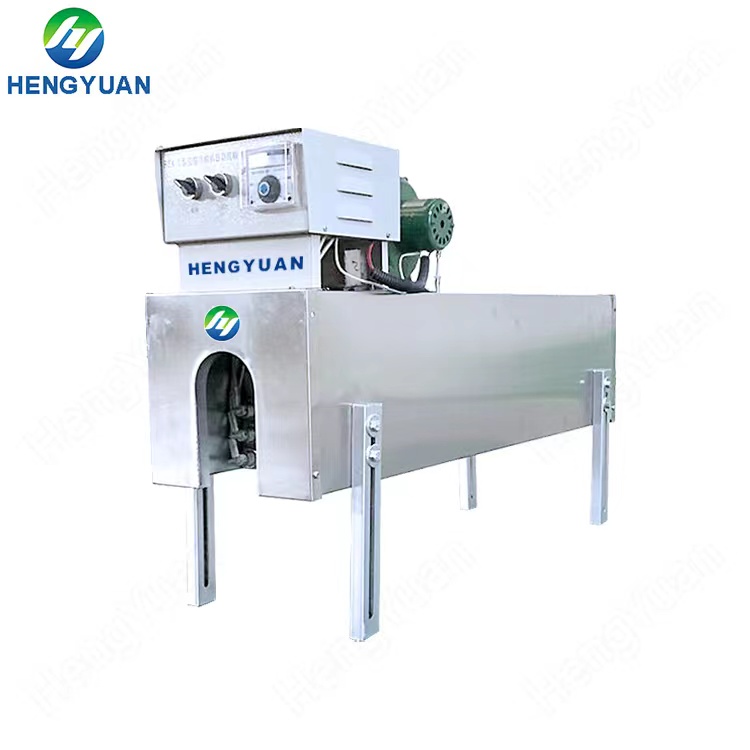

HY-RSX-5 Tunnel Type Sleeve Film Shrinkage Sealing Machine Picture

HY-RSX-5 Electrical Heating Sleeve Film Shrinkage Sealing Machine.jpg

HY-RSX-5 Electrical Heating Sleeve Film Shrinkage Bottle Mouth Sealing Machine.jpg

HY-RSX-5 Electrical Heating Sleeve Film Shrinkage Sealing Oven.jpg

HY-RSX-5 Electrical Heating Sleeve Film Shrinkage Sealing Machinery.jpg

HY-RSX-5 Sleeve Film Shrinkage Bottle Mouth Anti-leakage Sealer.jpg

Oven Type Bottle Mouth Shrinkage Heating Film Sealing Machine Application

Glass Bottle Mouth Heating Shrink PVC Cap Sealing Machine, Wine bottle PE Cap Heat Shrink Sealer, soy sauce vinegar bottle month Heat Shrink Plastic Film Cover Sealer, olive oil bottle PVC Heat Shrink Cap Sealing Equipment, etc. HYSC-1A-E Semi automatic PVC and PE Plastic Lid Bottle Mouth Single Head Shrinkage Sealing Machine, etc.
