Semi-automatic PVC Cap Single Head Sealing Machine

  • Model: HYSC-1A-E
  • Suitable bottles: Wine, Olive Oil , Liquid Seasoning Bottle, etc.
  • Suitable lid: PVA Heating shrinkage cap
  • Sealing speed: 1200 bph
BASIC INFO
HYSC-1A-E Semi-automatic PVC Cap Single Head Sealing Machine Technical description
HYSC-1A-E semi-automatic PVC/PE film cap heat shrinkable machine produced by our company is independently researched and developed by our factory, which is designed according to China's national conditions. It has the advantages of advanced design, reasonable structure, beautiful appearance and convenient debugging. Achieve a certain degree of automation and moderate price. It is widely used for the thermal shrinkage of bottle caps of all kinds of wine, red wine, drinks, fruit juice, alcoholic drinks, mineral water, purified water, etc. It is an ideal equipment for small and medium-sized wineries, condiment factories, beverage factories and other manufacturers.

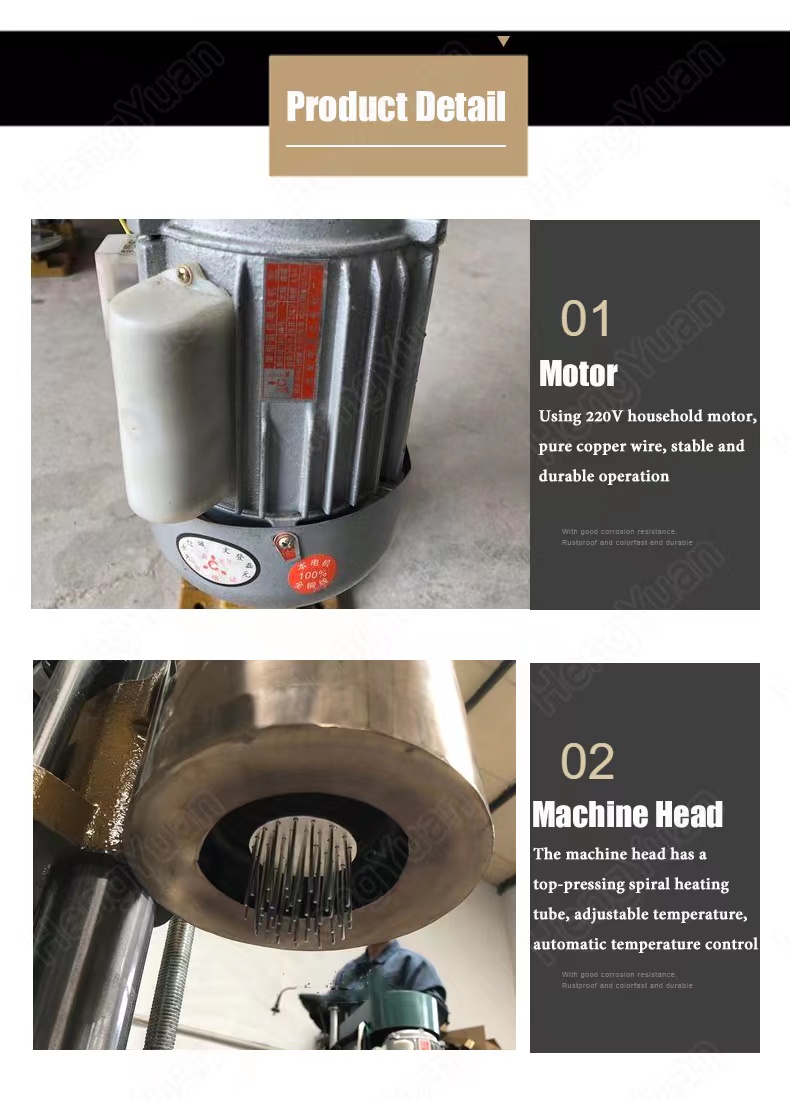

Operation introduction The operator puts the rubber cap on the bottle mouth, puts the bottle mouth in the direction of the heating element, pushes it into the heating chamber along the track of the fuselage, and takes it out after 2-3 seconds, the rubber cap will be heated and shrunk, tightly wrapped in The mouth of the bottle plays the role of protection and decoration. Automatic constant temperature and temperature adjustment type, the temperature is clear at a glance, and the packaging effect is better!

Main technical data

Capping capacity
0-1200pcs/hour
Capping heads quantity
1pc
Bottle diameter
Customized
Bottle height
Customized
Working method
Semi-automatic
Sealing temperature
50-200℃
Electricity heating power
1.2Kw
Motor power
0.37Kw
Power supply
AC220V/110V, 50/60hz, Single phase globally customized

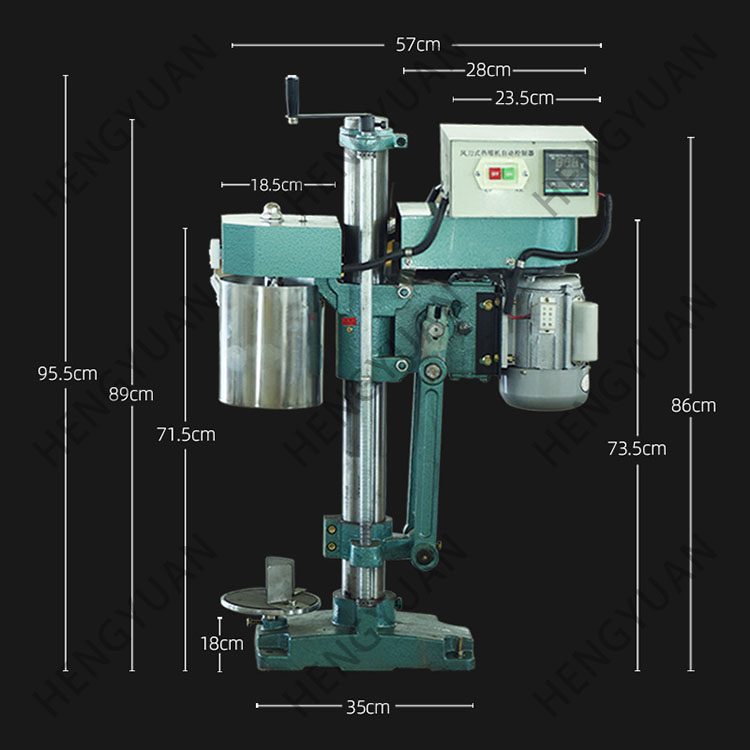

Dimension
63x24x96cm
Weight
70kg

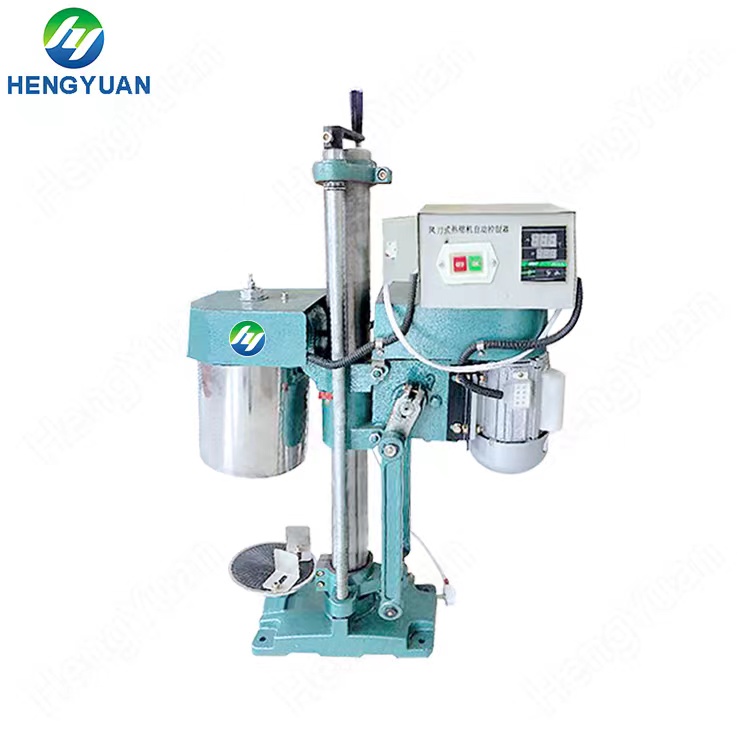

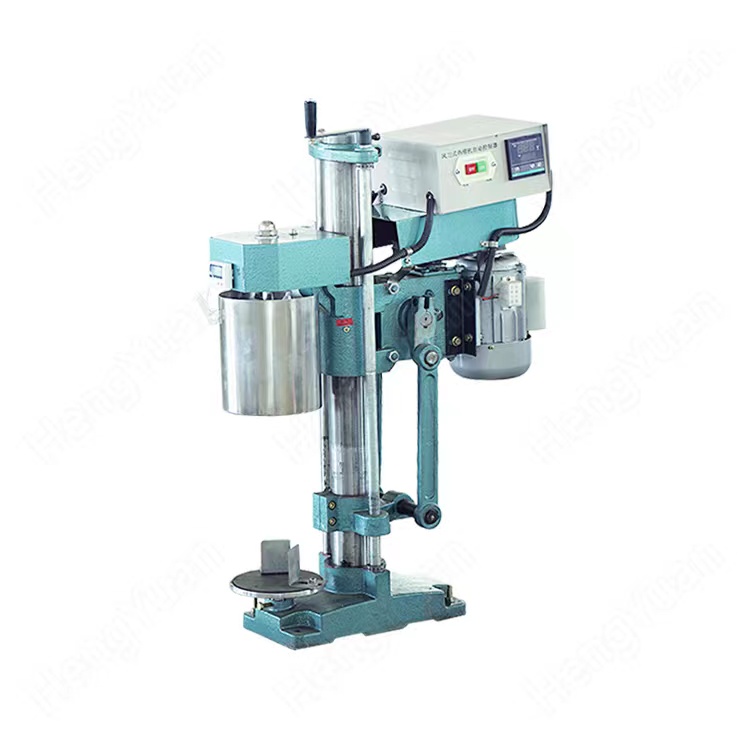

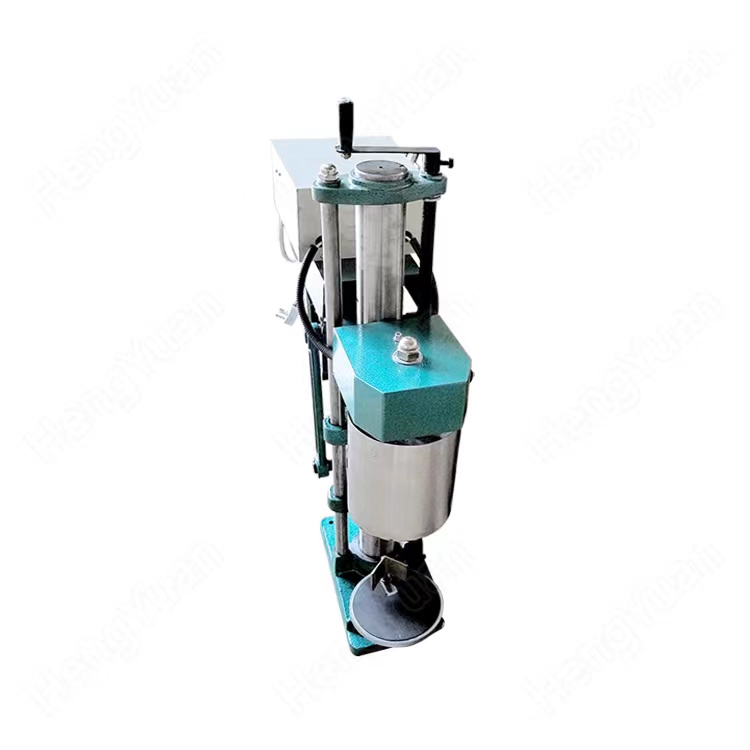

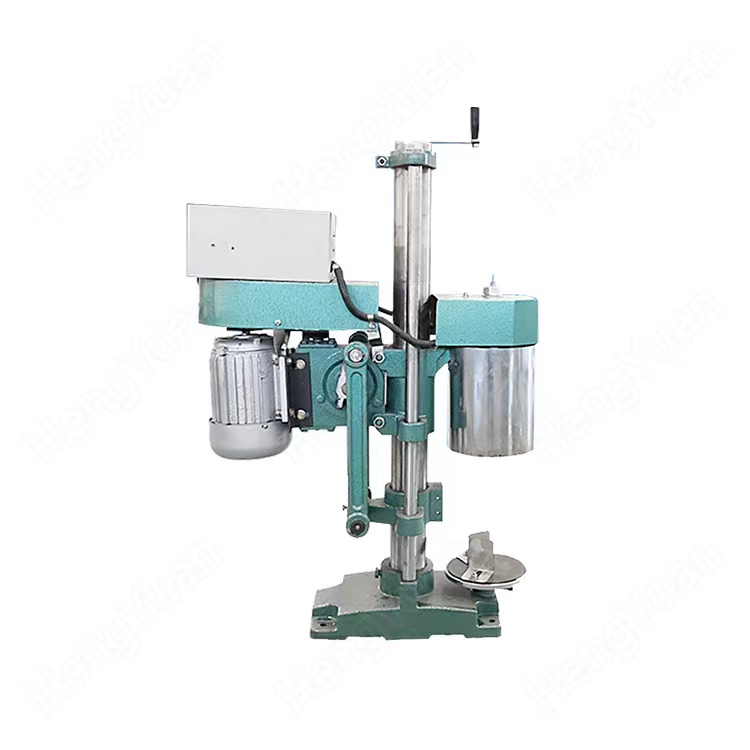

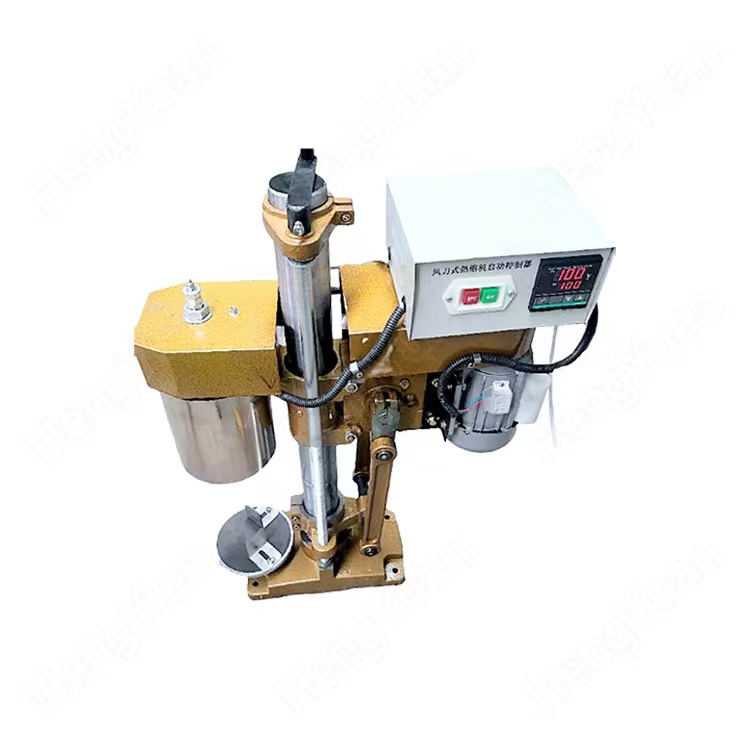

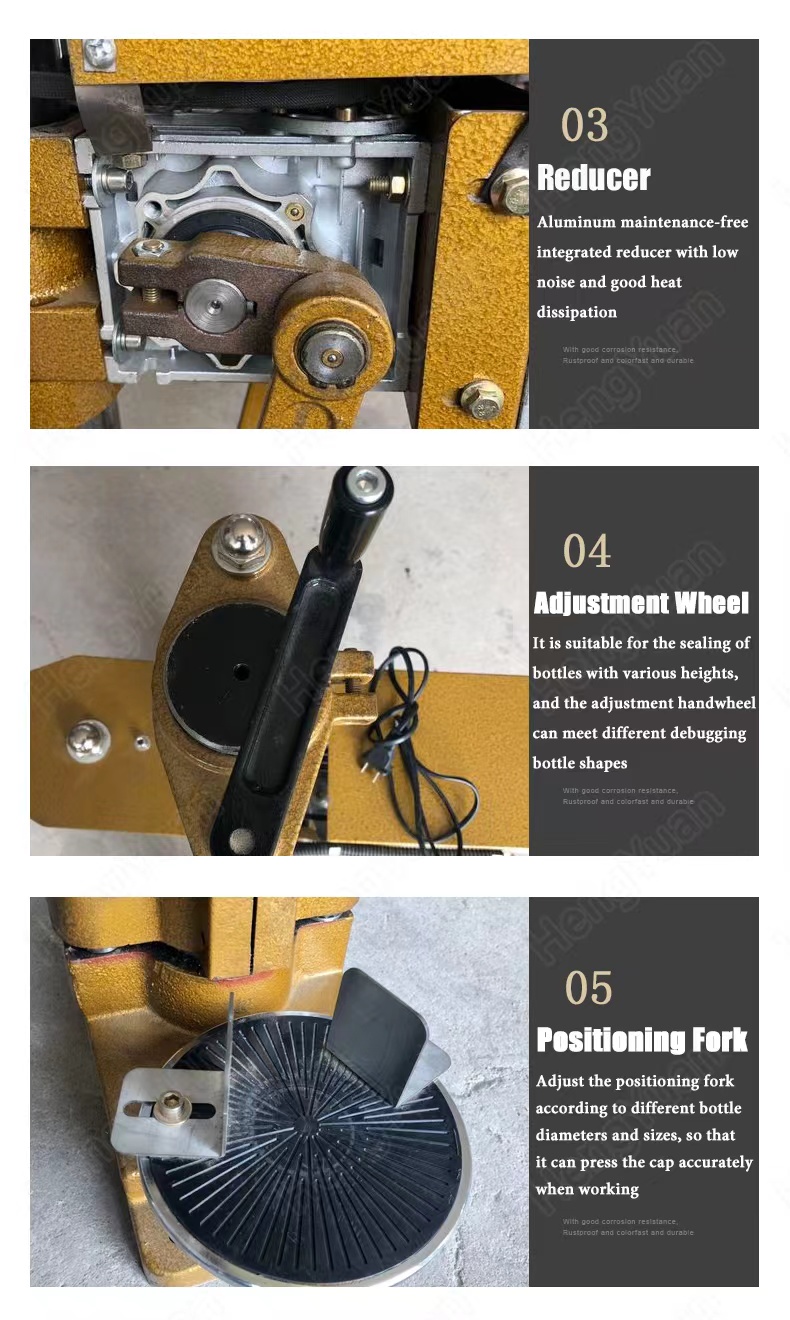

Semi-automatic Glass Bottle Mouth PVC Heating Shrink Lid Sealing Machine Picture
HYSC-1A-E Semi-automatic PVC and PE Plastic Lid Shrinkage Sealing Machine.jpg
HYSC-1A-E Semi-automatic Plastic Lid Glasss Bottle Mouth Shrinkage Sealing Machine.jpg
HYSC-1A-E Semi-automatic PVC and PE Plastic Lid Shrinkage Sealer.jpg
HYSC-1A-E Semi-automatic Plastic Lid Shrinkage Sealing Machine.jpg
HYSC-1A-E Semi-automatic PVC and PE Plastic Lid Shrinkage Sealing Equipment.jpg
HYSC-1A-E Semi-automatic Shrinkage Sealing Machine.jpg

HYSC-1A-E Semi-automatic Wine Bottle Mouth Shrinkage Sealing Machine.jpg
HYSC-1A-E  Plastic Lid Shrinkage Sealing Machine.jpg



Desktop Glass Bottle Mouth PVC Heating Shrink Lid Sealing Machine Application

Glass Bottle Mouth Heating Shrink PVC Cap Sealing Machine, Wine bottle PE Cap Heat Shrink Sealer, soy sauce vinegar bottle month Heat Shrink Plastic Film Cover Sealer, olive oil bottle PVC Heat Shrink Cap Sealing Equipment, etc. HYSC-1A-E Semi automatic PVC and PE Plastic Lid Bottle Mouth Single Head Shrinkage Sealing Machine.
HY-RSJ-1 Oven Type Electrical Heating PVC Lid Shrinkage Sealing Machine.jpg
Click here to view Desktop Glass Bottle Mouth PVC Heating Shrink Cap Sealing Machine running video on youtube
https://youtu.be/b2kc33hdQd4
