Semi Automatic Front and Backside Non-dry Adhesive Sticker Bottle Labeling Machine

MODEL: HYT-909

BASIC INFO

Technical description

Semi automatic double sides sticker labeling machine is suitable for Flat bottle or square bottles with two labels,
It uses PLC control system and touch screen which makes machine easy to operate and intelligent. It applies the famous server motor, so it realizes real closed loop controlling and it avoids the phenomenon of “the blind man walk” when the machine apply the stepper motor. The machine will stop working and give out signals when there is no label or no product. It has the characters of High accuracy, steady performance and Long using life. Used stainless steel and aluminum alloy with the machine body, good in looking and high in performance.
It is widely used in food, chemicals, medicine, cosmetics, electronics, metal, plastics and other industries.

Main technical data

1.Label speed:40m/min(80-200)B/min
2.Labeling accuracy:±1mm
3.Label max width:190mm
4.Bottle diameter thickness:≤30mm height≤500mm
5.Label inner diameter:Ø76.2mm
6.Label outer diameter:Ø330mm
7.Using power:220V 50Hz 3000W
8.Outline size:1000x1100x1500mm
9.Machine weight:250kg

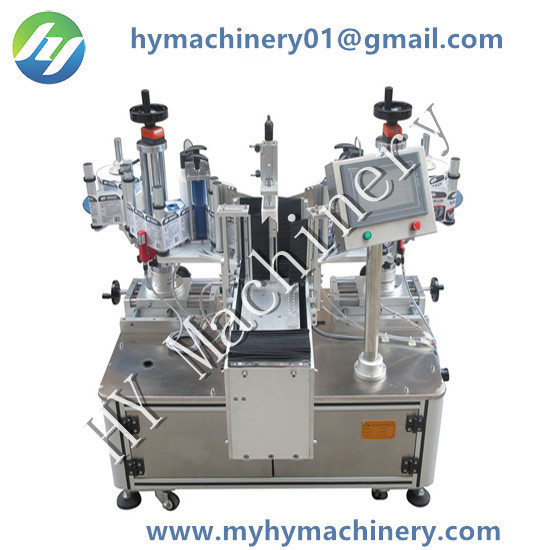

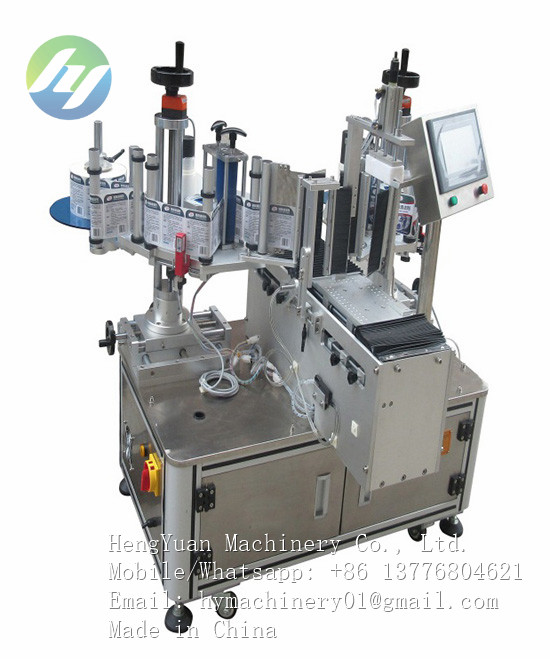

Semi automatic double sides labeling machine pictures

semi automatic two sides labeling machine

semi automatic double side labeling machine

laundry detergent bottle labeling machine

Application

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
Applicable products: products require labeling on flat surface, arc surface, circumferential surface, concave surface, convex surface and other type surfaces.
Application industries: widely used in cosmetics, food, toy, daily chemical, electronics, pharmaceutical and other industries.
Application examples: labeling on shampoo flat bottles, laundry detergent bottle, fabric soften bottle, wine bottle, honey bottle, edible oil, motor oil, flat boxes, square bottles labeling machine applicator etc.
