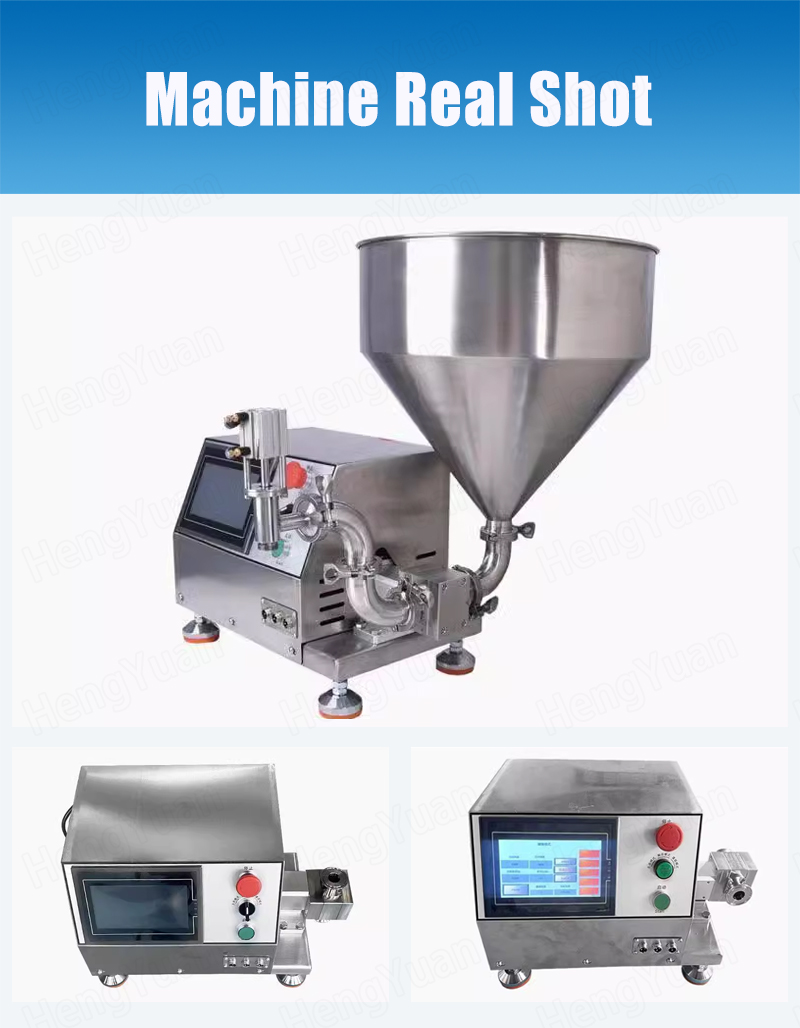

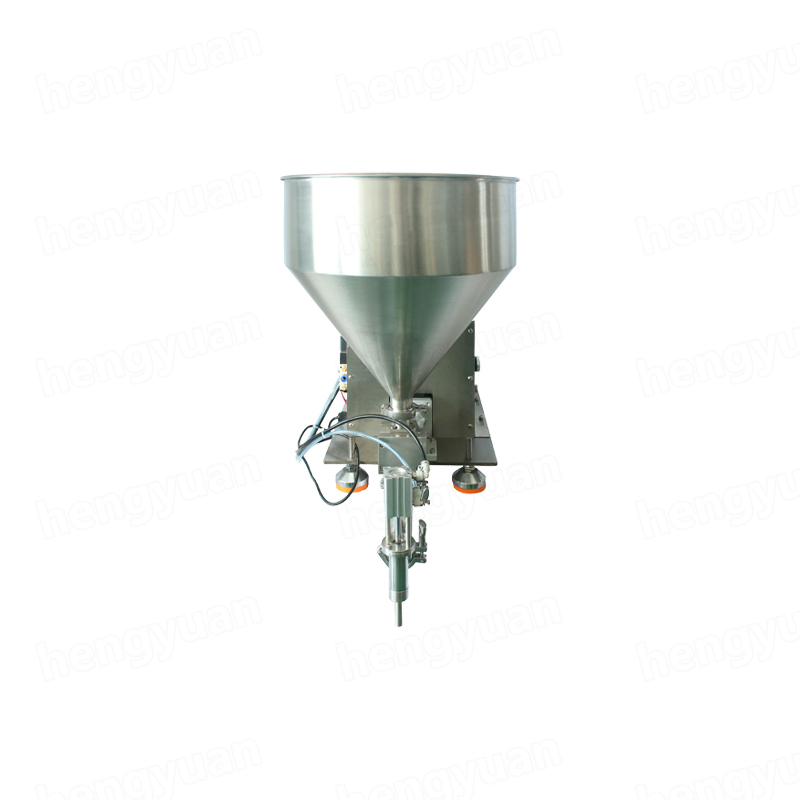

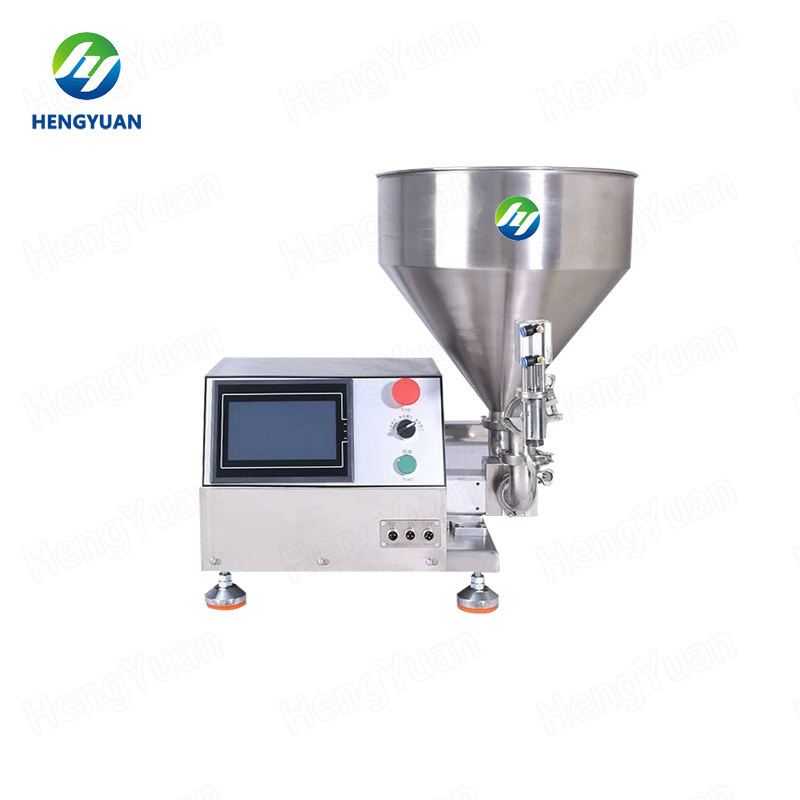

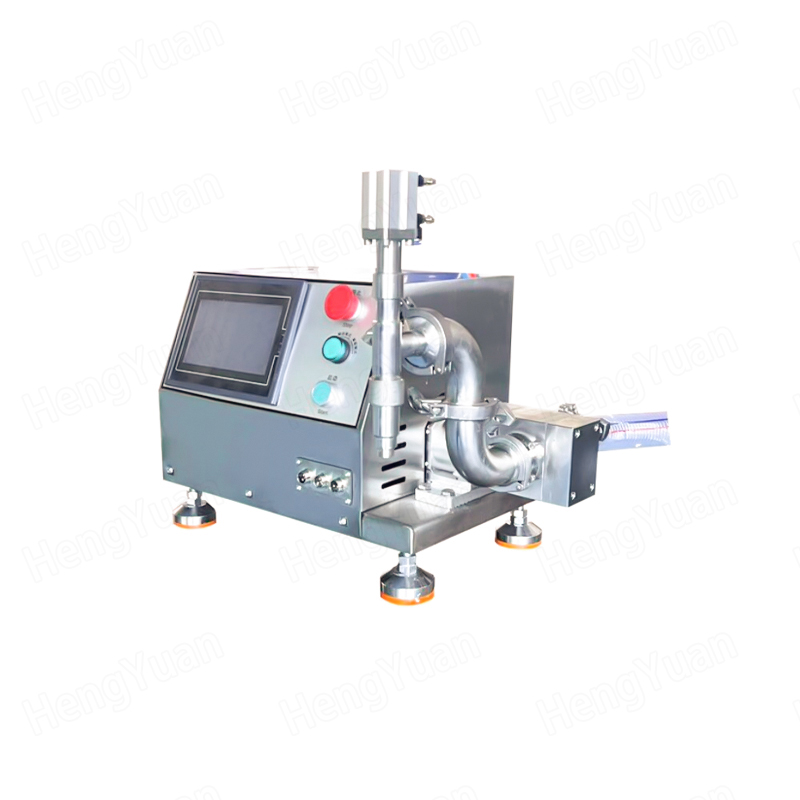

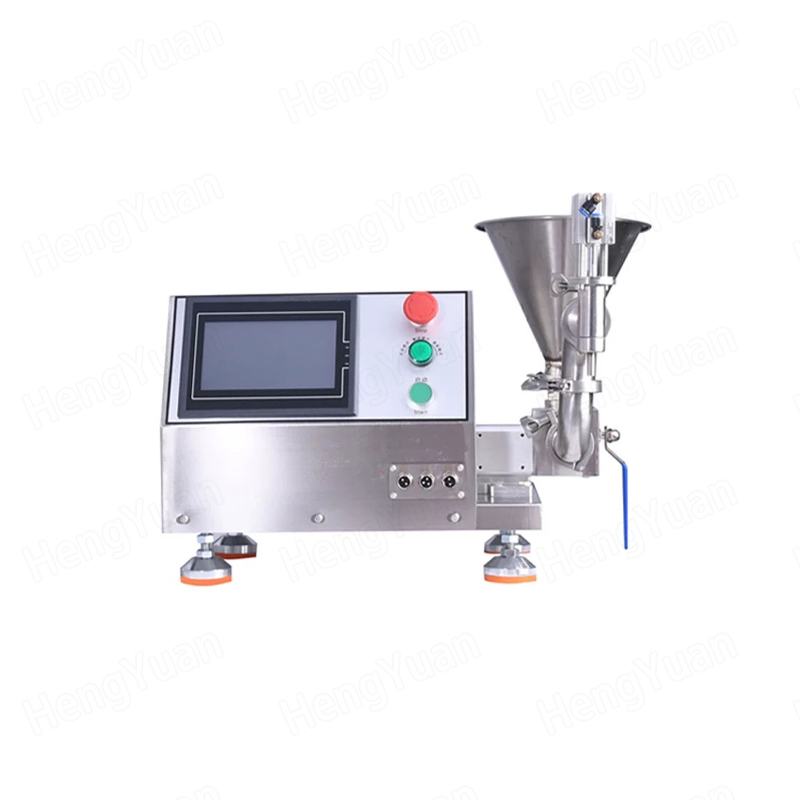

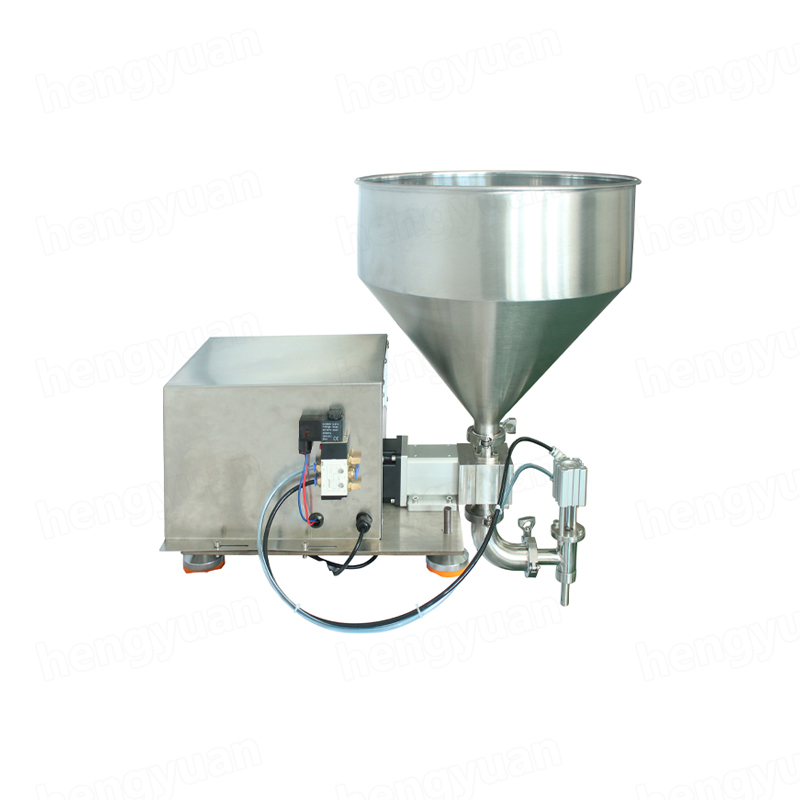

Semi-automatic Servo Gear Pump Liquid Filling Machine

Packaging Material：plastic, metal, glass
Key Selling Points：Easy to Operate, High-accuracy, Long Service Life
Keywords：Desktop liquid filler

BASIC INFO

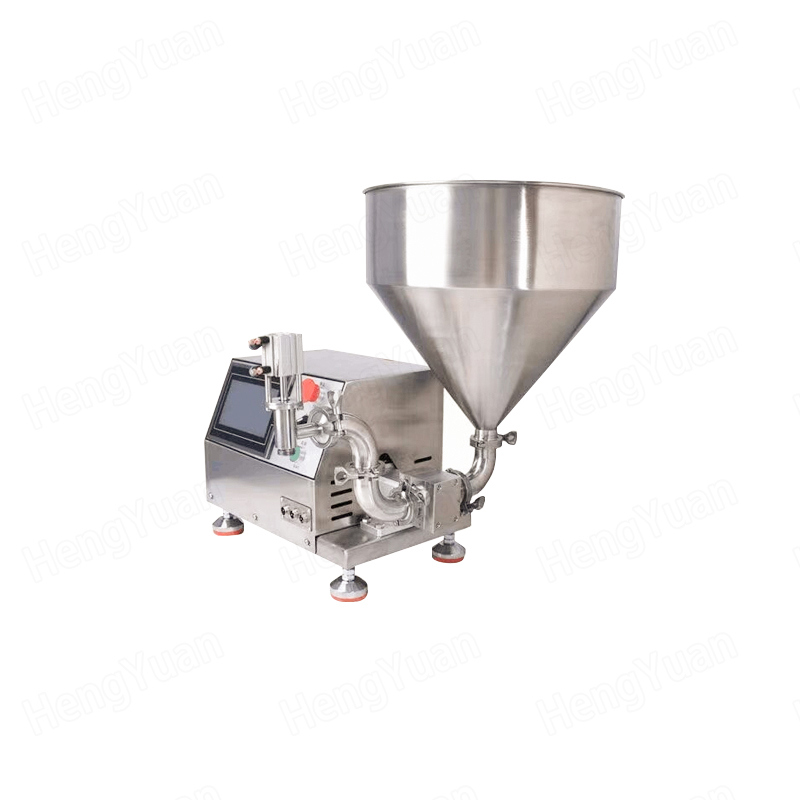

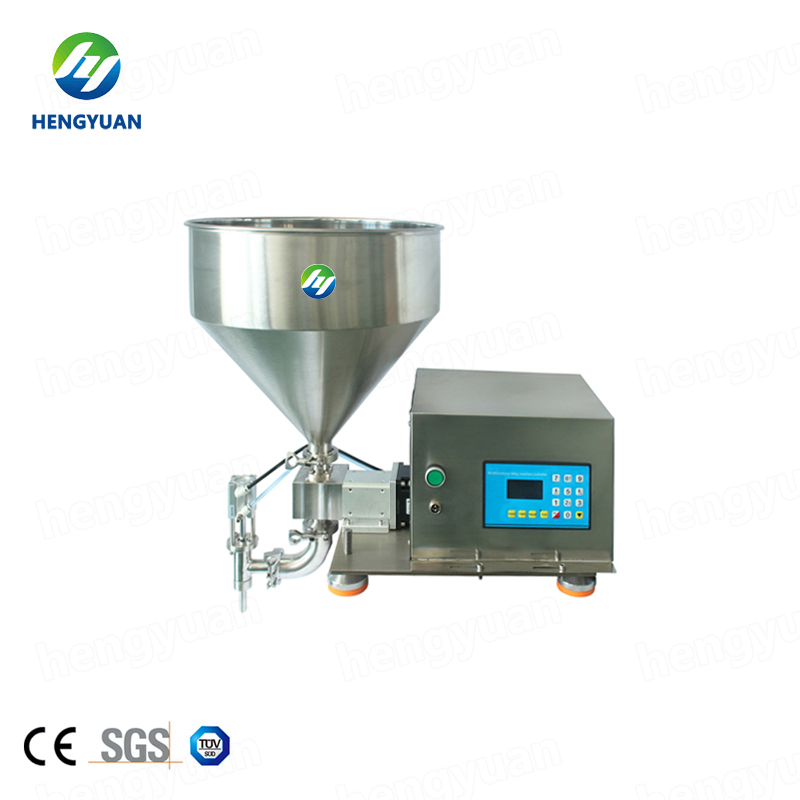

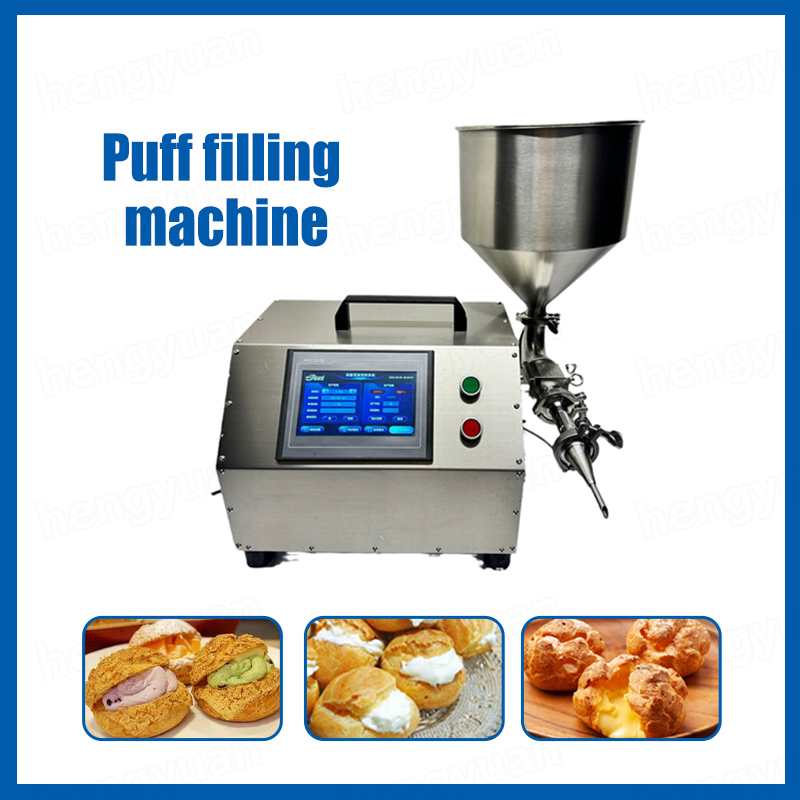

HYGP-S100 Semi-automatic Desktop Gear Pump Dosing filling machine

Product Introduction

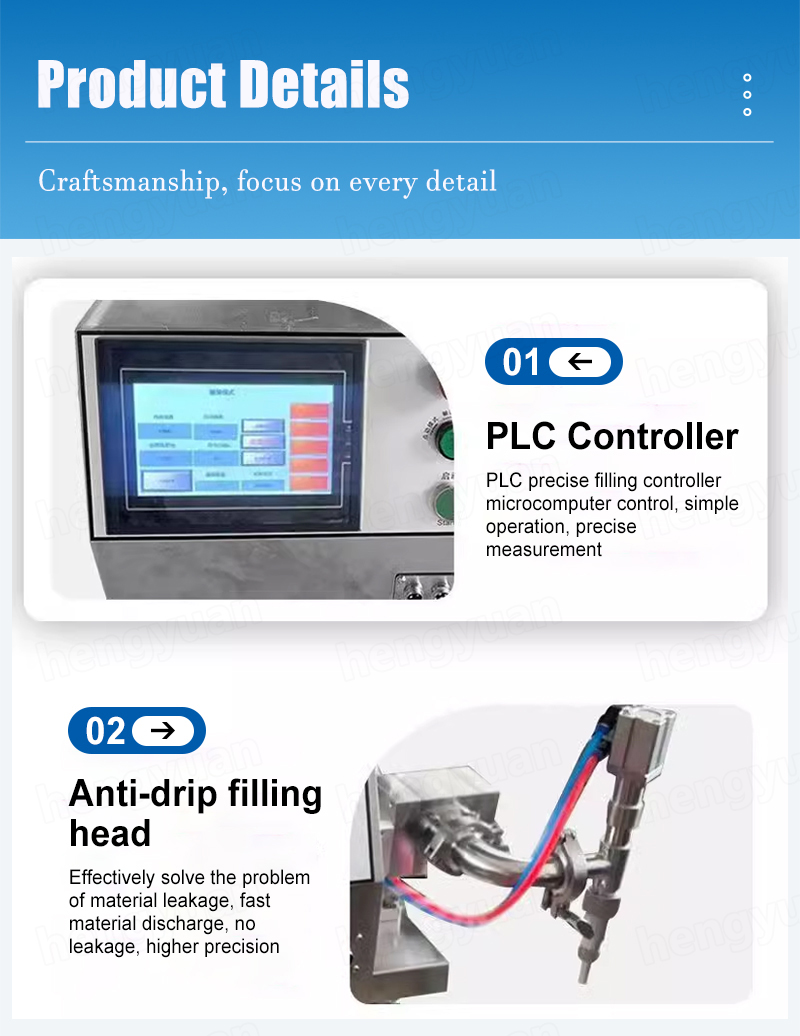

The gear pump filling machine has advantage of high accuracy when filling liquid and pure viscous liquid, cream, sauce, paste like peanut buffer, honey, noodle pulp, tomato paste etc. It is matched with servo motor and PLC to control filling. It is widely used in food, cosmetics, daily chemical industries.

Product Application
Food: Honey, jelly, jam, yogurt, cream, ice cream, eight treasure porridge, tomato paste, sesame paste, flour paste, maltose, mustard paste, mashed potatoes, bean paste, salad dressing, chocolate, yeast, butter, animal fat, cheese, cooking oil, juice, water, wine, liquor, etc.
Daily chemical products: Shampoo, shower gel, bath milk, soap, hand cream, hand washing liquid, perfume, sunscreen, water, nail polish, emulsion, moisturizing water, essence oil, toothpaste, cleansing cream, facial cream, essence oil, silica gel, rubbing treasure, detergent, laundry detergent, bleach and so on.
Other categories: Grease, lubricant oil, pet ration, Vaseline, cough syrup, industrial glue, white latex, glucose, gelatin, daphnetin, normal saline, paint, waterproof glue, etc.

HYGP-S100 Semi-automatic Servo Gear Pump Filling Machine application

Technical Parameters
Filling range	5ml-60000ml (customized)
Filling nozzle outer diameter	Customized according to bottle mouth
Filling accuracy	≤±0.5%
Filling speed	60L/Minute ( Others can be customized)
Control method	Pedal or automatic intermittent
Hopper Optional Function	Stirring, insulation, pressurization
Volume of Hopper	30L
Working air pressure	0.4-0.6Mpa
Operation voltage	220V or 110V, Single phase
Electricity consumption	0.75Kw

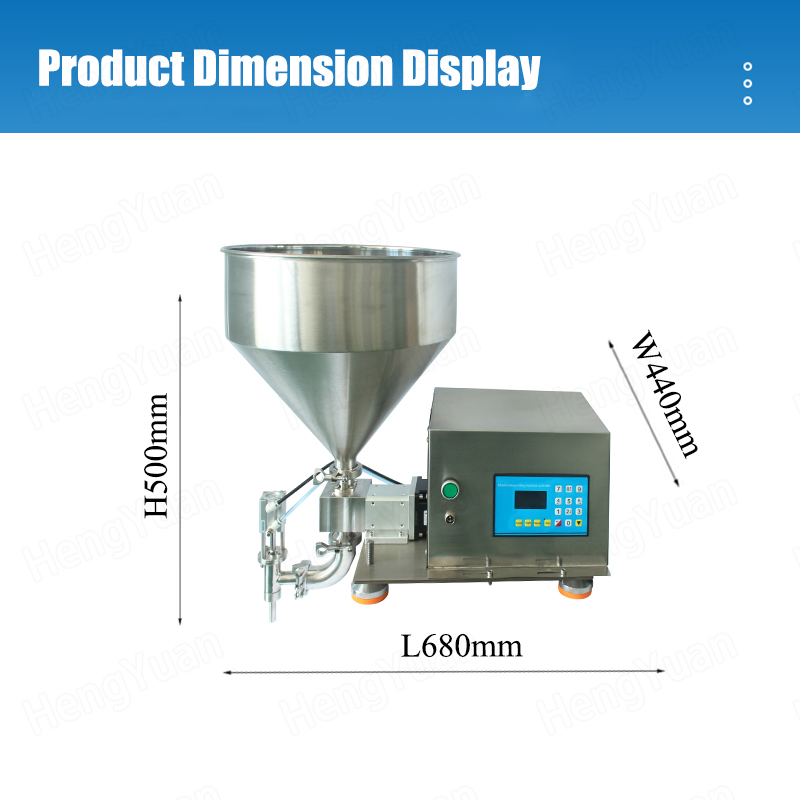

Machine size	684450cm

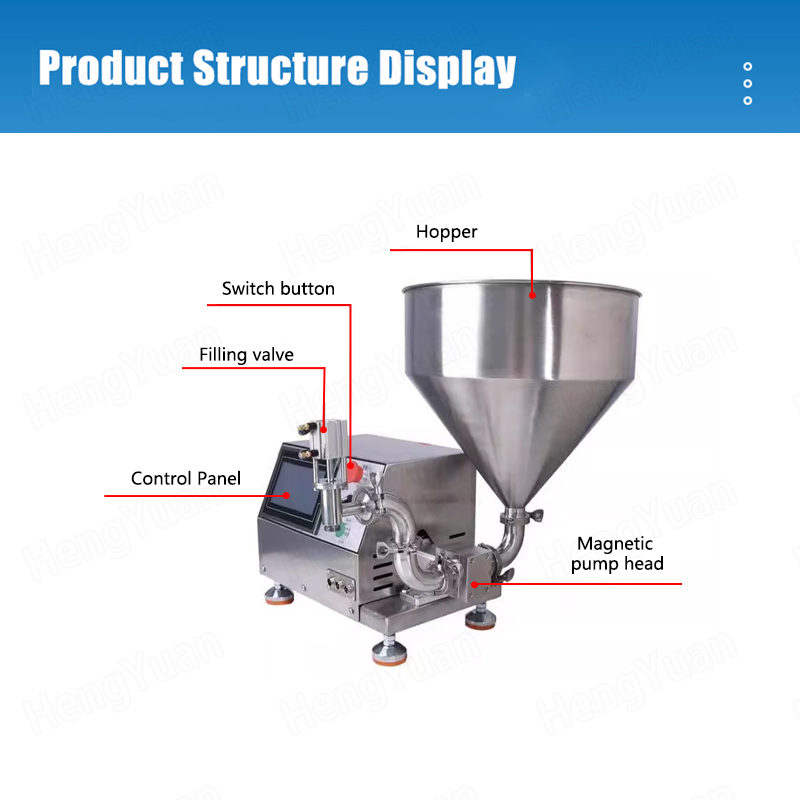

Main Features

1) Large filling range: 5-60000ml customized
2) Fast filling speed: servo motor drive, quick response, single second filling 500ml, minimum interval time 0.2 seconds

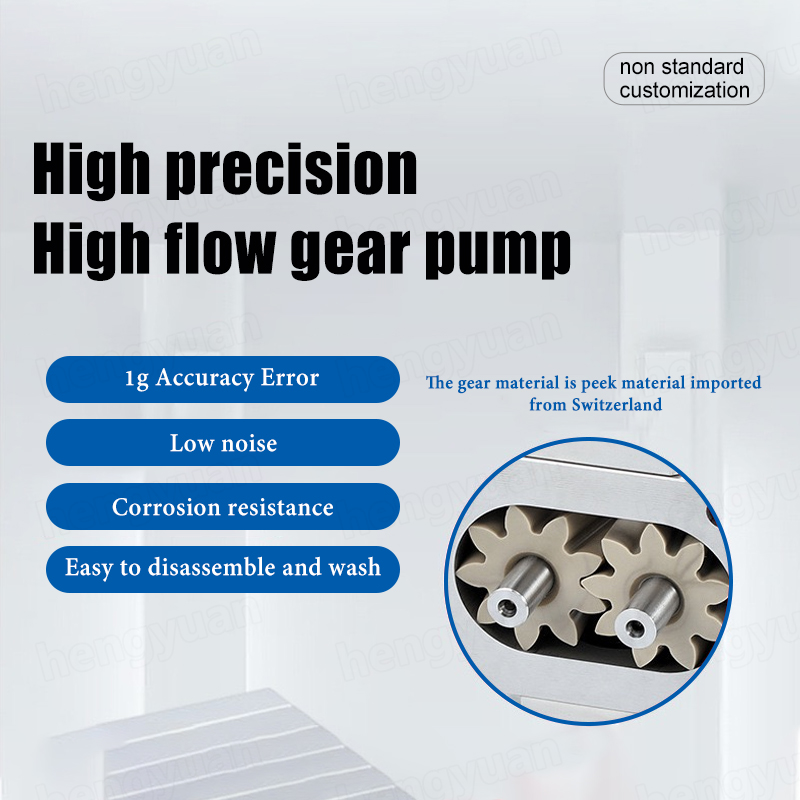

3) Wide range of application: unique pump head structure, can transport high viscosity pure materials. (As long as the flow can be filled).
4) No leakage, no pollution: optional Teflon and mechanical seal, work without leakage, flow parts 316 stainless steel material, food hygiene.
5) Easy to wash: pour clean water into the equipment and wash it with high-speed circulating water, which is convenient and sanitary.
