Professionally produce filling machines and packing machines

HengYuan Machinery Equipment Co., Ltd.

Automatic Clamping Round Barrel Labeling Machine

  • Model: HYCL-150S-B
  • Application: Big Round Objects, Big Round Bottles, Big Round Pails
  • Stick label quantity: 1,2
BASIC INFO
Technical description

Automatic clamping big round bottle sticker labeling machine is one of the round bottle labeling machines, be specially used to label, can be for one piece or double pieces, front and back label can be a flexible adjustment. It has a function to label for a tapered bottle. Select setting up position fixed mechanism, can be true for labeling at a fixed place to avoid the place do not want to be covered by the label. Can work separately or work connect with an assembly line or filling line.

With inspection of sensor, tracking label synchronously, ensure to labeling speed and smoothly. Host design labeling machines using imported and domestic advanced technology to improve and make a solution for instability of general domestic labeling. By optical fiber computer control, we can get the synchronization track. The output of labels is controlled by a stepper motor or servo motor. It can detect the objects and size of labels automatically. It is modern and advanced electronic mechanical integration equipment automatically controlled by microcomputer mode, with large LCD touch panel, display and memory devices containing dozens of memory devices. The operation is simple, the labeling is accurate, the performance is reliable, and there is low noise. Sticker labeling machine is easy to clean, not moldy, beautiful after labeling and of high production efficiency. It is strong and won't fall off on its own.


Main technical data

  • Labeling capacity: 0-25pcs/min
  • Labeling accuracy: ±1.0mm
  • Label material: Adhesive sticker, opaque or transparent label
  • The inner diameter of label roll: 76 mm
  • The outer diameter of label roll: 350mm (max)
  • The suitable size of label: length: 30mm ~ 500mm; width (base paper width): 30mm ~ 300mm;
  • The suitable size of labeling objects: Can be customized
  • Operating direction: Left or Right
  • Total Power: 1.5kw
  • Power supply: AC220V/110V, Single phase. Globally customized
  • Net weight: About 280kg
  • Machine size: 200(L)×90(W)×130(H)cm

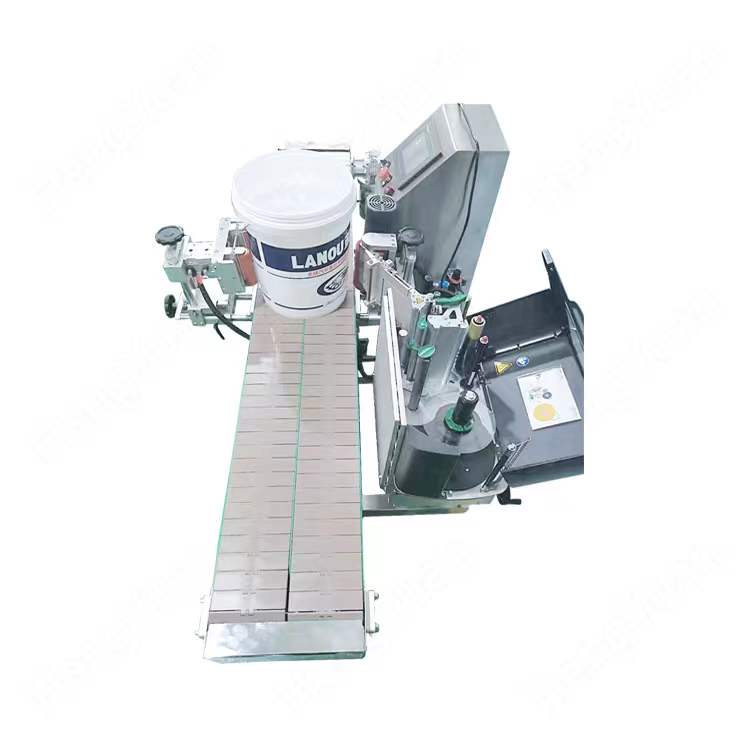

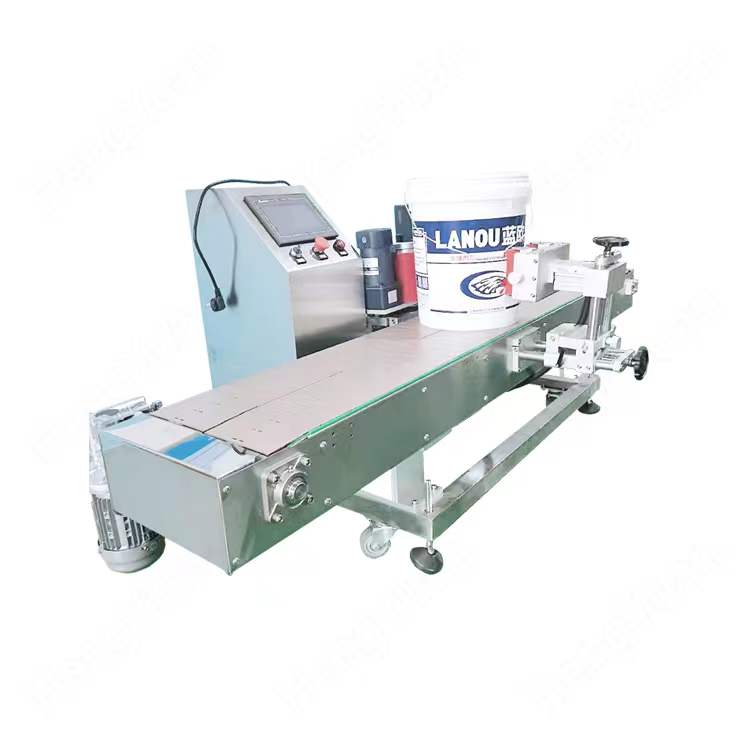

Chinese Best Automatic Big Round Barrel Labeling Machine Picture
21122201 HYCL-150S-B Automatic Clamping Pail Fixing Label Applicator
21122201 HYCL-150S-B Automatic Clamping Pail Fixing Labeling Machine
21122201 HYCL-150S-B Automatic Clamping Pail Sticker Labeling Machine

21122201 HYCL-150S-B Automatic Clamping Pail Sticker Label Applicator

HYCL-150S-B
 Automatic Positioning Big Round Pail Label Applicator Application


Automatic clamping round object sticker labeling application machine is suitable for labeling for labeling on round bottles with one, two, three, etc labels. It is widely used in bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.

For examples: Round pail labeling machine, 20L lubricant pail labeling machine, 18L liquid chemical round pail sticker label applicator, 10L paint pail fixing sticker label application machine. etc.


21122201 HYCL-150S-B Automatic Clamping Pail Fixing Label Application Machine


Click here to view Automatic Positioning Round Pail Labeling Machine running video on youtube
