Automatic Plane and Round Bottle Labeling Machine

  • MODEL: HYTB1-100TC
  • Application: Top surface and round bottle
  • Stick label quantity: 1,2,3
BASIC INFO
Technical description
Automatic round object top and side places sticker labeling machine can stick non-dry skicker label on the cylinder objects like bottle, jar, on body and cap top. With inspection of sensor, tracking label synchronously, ensure to labeling speed and smoothly. Host design labeling machines using imported and domestic advanced technology to improve and make a solution for instability of general domestic labeling. By optical fiber computer control, we can get the synchronization track. The output of labels is controlled by a stepper motor or servo motor. It can detect the objects and size of labels automatically. It is modern and advanced electronic mechanical integration equipment automatically controlled by microcomputer mode, with large LCD touch panel, display and memory devices containing dozens of memory devices. The operation is simple, the labeling is accurate, the performance is reliable, and there is low noise. Sticker labeling machine is easy to clean, not moldy, beautiful after labeling and of high production efficiency. It is strong and won't fall off on its own.

1. Basic use
It be matched to the workshop assembly line, flow through the product, on the plane, side labeling, online labeling, such as matching inkjet machine, flow through the object to achieve labeling, ink-jet one-step completion (ink-jet printer is not included in the labeling machine)

2. Scope of application
Applicable label: self adhesive label, self adhesive film, electronic supervision code, bar code, etc. Applicable products: round jars. Application Industry: widely used in packaging, food, toys, daily chemical, electronics, medicine and other industries.

3. Working process Core working principle:
The sensor detects the product passing, sends back the signal to the labeling control system, at the appropriate position, the control system controls the motor to send out the label and attach it to the product to be labeled position, the product flows through the labeling roller, the label is rolled over, and the labeling action of a label is completed; Operation process: product delivery - > product detection (or receiving external signal) - > top side plane labeling) - > round bottle side labeling.


Main technical data

  • Labeling capacity: 0-35pcs/min
  • Labeling accuracy: ±0.5mm
  • Label material: Adhesive sticker, opaque or transparent label
  • The inner diameter of label roll: 76 mm
  • The outer diameter of label roll: 300mm(max)
  • The suitable size of label: length: 15mm ~ 300mm; width (base paper width): 15mm ~ 150mm;
  • The suitable size of labeling objects: Can be customized
  • Operating direction: Left or Right
  • Total Power: 1.8kw
  • Power supply: AC220V/110V, Single phase. Globally customized
  • Net weight: About 300kg
  • Machine size: 220(L)×90(W)×140(H)cm


Chinese Best Automatic Round Jar Plane and Side Labeling Machine Picture

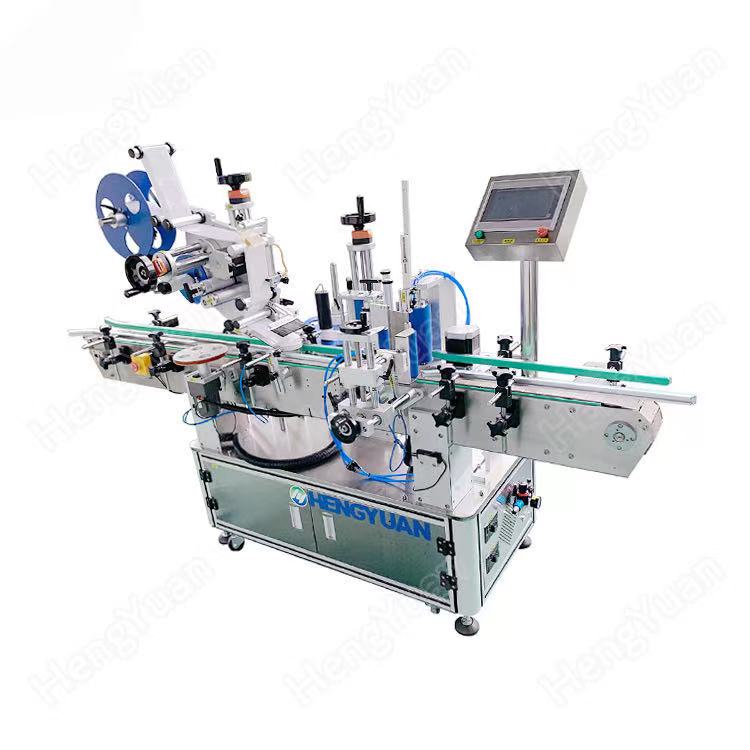

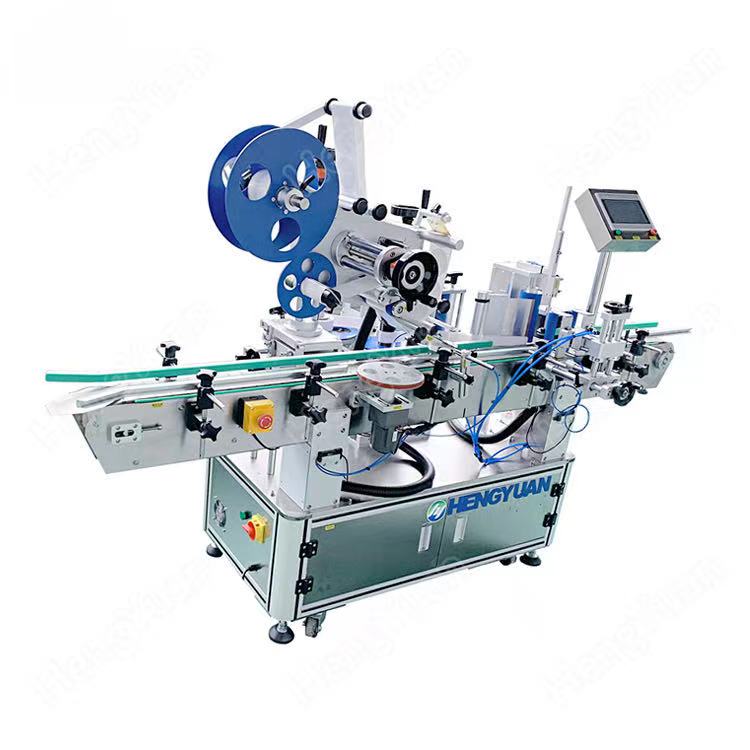

automatic plane and side labeling machine
automatic plastic jar top and side sticker label applicator
automatic honey glass jar sticker label applicator
automatic pesticide bottle top and side labeling machine
automatic tobacco plastic jar side and topside labeling machine





HYTB1-100TC Automatic Round Jar Plane and Side Labeling Machine details

automatic facial cream plastic jar label applicator

automatic plane labeling and round bottle labeling monobloc machine



Application

Automatic desktop plane sticker labeling machine is suitable for labeling for labeling on top side It is widely used in bottling of daily chemical, agricultural chemical, food, personal care and pharmaceutics industry.



For examples: Cap top, Cover top, SD card labeling, notebook, power supply, battery labeling, Box Cap Top, etc Label application machine.

automatic round bottle labeling machine
