Automatic Gravity Flowing Bottle Filling Machine

  • MODEL: HYGF-1000
  • Nozzles No.: 1-20pcs customized
BASIC INFO
Technical Description

Inline Gravity Type Bottle Filling Machine is normal pressure filling machine. Under control through PLC and servo motor, it is easy for operation and change bottles without changing any elements. Through controlling filling time, we can change the filling volume according to different bottles and request. The whole machine is made of advanced stainless steel and anti-corrosion materials. It is suitable for the filling requirements of bottles (containers) with different shapes and other containing except liquid and gas containing.
Automatic Gravity Type Liquid Filling Machine is mainly used for bottling of daily chemical, agricultural chemical and pharmaceutics industry.

Main Technical Data
  • Number of filling heads: 4,6,8,10,12,16,20 filling heads optional
  • Filling range: 40-1000ml(customized to 5L)
  • Diameter of bottle: Ф35mm~Ф100mm
  • Filling accuracy: ≤+1%
  • Output: 3000-6000BPH (customized)
  • Air resource: 0.6-0.8MPa
  • Air consumption: 200L/h
  • Power: 0.5KW/AC220/50Hz customized
  • Weight: 500kg
  • Size(LxWxH): 2000x1050x2300mm

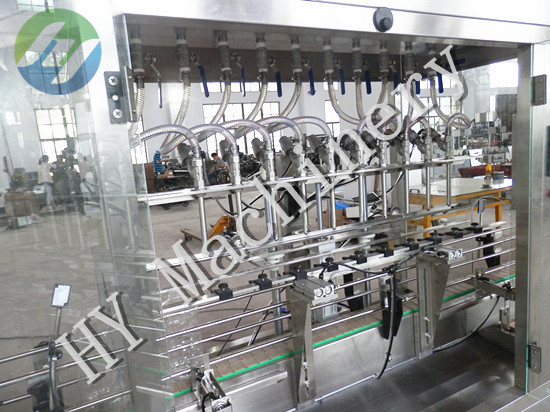

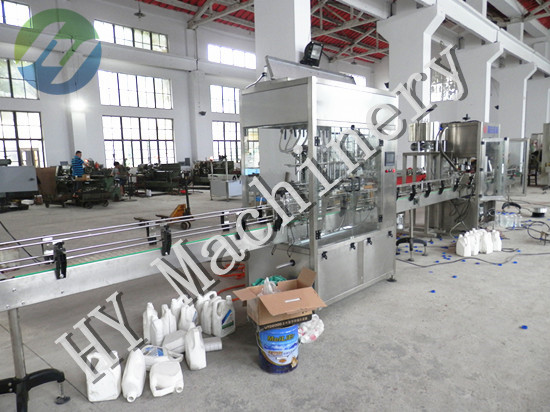

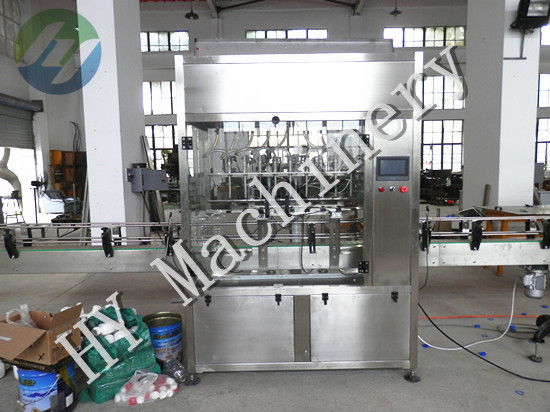

Automatic Inline Gravity Type Bottle Filling Machine Pictures






Automatic Inline Gravity Type Bottle Filling Machine is
suitable for below bottle samples

Liquid mosquito repellent incense filling machine, soy sauce filling machine, vinegar filling machine, wine filling machine, liquor filling machine, alcohol filling machine, iodophor filling machine, Antifreeze filling machine, bath of glass filling machine, Pesticides filling machine, farm chemical filling machine,
 emulsifiable concentrate filling machine





Click here to view Automatic Inline Piston Filling Machine running video on YouTube

https://youtu.be/GnqAIHjFbS0




Contact us to get more information and quotation
  • Email : sales@myhymachinery.com
  • Skype: hymachinery01@hotmail.com
  • Mobile: +8613776804621
