Automatic Star Wheel Single Head Fetching Type Capping Machine

  • MODEL: HYXG-200F
  • Capping Head No.: 1pc
  • Working Method: Cap Unscrambling Star Wheel Fixed Position Fetch and Screw Cap
BASIC INFO

Technical Description

Automatic Star Wheel Single Head Fetching Type Capping Machine adopts the design of vibrating cap sorter, elevator cap sorter and fetching cap supplier. The capping head takes the cap and then capping which guarantee the qualification rate of capping. It can realize the capping of plastic caps, aluminum caps and press-in type caps in changing different capping device. It is easy to replace and operate. Capping for different containers can be replaced in a short period of time. The capping machine can be used as a single machine or used in the filling line.
Automatic Star Wheel Single Head Fetching Type Capper applies to the capping for chemicals, medicine, food, cosmetics and cleaning products.


Main Technical Data
  • Maximum capacity: ≤2000B/H
  • Applicable cap diameter: φ15-φ50mm
  • Suitable bottle diameter: φ30-φ90mm
  • Suitable for bottle height: 80-250mm
  • Total Power: 2 Kw
  • Power supply: 220V/380V 50Hz
  • Air supply: 0.5-0.7Mpa
  • Dimension: 2400x1500x2000mm
  • Weight: 400 kg

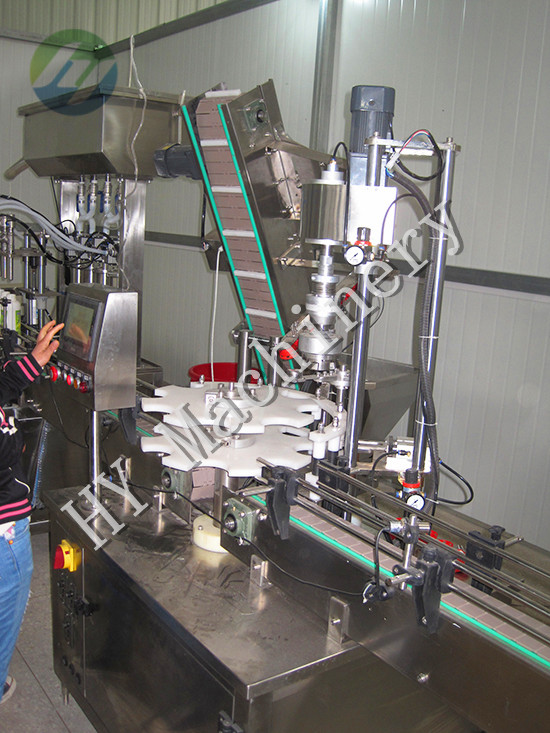

Automatic Star Wheel Single Head Fetching Type Capper Pictures





Automatic Star Wheel Single Head Fetching Type Capper is suitable for below bottle samples




Click here to view Automatic Star Wheel Single Head Fetching Type Capper running video on YouTube

https://youtu.be/l_QPX6aD6N4
